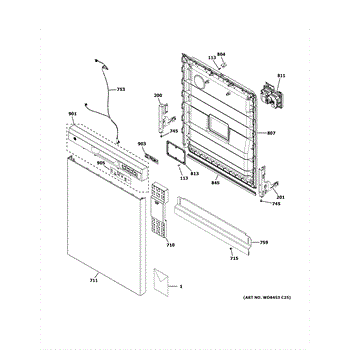

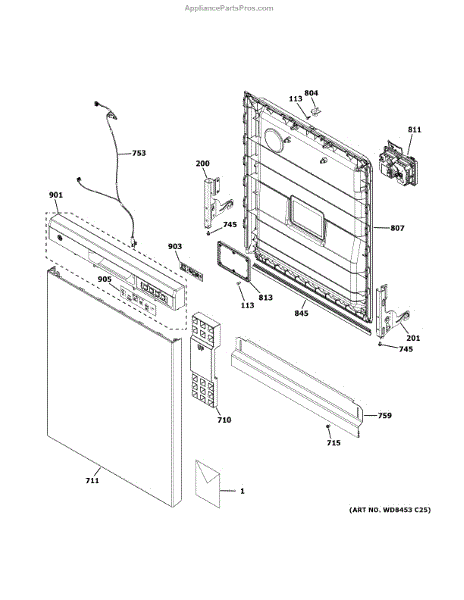

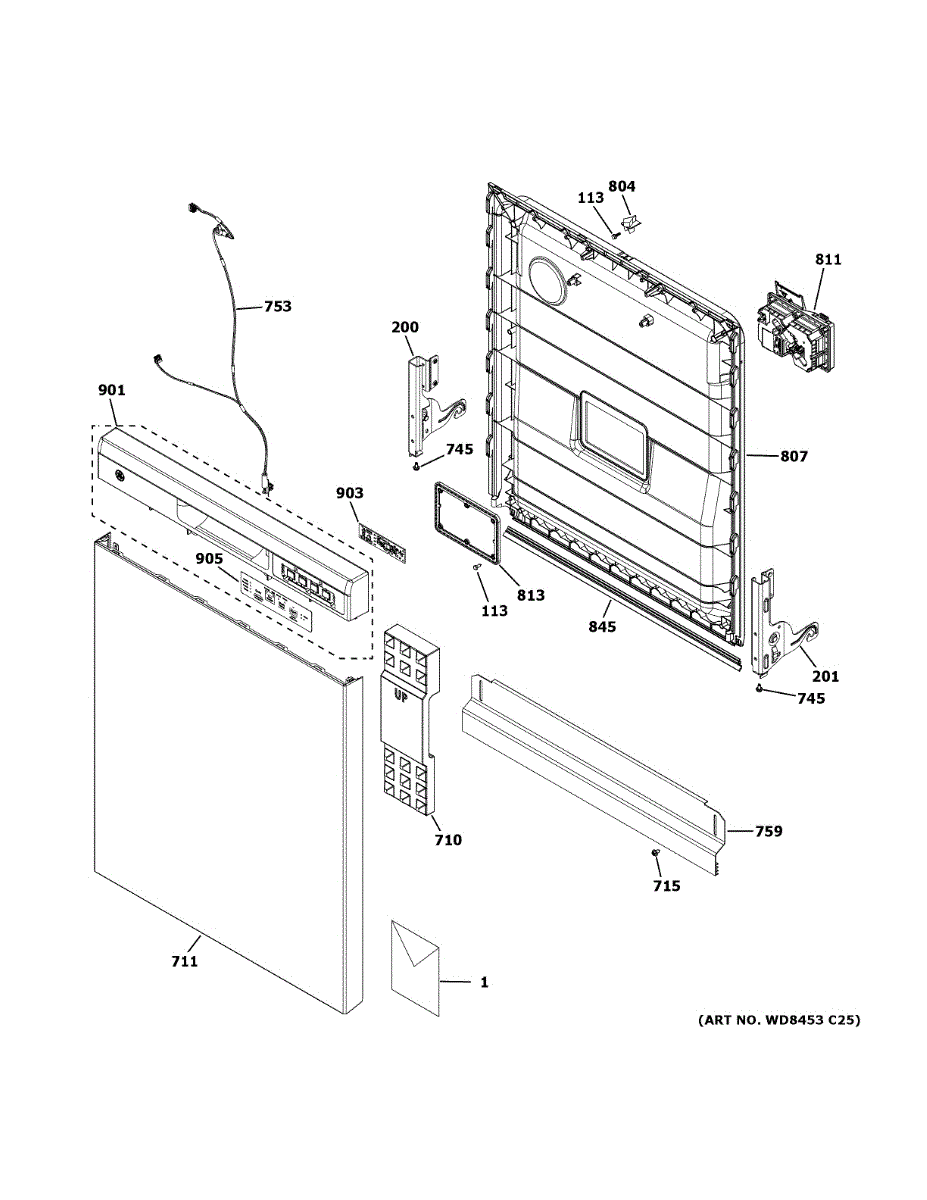

Parts for Ge GDF511PGR5BB: Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly Left is an OEM component specifically designed for GE dishwashers. This door hinge assembly is located on the left side of the dishwasher door and is responsible for securely and smoothly mounting the door while enabling its opening and closing motion.

Causes of a bad Door Hinge Assembly Left include loose or stripped screws, worn out bearings or bushings, or bent or fatigued metal from repeated use.

Symptoms of a bad door hinge assembly include:

• The door not latching or sealing properly
• Difficulty opening and closing the door
• Excessive noise or vibration from the door
• Misalignment that causes the door to rub or interfere

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Hinge Assembly right is an OEM component specifically designed for GE dishwashers. This door hinge assembly is located on the right side of the dishwasher door and is responsible for securely and smoothly mounting the door while enabling its opening and closing motion.

Causes of a bad Door Hinge Assembly Right include loose or stripped screws, worn out bearings or bushings, or bent or fatigued metal from repeated use.

Symptoms of a bad door hinge assembly include:

• The door not latching or sealing properly
• Difficulty opening and closing the door
• Excessive noise or vibration from the door
• Misalignment that causes the door to rub or interfere

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a machine screw used to secure dishwasher components. The 10-32 thread and 3/8-inch length with an integrated hex washer head provide a firm, vibration-resistant hold to keep parts properly fastened.

• Secures brackets, panels, or internal assemblies in the dishwasher
• Helps prevent looseness, rattling, or misalignment during operation
• Common symptoms of a missing/stripped screw include panel movement, vibration, or loose mounting points

• Disconnect power and shut off water before servicing
• Use the correct nut driver or socket to avoid stripping the head
• Replace any damaged or missing screws in matching locations
• Do not overtighten; snug to manufacturer's torque guidance when available

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Toe Kick Plate is an OEM component compatible with GE dishwashers. It is an exterior part that covers the bottom front portion of the dishwasher, protecting the unit from impact and preserving its aesthetic by continuing the clean lines up front.

Over time, through repeated impact from cabinetry and foot traffic, the plate's material integrity can deteriorate.

Causes of a bad toe kick plate are generally normal wear and tear from use in a busy kitchen environment. Exposure to moisture or cleaning chemicals may also affect its appearance or functionality.

Some signs a replacement is needed are:

• Dents, dings, or cracks in the material
• Loose or improperly fitting attachment to the dishwasher
• Ripped or missing sections of the plate

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models. A new plate upgrades the look of the dishwasher and shields it from future damage.


The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent Module is an OEM component specifically designed for GE dishwashers. Located inside the detergent dispenser assembly, this module plays an important role in properly releasing detergent at the selected time during wash cycles. The detergent module uses an electronic actuating motor to open detergent ports based on cycle settings.

Causes of a faulty detergent module can include mineral buildup obstructing detergent channels or a malfunctioning electronic motor.

Symptoms of a defective detergent module include:

• Improper or incomplete dispensing of detergent during cycles
• Dishes not receiving sufficient cleaning from detergent
• Leaks or residue left in the dispenser area
• Audible grinding sounds from the detergent dispenser

Regular maintenance helps flush out mineral deposits. Replace yours today with this genuine GE module to restore full functionality to the dispenser system.

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models.

This detergent cup cover attaches to the dishwasher's dispenser to seal the detergent compartment until the control releases it. Replacing a damaged cover prevents early washout and restores consistent detergent release for reliable cleaning results.

• Covers and seals the dispenser's detergent cup
• Opens at the proper time to release detergent into the wash
• Helps prevent detergent leaking or washing out too early
• Typical symptoms: cup won't stay closed, poor cleaning, visible damage to the cover/hinge

• Disconnect power to the dishwasher before servicing
• Handle hinge tabs carefully; transfer and tension the existing spring/pin if your model uses them
• After installation, close and manually release the cover to ensure smooth operation before running a cycle

The Lower Door Gasket is an OEM part for GE dishwashers. It is placed at the bottom of the dishwasher door to create a water-tight seal during operation, preventing leaks and ensuring that water remains within the unit during the wash cycle.

Symptoms of a bad Lower Door Gasket include:

• Water leaking from the bottom of the dishwasher door
• Signs of mold or mildew near the gasket area
• Frequent puddles or drips underneath the door after a wash cycle
• The gasket becoming hard, cracked, or visibly damaged

Causes of a bad Lower Door Gasket can include regular wear and tear, exposure to harsh detergents and high temperatures, or improper installation that leads to uneven sealing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Factory-configured user interface control board for the dishwasher's control panel. It interprets button inputs, powers the panel lights, and sends commands to the main control. Replace a failed UI board to restore a responsive panel and reliable cycle selection.

• Reads touchpad/button inputs and communicates selections to the main control
• Drives indicator LEDs and panel feedback
• Enables proper operation of Start/Cancel, options, and control lock features
• Common failure signs: unresponsive panel, no lights or beeps, erratic button response, or a unit that won't start despite power

• Disconnect power at the breaker before servicing; verify no voltage at the appliance
• Access the UI board by removing the inner door panel/trim on most models
• Transfer any brackets, shields, or foam insulators from the old board; reconnect harnesses firmly
• Handle electronics with ESD care; route wiring to avoid pinches and test all keys after reassembly

This black control panel overlay is a direct-fit replacement that restores the front graphics and button surfaces on the oven/range control console, improving readability and protecting the underlying electronics from wear. What it does

• Replaces a cracked, peeling, faded, or damaged control panel overlay so markings and buttons are readable.
• Protects the underlying control board and switches from spills, grime, and wear.
• Restores tactile surfaces and printed labels to help accurate operation of controls.
• Helps resolve symptoms such as faded or missing button legends, peeling film, or cosmetic damage to the control fascia.

• One control panel overlay (black), as shown.

• Safety first: disconnect power to the appliance (unplug or turn off circuit breaker) before starting.
• Remove any backguard or console trim to access and replace the overlay; handle fragile plastic parts carefully.
• Avoid using solvents or abrasive cleaners on the new overlay; test all functions after reassembly.
• If control buttons or electronics beneath are damaged, inspect and replace those components separately—this overlay replaces the face, not internal switches or the control board.
