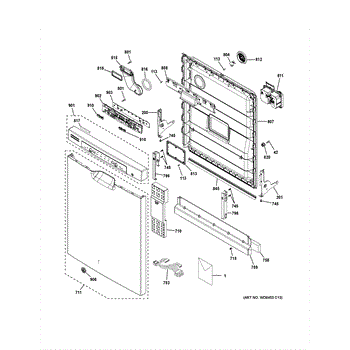

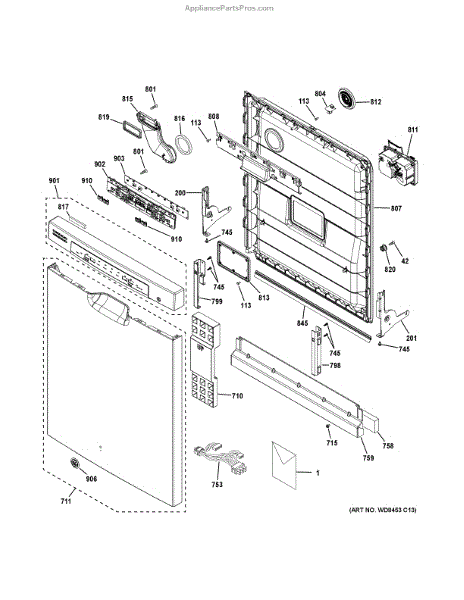

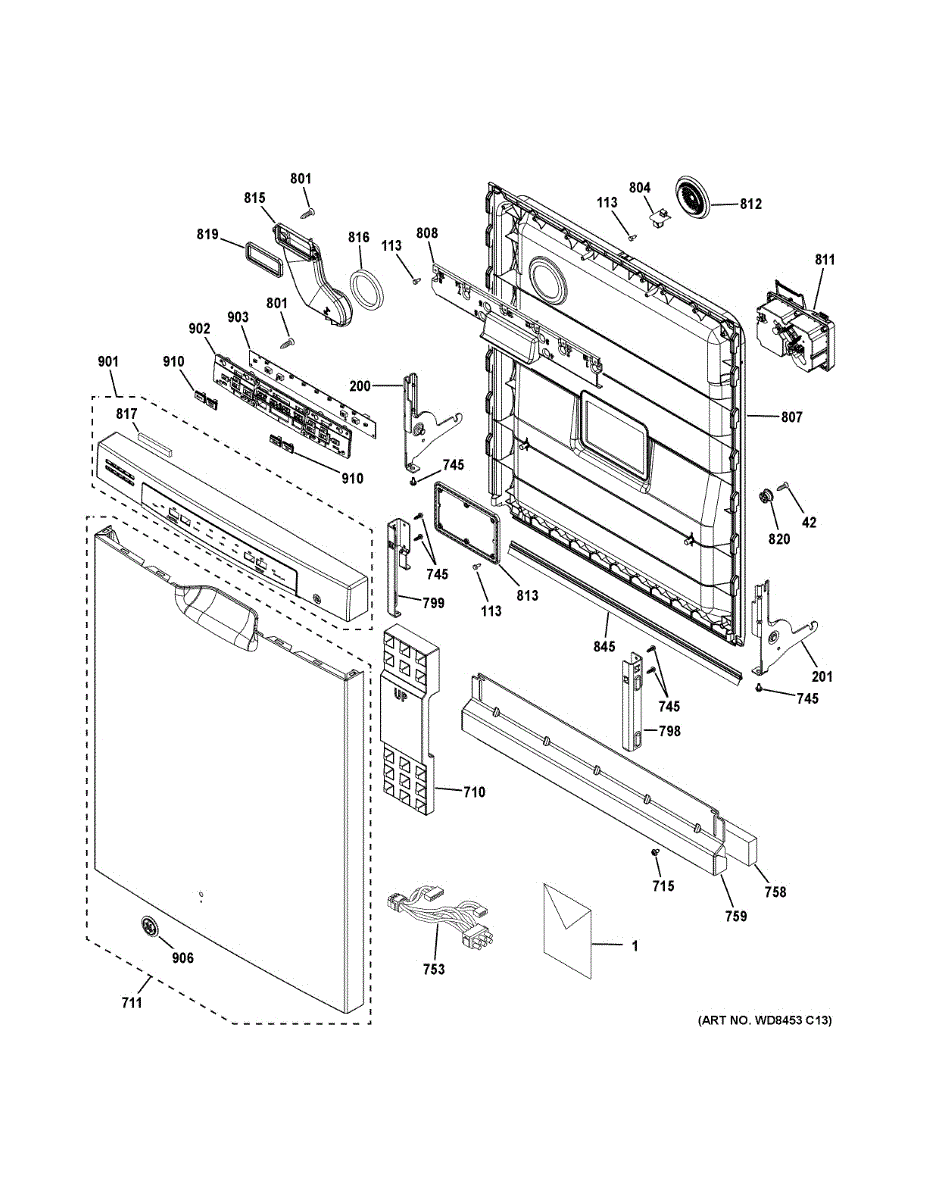

Parts for Ge GDF520PSF6SS: Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures panels, brackets, and hardware in your appliance. Replace when stripped, rusted, or missing to prevent looseness and vibration. Verify fit.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Left side door hinge assembly for dishwashers. Mounts to the lower cabinet and supports the door during opening and closing. Replace if broken or worn.

Note: Right side hinge

Fix door leaks or excessive noise with this dishwasher door foam block. Cushions and seals the door to prevent vibration and restore a tight fit.

Outer door panel assembly for dishwashers. Forms the external front surface of the door. Replace if cracked, dented, scratched, or to change color finish.

Hex washer head screw for securing dishwasher brackets, panels, and internal assemblies. Replace if stripped, corroded, or missing during repairs.

Hex washer head screw for dishwasher assembly. Secures internal components and panels. Replace if stripped, corroded, or missing during repairs.

Fixes dishwasher not starting, control panel issues, or door latch failures. This door wiring harness assembly restores electrical connections. Moderate DIY.

Replace your missing or damaged dishwasher toe kick insulation panel. Blocks drafts and protects internal components. Easy DIY installation repair.

Note: Right side hinge

Left side door hinge assembly for dishwashers. Mounts to the lower cabinet and supports the door during opening and closing. Replace if broken or worn.

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace your dishwasher's door pocket handle. This handle installs on the interior door and is needed when the original is cracked, broken, or missing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishwasher detergent dispenser won't open or latch? This module controls soap release during wash cycles. Moderate DIY repair—30 minutes, door removal.

Gray dishwasher vent cap that releases moist air during the dry cycle. Replace if cracked, damaged, or causing leaks to restore proper steam venting.

This component covers and protects the detergent compartment inside your dishwasher door. Located on the interior door panel, it ensures proper detergent release during wash cycles. Replace if the plate is cracked, warped, or prevents the dispenser door from closing securely.

Fix poor drying or excess moisture in your dishwasher with this replacement vent. Restores proper airflow and heat exhaust for non-fan models.

Controls airflow in your dishwasher door. Replace if cracked or if you see leaking from the door vent area. Confirm fit with your model number.

Foam backing that installs behind the dishwasher's front control panel. Replace if torn, compressed, missing, or deteriorated to restore proper fit.

Seals the dishwasher door vent to prevent leaks and maintain moisture control. Replace if worn or causing steam leaks. Confirm fit with your model.

Seals the bottom of your dishwasher door to prevent water leaks during wash cycles. Replace if you notice pooling water on the floor. Confirm fit with your model.

Control panel lights dim or hard to see? This dishwasher light pipe guides indicator light to the front bezel for bright, centered display. Simple fix.

Dishwasher won't start or has no lights? This control board manages cycles and operations. DIY-friendly repair—located in the door panel.

This is a painted button tree assembly that forms part of the control panel on a dishwasher. It contains the individual push buttons used to select wash cycles and settings. Replace this part if the buttons are cracked, discolored, stuck, or no longer engage properly when pressed.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
