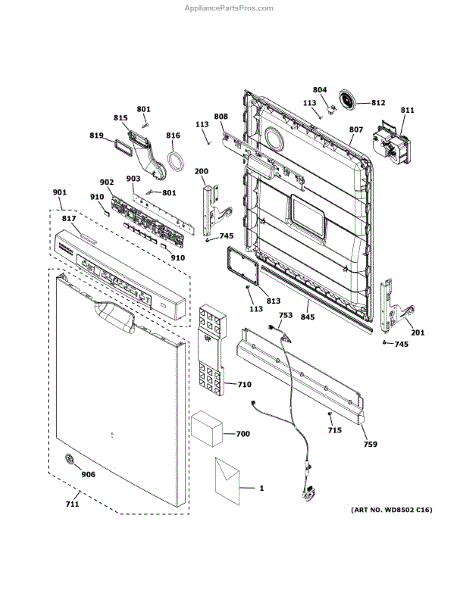

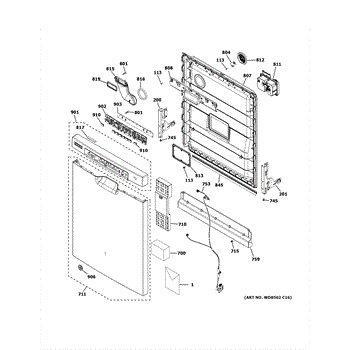

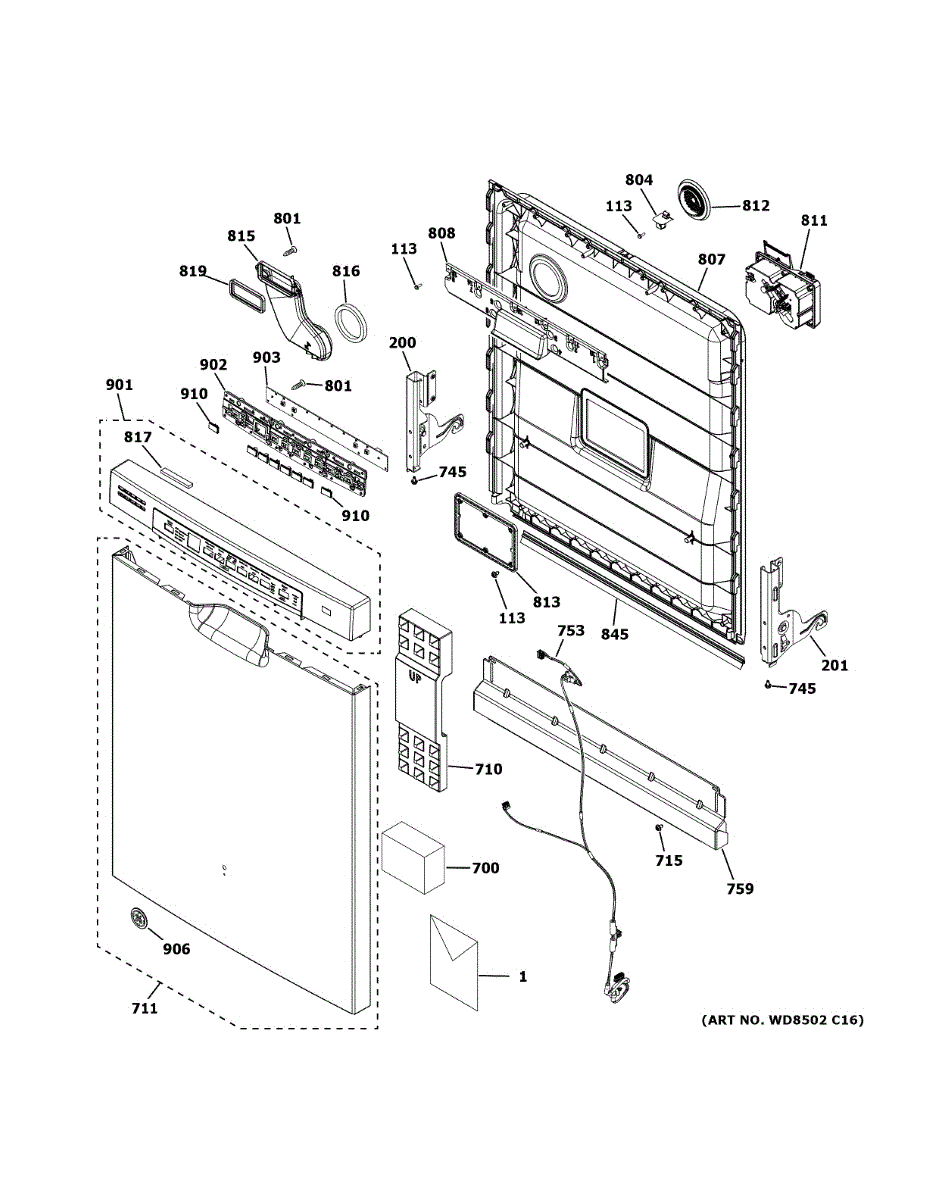

Parts for Ge GDF630PGM6BB: Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly Left is an OEM component specifically designed for GE dishwashers. This door hinge assembly is located on the left side of the dishwasher door and is responsible for securely and smoothly mounting the door while enabling its opening and closing motion.

Causes of a bad Door Hinge Assembly Left include loose or stripped screws, worn out bearings or bushings, or bent or fatigued metal from repeated use.

Symptoms of a bad door hinge assembly include:

• The door not latching or sealing properly
• Difficulty opening and closing the door
• Excessive noise or vibration from the door
• Misalignment that causes the door to rub or interfere

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Hinge Assembly right is an OEM component specifically designed for GE dishwashers. This door hinge assembly is located on the right side of the dishwasher door and is responsible for securely and smoothly mounting the door while enabling its opening and closing motion.

Causes of a bad Door Hinge Assembly Right include loose or stripped screws, worn out bearings or bushings, or bent or fatigued metal from repeated use.

Symptoms of a bad door hinge assembly include:

• The door not latching or sealing properly
• Difficulty opening and closing the door
• Excessive noise or vibration from the door
• Misalignment that causes the door to rub or interfere

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door foam block cushions and seals the appliance door, helping reduce vibration and prevent drafts or leaks where the door meets the cabinet. It replaces worn or damaged foam to restore a tight, even door fit and quieter operation. What it does:

• Replaces the foam block located on the appliance door to restore proper sealing and contact
• Helps reduce noise and vibration caused by door movement or uneven contact
• Minimizes air or water leakage at the door seal when original foam is compressed or degraded
• Simple, passive component—no electrical function

• Install by removing the door trim or access panel per your model's service instructions
• Ensure the mounting surface is clean and dry before placing the foam for best adhesion and fit
• Use basic hand tools; avoid forcing the foam into place to prevent tearing
• Disconnect power and follow manufacturer safety guidance before servicing the appliance

This is a machine screw used to secure dishwasher components. The 10-32 thread and 3/8-inch length with an integrated hex washer head provide a firm, vibration-resistant hold to keep parts properly fastened.

• Secures brackets, panels, or internal assemblies in the dishwasher
• Helps prevent looseness, rattling, or misalignment during operation
• Common symptoms of a missing/stripped screw include panel movement, vibration, or loose mounting points

• Disconnect power and shut off water before servicing
• Use the correct nut driver or socket to avoid stripping the head
• Replace any damaged or missing screws in matching locations
• Do not overtighten; snug to manufacturer's torque guidance when available

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

This user interface harness connects the oven/dryer control console to the main wiring, restoring reliable signal and power between the control and components. It's used when the console wiring is damaged or intermittent. What it does:

• Routes signals and power from the control panel to the appliance's main control and components
• Replaces frayed, burnt, or broken console wiring that can cause intermittent or non-working controls
• Helps fix symptoms such as unresponsive buttons, faulty display/LED behavior, or inconsistent cycle starts
• Preserves factory routing and connector fit for correct electrical connections

• One user interface wiring harness assembly

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or damage
• Handle connectors gently and match keyed plugs; do not force connections
• Inspect mating connectors on the control and console for damage before installing

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent Module is an OEM replacement part for GE dishwashers. It is designed to dispense the correct amount of detergent at the appropriate times during the wash cycle, ensuring that dishes are cleaned effectively. The module holds the detergent and releases it into the dishwasher when needed, contributing to the overall performance and efficiency of the appliance.

Causes of a bad detergent module can include buildup of detergent residues, which can clog the dispenser mechanism, or damage to the module's door or latch, preventing it from opening correctly. Additionally, electrical faults or wear and tear over time can impair the module's functionality, leading to ineffective detergent dispensing.

Symptoms of a bad detergent module include:

• The detergent not dispensing or remaining in the compartment after the wash cycle
• Dishes not being cleaned properly due to insufficient detergent use
• The module door not opening or closing correctly
• Leaks or drips from the detergent module area
• Error codes related to the dispensing system

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This gray dishwasher vent releases moist air from the tub during the dry cycle on hybrid-dry models. Replacing a damaged vent helps control steam and condensation for more consistent drying and a cleaner door area.

• Directs steam out of the tub during hybrid drying
• Helps reduce interior condensation for improved drying results
• If cracked, warped, or loose, you may notice steam escaping at the door, moisture on the console, or dishes that stay wet
• Visible damage or discoloration around the vent area can indicate replacement is needed

• Disconnect power at the circuit breaker before servicing
• Access is typically through the inner door panel; handle sharp edges and note original orientation
• Ensure the vent seats evenly and fasteners are secure without overtightening
• Run a short cycle and check for proper venting/steam control after reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This detergent cup cover attaches to the dishwasher's dispenser to seal the detergent compartment until the control releases it. Replacing a damaged cover prevents early washout and restores consistent detergent release for reliable cleaning results.

• Covers and seals the dispenser's detergent cup
• Opens at the proper time to release detergent into the wash
• Helps prevent detergent leaking or washing out too early
• Typical symptoms: cup won't stay closed, poor cleaning, visible damage to the cover/hinge

• Disconnect power to the dishwasher before servicing
• Handle hinge tabs carefully; transfer and tension the existing spring/pin if your model uses them
• After installation, close and manually release the cover to ensure smooth operation before running a cycle

The Door Vent Seal is an OEM part for GE dishwashers. Located within the front dishwasher door, it functions to control moist air circulation and maintain humidity levels inside the wash chamber.

Causes of a bad door vent seal can include cracking of the flexible seal material. Mineral or soap deposits may also compromise sealing integrity.

Symptoms of a bad vent seal include:

• Excess condensation buildup within the door interior
• Water leaks detected around door ventilation openings
• Drying and sanitization issues related to inconsistent humidity levels

This GE OEM replacement part is also compatible with Hotpoint, RCA, and select Kenmore-branded dishwashers.

This foam vent insert seals and cushions the dryer vent opening to reduce airflow leaks, vibration noise, and lint bypass. It helps maintain proper venting and stops drafts for more efficient drying and quieter operation. What it does:

• Forms a compressible seal around the dryer vent outlet to limit air and lint escape
• Cushions the vent connection to reduce rattling and vibration noise
• Helps prevent drafts from entering the cabinet when the dryer is off
• Supports consistent airflow path for better drying performance

• Designed for snap-in or press-fit installation at the vent opening; your model diagram for location
• Turn off and unplug the appliance before accessing the vent area
• Inspect surrounding vent and ductwork for damage or excessive lint; replace if needed

This vent gasket seals the dishwasher's door vent to keep steam and splashes inside the tub. Replacing a worn seal helps prevent leaks around the vent area and maintains proper moisture control during wash and dry cycles. What it does:

• Seals the vent housing to the inner door liner
• Helps prevent water and steam from escaping at the vent opening
• Addresses leaks or drips from the top/vent area of the door
• Replace if the original gasket is torn, flattened, brittle, or misshapen
• Helps maintain the intended airflow path through the vent assembly

• 1 vent gasket

• Disconnect power to the dishwasher before servicing
• Remove inner door panel screws to access the vent assembly
• Note gasket orientation; clean mating surfaces and seat the new gasket evenly without stretching
• Reassemble and run a short cycle to check the vent area for leaks

The Lower Door Gasket is an OEM part for GE dishwashers. It is placed at the bottom of the dishwasher door to create a water-tight seal during operation, preventing leaks and ensuring that water remains within the unit during the wash cycle.

Symptoms of a bad Lower Door Gasket include:

• Water leaking from the bottom of the dishwasher door
• Signs of mold or mildew near the gasket area
• Frequent puddles or drips underneath the door after a wash cycle
• The gasket becoming hard, cracked, or visibly damaged

Causes of a bad Lower Door Gasket can include regular wear and tear, exposure to harsh detergents and high temperatures, or improper installation that leads to uneven sealing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This UI board housing is the molded control-console trim that holds and protects the appliance's user interface and control board, restoring a secure mounting surface and clean appearance. It helps keep buttons, display and wiring properly positioned. What it does

• Secures the control (UI) board and associated switches/buttons in the console area
• Protects the control electronics from dust and incidental contact
• Keeps the display and control buttons aligned for reliable operation
• Helps restore a solid, vibration-resistant mounting surface when cracked or broken

• Disconnect power to the appliance before starting work to avoid shock or damage
• Remove the console or access panel to reach the housing and UI board
• Handle the control board and ribbon cables with care; avoid bending or stressing connectors
• Inspect mounting clips/tabs and replace any broken fasteners to ensure a secure fit

The Configured UI Control Board is an OEM component specifically designed for GE dishwashers. Referred to as the interactive interface hub, this electronic module precisely powers all input/output functions. Subject to electrical demands and environmental exposures, boards can experience circuit failures.

Causes of a bad UI control board include:

• Flickering or unresponsive touch controls with glitchy behavior
• Preset options that no longer conform to customized loading needs
• Fault codes indicating locked cycles require board-level diagnosis

Symptoms involve a machine that runs but cannot be tailored to different soils and capacities.

Replace yours today with this genuine GE OEM part to restore flexible programming and streamlined operation. Centralized computing enhances the user experience for any kitchen. This board replacement is also compatible with select Hotpoint and RCA models.
