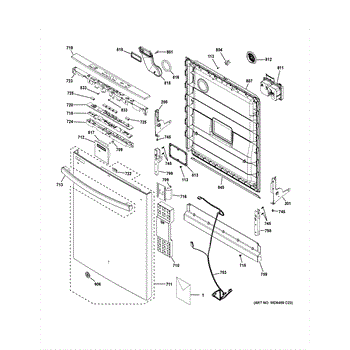

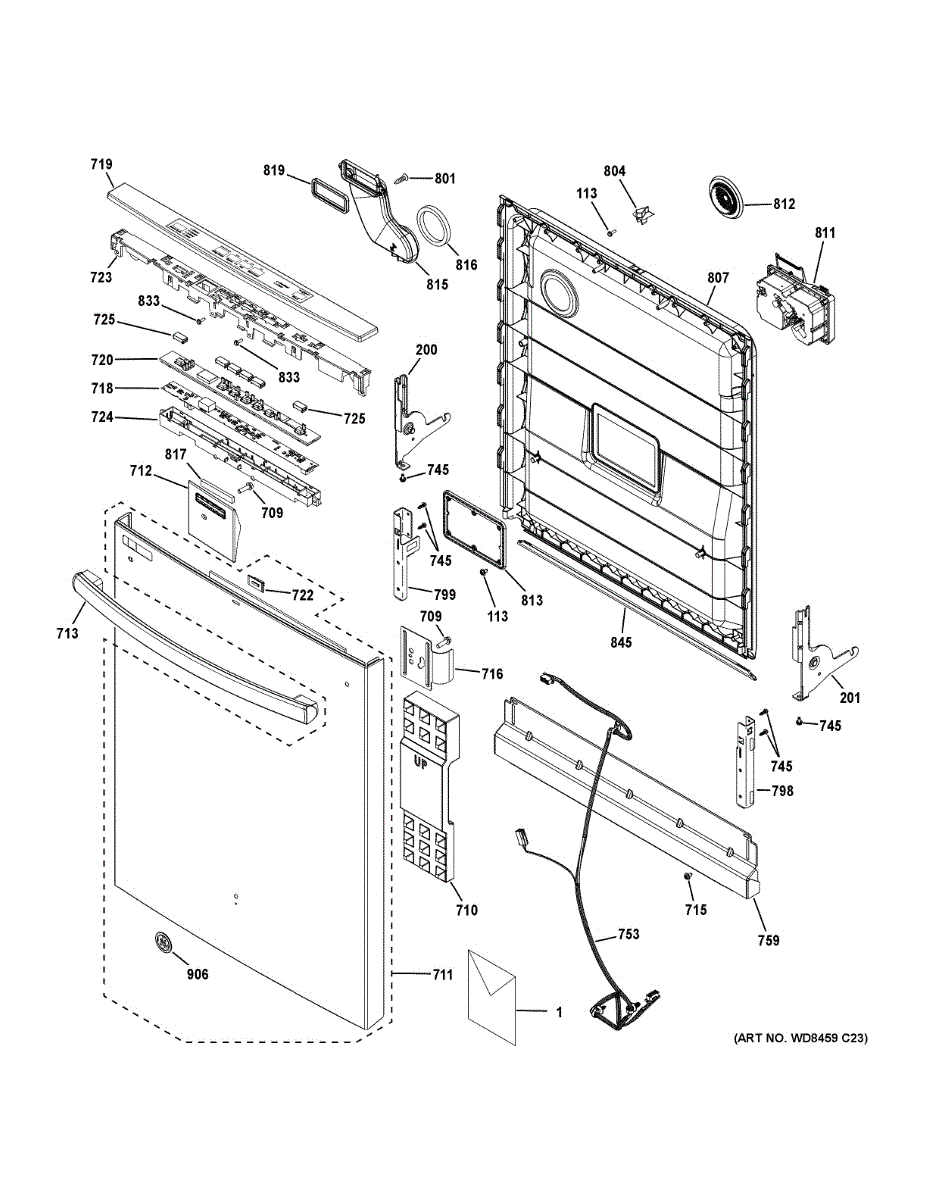

Parts for Ge GDT535PGM0BB: Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This arm hinge assembly restores smooth, controlled movement of a hinged component in your dishwasher, helping maintain proper alignment and reliable operation. Replacing a worn or broken hinge can reduce binding, squeaks, and misalignment that affect performance. What it does:

• Provides the pivot point and support for a hinged assembly
• Maintains alignment to ensure correct engagement and sealing
• Helps ensure smooth opening/closing motion without binding
• Replaces a hinge arm that is cracked, bent, or worn
• Common signs: stiff or uneven movement, squeaking or popping noises, misalignment, or visible damage

• 1 arm hinge assembly

• Disconnect power and water before servicing
• Support the door or movable assembly to relieve tension while removing the hinge
• Note orientation and transfer any side-specific hardware from the original part
• After installation, check for smooth motion and proper alignment before restoring power and water

Pivoting hinge that supports and guides your dishwasher door. Replace if cracked, worn, or causing door sagging, misalignment, or scraping during operation.

Replacement flange screw for dishwashers. Secures panels, brackets, and internal components. Replace when stripped, missing, or damaged during repair.

Fix door leaks or excessive noise with this dishwasher door foam block. Cushions and seals the door to prevent vibration and restore a tight fit.

Replace your dishwasher's outer door assembly if the exterior panel is dented, scratched, discolored, or damaged. Restores the front appearance of your unit.

Replace your dishwasher's cracked, broken, or worn door handle assembly. Direct-fit part restores secure grip and proper door operation.

Replacement mounting bracket that secures your dishwasher door handle. Needed when the original bracket is cracked, broken, or worn, causing loose handle attachment.

Fix a dishwasher that won't turn on or has non-responsive buttons with this control panel interface board. DIY-friendly repair, typically takes 20 minutes.

Guides LED light to your dishwasher's control panel. Replace if discolored, cracked, or missing to restore clear status indicator visibility during cycles.

Replaces a worn, cracked, or cloudy control panel lens on your dishwasher. Secures the lens to protect electronics and restore a clean appearance.

Fix unresponsive buttons or damaged control panels with this dishwasher top console. Houses the control interface and protects internal components.

The User Interface Housing is an OEM replacement part for GE dishwashers. Located at the front of the console, it houses the control panel responsible for cycle/option navigation.

The housing protects sensitive electronic components from water damage and physical impact. Its sturdy construction allows for responsive touch inputs without flex or play in the assembly.

Symptoms of a bad user interface housing include:

• Warping or cracks exposing circuitry to damage
• Faulty sealing allowing moisture penetration
• Difficulty registering button presses from structural defects
• Ill-fitting installation negatively impacting usability

Causes can be repetitive openings allowing entry of dirt/moisture into critical areas and use over the years breaking down seals and weakening materials.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

10-32 x 9/16" machine screw secures dishwasher panels, brackets, and internal assemblies. Replace missing, stripped, or damaged fasteners to restore fit.

Dishwasher won't start or buttons unresponsive? The door wiring harness connects the latch, switch, and controls to the main board. Moderate DIY repair.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures and aligns the dishwasher door hinge assembly. Replace if your hinge bracket is cracked, bent, or broken to restore proper door fit and movement.

Secures your dishwasher door to the cabinet as a stable pivot point. Replace this bracket if cracked, broken, or worn to restore proper door alignment.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace your dishwasher's damaged inner door assembly to restore secure sealing and eliminate rattling. Fits into existing frame. Verify fit with model number.

Dishwasher detergent dispenser won't open or latch? This module controls soap release during wash cycles. Moderate DIY repair—30 minutes, door removal.

Gray dishwasher vent cap that releases moist air during the dry cycle. Replace if cracked, damaged, or causing leaks to restore proper steam venting.

This component covers and protects the detergent compartment inside your dishwasher door. Located on the interior door panel, it ensures proper detergent release during wash cycles. Replace if the plate is cracked, warped, or prevents the dispenser door from closing securely.

Fix poor drying or excess moisture in your dishwasher with this replacement vent. Restores proper airflow and heat exhaust for non-fan models.

Controls airflow in your dishwasher door. Replace if cracked or if you see leaking from the door vent area. Confirm fit with your model number.

Fix rattling or vibrating control panel noises with this dishwasher foam block. Cushions and seals the top control area to prevent loose panels.

Seals the dishwasher door vent to prevent leaks and maintain moisture control. Replace if worn or causing steam leaks. Confirm fit with your model.

Size: 8-16 x 2 inch ss.

Seals the bottom of your dishwasher door to prevent water leaks during wash cycles. Replace if you notice pooling water on the floor. Confirm fit with your model.
