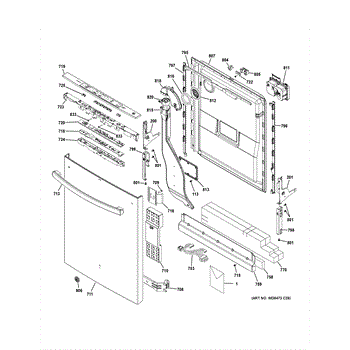

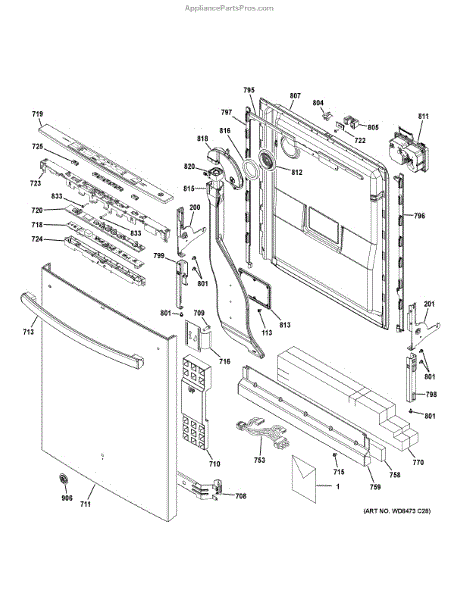

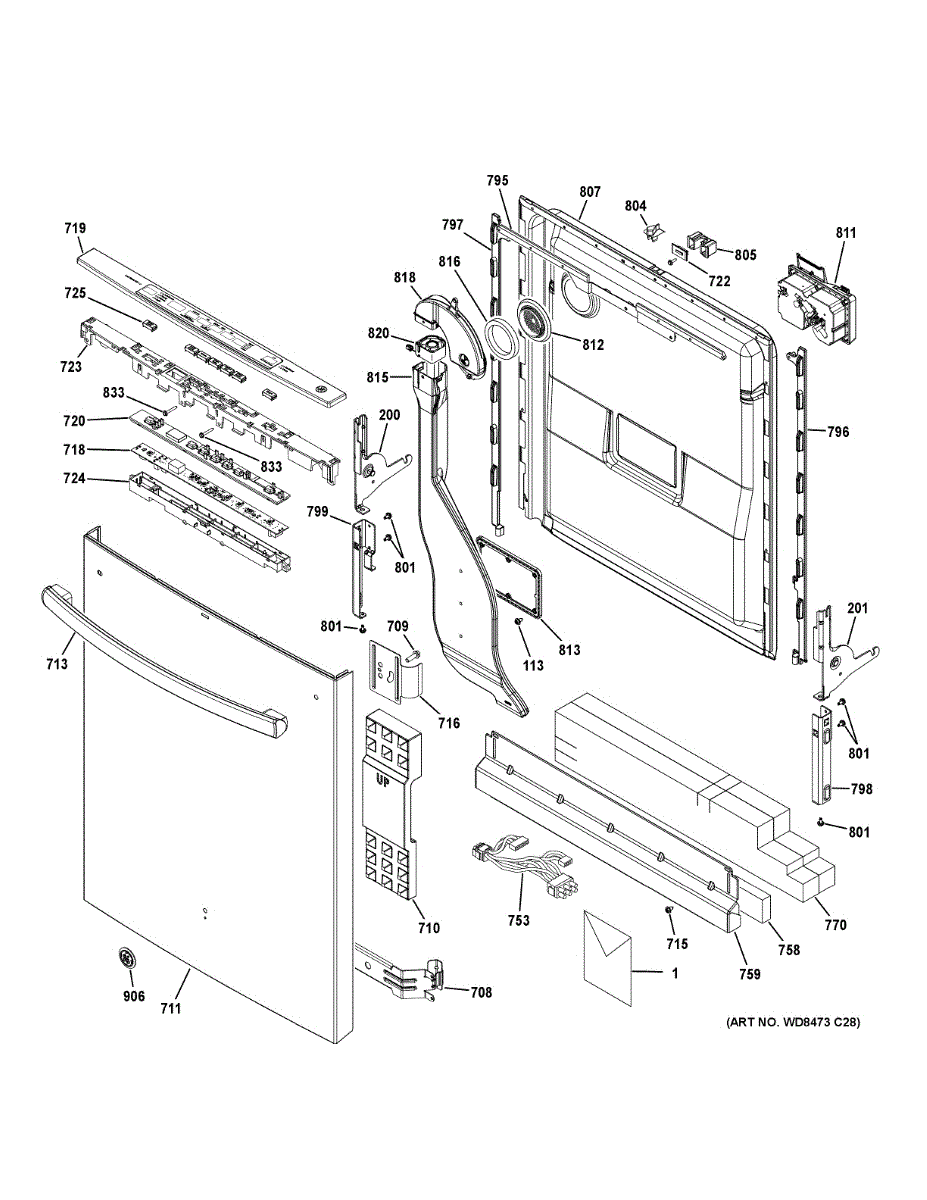

Parts for Ge GDT680SSH7SS: Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Arm hinge assembly is the pivoting hinge that supports and guides the appliance door, restoring smooth, stable opening and closing for proper alignment and operation. Replacing a worn hinge helps stop sagging, misalignment, and scraping noises. What it does:

• Supports the door pivot and maintains proper hinge alignment for smooth opening/closing.
• Helps the door latch and seal correctly by keeping the door level and aligned.
• Common symptoms: door hangs or sags, door won't close or latch, rubbing or scraping noises during movement.
• Replaces a bent, worn, or broken hinge arm to restore normal door operation.

• Disconnect power before starting any service.
• Use proper hand tools and support the door while removing/installing the hinge to avoid damage or injury.
• Align the hinge and operate the door several times before fully tightening fasteners; follow manufacturer torque/fastening guidance if available.

This arm hinge assembly restores smooth, controlled movement of a hinged component in your dishwasher, helping maintain proper alignment and reliable operation. Replacing a worn or broken hinge can reduce binding, squeaks, and misalignment that affect performance. What it does:

• Provides the pivot point and support for a hinged assembly
• Maintains alignment to ensure correct engagement and sealing
• Helps ensure smooth opening/closing motion without binding
• Replaces a hinge arm that is cracked, bent, or worn
• Common signs: stiff or uneven movement, squeaking or popping noises, misalignment, or visible damage

• 1 arm hinge assembly

• Disconnect power and water before servicing
• Support the door or movable assembly to relieve tension while removing the hinge
• Note orientation and transfer any side-specific hardware from the original part
• After installation, check for smooth motion and proper alignment before restoring power and water

This replacement screw fastens and secures appliance components where a 1/4-28 threaded flange screw with an internal hex washer head is required. It restores proper fit and helps prevent movement or rattling of panels and assemblies. What it does:

• Secures panels, brackets and components that use a 1/4-28 threaded flange screw
• Internal hex washer head allows a compact, low-profile drive for tight spaces
• Helps stop looseness, vibration noise, and misalignment when the original fastener is missing or worn
• Matches OEM fit and fastening form for reliable reassembly

• Disconnect power and follow all appliance safety procedures before servicing
• Use the correct hex driver/socket to avoid stripping the head
• Tighten to snug fit—do not overtighten to avoid damaging threads or mating parts
• Replace with identical part number to ensure proper fit and function

This block foam door is an insulated panel that fits inside the appliance door to help reduce heat transfer and maintain consistent internal temperatures. It restores door insulation for more efficient cooling and temperature stability. What it does:

• Provides thermal insulation inside the door to reduce heat gain or loss
• Helps prevent frost buildup and cold spots by improving temperature consistency
• Supports efficient compressor cycling and can reduce energy waste when functioning properly
• Common symptom: uneven temperatures, visible condensation or frost on the door, or reduced cooling performance

• One block foam door

• Disconnect power before servicing and follow the appliance manufacturer's disassembly instructions
• May require removing the inner door liner and fasteners to access and replace the foam; keep hardware for reassembly
• Handle carefully to avoid damaging the foam or door liner; use appropriate hand protection

The Outer Door Assembly Kit is an OEM replacement part for GE dishwashers. It includes all of the key external door components needed for proper function, including the inner and outer door panels, sealing gaskets, locking mechanisms, and design elements.

Causes of a bad outer door assembly can include wear and tear over time, especially to sealing gaskets which are prone to cracking. Higher humidity levels can accelerate this. Physical damage such as dents or cracks in the plastic panels will also necessitate replacement.

Symptoms of a bad outer door assembly include:

• Water leaks into the interior due to compromised seals
• Difficulty closing and locking the door securely
• Gaskets that no longer create an airtight seal around the door perimeter
• Loose, sagging, or damaged door panels

This replacement part is compatible with Hotpoint, RCA, and Kenmore models.

The Door Handle is an OEM replacement part for GE freestanding dishwashers. It provides an easy grip point for manually opening and closing the dishwasher door for loading and unloading. Reliable door functioning streamlines kitchen tasks.

Causes of a bad door handle can include cracked or weathered material, broken clips or loose mounting over several years of use. Harsh chemical cleaners might prematurely degrade plastic or coating finishes as well.

Symptoms of a bad door handle include:

• Looseness, wobbling, or detachment from the appliance door
• Difficulty lifting or rotating the handle to open the door
• Pain or injury risks from jagged edges on a broken handle
• Compromised insulation allowing moisture to remain inside

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

This is a machine screw used to secure dishwasher components. The 10-32 thread and 3/8-inch length with an integrated hex washer head provide a firm, vibration-resistant hold to keep parts properly fastened.

• Secures brackets, panels, or internal assemblies in the dishwasher
• Helps prevent looseness, rattling, or misalignment during operation
• Common symptoms of a missing/stripped screw include panel movement, vibration, or loose mounting points

• Disconnect power and shut off water before servicing
• Use the correct nut driver or socket to avoid stripping the head
• Replace any damaged or missing screws in matching locations
• Do not overtighten; snug to manufacturer's torque guidance when available

This bracket handle is the replacement mounting bracket that secures a refrigerator or freezer door handle, restoring proper handle alignment and a secure grip. It helps keep the door handle firmly attached and functioning. What it does:

• Secures the door handle to the appliance door so the handle stays mounted and aligned
• Restores a loose, wobbly, or detached handle for reliable opening and closing
• Prevents further wear on handle fasteners by providing the proper mounting support
• Matches OEM fit and function for straightforward replacement

• One replacement bracket handle

• Basic hand tools typically required; handle hardware may need removal first
• Follow OEM instructions and use correct fasteners; replace any damaged screws or anchors
• Disconnect power to the appliance (or keep door open/unloaded) and work safely to avoid pinching or dropping the door

The Interface User Top is an OEM part for GE dishwashers. This component houses the control panel and display, allowing you to select and monitor the dishwasher's settings and cycles. It provides an intuitive interface for managing the dishwasher's functions and is essential for the appliance's operation.

Causes of a bad user interface can include wear and tear, physical damage from pressing buttons, or faults in the electronic components.

Symptoms of a bad interface user top include:

• Unresponsive or malfunctioning buttons
• Display not lighting up or showing incorrect information
• Difficulty in selecting or changing cycles
• Error codes related to control panel issues

This GE replacement part is also compatible with some Hotpoint, RCA, and Kenmore models.

This part is a bezel and cover console assembly designed for use with dishwashers. This component is located at the top of the dishwasher and allows users to make changes to cycle preferences. It protects the buttons underneath the part and adds extra protection to the appliance. The most common reason to replace the bezel and cover console assembly is if it has become cracked or otherwise damaged.First, pull out the dishwasher and make sure it has been unplugged. While the dishwasher is out from under the cabinetry, disconnect the door springs so the door can be removed. The inner and outer panels and hinges will need to be separated to access the bezel and cover control assembly. Remove this entire part and slowly replace it using the new component. Work slowly to avoid damaging the plastic tabs. Once this part has been installed, reassemble the rest of the dishwasher. Reconnect power and push the appliance back in before use.The bezel and cover console assembly is designed to replace the original on General Electric dishwashers. It's sold as a single part. This is an authentic OEM component that has been directly sourced from the manufacturer.

This lens and adhesive assembly replaces a worn, cracked, or cloudy control/display lens and secures the lens to the appliance for a clean, finished appearance and protected electronics. Restores visibility and prevents debris entry behind the lens. What it does:

• Replaces a damaged or discolored control/display lens to improve visibility and aesthetics
• Includes adhesive to secure the lens and maintain a sealed fit over controls or indicators
• Protects underlying buttons, LEDs, and circuit components from dust and moisture
• Helps restore original appearance after impact, cracking, or peeling

• Disconnect power before servicing to avoid shock or unintended appliance operation
• Clean and dry mounting surface; remove old adhesive residues for proper adhesion
• Align lens carefully, press into place, and hold per adhesive manufacturer recommendations
• Allow adhesive to set fully before reconnecting power or using the appliance

The Control Panel Support Frame is an OEM part for GE dishwashers. It provides the necessary structure and backing for securely mounting the entire control panel assembly. As the framing component, it ensures the control buttons, knobs, digital display, and touchscreen interface remain fixed in the correct position.

Causes of a bad control panel support frame can include warping or bending from heavy door impacts, cracked plastic from harsh chemicals, or loose mounting from worn-out screws and clips.

Symptoms of a bad control panel support frame include:

• The control panel assembly sagging or losing proper position
• Loose, unstable, or improperly aligned buttons and interfaces
• Strange creaking or rattling noises from the control area
• Difficulty accessing or selecting wash cycle functions

Compatible models also include Asko, Crosley, KitchenAid, and select Kenmore dishwashers.


The User Interface Housing is an OEM replacement part for GE dishwashers. Located at the front of the console, it houses the control panel responsible for cycle/option navigation.

The housing protects sensitive electronic components from water damage and physical impact. Its sturdy construction allows for responsive touch inputs without flex or play in the assembly.

Symptoms of a bad user interface housing include:

• Warping or cracks exposing circuitry to damage
• Faulty sealing allowing moisture penetration
• Difficulty registering button presses from structural defects
• Ill-fitting installation negatively impacting usability

Causes can be repetitive openings allowing entry of dirt/moisture into critical areas and use over the years breaking down seals and weakening materials.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The User Interface Button Kit is an OEM part for GE dishwashers. It contains the control buttons used for selecting wash cycles and options.

Causes of button replacement needs include normal wear over thousands of uses. Damage like cracked overlays or unresponsive switches also necessitate replacement.

Symptoms of a faulty button kit are:

• Stuck or unresponsive selector buttons
• Faded, worn, or peeling button labels
• Inability to choose desired wash programs
• Repeated error messages relating to inputs

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher door wire harness assembly carries power and signals between the user interface/control and components in the door. Replacing a damaged harness restores reliable connections and can fix intermittent controls, no-starts, or cycles that stop when the door moves.

• Provides factory-terminated wiring path between the control/UI, latch, and other door-mounted components
• Replaces broken, pinched, heat-damaged, or corroded wires that interrupt electrical continuity
• Helps address symptoms such as unresponsive buttons, blank or flickering display, random beeps/lights, or unit won't start
• Operation changes when the door is opened/closed may indicate a failing door harness

• Disconnect power at the circuit breaker before servicing
• Remove the inner door panel to access the harness; support the panel to protect the UI/control
• Note original routing and connector locations; move one connector at a time, secure ties/retainers, and ensure grommets/strain reliefs are seated and wires are clear of hinges
• After reassembly, restore power and run a quick test cycle to verify operation

This insulation toe kick is a replacement panel that fits the refrigerator base to help block drafts and protect internal components under the cabinet. It restores the factory barrier that supports temperature stability and efficient operation. What it does

• Replaces damaged or missing toe-kick insulation that lets cold air escape beneath the appliance
• Helps reduce drafts and minimize warm air intrusion into the refrigerator cavity
• Protects wiring and components located in the toe-kick area from dust and debris
• Can help prevent uneven cooling or frost buildup that results from compromised base insulation

• One insulation toe kick panel

• Disconnect power to the appliance before starting any service
• Remove the existing toe kick/board and fasteners, then position the replacement so mounting tabs align with factory slots
• Avoid compressing or tearing the insulation; maintain original fit for proper performance

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This top attachment strip secures the appliance's top panel and provides the mounting point for the door strike, restoring a stable, properly aligned front. It prevents panel movement and reduces rattles for a snug fit and reliable door engagement. What it does:

• Secures the top/front panel to the cabinet to maintain alignment and fit
• Serves as the mounting point for the door strike or latch components
• Helps eliminate rattling, vibration, and gaps at the top of the door area
• Restores reliable door engagement and prevents the strike from shifting

• Disconnect power to the appliance before beginning any repair
• Remove the top panel or access screws to reach the attachment strip; a screwdriver set is typically required
• Handle mounting tabs and edges carefully to avoid bending or damage
• Verify alignment of the door strike and test door closure after installation

ATTACH STRIP RIGHT SIDE

This left-hand attachment strip secures trim and panels for a clean, finished fit on compatible GE appliances. It helps maintain proper alignment and prevents gaps that can collect dirt or allow panels to shift during use. What it does:

• Attaches and stabilizes a side trim or panel to the appliance cabinet
• Keeps door/side trim aligned to reduce rattling or shifting
• Helps maintain an even, finished appearance along the appliance edge
• Addresses symptoms like loose trim, visible gaps, or panel movement

• One left-hand attachment strip

• Remove power to the appliance (or disconnect power source) before starting work
• Use basic hand tools; avoid forcing parts to prevent breakage
• Replace with OEM-specified hardware if fasteners are missing or damaged

This bracket support hinge secures the appliance door to the cabinet, providing a stable pivot point for smooth opening and closing. Replaces a worn or broken hinge bracket to help restore proper door alignment and operation. What it does:

• Provides a mounting point for the door hinge to keep the door aligned and secure
• Prevents door sagging, uneven gaps, or misaligned closing caused by a damaged bracket
• Reduces wobble, clicking, or binding at the hinge area during door movement
• Works as the structural support between the door and cabinet to maintain proper sealing/contact

• One bracket support hinge

• Disconnect power and empty the door (shelves/drawers) before starting for safety and easier handling
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use basic hand tools; follow OEM torque and alignment guidance when tightening fasteners

This bracket support hinge helps secure and guide the appliance hinge assembly, restoring proper door alignment and reliable movement. It replaces a worn or damaged hinge support to improve fit and operation. What it does:

• Supports the hinge assembly to maintain correct door alignment
• Reduces door sag, binding, or uneven closing caused by a damaged bracket
• Restores smooth hinge movement and helps prevent further wear to hinge components
• Commonly used when the door feels loose or the hinge appears bent or broken

• One bracket support hinge

• Turn off and unplug the appliance before starting any repair
• Remove surrounding panels or trim as needed to access the hinge per your model's service instructions
• Use appropriate tools and keep fasteners organized for reassembly
• Inspect and replace additional components as needed

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Door Latch Strike is an OEM part for GE dishwashers. It ensures the dishwasher door latches securely, allowing the appliance to operate only when the door is properly closed.

Causes of a bad door latch strike can include wear and tear from regular use, damage from slamming the door, or misalignment due to repeated opening and closing.

Symptoms of a bad door latch strike include:

• The dishwasher door not latching securely
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• Difficulty in closing the door properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent Module is an OEM replacement part for GE dishwashers. It is designed to dispense the correct amount of detergent at the appropriate times during the wash cycle, ensuring that dishes are cleaned effectively. The module holds the detergent and releases it into the dishwasher when needed, contributing to the overall performance and efficiency of the appliance.

Causes of a bad detergent module can include buildup of detergent residues, which can clog the dispenser mechanism, or damage to the module's door or latch, preventing it from opening correctly. Additionally, electrical faults or wear and tear over time can impair the module's functionality, leading to ineffective detergent dispensing.

Symptoms of a bad detergent module include:

• The detergent not dispensing or remaining in the compartment after the wash cycle
• Dishes not being cleaned properly due to insufficient detergent use
• The module door not opening or closing correctly
• Leaks or drips from the detergent module area
• Error codes related to the dispensing system

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vent (dark grey) replaces a damaged or faded exterior vent cover on compatible GE appliances, helping restore appearance and maintain proper airflow. Use it to address visible damage or improve a loose or rattling vent. What it does:

• Covers and protects an appliance vent opening while allowing airflow through the cabinet or housing.
• Helps prevent drafts and keeps debris, lint, and small pests from entering the appliance interior.
• Stops rattling or vibration caused by a cracked or loose vent cover.
• Restores the original look by replacing a faded, cracked, or broken vent piece.

• Disconnect power (and gas, if applicable) before service and work on a cool, unplugged appliance.
• Remove trim or access panels as needed; keep screws and parts organized for reassembly.
• Check fit and orientation before final fastening to ensure proper airflow and sealing.

This detergent plate is the replacement dispenser component that holds and releases detergent during the wash cycle, ensuring detergent is delivered when the machine runs for proper cleaning performance. What it does

• Holds detergent inside the dispenser area until the wash cycle calls for release.
• Opens or allows detergent to be flushed into the wash chamber at the correct time.
• Common symptom: detergent stays in the dispenser and doesn't release, leaving dishes or laundry soiled.
• Common symptom: damaged, cracked or warped plate can prevent proper release or seating of detergent.

• One detergent plate

• Disconnect power (and water if applicable) before accessing the dispenser to avoid shock or injury.
• Handle the plate carefully; plastic parts can crack if forced or over-tightened.
• Remove the door/dispenser trim per your model's service instructions to access the plate; reinstall ensuring proper alignment so the dispenser seals and operates correctly.

This vent conduit assembly routes exhaust from the dryer to the home vent, restoring proper airflow and helping the appliance vent safely. It replaces a damaged, crushed, or disconnected dryer vent channel to improve drying performance and reduce lint buildup. What it does:

• Channels dryer exhaust from the appliance to the wall vent
• Prevents restricted airflow caused by crushed or separated vent tubing
• Helps reduce long dry times and overheating symptoms
• Lowers risk of lint buildup and related odors near the dryer

• Disconnect power (and gas supply for gas dryers) before beginning service
• Verify correct alignment and secure with appropriate clamps or fasteners
• Inspect adjacent venting and clean lint from vent path while replacing

The Door Vent Seal is an OEM part for GE dishwashers. Located within the front dishwasher door, it functions to control moist air circulation and maintain humidity levels inside the wash chamber.

Causes of a bad door vent seal can include cracking of the flexible seal material. Mineral or soap deposits may also compromise sealing integrity.

Symptoms of a bad vent seal include:

• Excess condensation buildup within the door interior
• Water leaks detected around door ventilation openings
• Drying and sanitization issues related to inconsistent humidity levels

This GE OEM replacement part is also compatible with Hotpoint, RCA, and select Kenmore-branded dishwashers.

The Vent Fan Assembly is an OEM replacement part for GE dishwashers. As a key ventilation component, the vent fan is responsible for drawing moisture-laden air out of the dishwasher tub and venting it outside during and after the wash cycle. It plays an important role in effectively drying dishes and preventing mold or odor issues.

Causes of a bad vent fan include a failing motor, broken or cracked fan blades, or an obstructed vent opening.

Symptoms of a bad vent fan include:

• Incomplete or slow drying of dishes
• Excess moisture remaining in the tub at the end of the cycle
• Mold or mildew growth inside the dishwasher
• Strange noises or vibrations coming from the vent area

Over time, the vent fan motor and blades can degrade due to continuous use. This part is also compatible with ASKO, Crosley, Inglis, Magic Chef, RCA, and some Kenmore models.


Restore your appliance's factory look with this badge assembly. It replaces a missing, cracked, or faded logo on the refrigerator exterior, delivering a clean, professional appearance without affecting performance or operation.

• Decorative nameplate/logo for the refrigerator exterior
• Replaces cracked, faded, loose, or missing badge
• Restores a clean, factory appearance
• Cosmetic component; does not impact cooling or function

• Disconnect power before servicing the appliance
• Protect the finish; use a plastic trim tool to remove the old emblem if needed
• Clean and dry the mounting area; align with locating marks/holes and secure per your model diagram

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
