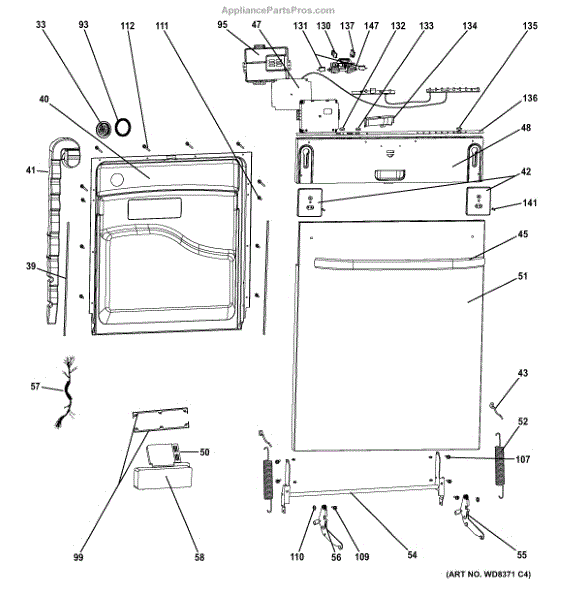

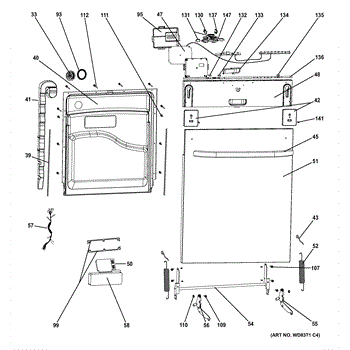

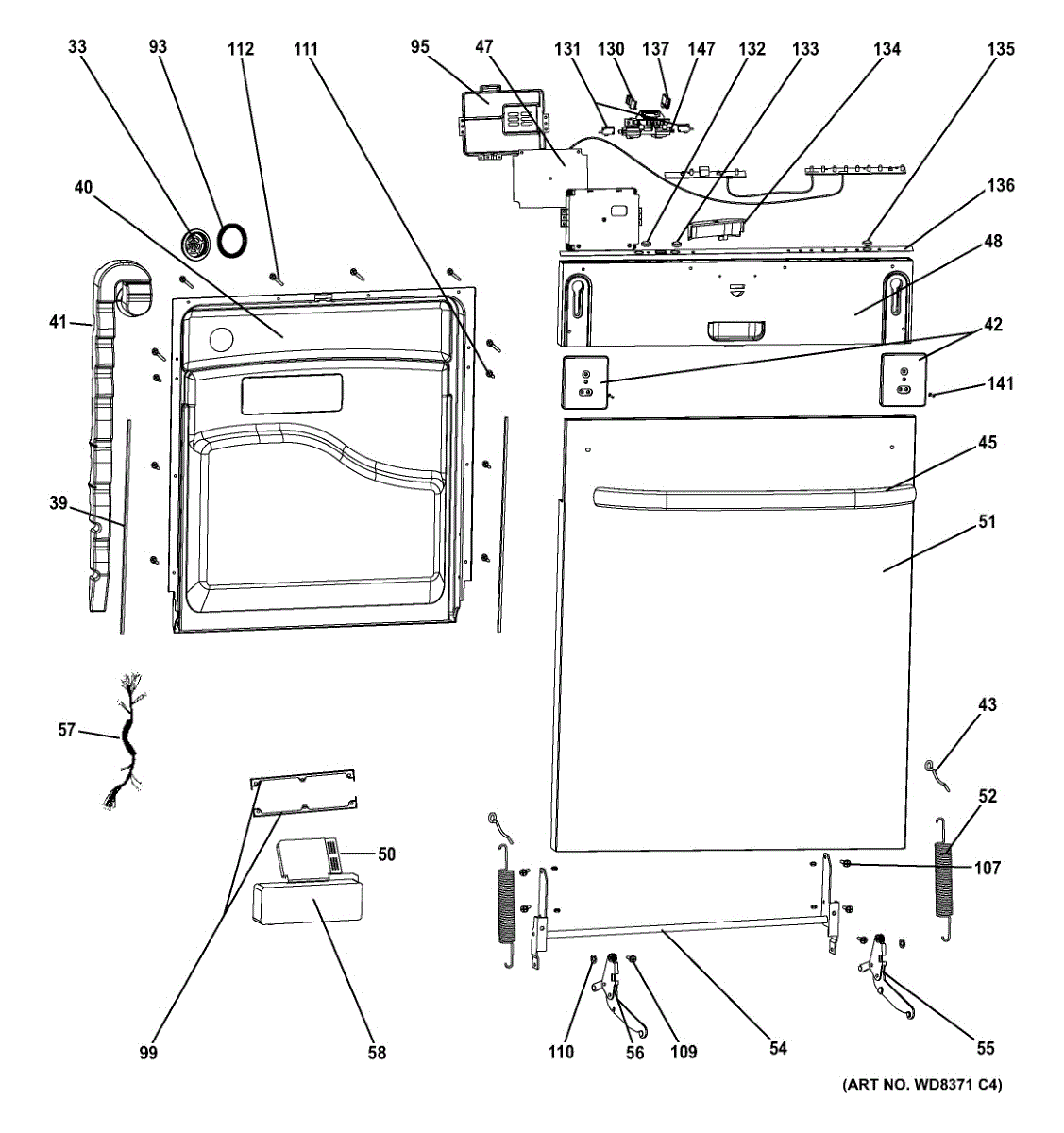

Parts for Ge GLDT690D02BB: Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This door hinge pin is the pivot that allows a dishwasher door hinge to open and close smoothly. Replacing a worn or missing pin restores aligned, controlled door movement and proper latching performance.

• Provides the hinge's pivot point between the hinge arm and the cabinet/frame
• Helps maintain proper door alignment for smooth opening and closing
• Wear or damage may cause squeaking/clicking, binding or uneven motion, door dropping too quickly, or difficulty latching
• Restores correct hinge operation when an original pin is bent, worn, or missing

• Disconnect power at the breaker and turn off water before servicing
• Support the door and relieve hinge spring tension; remove the toe-kick/access panel to reach the hinge area
• Remove the old pin and install the new pin through the aligned hinge holes; ensure it is fully seated
• Test door movement and latching before reassembling and restoring power

This is a black handle assembly designed to replace a worn or broken appliance door handle and restore a secure grip and clean appearance. It matches OEM fit and restores normal door operation when the original handle is damaged. What it does:

• Replaces a cracked, loose, or missing door handle to allow safe opening and closing
• Restores original grabbing surface and leverage for everyday use
• Helps eliminate rattling or misalignment caused by a broken handle
• Matches the appliance's original finish for a consistent look

• One black handle assembly

• High-level swap: remove fasteners or retainers holding the old handle, align new handle, and secure with original screws or clips
• Use basic hand tools; avoid over-tightening fasteners to prevent cracking the new handle
• Disconnect power and keep the door supported when removing a handle that requires door disassembly

The Rinse Aid Cap is an OEM part for GE dishwashers. It securely seals the rinse aid dispenser, ensuring that the rinse aid is properly stored and dispensed during the wash cycle. This helps improve the drying process and prevents water spots on dishes and glassware.

You should replace this rinse aid cap if it becomes cracked, loose, or fails to seal properly. Common causes of a bad cap include wear and tear from regular use, damage from over-tightening, or deterioration due to exposure to dishwasher detergents and rinse aids.

Symptoms of a bad rinse aid cap include:

• Rinse aid leaking or spilling inside the dishwasher
• Cap not staying securely in place
• Poor drying performance or water spots on dishes
• Difficulty in opening or closing the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge assembly secures and guides the appliance door, restoring smooth opening and reliable closure to prevent sagging or misalignment. Replace a worn or damaged hinge to reduce rubbing, binding, or uneven gaps. What it does:

• Supports the door pivot so the door opens and closes smoothly
• Keeps the door aligned to maintain a proper seal and prevent gaps
• Stops or reduces sagging, rubbing, or catching when the door moves
• Helps eliminate noise or binding caused by a worn hinge

• Turn off power and disconnect the appliance before starting any repair
• Support the door during removal and installation to avoid dropping or damage
• Use the OEM fasteners and torque to manufacturer recommendations when available

This is a hinge spring. This piece applies tension when opening and closing a dishwasher door. The hinge spring prevents the from door dropping too quickly and hitting the ground when the machine is opened. This hinge also ensures that the door is completely shut and that there are no leaks during the washing cycle.If the door frequently falls open, will not stay closed, or will not latch this part may need to be replaced. The repair is fairly easy, but care should be taken because the hinge holds tension and may snap while being replaced. Keep in mind many dishwashers have springs on both sides of the door, so make sure to verify if the machine needs one or two replacements. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from manufacturers like General Electric and their brands Hotpoint, and RCA.

This left-side hinge assembly secures and supports a refrigerator door so it opens and closes smoothly. Replacing a worn or damaged hinge restores proper door alignment and helps the seal close fully. What it does:

• Supports the refrigerator door and keeps it aligned on the cabinet
• Provides the pivot point that allows the door to open and close smoothly
• Helps prevent door sag, rubbing, or binding when the hinge is worn or damaged
• Reduces stress on the door seal to maintain proper cabinet temperature

• One left-side hinge assembly and its mounting screws

• Disconnect power and remove food from door shelves before starting; support the door to prevent drop or damage
• Use appropriate hand tools; keep fasteners tight but avoid over-torquing
• Check door alignment and gasket contact after installation; adjust as needed per your service manual

This replacement dishwasher detergent dispenser stores detergent and releases it at the correct time in the cycle, while also controlling rinse-aid dosing. It restores reliable cleaning performance when the original dispenser is damaged, leaking, or won't open.

• Holds detergent securely and opens on command during the wash cycle
• Meters rinse aid during the final rinse to help reduce spots and film
• Seals to the inner door at the dispenser opening to help prevent leaks
• Typical symptoms: detergent left in cup, dispenser door won't latch/pop open, rinse aid not dispensing or leaking, visible cracks or warping

• Disconnect electrical power and turn off water supply before servicing
• Open the door and remove inner-door panel screws to access the dispenser
• Unplug the wire connector(s), release retaining screws/tabs, and remove the old dispenser
• Clean the door cutout, seat the new gasket evenly, secure the dispenser evenly, reconnect wiring, and run a leak check

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement power board cover protects the appliance's electrical control board from debris and accidental contact, helping maintain safe operation. A direct-fit external housing designed to restore the original protective barrier. What it does:

• Shields the control/power board from dust, lint, and moisture buildup
• Helps prevent accidental contact with live electrical components
• Maintains correct board spacing and alignment inside the appliance
• Supports safe, reliable operation when the control board is installed

• One power board cover

• Disconnect power to the appliance before attempting any service
• Remove access panels to reach the control board area; reattach the cover securely
• Use caution around wiring and connectors; avoid forcing parts into place

A replacement joint pin that secures a hinge or linkage, restoring stable door or panel movement. Use this durable metal pin to fix loose, sagging, or misaligned doors and ensure reliable operation. What it does:

• Acts as the pivot/fastener for a hinge or linkage assembly to maintain correct alignment and motion
• Restores secure door or panel attachment when the original pin is worn or missing
• Helps eliminate sagging, rubbing, or uneven closing caused by a broken or loose pivot
• Works with the associated hinge and bracket to keep moving parts aligned during normal use

• Designed for direct replacement—remove the old pin and press or slide the new pin into the hinge or linkage assembly
• Use basic hand tools; wear gloves and eye protection to avoid injury from sharp edges or slipping tools
• Do not force damaged hinge parts—replace any broken brackets or worn components for a secure repair

This spring washer provides a tensioning/retaining function to keep fasteners and components secured under vibration and movement. It helps maintain proper assembly alignment and reduces the chance of parts working loose over time. What it does:

• Applies spring tension to fasteners to prevent loosening from vibration
• Helps keep assemblies aligned and components seated correctly
• Can reduce rattling, vibration noise, and intermittent contact caused by loose parts
• Restores proper clamping force when worn or damaged washers allow play

• One spring washer

• Disconnect power to the appliance before beginning any repair
• Use appropriate tools to remove fasteners and note component orientation
• Replace only with the exact part number to ensure correct fit and function

This ST3.5 tapping screw is a factory-style fastener used to secure appliance panels, trim, and components where a self-tapping thread is required. It provides a reliable hold for repairs and replacement parts. What it does:

• Creates its own mating threads in sheet metal or plastic to fasten panels and brackets
• Commonly used to secure control panels, trim pieces, and interior components
• Helps stop rattles and loose panels when the original screw is missing or damaged
• Matches OEM fit and function for straightforward replacement

• Use the correct ST3.5 screwdriver or bit to avoid cam-out and damage
• Start straight and apply steady pressure; do not force if resistance indicates wrong thread fit
• Avoid over-tightening to prevent stripping the mating material or breaking the screw
• Wear eye protection and follow appliance power/disconnect safety before servicing

This left switch breakwater is a small plastic retainer that holds the console switch assembly in place, keeping switches secure and aligned for reliable control operation. It helps restore proper switch positioning after damage or wear. What it does:

• Secures the left console switch assembly so buttons and selectors operate correctly
• Keeps the switch contacts aligned to prevent intermittent or non-responsive controls
• Helps block debris from interfering with the switch mechanism
• Commonly replaced when the switch feels loose, sticks, or the control behaves inconsistently

• One left switch breakwater

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the control console or panel; follow your model's service instructions
• Handle plastic retainers carefully to avoid cracking; replace if damaged

This dishwasher microswitch is the snap-action switch used in the door-latch interlock. It signals the control when the latch is engaged so cycles start and continue only when the door is securely closed.

• Senses latch position and sends an open/closed signal to the control
• Failure signs include the cycle not starting, stopping when the door is bumped, or needing to press on the door/handle to run
• Restores reliable door-closed detection and safe operation
• Direct replacement for a worn, sticking, or inconsistent switch

• Disconnect power to the dishwasher before servicing
• Note wire positions (COM/NO/NC); transfer any actuator/lever or bracket from the original switch
• Ensure a positive "click" and correct continuity before reassembly
• Latch and strike alignment after installation

This is a replacement black power button for the appliance control panel, restoring a functional on/off control and clean appearance. It fits into the control assembly and lets the user power the unit using the front panel. What it does

• Replaces a cracked, faded, or non-responsive power button on the control panel.
• Restores a tactile button surface so the control can register on/off input.
• Helps resolve symptoms such as a stuck or physically damaged button, unresponsive front-panel power control, or visible cosmetic wear.
• Designed to interface with the existing control bezel and switch mechanism.

• Disconnect power before starting any repair to avoid shock or damage.
• Installation typically requires removing the control bezel; use appropriate hand tools and keep fasteners organized.
• Handle plastic parts gently to avoid cracking; align tabs carefully when snapping the button into place.

A replacement black delay button for your appliance control panel. Restores the delayed-start selection and tactile feedback so the control responds correctly when setting a delayed cycle. What it does:

• Replaces a cracked, worn or non-responsive delay/start button on the control panel
• Restores tactile feel and reliable button actuation for delayed-start functions
• Helps resolve issues where the delay option won't engage or the button sticks
• Matches OEM fit and appearance for a seamless control panel repair

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Access typically requires removing the control panel; keep screws and fasteners organized.
• Handle small plastic button parts carefully to avoid breakage; verify correct seating before reassembly.

This handle cover is a cosmetic trim piece that restores the look of a refrigerator door and protects the underlying handle hardware from wear. It replaces a faded, cracked or chipped cover to give the door a finished appearance. What it does:

• Covers and protects the exposed portion of the refrigerator door handle
• Restores door appearance when the original cover is scratched, cracked or discolored
• Keeps dirt and grime off the handle mounting area for easier cleaning
• Matches original black finish for a seamless look

• High-level install: remove the existing cover and snap or slide the replacement into place; follow your model's disassembly steps
• Disconnect power or follow manufacturer safety guidance if removing nearby trim or door panels
• Use non-marring tools to avoid scratching surrounding surfaces
• If screws or clips are present, keep track of hardware; replace only with manufacturer-specified parts

A replacement black select button for the control console that restores a responsive, easy-to-use selector on compatible GE appliances. Replaces a cracked, worn or non-moving button so settings can be chosen reliably. What it does:

• Acts as the user-facing selector button on the control panel
• Allows selection of oven/cooktop or cycle options when pressed
• Fixes symptoms like a broken, stuck, loose or missing button
• Restores normal tactile feel and visual appearance of the console

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Access may require removing the control panel or overlay—refer to your model's service instructions.
• Gently remove the old button and snap or press the replacement into place; avoid forcing it.

This right switch breakwater helps position and protect the dryer control switch assembly, keeping the switch secure and preventing rubbing or shorting. It restores stable switch alignment for reliable control operation. What it does:

• Holds the right control switch in place to prevent movement and wear
• Protects the switch from contact with adjacent components that can cause sticking or intermittent operation
• Helps stop rattling or vibration-related noise from the control area
• Supports proper button/knob actuation for consistent user input

• One right switch breakwater

• Intended for use in the dryer control area; inspect surrounding parts for related damage
• Disconnect power before servicing to avoid shock or accidental startup
• Use basic hand tools; do not overtighten fasteners to avoid cracking the plastic
• Replace damaged switches or mounting hardware together for best results

A standard M5 x 20 mm machine screw used to fasten panels and components in appliances. Replaces worn or missing screws to restore secure mounting and help prevent rattling or loose parts. What it does

• Secures panels, brackets, or assemblies where an M5 x 20 mm fastener is specified
• Restores proper fit and alignment for trimmed panels and internal components
• Helps stop vibration-related noise caused by loose fasteners
• Matches OEM thread size and length for a direct-fit replacement

• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when snug to avoid damaging threads or part mounting points
• Replace any corroded or damaged mating nuts or clips for best results

The Latch Assembly is an OEM part for GE dishwashers. This part secures the dishwasher door during operation, ensuring that the door remains tightly closed to prevent water leaks and to allow the dishwasher to operate correctly.

Common causes of a bad latch assembly include wear and tear from regular use, damage from forceful closing or impacts, and issues with the internal mechanism or switches.

Symptoms of a bad Latch Assembly include:

• The dishwasher door not closing or latching properly
• The dishwasher not starting or pausing mid-cycle due to the door not being securely latched
• Water leaking from the door during operation
• The door popping open during a cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
