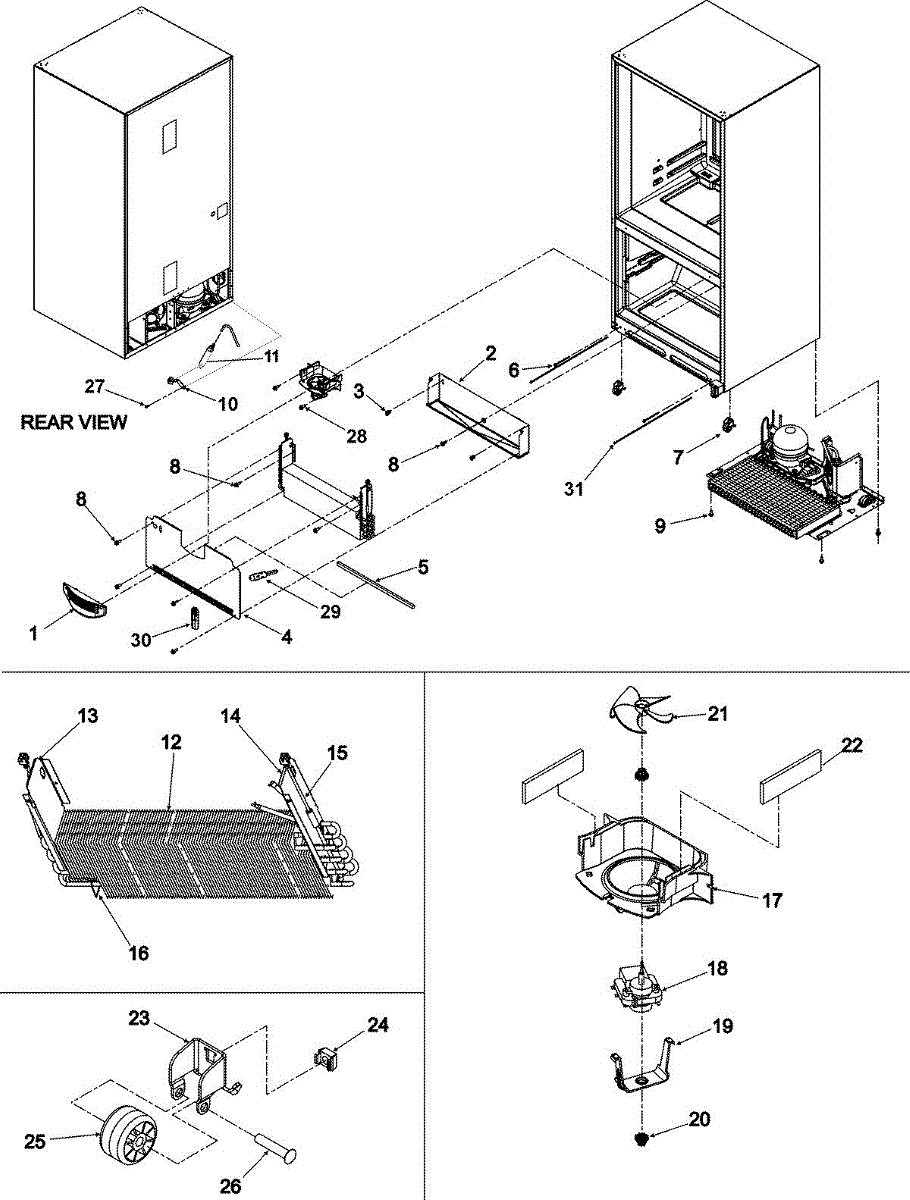

Parts for Jenn-Air JBD2256HEB: 05 - Evaporator Area & Rollers Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Restore the clean look and proper ventilation of your microwave with this air grille. It covers the upper front vent opening, helps guide airflow through the vent path, and shields internal components for reliable performance.

• Covers the upper/front vent opening while allowing proper airflow
• Helps secure the charcoal filter on many recirculating models
• Restores appearance and fit when the original grille is cracked or missing
• Common fix for a loose, rattling, or broken vent cover

• Disconnect power to the microwave before servicing
• Open the door (most models), remove the screws along the top edge, and slide the old grille to release its tabs
• Position the new grille, ensure tabs engage fully, and reinstall the screws without overtightening

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This replacement refrigerator door gasket seals the cabinet to maintain consistent temperatures and help keep food fresh. It restores a tight seal to reduce drafts, condensation, and frost buildup around the door. What it does:

• Creates an airtight seal between the door and cabinet to help keep cold air in
• Helps prevent warm spots, excess frost, and water/ice buildup inside the compartment
• Can improve cooling consistency and reduce extra runtime from a leaking seal
• Replaces torn, stretched, or flattened seals that no longer close fully

• Disconnect power to the appliance before starting any work
• Clean the door flange and remove old gasket before fitting the new seal
• Press the gasket evenly into the retainer channel and check that the magnetic edge engages all around
• Allow 24 hours for the gasket to fully seat against the cabinet; reposition if gaps are visible

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This drier is the factory replacement air/gas flow assembly that helps maintain proper airflow and drying performance in compatible laundry dryers. Replacing a worn drier restores consistent drying and reduces overheating risk. What it does:

• Directs and stabilizes heated air through the drum for efficient drying
• Helps prevent restricted airflow that can cause long dry times or damp laundry
• Supports safe exhaust flow to reduce the chance of overheating or lint buildup
• Works with the dryer's heating and ventilation components to maintain normal operation

• One drier assembly as shown

• Disconnect electrical power before beginning service; if this is a gas dryer, turn off and disconnect the gas supply
• Follow the dryer manufacturer's service manual for disassembly and reassembly steps
• Use appropriate hand tools and avoid forcing parts; inspect venting and lint traps while replacing

This evaporator defrost heater melts frost from the freezer's evaporator coil during the automatic defrost cycle, restoring proper airflow and cooling. Replacing a failed heater helps prevent recurring ice buildup and temperature swings.

• Heats the evaporator coil at set intervals to clear ice
• Maintains airflow so the fresh food section and freezer cool consistently
• Common signs of failure: heavy frost on the back freezer panel or evaporator
• Other symptoms may include warm refrigerator temperatures, reduced airflow, or fan noise from ice contact

• Disconnect power before servicing; wear appropriate PPE
• Access the heater behind the freezer's rear panel; defrost ice with warm air/steam—avoid sharp tools
• Reinstall in the original position; keep wiring clear of the fan and moving/hot parts; ensure secure harness connections
• After reassembly, verify the defrost cycle per service instructions; if frost returns, also check the defrost thermostat/bi-metal and control

This evaporator fan shroud directs airflow from the evaporator fan to the refrigerator's cooling coils, improving cold-air circulation and helping maintain even temperatures in the fresh and freezer compartments. What it does:

• Channels airflow from the evaporator fan to the evaporator coils for efficient heat exchange
• Protects the fan motor and blades from contact with ice and debris
• Helps reduce uneven cooling or warm spots caused by disrupted airflow
• Fits into the evaporator compartment and mates with the fan assembly

• Intended for use in the evaporator compartment;
• Disconnect power to the appliance before accessing internal components to avoid shock or injury
• Handle the shroud gently to avoid damaging tabs or mounting points during removal/installation
• Reassemble panels and test cooling operation after installation

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. It is responsible for circulating air over the evaporator coils, which helps to maintain a consistent temperature throughout the refrigerator and freezer compartments. It operates at a power requirement of 115V, 60Hz, and 0.14A, featuring a shaft that measures 1/8" in diameter and 5/8" in length.

Causes of a bad evaporator fan motor can include electrical failures, wear and tear from continuous use, or obstruction from debris that hinders the fan's movement. A malfunctioning fan motor can lead to uneven cooling and compromised performance of the refrigerator.

Symptoms of a bad evaporator fan motor include:

• Inconsistent temperatures in the refrigerator or freezer
• Unusual noises coming from the fan area
• The refrigerator running continuously without cycling off
• Frost buildup on the evaporator coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A small replacement clip that secures the evaporator/fan motor to the freezer evaporator housing, keeping the motor aligned and the fan blade stable for proper airflow. Simple, low-cost fix to restore correct motor mounting. What it does:

• Secures the evaporator/fan motor to the housing to maintain proper alignment and reduce wobble
• Helps prevent noisy operation caused by a loose motor or fan blade
• Keeps the fan blade positioned for consistent airflow across the evaporator
• Compatible with standard evaporator motor mounting applications where this retainer is specified

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access typically requires removing the evaporator cover or rear panel inside the freezer compartment
• Handle evaporator and nearby evaporator fins carefully to avoid damage; work in a frost-free environment if possible

This grommet isolates the refrigerator's fan motor from its mounting bracket to reduce vibration and noise while keeping the motor secure. Replacing worn or missing grommets helps stop rattles and prevents the fan blade from rubbing.

• Cushions the fan motor to maintain proper alignment and clearance
• Absorbs vibration to help reduce humming, buzzing, or rattling sounds
• Helps keep the motor stable so the blade doesn't contact the shroud
• Common signs of failure include excess vibration, noise, or a loose fan motor

• Disconnect power to the refrigerator before servicing
• Access the fan motor area (rear of unit or inside the freezer, depending on model) and support the motor
• Remove mounting hardware and seat the new grommet fully in the bracket/mount
• The fan blade spins freely with even clearance before reassembling and restoring power

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gasket forms a tight seal between mating surfaces inside your appliance to help contain air or water and maintain proper performance. Replacing a worn or damaged gasket restores reliable sealing and helps prevent leaks or escapes. What it does:

• Maintains an airtight/watertight seal between components
• Helps prevent leaks, drips, and moisture or air escaping
• Supports correct temperatures and operating efficiency
• Common signs of failure: visible cracks or flattening, leaking, moisture around the joint, or poor sealing

• 1 gasket

• Disconnect power; shut off water supply if applicable
• Note gasket orientation before removal and clean mating surfaces
• Seat the gasket evenly without stretching or kinking
• Reassemble and test for proper seal and any leaks

The Cabinet Roller is an OEM part for Whirlpool refrigerators. It facilitates the smooth movement and positioning of the refrigerator cabinet, making it easier to adjust or relocate the appliance as needed. This roller is designed to support the weight of the refrigerator while allowing for effortless mobility.

Causes of a bad Cabinet Roller can include wear and tear over time, exposure to heavy loads, or damage due to rough handling or impact. These factors can lead to the roller becoming ineffective or breaking altogether, resulting in difficulty moving the refrigerator.

Symptoms of a bad Cabinet Roller include:

• Difficulty moving or adjusting the refrigerator
• Unusual noises when attempting to move the appliance
• The refrigerator not sitting level or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Thermistor Kit is an OEM part for Whirlpool refrigerators and freezers. This component plays a role in monitoring and controlling the temperature within your appliance. A thermistor is a type of resistor whose resistance changes with temperature changes, allowing the refrigerator's control system to accurately maintain the desired cooling levels based on the readings it provides.

Causes of a bad thermistor can include wear and tear from constant use, exposure to extreme temperatures that can damage the component, or electrical issues such as short circuits.

Symptoms of a bad Thermistor Kit include:

• The refrigerator or freezer is too cold or not cold enough
• The appliance cycles on and off more frequently or for longer periods than normal
• Unexplained changes in temperature settings

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement cover shields and secures the freezer temperature sensor, keeping it correctly positioned for accurate temperature feedback. An intact cover helps protect the sensor and maintain proper placement for consistent cooling performance.

• Holds the freezer thermistor in the correct location and orientation
• Protects the sensor from accidental damage or dislodging
• Supports stable temperature readings to the control system
• Replace if the cover is cracked, missing, or its tabs are broken; if the sensor is loose/exposed; or after visible damage

• Disconnect power to the refrigerator before servicing
• Remove shelves/obstructions to access the thermistor area; release or unfasten the old cover
• Seat the thermistor properly, align the new cover, and secure using existing fastener or tabs
• Restore power and verify normal cooling operation

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It monitors the temperature of the evaporator coil and signals the defrost heater to turn on when necessary, preventing frost buildup on the coil.

You should replace the defrost thermostat if it becomes faulty or damaged. Causes of a bad defrost thermostat can include electrical issues, exposure to moisture, or general wear and tear over time.

Symptoms of a bad defrost thermostat include:

• Frost buildup on the evaporator coil
• The refrigerator running constantly or not cooling properly
• Water leaks inside the refrigerator
• The defrost heater not activating during the defrost cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
