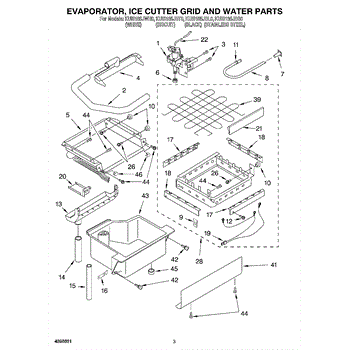

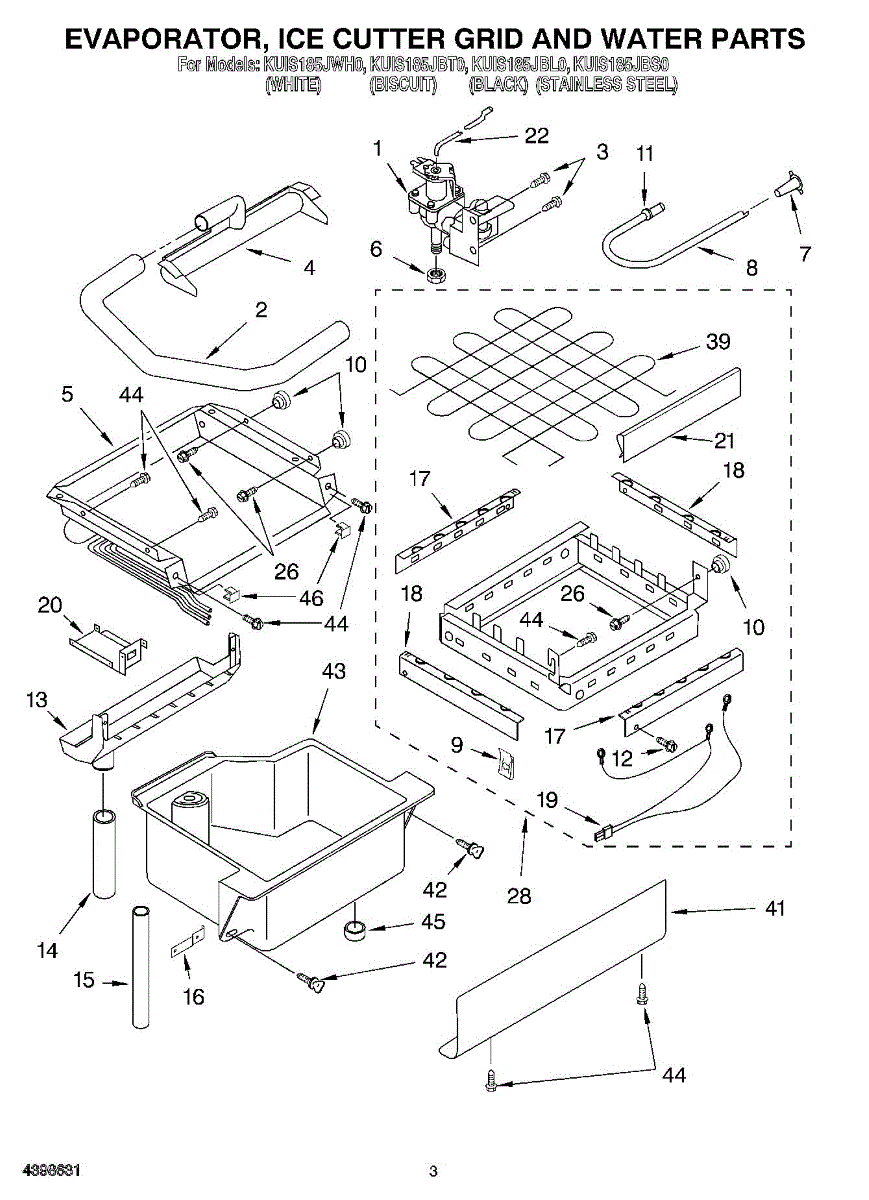

Parts for Kitchenaid KUIS185JBS0: 02 - Evaporator, Ice Cutter Grid And Water Parts

The Water Valve is an OEM part for Whirlpool ice machines. This part controls the flow of water into the ice maker, ensuring it receives the correct amount of water for ice production.

Causes of a bad water valve can include wear and tear from regular use, mineral buildup from hard water, or electrical failures.

Symptoms of a bad water valve include:

• The ice machine not producing ice
• Slow or inconsistent ice production
• Leaking water from the valve area
• No water entering the ice machine
• You should replace the water valve if it becomes faulty or damaged.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement tube routes water safely between internal components. Use it to replace cracked, kinked, or brittle tubing so your appliance can restore proper water flow and reduce leaks during normal operation.

• Directs water between components to support normal operation
• Helps maintain consistent flow and leak-resistant connections
• Common failure signs: cracks, kinks, discoloration, or hardening
• Symptoms include water leaks, reduced flow, or intermittent filling

• Disconnect power and shut off the water supply before servicing
• Note original routing and fitting type; transfer any clips or ferrules if present
• Cut ends square and fully seat into push-to-connect or compression fittings
• Restore power and water; check all connections for leaks and proper flow

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement tube routes water safely between internal components. Use it to replace cracked, kinked, or brittle tubing so your appliance can restore proper water flow and reduce leaks during normal operation.

• Directs water between components to support normal operation
• Helps maintain consistent flow and leak-resistant connections
• Common failure signs: cracks, kinks, discoloration, or hardening
• Symptoms include water leaks, reduced flow, or intermittent filling

• Disconnect power and shut off the water supply before servicing
• Note original routing and fitting type; transfer any clips or ferrules if present
• Cut ends square and fully seat into push-to-connect or compression fittings
• Restore power and water; check all connections for leaks and proper flow

Size: 1/4 inch. Nut for plastic water line.

These inserts are for 1/4 inch plastic tubing. Package of 4.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement nut is a basic fastener used to secure components and assemblies on compatible Whirlpool appliances, restoring a tight connection and preventing parts from loosening during use. What it does

• Secures panels, brackets, or components to a stud or bolt to keep assemblies stable
• Prevents rattling, vibration, or movement caused by a loose or missing nut
• Replaces a stripped, corroded, or lost nut to restore proper mechanical connection
• Works with the corresponding bolt or stud as part of the appliance's fastening system

• Disconnect power and water to the appliance and ensure it is stable before starting work
• Thread the nut on by hand first to avoid cross-threading, then tighten with the appropriate sized wrench or socket
• Do not overtighten — torque to the appliance manufacturer's specification when available
• Replace damaged studs or mating hardware if threads are worn or damaged

This spacer maintains the correct distance between mating components in your appliance's assembly so parts align and operate smoothly. Replacing a worn or missing spacer can correct looseness, rubbing, or vibration-related noise.

• Holds a precise gap between parts for proper alignment and motion
• Prevents metal-to-metal contact and premature wear
• Helps reduce vibration, rattling, and scraping noises
• Common signs include misalignment, unusual gaps, looseness, or rubbing in the related assembly

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Refer to your model's diagram to locate the spacer's exact location and orientation
• Inspect related fasteners and bushings; replace if worn
• Do not overtighten hardware to avoid deforming the spacer

This push nut fastener is a small push-on retainer used to secure shafts, studs, or trim where a low-profile, tool-free hold is required. It provides a reliable, vibration-resistant connection to keep components in place. What it does:

• Holds shafts, studs, or panels by gripping the tapered shaft when pressed on
• Prevents loosening from vibration and normal use
• Useful for securing trim, brackets, shields, or small assemblies
• Commonly used where a permanent or semi-permanent push-fit retention is needed

• Press onto clean, correctly sized shaft until fully seated; do not hammer on delicate components
• Wear eye protection when installing to guard against snapping or flying debris
• For service requiring disassembly of electrical components, disconnect power first

A threaded screw used to secure appliance components where an 8-16 thread is specified. Provides a straightforward replacement fastener to restore original fit and keep panels, brackets, and internal parts held securely. What it does:

• Fastens panels, brackets, trim, and small assemblies that use an 8-16 threaded fastener.
• Replaces missing, corroded, stripped, or damaged screws to stop rattling, gaps, or loose parts.
• Restores reliable mechanical connection after service or part replacement.
• Compatible where the OEM specifies an 8-16 screw for mounting or securing components.

• Use the correct driver to avoid stripping the head; start threads by hand to prevent cross-threading.
• Tighten until secure but avoid over-tightening to prevent damage to mounting holes or plastic parts.
• If working near electrical components, disconnect power and follow all safety precautions.
• Inspect mating threads and replace if damaged before installing this screw.

This water slide reservoir replaces the cracked or damaged reservoir that channels water to the dispenser/ice system, restoring a secure pathway for water and preventing leaks or loss of dispenser function. What it does:

• Collects and directs water from the inlet to the dispenser/ice mechanism
• Seals the water pathway to prevent leaks or puddling inside the cabinet
• Helps maintain proper water flow to the dispenser and icemaking components
• Commonly replaced for visible cracks, leaks, or reduced dispenser performance

• One water slide reservoir

• High-level fit: installs in the dispenser/ice assembly per OEM diagram; verify placement before fastening
• Recommended safety: unplug or disconnect power and shut off water supply before service
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the plastic

This water reservoir tube routes chilled water from the refrigerator's internal reservoir to the dispenser line. Replacing a brittle, kinked, or cracked tube restores steady flow and helps stop leaks inside the fresh food compartment.

• Carries water between the reservoir and the dispenser supply path
• Maintains a sealed route to reduce internal leaks and air intrusion
• Damage or kinks can cause slow/no dispensing, intermittent flow, or water pooling near the crisper area
• Fresh tubing helps protect shelves and liners from water damage

• Disconnect power and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel/container to catch residual water
• Note original routing; avoid sharp bends and contact with moving or warm components
• Fully seat the tube into quick-connect fittings; tug gently to confirm it's locked

This overflow tube channels excess water to the proper drain path, helping prevent leaks and ice buildup around the water-fill or collection area. Replace a cracked, missing, or misrouted tube to restore proper water management.

• Directs overflow water safely to the designated drain path/pan
• Helps prevent puddles, cabinet leaks, and ice formation from overfill
• Supports stable water levels around the fill/reservoir area
• Common failure signs: visible cracks/kinks, loose fit, water drips or pooling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and orientation of the tube for proper reinstallation
• Seat each end fully and reuse existing clamps/seals if present; avoid kinks or sharp bends
• Restore water/power, then run a water cycle and check for leaks and correct flow

This front-and-rear mounting bracket secures the appliance's front and rear assemblies to the cabinet, restoring proper alignment and support. Replacing a worn or damaged bracket helps reduce panel movement, rattling and improper fit. What it does:

• Provides a stable mounting point for the appliance's front and rear assemblies to maintain alignment and cabinet integrity.
• Stops or reduces rattling, vibration and shifting caused by loose or broken mounting hardware.
• Prevents gaps and misalignment that can affect doors, panels or controls.
• Fits original mounting locations to restore factory support.

• Bracket (front and rear)

• Disconnect power (and water if applicable) before starting any repair.
• Use the original fasteners or manufacturer-recommended hardware; do not force or bend the bracket.
• Inspect adjacent mounting points and fasteners for wear; replace any damaged parts.

This is a replacement left/right mounting bracket used to secure interior panels or trim and restore proper alignment and fit. It provides a simple fix for loose panels and misalignment without replacing larger assemblies. What it does:

• Secures an interior panel, trim piece, or rail to the appliance cabinet
• Restores proper alignment to reduce rubbing or binding of doors or panels
• Prevents rattling or movement caused by worn or broken brackets
• Helps maintain correct spacing for connected components

• Basic hand tools typically required; refer to your appliance's service manual for the exact procedure
• Disconnect power (and gas if applicable) before beginning any repair to avoid shock or injury
• Keep removed fasteners and parts organized for reassembly; replace any damaged screws

This wire harness connects the ice maker's cutter grid to the appliance's electrical system, supplying power so the heated grid can slice the ice slab into cubes. Replacing a damaged harness helps restore consistent cube separation and production.

• Routes electrical power to the cutter grid/heating wires
• A failed, loose, or heat-damaged harness may prevent the grid from warming
• Common symptoms may include whole sheets or large chunks in the bin, cubes not separating, or intermittent/slow ice production
• Visual signs can include melted/discolored grid connectors or broken/brittle conductors

• Disconnect power before servicing; allow the cutter grid to cool completely
• Note wiring/connector orientation; transfer one connection at a time to match original routing
• Seat connectors fully and secure the harness in original clips/standoffs away from sharp edges
• After reassembly, restore power and verify the cutter grid warms during a cycle

This support bracket holds the evaporator/grid assembly in place inside the freezer compartment, helping maintain proper airflow and alignment for consistent cooling. Durable replacement for damaged or missing mounts. What it does:

• Secures the evaporator or evaporator grid to the cabinet to prevent movement and vibration
• Keeps the evaporator properly positioned for even airflow through the freezer
• Helps reduce rattling or noise caused by a loose evaporator assembly
• Can prevent contact that leads to coil damage or improper defrosting

• One support bracket

• Disconnect power to the appliance before beginning any disassembly
• Remove necessary panels and shelving to access the evaporator area; handle the evaporator coil/grid carefully to avoid bending or puncturing
• Reuse existing fasteners when possible; replace any damaged clips or screws with OEM-recommended hardware

Size: 8-18 x 1 1/4 inch.

This cutter grid assembly uses heated wires to slice the ice slab into uniform cubes during harvest in clear ice machines. Replacing a damaged grid restores proper cube separation and helps prevent jams caused by uncut ice sheets. What it does:

• Heats and cuts the ice slab into individual cubes as it passes through the grid
• A failed or broken grid can leave the ice sheet uncut or in large fused blocks
• Visible signs can include broken/burned wires or cubes sticking together

• One cutter grid assembly

• Disconnect power and shut off water before servicing; allow the grid to cool
• Handle by the frame—do not touch or bend the heating wires
• Install in the same orientation; transfer existing mounting hardware if required
• Reconnect the harness securely and route wires away from moving parts

The Cutting Grid Kit is an OEM replacement part for Whirlpool ice machines. It cuts sheets of frozen ice into individual cubes, ensuring ice is available in uniform sizes. Each kit contains 8 screws and approximately 10 feet of wire. Two kits are required to replace both directions of the cutting grid to ensure comprehensive restoration of the ice maker’s functionality.

Causes of a bad Cutting Grid Kit can be attributed to mineral deposits buildup, which can obstruct the cutting process, electrical malfunctions affecting the heating element, or physical damage to the grid wires.

Symptoms of a malfunctioning Cutting Grid Kit are:

• Ice sheets not being cut into cubes
• Accumulation of uncut ice in the bin
• The heating element fails to warm up
• Inconsistent ice cube sizes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This grid cover is a direct-fit replacement that restores the protective trim and appearance around your appliance's cooktop grid. It keeps the cooktop edge sealed and helps hold the grate area steady during normal use. What it does:

• Covers and protects the outer edge of the cooktop grid to prevent debris from entering gaps.
• Helps maintain proper alignment and stability of the cooktop grate.
• Restores worn, cracked or missing trim for a cleaner, finished look.
• Reduces risk of small items falling into the burner area when the grate is removed.

• Designed for easy swap-out; remove the grate and lift old cover before installing the new cover.
• No special tools typically required; handle carefully to avoid scratching the cooktop surface.
• Disconnect power or ensure burners are cool before working around the cooktop.

Size: 10-32 x 5/8 inch.

Size: 8-18 x 5/8 inch.

This small plastic cap covers the refrigerator's drain fastener. It shields the screw and surrounding liner from moisture and debris and restores a clean, finished look—ideal when the original cap is cracked, loose, or missing.

• Covers and protects the drain fastener/opening from moisture and debris
• Helps maintain a clean, finished appearance inside the compartment
• Keeps the fastener concealed and in place
• Replace when the cap is cracked, warped, discolored, loose, or missing

• Disconnect power before servicing; remove shelves/bins as needed for access
• Gently pry off the old cap with a plastic tool to avoid scratching the liner
• Align and press the new cap until fully seated and flush
• The drain path remains unobstructed after installation
