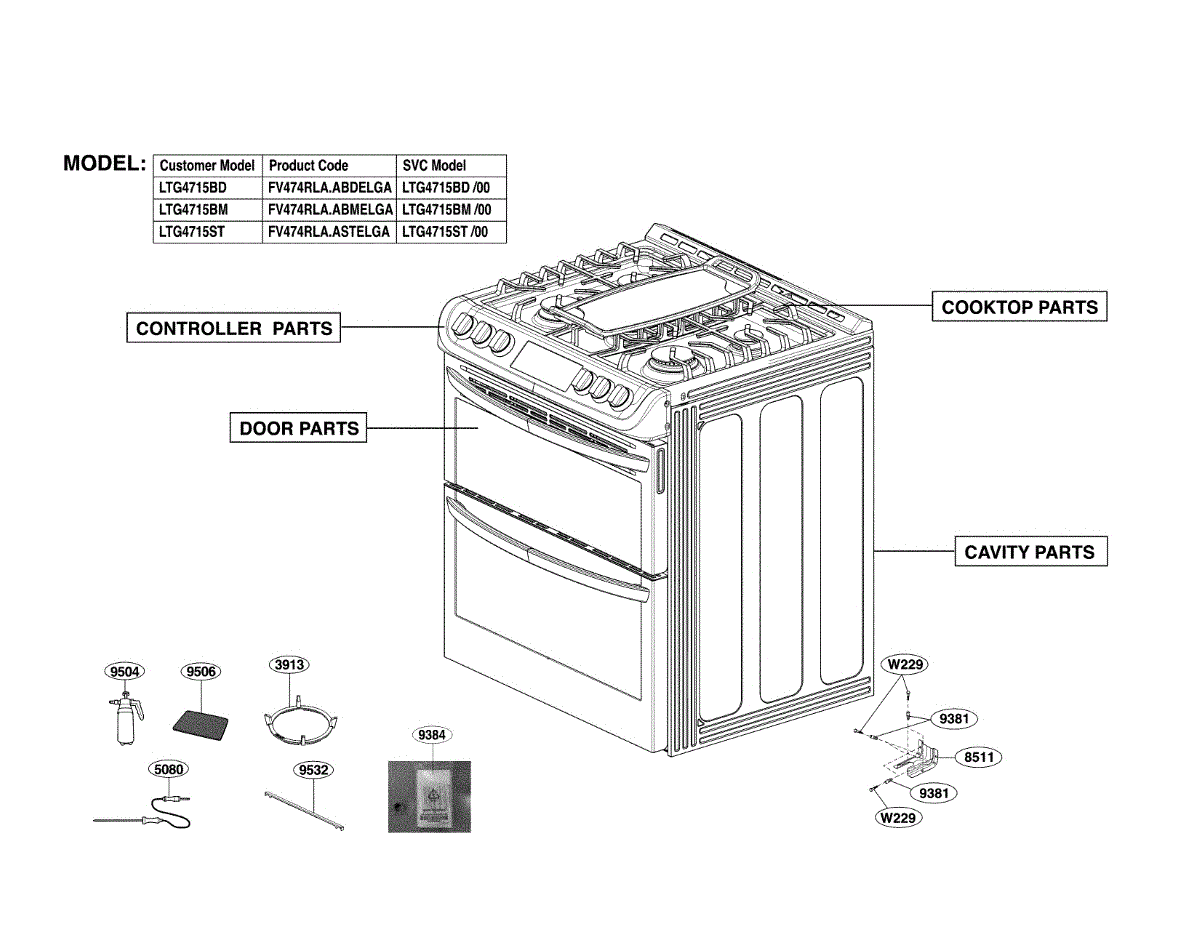

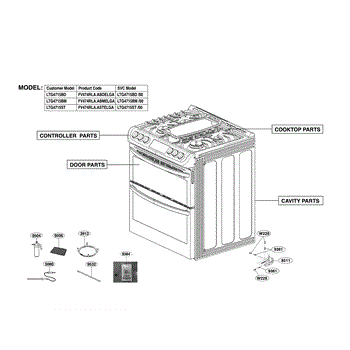

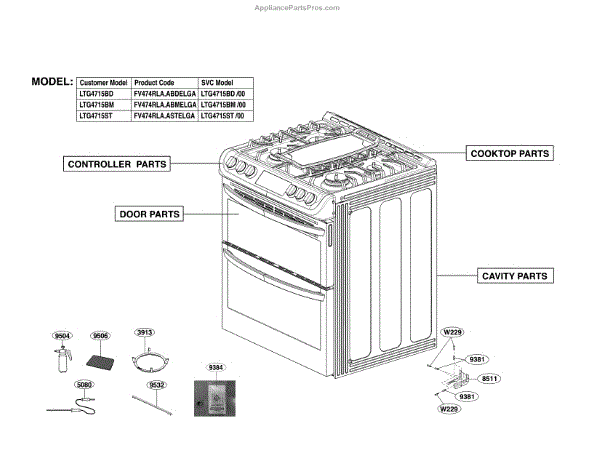

Parts for Lg LTG4715ST/00: Exploded View Parts

This gas surface burner head restores even flame and reliable lighting on your range cooktop. Replacing a worn or clogged burner helps bring back proper ignition, flame pattern, and consistent heat output. What it does:

• Directs gas from the orifice through precisely formed ports to create an even ring of flame
• Works with the spark igniter for quick, consistent ignition
• Helps maintain correct flame size and color for efficient cooking
• Typical symptoms include: burner won't light, delayed ignition, weak/uneven flame, or yellow-tipped flames

• Includes 1 burner head

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift off the old burner head and clean the mating surface
• Align the new burner head over the orifice and ensure proper clearance to the igniter
• Reassemble, restore gas/power, and test burner operation and flame pattern

This insulator cushions and isolates a component to reduce vibration and help prevent heat or electrical transfer to adjacent parts. It's a simple replacement part that restores proper spacing and support where the original insulator has worn or failed. What it does

• Provides cushioning and vibration isolation for the mounted component
• Helps maintain correct spacing and alignment of panels or assemblies
• Reduces direct heat or electrical contact between parts
• Stops rubbing or noise caused by a deteriorated or missing insulator

• One insulator

• Turn off power and unplug the appliance before attempting any repair
• Remove any surrounding panels or components as needed to access the mount point
• Replace only the damaged insulator with the same shape and orientation; ensure a snug fit
• If fasteners or clips were removed, reuse OEM hardware or replace with equivalent parts to secure the insulator

This insulator is a small protective cushion that helps damp vibration and prevent rubbing or heat transfer between adjacent appliance components. It restores proper spacing and reduces noise where panels or parts meet. What it does:

• Cushions components to reduce vibration, rattling, and wear
• Prevents metal-to-metal contact that can cause noise or damage
• Helps maintain correct spacing and alignment of nearby parts
• Can reduce heat transfer between hot and sensitive parts

• One insulator

• Disconnect power before servicing the appliance
• Remove only the panels or components necessary to access the old insulator
• Press or adhesive-mount the replacement in the same location and orientation as the original

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where a stripped, missing, or damaged screw causes loose parts or rattling. What it does:

• Fastens panels, trim, or internal components to maintain structural fit
• Helps stop vibration-related noise from loose assemblies
• Replaces missing or corroded screws that prevent proper closures
• Restores secure mounting after repairs or disassembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not over-torque to prevent thread damage
• Keep small parts away from children and pets
• Disconnect power or water before accessing internal parts

This flat hardware washer helps secure bolts and fasteners in the washer assembly to keep panels and components seated and stable. Simple replacement can restore proper clamping and reduce movement around joints. What it does:

• Provides a smooth bearing surface under nuts or bolt heads to distribute load
• Prevents fasteners from loosening due to vibration or movement
• Helps maintain proper alignment of panels and small components
• Worn, corroded, or missing washers can cause loose panels, increased noise, or premature fastener wear

• Replace with the same type and size washer removed from the appliance
• Use basic hand tools; support the assembly to avoid stress on other components
• If corrosion or thread damage is present, replace the bolt/nut as well
• Disconnect power and follow manufacturer safety guidance before servicing

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

Replacement knob assembly that restores reliable control of appliance settings and improves knob feel. Installs on the appliance control shaft to help address loose, cracked, slipping, or unresponsive knobs so settings can be selected accurately. What it does:

• Restores secure, tactile control for selecting functions and temperature settings
• Replaces worn, cracked, or stripped knobs that slip, wobble, or won't turn
• Ensures proper engagement with the control shaft for consistent operation
• Helps eliminate intermittent or unresponsive control input caused by a damaged knob

• Always disconnect power before servicing the appliance
• Remove the old knob by pulling it straight off the control shaft; align and push the new knob fully onto the shaft
• Inspect the control shaft and surrounding trim for damage before installation; replace additional components if needed
• Test the control operation after reconnecting power

This control knob assembly restores a smooth, secure way to select settings on your appliance. Replace a cracked, stripped, or missing knob to regain precise control and a clean, factory appearance. What it does:

• Attaches to the control stem to actuate the underlying switch or valve
• Provides the user interface for selecting heat, time, or function settings
• Helps ensure proper pointer alignment and positive engagement
• Common symptoms of failure: cracked knob, spins freely, wobbly/loose fit, falls off, or won't turn the control

• 1 knob assembly

• Turn the appliance off; unplug or disconnect power. On gas units, ensure all burners are off and surfaces are cool.
• Pull the old knob straight off the stem—avoid prying tools that could damage the panel.
• Align the new knob's hub with the stem and press straight on until fully seated.
• If it doesn't seat easily, recheck stem orientation and alignment—do not force.

The PCB Assembly, Sidekey is an OEM replacement part for LG  ranges. This printed circuit board assembly is responsible for controlling the functions of the control panel on the side of the range. It communicates with all electronic components to operate the cooktop burners, oven lights and fans, and programming features.

Causes of a bad PCB assembly can include corrosion of printed circuits over time due to heat exposure, moisture damage, or component failure.

Symptoms of a bad PCB assembly include:

• Cooktop burners not working properly or unresponsive to control panel commands
• Inability to turn on oven lights or fans
• Programming features like timers or temperatures not functioning correctly
• Blank or unresponsive control panel displays

This OEM LG part is also compatible with Sears/Kenmore ranges. Replace yours today with this genuine electronic control board and upgrade the functionality of your electric range oven.

This control board assembly directs power and communication to key components, interpreting inputs and sensor signals so the appliance runs the correct functions and cycles. Replaces a failed electronics module to restore reliable operation.

• Distributes power and control signals to major components per the unit's programmed logic
• Interfaces with sensors and the user controls to execute selected functions
• Coordinates cycle timing and safety monitoring
• Common signs of failure: no power or won't start, unresponsive controls/display, intermittent operation, error codes, or unexpected shutdowns

• Disconnect power to the appliance before servicing
• Handle the board by the edges; use ESD protection to avoid static damage
• Photograph and label connectors, then transfer them one at a time to the new board
• Secure wiring to avoid pinching; follow the unit's tech sheet or service manual

The Encoder Board is an OEM part for LG ovens. This board is responsible for interpreting the inputs from the control knobs and buttons on the oven's control panel. It sends these signals to the main control board, which then adjusts the oven settings accordingly, such as temperature and cooking mode.

Causes of a bad encoder board can include electrical surges, wear and tear from frequent use, or physical damage to the board's components. A malfunctioning encoder board can disrupt the communication between the user interface and the oven's control system.

Symptoms of a bad encoder board include:

• Unresponsive control knobs or buttons
• Incorrect oven temperature settings
• Oven not starting or turning off unexpectedly
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore.

This tapping screw secures appliance panels, brackets, and trim. Replace a missing or stripped fastener to restore a tight, rattle-free fit and keep components properly aligned.

• Cuts its own threads as it drives (self-tapping) to fasten metal or plastic components securely
• Helps eliminate looseness and vibration noises when an original screw is missing or damaged
• Typical signs you need this part: loose or rattling panels, gaps/misalignment, or covers that won't stay secured
• Direct replacement for the original fastener in the same location

• Disconnect power; turn off water or gas supplies before service
• Start the screw by hand to avoid cross-threading, then tighten with the correct driver
• Align parts fully before tightening and avoid overtightening, especially into plastic
• Reuse any original washers or clips that were installed with the screw

This customized screw is the exact fastener specified by the manufacturer to secure components in select LG appliances. Replacing a missing or stripped screw restores a tight, rattle-free fit and helps maintain proper alignment over time.

• Secures panels, brackets, and internal assemblies at original mounting points
• Helps reduce vibration and rattling noises from loose hardware
• Replaces missing, rusted, or stripped screws
• Supports stable operation by keeping parts firmly in place

• Disconnect power; shut off water or gas before service
• Match the screw to the exact location using your model's parts diagram
• Start threads by hand; tighten snugly without overtightening to avoid stripping
• Use the correct driver bit for the head style to prevent damage

This heater cover is the replacement housing that protects the dryer heater assembly and helps direct airflow for reliable drying performance. It restores proper heater positioning and helps prevent contact with heating components. What it does:

• Protects the heater assembly and surrounding components from debris and direct contact
• Helps channel airflow through the heater area for consistent drying
• Can reduce rattling or noise caused by a damaged or loose heater cover
• May be replaced when cover is cracked, warped, or missing fasteners

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• Inspect mounting tabs and fasteners; replace any damaged clips or screws for secure fit
• Minor disassembly of the dryer cabinet may be required; keep track of removed screws and panels
• If you smell burning or see damaged wiring, stop.

This heater cover protects the dryer heater assembly and helps direct airflow for proper heating performance. It replaces a cracked or damaged cover to restore safe operation and part alignment. What it does:

• Shields the heating element and internal components from debris and accidental contact
• Helps channel airflow through the heater for efficient drying
• Can prevent rattling or vibration caused by a loose or broken cover
• Common symptom: damaged cover may be noticed when replacing the heater or after impact/overheating

• Disconnect power before accessing the heater assembly; allow components to cool fully
• Follow the appliance service manual for disassembly/reassembly and use correct fasteners
• Inspect adjacent components (heater element, terminals, mounting clips) and replace if damaged

This replacement screw is a factory-style fastener used to secure components in place and restore proper fit and function. It's a direct-fit hardware piece sized and finished to match the original installation. What it does:

• Secures panels, brackets, or assemblies to prevent rattling or misalignment
• Restores original mounting strength where a stripped or missing screw causes loose parts
• Helps maintain proper panel gaps and component positioning for reliable operation
• Appropriate where the appliance requires the OEM-style screw head and thread form

• Screw

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage plastic parts
• Replace any damaged or corroded mating hardware for best results
• Disconnect power to the appliance and follow manufacturer safety instructions before servicing

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

This replacement outer housing case provides a durable protective cover for internal components, restoring the appliance's exterior fit and protection. It helps maintain proper component alignment and prevents dirt and moisture from entering sensitive areas. What it does:

• Protects internal components and wiring from damage, dust, and moisture.
• Restores proper alignment and secure mounting for controls or assemblies attached to the case.
• Reduces rattles, vibration noise, or loose-feeling panels caused by cracked or warped housing.
• Helps prevent minor water intrusion into internal compartments when the original case is damaged.

• One replacement outer housing case

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Installation typically requires basic tools (screwdriver set); keep fasteners and trim in a safe place during removal.
• Handle the replacement carefully to avoid scratching or cracking the new case; ensure all clips and screw locations line up before final fastening.
• If seals, gaskets, or attached trim were removed, inspect and replace as needed for proper reassembly.

This replacement case is the outer housing that protects and secures internal components, restoring the appliance's structural support and appearance. It helps keep wiring and mechanisms covered for safe, reliable operation. What it does

• Replaces a cracked, warped, or damaged outer housing that exposes internal parts
• Restores secure mounting points for internal components and fasteners
• Helps reduce vibration and rattling caused by loose or damaged panels
• Keeps wiring and controls protected from accidental contact and debris

• Disconnect power to the appliance before beginning work to avoid electrical shock.
• Basic hand tools are typically required; fasteners or clips may need careful removal and reuse.
• Handle part carefully to avoid scratches; transfer any brackets, gaskets, or hardware.

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement nozzle holder secures the appliance's nozzle in place so sprays and steam stay directed where needed, restoring correct alignment and stable operation. It's a simple wear-and-tear part that keeps the nozzle from wobbling or falling out. What it does:

• Secures and positions the spray/steam nozzle so fluid or steam is delivered correctly
• Keeps the nozzle from shifting, slipping, or vibrating during use
• Prevents nozzle from detaching and reduces the risk of misdirected spray
• Helps restore normal operation when a broken or worn holder causes loose nozzle movement

• Disconnect power and water before servicing to avoid shock or scald risk
• Access may require removing exterior trim or panels—keep fasteners organized
• Install by snapping into place or fastening with the original screws as shown in the OEM diagram
• Replace only with the exact OEM part number to ensure fit and function

This burner assembly replaces a damaged or worn surface burner to restore proper heat output and stable flame control on compatible gas ranges. It fits into the cooktop and connects to the burner valve and ignition system for normal operation. What it does:

• Provides the main burner head and ports to produce a stable gas flame for cooking
• Restores even heat spread when a burner is clogged, corroded, or physically damaged
• Helps resolve ignition problems caused by a broken or misaligned burner head
• Supports proper flame shape to improve simmer and boil performance

• Turn off the gas supply and power to the appliance before attempting any work
• Remove the cooktop or burner grate per the service manual to access the assembly
• Check all connections and test for gas leaks after installation

This burner assembly replaces the damaged or worn cooktop burner to restore even heating and safe operation on compatible LG ranges. It provides the complete burner unit that mounts under the cooktop surface for reliable ignition and heat transfer. What it does:

• Houses the burner element and delivers heat to the cookware for range cooking
• Replaces cracked or non-heating burners that cause uneven cooking or no heat
• Restores proper fit and alignment for consistent ignition and flame/element performance
• Helps eliminate clicking, sputtering, or intermittent heating when the burner is the confirmed fault

• Disconnect power and shut off gas before servicing; follow all safety precautions
• Handle glass or porcelain cooktop surfaces carefully to avoid chipping during removal/installation
• Tighten mounting fasteners securely and test operation after installation

This door frame replaces the outer trim that surrounds the appliance door, restoring a finished look and helping keep the door seal properly aligned. It's a direct-fit exterior trim piece for compatible LG doors. What it does:

• Replaces damaged, cracked, or warped outer door trim to improve appearance and edge alignment
• Helps maintain proper door closure by supporting the door perimeter
• Prevents drafts and reduces risk of further cosmetic damage at the door edge
• Matches OEM fit and mounting points for a secure install

• Disconnect power to the appliance before beginning any work
• Remove the door or inner trim panels only as required to access mounting screws; keep fasteners organized
• Use appropriate hand tools (screwdriver, nut driver) and avoid over-tightening to prevent cracking the trim
• Handle the part carefully to avoid scratching the finish; verify fit and alignment before final reassembly

This is the clear glass pane in the microwave door that provides a viewing window into the cavity. Replace a cracked or cloudy window to restore visibility and help the door assembly fit and look like new.

• Forms the transparent viewing pane in the microwave door
• Replace when the glass is cracked, chipped, shattered, loose, or rattling
• Helps maintain correct door assembly when reinstalled with the factory frames
• Restores clear visibility if the window has become hazy or scratched

• Disconnect power at the breaker or unplug the appliance before servicing
• Support the door; removal may be required—work on a padded surface
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Reassemble door layers in the original order and verify latch alignment before use

This replacement door handle restores a secure, easy-grip opening to your refrigerator door. It matches the OEM shape and mounting points so the door operates smoothly and looks factory-fresh. What it does:

• Replaces a cracked, loose, or broken refrigerator door handle so the door is easier and safer to open.
• Restores proper grip and leverage for normal daily use.
• Reinstalls to existing factory mounting points to maintain door alignment and appearance.
• Helps prevent further cabinet or door damage caused by using a compromised handle.

• One refrigerator door handle

• Requires removing the old handle and securing the replacement to the same factory screw bosses; use the original screws unless new hardware is explicitly listed.
• Handle hardware may be hidden under trim—check for set screws or clips before prying.
• Support the door while working to avoid strain on hinges; two-person assistance recommended for larger doors.
• Disconnect power only if required for surrounding panels—this is an exterior handle replacement and typically does not require electrical disconnection.

This air guide directs cooled air inside the refrigerator compartment to help maintain even airflow and temperature distribution. Replaces a damaged or missing guide to restore proper venting and help reduce uneven cooling. What it does

• Channels cold air from the evaporator vent into the fresh food compartment for more consistent cooling.
• Helps reduce warm spots or uneven temperatures near shelves and door bins.
• Prevents direct airflow onto stored items, protecting sensitive foods from frost or drying.
• Fits behind vents or above crisper drawers to guide airflow where needed.

• One (1) air guide

• Always unplug the appliance or switch off power at the breaker before servicing.
• Typically installs without specialty tools; you may need to remove shelves or drawers for access.
• Handle plastic parts carefully to avoid cracking; align tabs and snap into place until secure.
• If airflow issues persist after replacement, check vents, damper, and evaporator fan for related faults.

This window glass is the clear viewing pane in the door. Replace it to restore visibility and a clean, finished look when the original panel is cracked, shattered, chipped, or permanently stained.

• Provides the transparent viewing window within the door assembly
• Restores visibility and appearance when the original glass is damaged
• Common symptoms include cracked/shattered or chipped glass, loose/rattling panel
• Addresses an obscured or permanently stained viewing area that won't clean up

• Disconnect power before servicing and remove the door if required
• Place the door on a padded surface; note screw locations and panel order during disassembly
• Handle tempered glass by the edges and wear cut-resistant gloves
• Reassemble carefully; do not overtighten screws to avoid stressing the glass

This Cover Assembly, Poise is the trim piece that snaps over the hinge/closer area, shielding the mechanism and wiring while giving your appliance a clean, finished look. Replace a cracked or missing cover to restore proper protection and appearance.

• Conceals and protects the hinge/closer mechanism and any routed wiring
• Helps keep debris out of moving parts to support smooth door motion
• Restores a clean, finished appearance when the original cover is damaged or missing
• Common signs: cracked plastic, broken tabs, loose/missing cover, exposed hinge area

• Disconnect power before servicing
• Support the door to avoid stressing hinges while removing/installing the cover
• Remove screws or release tabs to take off the old cover; align and secure the new cover
• The door opens and closes freely with no interference

This handle supporter is the bracket that anchors the door handle to the appliance door, keeping the handle secure and aligned. Replacing a cracked or stripped supporter restores a solid, dependable grip on the door.

• Secures the handle to the door and maintains proper alignment
• Helps fix a loose, wobbly, or detached handle
• Replaces a broken or worn mounting bracket that won't hold screws

• Disconnect power and, if applicable, shut off water before service
• Remove the handle and any trim to access the supporter and mounting screws
• Transfer or replace screws as required; do not overtighten into plastic
• Verify handle alignment and operation before fully reassembling

Color: Stainless Panel with Black Glass

The inner cover protects internal components and wiring by covering the appliance's cabinet opening, helping prevent debris entry and accidental contact. It restores safe access and maintains the appliance's internal layout and airflow. What it does

• Shields internal electronics, wiring and assemblies from dust and debris
• Helps prevent accidental contact with energized components
• Restores proper internal clearance and part alignment after repair
• Can address symptoms like visible damage, exposed wiring, burning odor or intermittent operation caused by a compromised cover

• Replace with power disconnected and appliance unplugged to avoid shock
• Verify correct orientation and secure all mounting tabs/screws; do not force into place
• Inspect adjacent wiring and components for damage while the cover is removed
• Use only the part number shown for exact fit

This hinge assembly secures and lets a refrigerator or freezer door pivot smoothly, restoring proper door alignment and seal for better cooling and operation. Replaces worn, bent, or broken hinge hardware to reduce drifting or rubbing doors. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores correct door alignment to help the gasket seal properly
• Stops door sagging, binding, or uneven gaps that can cause cold loss
• Works with the cabinet and door mounting points to maintain consistent operation

• Use basic hand tools; support the door during removal to prevent damage or injury
• Disconnect power to the appliance before making repairs when working near electrical components
• Follow OEM instructions for torque and fastener placement to ensure correct alignment

This control panel is the front user interface that lets you select cycles and settings so the appliance responds to commands and displays status. It replaces a cracked, faded, or unresponsive front control surface to restore normal operation. What it does:

• Houses the touchpad/buttons and display area that register user input and show cycle status.
• Allows selection and confirmation of wash/dry cycles, options, and settings.
• Commonly replaces panels that are cracked, scratched, or have worn-off markings.
• Can resolve issues where buttons do not respond or the control surface is damaged.

• Disconnect power to the appliance before beginning any work to avoid shock.
• Replacement typically requires removing the top or front trim and a few screws; handle the panel gently to avoid damaging the display or bracket tabs.
• Keep screws and small parts organized and verify alignment before tightening.

This Main PCB is the appliance's primary power control board that manages electronic controls and power distribution, restoring proper operation when the original board fails. Replaces a faulty control module to help return normal control and power functions. What it does:

• Controls user interface signals and internal power routing for the appliance's electronics
• Can resolve failures that cause no power, no response from controls, or intermittent operation
• Works as the direct replacement circuit board for the appliance's main control functions

• One main PCB power control board assembly

• Disconnect power at the breaker before beginning any service
• Access may require removing the control panel or rear service panel; follow your model's service instructions
• Handle board by edges and avoid static discharge; use proper ESD precautions

The Oven Selector Knob Supporter is an OEM replacement part for LG ovens. It is a crucial component that provides structural support and ensures proper functioning of the oven selector knob mechanism.

Symptoms of a bad oven selector knob supporter:

• Loose or wobbly oven selector knob
• Difficulty in turning or selecting oven functions
• Knob becoming detached or falling off
• Misalignment or binding of the knob mechanism

Causes of a faulty oven selector knob supporter can include physical damage, wear and tear over time, or manufacturing defects that compromise its structural integrity or alignment.

This OEM LG part is also compatible with Sears/Kenmore ovens.

This single wiring harness routes electrical power and signals between components to restore proper connections and reliable operation. It replaces a damaged or worn harness to help eliminate intermittent power or control issues. What it does:

• Transfers power and control signals between appliance components to maintain proper function
• Replaces frayed, burnt, or damaged wiring that can cause intermittent operation or component failure
• Helps resolve symptoms like loss of power to a module, erratic behavior, or failure to respond
• Provides a direct plug-and-play connection when matching the correct factory harness

• Disconnect all power (unplug or switch off circuit breaker) before starting any work
• Handle connectors gently and seat firmly until they click into place

This is a single wiring harness that routes power and signals between appliance components to restore reliable electrical connections. It replaces a damaged or worn harness so controls and features can communicate properly. What it does:

• Carries power and control signals between specific components
• Restores interrupted circuits that can cause intermittent operation or component failures
• Helps resolve symptoms like no power to a component, inconsistent function, or error codes tied to open/shorted wiring
• Provides factory-style connectors for a direct fit and reliable connections

• Disconnect power (unplug or turn off breaker) before installing to avoid shock or damage
• Inspect connectors and routing, match connector types and wire colors before connecting
• Avoid pinching or sharply bending wires; secure harness using existing clips or ties

The PCB Supporter is an OEM part for LG ranges and cooktops. It securely mounts and positions the printed circuit board controlling cooking functions.

Causes of a bad PCB Supporter can include cracking or breaking of mounting clips over time due to normal range vibrations and use.

Symptoms of a bad PCB Supporter include:

• The control board detaching during use
• Intermittent power to heating elements or displays
• Error messages regarding electrical component issues

This OEM LG part is also compatible with some Kenmore models.

This power transformer assembly converts incoming line voltage to the lower-voltage supply used by the appliance's control electronics. Replacing a failed transformer restores proper power to control boards and related circuits. What it does:

• Converts house voltage to the control circuit voltage used by the appliance
• Supplies stable power to the main control and display electronics
• A faulty transformer can cause power loss to controls, no display, or intermittent operation
• Works as part of the appliance's electrical supply and control system

• Disconnect all power to the appliance before beginning work to avoid shock
• Handle the assembly and its connectors gently; avoid bending pins or wiring
• Verify connector orientation and secure mounting before reapplying power

The Spring is an OEM replacement part for LG ranges. Located within the oven door mechanism, this coiled metal spring helps counterbalance the weight of the door for smooth opening and closing.

Causes of a bad spring can include fatigue from repeated compression cycles over several years, as well as stretching or damage from forced closure of an overloaded door.

Symptoms of a bad spring include:

• Difficulty lifting or closing the oven door
• Sagging or misaligned door that doesn't stay shut
• Loud squeaking or rubbing noises during use
• Broken, loose, or stretched coils losing tension

This OEM LG part is also compatible with Sears Kenmore ranges and select GE models.

A replacement window glass for microwave doors that restores a clear viewing area and protects internal components. Fits the oven door assembly to help you monitor food without opening the door. What it does:

• Replaces cracked, cloudy, or broken microwave door glass to restore visibility
• Helps contain heat and food splatter inside the oven cavity when the door is closed
• Restores the door's finished appearance after impact or wear
• Safe symptom linkage: use when door glass is chipped, shattered, or severely scratched

• Disconnect power to the appliance before service to avoid electrical shock.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• May require partial door disassembly; keep track of screws and clips for reassembly.

This parts assembly is a OEM-design replacement assembly that restores the appliance's original component grouping for reliable operation and serviceability. Use when a multi-piece service assembly is worn, damaged, or failing. What it does:

• Replaces the factory service assembly grouping to restore proper mechanical or electrical function.
• Addresses symptoms such as intermittent operation, visible damage, or component failure in the affected area.
• Replaces worn or broken parts that can't be repaired individually, reducing diagnostic time.
• Helps return the appliance to safe, manufacturer-intended operation when installed correctly.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• Basic hand tools are typically required; refer to the appliance service manual for exact procedures.
• Confirm compatibility with the appliance model before installation; consult the model's parts list.

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

The Oven Rack is an OEM part for LG ranges. This part provides a stable surface for placing cookware during baking, roasting, and broiling.

Causes of a bad oven rack can include exposure to high temperatures over time, which can weaken the metal, or accidental damage that causes bending or warping.

Symptoms of a bad oven rack include:

• Warping or bending of the rack
• Difficulty sliding the rack in and out of the oven
• The rack not sitting level within the oven

This OEM LG part is also compatible with some Kenmore models.

The Surface burner grate is an OEM component specifically designed for LG cooktops and ranges. This burner grate sits atop the surface burner to support cookware during use.

Causes of a bad surface burner grate can include warping, cracks, or breaks from prolonged high heat exposure. Surface levels may become uneven due to impact or normal wear over time.

Symptoms of a bad surface burner grate include:

• Cookware that is unstable or wobbles during use
• Food or liquid spills into the burner below
• Difficulty cleaning built up residues from an uneven surface
• Visible damage or cracks in burner grate material

This OEM LG part is also compatible with select Sears/Kenmore ranges and cooktops.

The Surface Burner Grate is an OEM part specifically designed for LG ranges. It sits above the gas burners on the cooktop providing a durable, heat-resistant surface for cookware.

Causes of failure typically include warping, cracking, or breaking of grate bars from prolonged heat exposure over the life of the range. Material strength degradation is normal with heavy use.

Symptoms of faulty grates include:

• Uneven or inefficient heat transfer to pans
• Risk of cookware bottom damage from direct flame contact
• Potential gas leaks or fire hazards without grate coverage
• Loss of a functional, attractive cooktop appearance

This OEM part also fits select Sears/Kenmore ranges.

The Grille Assembly is an OEM part for LG gas ranges. This assembly covers the ranges' cooking surface and plays an important safety and functional role.

Symptoms of a bad grille assembly include:

• Warping or bending of grates inhibiting pan placement
• Grates unable to withstand normal cooking loads
• Chips, cracks, or holes reducing safety and performance
• Grates difficult to remove or clean after cooking

Causes of failure can include damage from years of heat exposure, damage from heavy pans, or warping due to cleaning techniques.

Replace yours today with this genuine OEM LG assembly to maintain a sturdy, reliable, and safe cooking surface. This replacement grate is compatible with some Samsung and Kenmore Elite brand ranges. The grille ensures properly centered cookware and protection from spills or flare-ups.

The Grille Assembly is an OEM part for LG cooking ranges and range tops. It provides an additional flat-top cooking surface between the standard burner elements. The grille assembly itself is constructed of heavy-duty materials designed to withstand high heat levels while cooking.

Causes can be wear over time under heavy usage, accidental damage from cookware or cleaning, or failure of the heating elements underneath the plate.

Symptoms of a bad griddle plate include:

• Uneven or slow heating of the surface
• Warping or bending of the plate
• Scratches, cracks, or other surface damage
• Loose or missing mounting hardware

This LG part is also compatible with some Kenmore models.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

The Nozzle is an OEM part for LG ranges. It is a small component located inside the burner box that emits gas to create flame. During operation, the nozzle precisely meters fuel flow to each burner to achieve balanced and consistent heating.

Symptoms of a faulty nozzle include:

• Burners that light unevenly or emit an irregular flame pattern
• Inability to adjust burner flames or in some cases, lack of ignition
• Possible safety hazard from gas emissions not mixing or igniting properly

Causes can stem from mineral buildup clogging the narrow opening over time. Damage, such as nicks or corrosion, may also disrupt critical gas flow.

This OEM LG part is also compatible with some Kenmore ranges featuring LG gas cooktop systems. Replacing a worn nozzle restores optimal and safe burner performance.

The Nozzle is an OEM part for LG gas ranges. It is a critical component that functions to release gas fuel from the supply line in a regulated and controlled manner to achieve the desired burner flame. The Nozzle has precision-engineered orifices and materials resistant to corrosion to provide reliable and safe operation over extended use.

Symptoms of a bad nozzle include:

• Burner flames that appear uneven, yellow, or unstable
• Inability to achieve or maintain desired flame height
• Unpleasant gas smells were detected around the range
• Potential safety hazards if damage severely restricts or leaks fuel

Replacing a faulty nozzle restores the exact fuel-air mixture for clean controlled cooking. This affordable OEM LG part ensures optimal and safe burner performance customers expect from their gas range.

This OEM LG part is also compatible with ranges from Crosley, Jenn-Air, and select Kenmore gas models.

This gas valve assembly controls the flow of natural or LP gas to the oven/range burner, restoring safe ignition and burner operation. Replace a faulty valve to help resolve burners or oven not lighting or heating inconsistently. What it does:

• Regulates gas flow to the oven/burner burners so they ignite and maintain a steady flame
• Works with the oven/range ignition system and safety controls to open and close gas supply
• Commonly replaced when burners fail to light, flame is weak or intermittent, or oven won't heat
• Designed as a direct replacement assembly for the original valve configuration

• One gas valve assembly as shown

• Shut off both gas supply and electrical power before beginning any service
• After installation, check all fittings for leaks with a gas leak detector or soapy water and test operation
• Do not alter the valve or regulator; follow appliance manufacturer instructions

This gas valve assembly controls gas flow to the oven and burners so the range heats properly and maintains safe operation. Replace a failed valve to restore ignition and regulated gas delivery. What it does:

• Regulates gas flow to the oven/burner when the appliance calls for heat
• Enables proper ignition and sustained burner/oven flame
• Common symptom: oven or burners won't heat or light even when controls are set
• Can cause clicking or continuous ignition attempts when valve sticks or fails

• Turn off gas supply and unplug the appliance before starting repairs
• Check all fittings for leaks after installation using a soap solution or approved leak detector
• Do not force connections; replace any damaged seals or tubing to ensure safe operation

This gas valve assembly controls gas flow to the appliance's burner, restoring reliable ignition and heating when the original valve fails. It replaces a faulty or leaking valve to help the unit heat safely and consistently. What it does:

• Regulates and routes gas to the burner based on the appliance's control signals
• Prevents gas flow when the appliance is off or during safety shutoff conditions
• Commonly used to address symptoms like no heat, weak heating, or a persistent gas smell when confirmed at the valve
• Works as the appliance's primary gas control component in the fuel delivery system

• One gas valve assembly

• Turn off gas supply and disconnect power before servicing; verify both are isolated
• Inspect all gas fittings and use an approved leak detection method after installation
• Do not modify the part; use proper tools and follow manufacturer service instructions

This gas valve assembly controls and delivers gas to the burner when the appliance calls for heat. Replacing a failing valve restores reliable ignition, steady flame, and consistent heating performance while maintaining proper safety shutoff when not heating.

• Regulates gas flow to the burner(s) under the appliance's control and safety circuits
• Provides positive gas shutoff when no heat is requested
• Helps resolve no heat/flame, igniter glows or sparks but no ignition, burner lights then goes out, or intermittent heating
• Before replacement, also inspect the igniter, flame sensor, wiring, and regulator settings

• Disconnect electrical power and turn off the gas supply before servicing
• Note connection orientation; transfer any required fittings or brackets from the original valve
• Use an approved gas-rated thread sealant where applicable and leak-test all joints with a soap solution after installation
• Verify proper ignition and stable flame per the product's service or test procedure

Restore reliable flame performance with this replacement burner. It mixes and distributes gas to produce the cooking flame on your appliance, helping it light consistently and deliver even, controllable heat during everyday use. What it does:

• Directs gas through burner ports to form a controlled cooking flame
• Replaces burners that are cracked, warped, corroded, or clogged
• Can help resolve weak/uneven or yellow flames and delayed ignition
• Restores stable simmer and more even heat distribution

• Includes 1 burner

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Access the burner per your model's procedure; remove any grates/caps and retaining hardware if applicable
• Position the new burner over the orifice and igniter; ensure it sits flat and properly aligned
• Reassemble and restore gas/power; test for proper ignition and flame pattern

This replacement burner restores consistent flame on your gas range or cooktop by replacing a worn, warped, or clogged original. It helps deliver even heat and dependable ignition so your cooking performance returns to normal. What it does:

• Channels gas through ports to produce a stable, even cooking flame
• Works with the existing igniter in your appliance to light the burner
• Helps resolve weak, uneven, or yellow flames caused by damaged or blocked ports
• Restores burners that won't light when the igniter sparks but the head is clogged or damaged

• 1 burner

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool completely
• Remove the burner cap, lift off the old burner, and clean the mating surface
• Align the new burner with the igniter and locator features; seat fully for proper ignition
• Many models use different burners by position—match the part to the location shown in your parts diagram

The Burner Head is an OEM part for LG ranges. It sits beneath the burner cap and controls the ignition and flame of each burner element.

The burner head allows for precise flame control through its electronic systems and valve positioning. This leads to efficient and responsive cooking performance across various heat levels.

Causes of a bad burner head can include cracking or damage to the coil or valve mechanisms from spilled liquids or debris. Over time, electronic components may fail due to regular use and heating/cooling cycles.

Symptoms of a bad burner head include:

• Burners that will not ignite or light
• Unstable, overly high, or low flames
• Burners that shut off unexpectedly
• Odd smelling or burning sounds coming from below the range surface

This OEM LG part is also compatible with some Kenmore models.

This replacement burner cap fits over the cooktop burner head to protect the burner, help shape the flame, and keep spills out of the burner assembly for more consistent cooking performance. What it does:

• Protects the burner head from spills, debris and oxidation
• Helps direct and shape the gas flame for more even heat distribution
• Can resolve symptoms like uneven flame, yellow/orange flame color, or intermittent ignition
• Prevents food and liquid from entering the burner ports, reducing clogs and ignition problems

• One burner cap

• Turn off the cooktop's gas supply and electrical power and allow all parts to cool before working on the appliance
• Remove the old cap, clean the burner head and surrounding area, then set the cap in place seated flat and centered on the burner
• After installation, restore power/gas and verify proper ignition and flame pattern; if flame problems continue, inspect the burner head and igniter
• Use caution—if you smell gas or suspect a leak, stop and

The Cap, burner is an OEM part for LG gas ranges. It serves as a protective cover for the burner component on the cooktop. The cap is designed to fit securely over the burner head, shielding it from debris, liquid spills, or other hazards while still allowing for optimal heat transfer during the cooking process.

Causes of a bad burner cap can include warping, cracking, or discoloration due to high heat exposure over time. Gap openings from loose or ill-fitting caps can lead to decreased burner performance.

Symptoms of a bad burner cap include:

• Flames unable to ignite or burning unevenly
• Hot spots or cool spots on the cooktop surface
• Dripping or spillage onto the burner below
• Off-gassing odor or discoloration from the cooktop surface

This part is also compatible with select Sears/Kenmore models.

The Burner Cap is an OEM component specifically designed for LG gas ranges. This cap sits atop each burner element and functions to safely contain the burner flame during cooking.

The burner cap regulates burner temperature and optimizes heat conduction. It distributes the flame evenly across the bottom of the cookware for rapid, consistent cooking results.

Symptoms of a bad burner cap include:

• Warping, cracks, or holes that allow flame to escape
• Discoloration or material fatigue affecting flame quality
• Loose fit that impacts flame control or introduces safety issues

Causes may include normal wear over time exposed to heat, burns, or bending from heavy pots/pans.

Replacing this OEM LG burner cap will restore your range's heating performance, avoid potential safety hazards, and maintain proper cooking temperatures.

This factory cable assembly links internal components so power and control signals are delivered reliably. Replacing a damaged harness helps restore consistent operation when the original wiring or connectors are burned, broken, or loose. What it does:

• Routes electrical power and control signals between boards, sensors, and other components
• Restores continuity when the original harness is heat-damaged, pinched, corroded, or broken
• Helps with symptoms like intermittent/no operation, error codes, or components not receiving power
• Uses factory-style connectors for proper fit with the original mating plugs

• One cable assembly

• Disconnect appliance from power before servicing
• Photograph the original routing and connector positions to ensure correct reassembly
• Transfer any clips/ties and route away from sharp edges, hot surfaces, and moving parts
• Seat connectors fully; align keyways and avoid forcing or bending pins

This cable assembly connects key components to deliver power and signals so your appliance controls and features work reliably. It replaces a damaged or worn wiring harness to restore electrical connectivity and device responsiveness. What it does

• Carries power and control signals between components
• Restores lost or intermittent electrical connections caused by frayed or broken wires
• Helps resolve symptoms such as unresponsive controls, intermittent operation, or feature failures linked to wiring
• Provides factory-style routing and connectors for a secure fit

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Verify connector orientation and secure all plugs; avoid forcing connectors to prevent damage
• Route the harness following original wire clips and channels to prevent pinching or heat exposure

This cable assembly is the wire harness that carries power and control signals between appliance components, helping restore electrical connections and reliable operation. What it does:

• Routes power and signal connections between control boards, motors, sensors, and other modules
• Restores interrupted electrical paths that can cause intermittent operation or component failure
• Helps resolve symptoms such as component non-response, error codes tied to connectivity, or loss of certain functions
• Maintains proper connector alignment and secure contacts when installed correctly

• Disconnect power to the appliance before starting any repair
• Handle connectors carefully; match connector shapes and orientation before seating
• Route the harness away from sharp edges, moving parts, and heat sources to prevent damage

This small, board-mounted tactile push-button switch is used on the control panel. It registers a momentary press so the control board can accept your selection. Replacing a worn switch restores reliable button response and consistent operation.

• Mounts to the user interface board and provides momentary contact when a button is pressed
• Sends a low-voltage signal to the control, enabling cycle or option selection
• Typical failure symptoms: unresponsive or intermittent buttons, needing extra force to register, stuck/always-on input, or unintended beeps/changes
• Helps restore consistent user-interface input when an individual button switch has failed

• Disconnect power to the appliance before servicing; shut off gas/water if applicable
• Access the control panel to reach the user interface board
• This is a board-level repair; note switch orientation. Replacement may require desoldering/soldering per OEM procedure
• Use ESD precautions and avoid overheating PCB pads; test button function before reassembly

This genuine replacement power cord assembly restores electrical power to the appliance by replacing a damaged or worn main power cable. It provides a direct, factory-fit connection for safe, reliable operation. What it does

• Delivers mains power from the wall outlet to the appliance's internal wiring and control systems.
• Replaces frayed, cut, melted or otherwise damaged cords that can cause loss of power or intermittent operation.
• Helps eliminate burning smells, visible damage, or exposed wires that indicate a compromised power connection.
• Restores a secure plug and strain-relief connection to reduce stress on terminal connections.

• One power cord assembly.

• Always disconnect power at the breaker or unplug the appliance before starting any work.
• Verify correct cord routing and secure the strain relief/retainer to prevent pinching or chafing.
• Tighten terminal screws to the manufacturer's specification and ensure proper grounding.

The Thermostat is an OEM part for LG microwaves. This part monitors and regulates the temperature within the appliance. The thermostat ensures that the microwave does not overheat, automatically shutting off the power if the internal temperature exceeds safe levels. This preventive measure helps to avoid damage to the microwave and potential safety hazards in the kitchen.

Causes of a bad thermostat can range from normal wear and tear, which may cause the component to lose its calibration over time, to overheating incidents that permanently damage its sensitivity.

Symptoms of a bad Microwave Thermostat include:

• The microwave unexpectedly turning off during use
• The microwave failing to start
• Inconsistent cooking temperatures or unevenly cooked food

This OEM LG part is also compatible with some Kenmore models.

The Thermistor is an OEM replacement part for LG gas ranges. It serves as a highly sensitive temperature sensor mounted inside the oven cavity.

Symptoms of a bad thermistor include:

• Inability to select certain cooking modes like bake or convection that involve temperature control
• Fluctuating or inaccurate temperature readouts on oven displays
• Irregular cooking outcomes like hot/cold spots inside the oven
• Repeated error codes regarding temperature sensing issues

Causes can be attributed to prolonged exposures to heat and intermittent combustion byproducts inside the oven. Over a decade of use, these conditions may degrade the thermal and electrical properties of sensor components.

This genuine LG replacement thermistor installs effortlessly. Installing a new thermistor restores temperature monitoring required for reliable gas oven performance.

The Motor, AC Fan is an OEM part for LG ovens. This fan motor is responsible for circulating air within the oven cavity, ensuring even heat distribution for consistent cooking and baking results. It helps maintain the oven’s temperature by moving hot air around, which is especially important for convection ovens.

Over time, the fan motor can wear out or become faulty due to continuous use, exposure to high temperatures, or electrical issues. When the fan motor fails, it can lead to uneven cooking and potential overheating of the oven.

Symptoms of a bad oven motor, AC fan include:

• Uneven cooking or baking results
• Unusual noises coming from the oven during operation
• The oven taking longer to preheat
• The fan not spinning or running intermittently
• Error codes related to fan or airflow issues

This OEM LG part is also compatible with Sears/Kenmore models.

The Bracket Assembly is an OEM component specifically designed for LG electric ranges utilizing rear-mount control panels. This integral assembly securely attaches the command console within the unit cabinetry.

Causes of a bad bracket can include loosening or stripped screws no longer maintaining a tight interface, impacts warping the steel base compromising flush mounting, or corrosion where dissimilar metals contact deteriorating securing points.

Symptoms of a bad bracket assembly include:

• Loose panel unable to be properly reinstalled
• Scratches or abrasions from rattling components
• Drooping controls suffering misaligned activation zones
• Detached splash guard failing to fully protect surfaces

Replace yours today with this genuine OEM LG assembly to restore a robust interface. Backed mounting flanges deliver long-term stability and compatibility when replacing Samsung, Frigidaire, or GE electric ranges requiring rear console mounting as well.

This temperature sensor monitors internal appliance temperature and relays it to the electronic control so cycles run correctly. Replacing a faulty sensor restores accurate temperature feedback, helping the unit reach and maintain the set temperature.

• Detects temperature changes and sends a signal to the control board for proper operation
• Supports accurate heating/cooling and cycle timing based on real-time readings
• Direct replacement when the original reads open/short or out of range
• Common symptoms: incorrect temperatures, unusually long/short cycles, failure to reach set temperature, or sensor-related error codes

• Disconnect power before servicing and allow any hot components to cool
• Access the sensor, noting wire routing and connector orientation before removal
• Transfer any mounting clip/holder from the original if needed; seat the new sensor fully
• Route wiring away from moving or hot parts; restore power and run a test or cycle check

A replacement motor bracket that secures the motor to the appliance chassis for stable operation and reduced vibration. Restores proper motor alignment to help maintain smooth, quieter cycles and protect drivetrain components. What it does:

• Holds the motor firmly in place to prevent movement during operation
• Maintains correct motor-to-transmission/gear alignment for reliable power transfer
• Reduces vibration and rattling that can occur when mounts fail
• Helps prevent premature wear of motor and connected components
• Addresses symptoms such as excessive noise, shaking, or motor misalignment

• Disconnect power to the appliance before servicing; follow lockout/tagout best practices
• Turn off water supply and relieve any residual pressure for washer models before disassembly
• Basic mechanical skills and common hand tools required; bracket removal may require loosening motor fasteners and supports
• Reuse OEM fasteners if undamaged and torque to manufacturer specs; inspect surrounding mounts and hardware for wear

This replacement ring secures or positions a nearby appliance component to restore proper alignment and stable operation. It's a small but important part that helps reduce excess movement and related wear. What it does:

• Holds or locates a mating component to prevent unwanted movement or misalignment
• Helps reduce vibration and knocking noises caused by loose parts
• Restores correct spacing that maintains smooth mechanical operation
• Can prevent accelerated wear on adjacent parts when functioning properly

• Disconnect power (and water supply if applicable) before beginning any repair
• Access location may require removing panels or trim; keep fasteners organized
• Inspect surrounding parts for wear or damage and replace if needed

The Convection Fan Blade is an OEM replacement part for LG ovens. It works by circulating hot air throughout the oven, reducing cold spots and promoting consistent temperatures.

Causes of a malfunctioning Convection Fan Blade can be wear and tear from regular use, the accumulation of debris hindering the blade’s rotation, or mechanical issues impacting the fan motor or blade alignment.

Symptoms of a bad Convection Fan Blade include:

• Uneven cooking or baking, leading to partially cooked food
• Noises emanating from the oven during operation, indicating possible damage or obstruction
• The fan not rotating or moving irregularly, signaling mechanical issues

This OEM LG part is also compatible with Sears/Kenmore oven models.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


This insulator is the mica sheet that covers the microwave's waveguide opening. It shields the cavity from food splatter and moisture while allowing microwave energy to pass, helping prevent arcing and protecting internal components.

• Covers the waveguide port to keep grease and debris out
• Helps prevent sparking/arcing inside the cavity
• Restores safe, even microwave operation when the original is burned or stained
• Typical symptoms: visible burn marks or charring on the cover, arcing/sparking during use, unusual noises

• Unplug the appliance before service; high-voltage components can retain charge
• Remove the old cover by releasing mounting screw or tabs; clean residue from the area
• Do not bend or crack the new mica; install with the same orientation
• If trimming is required per service literature, follow the outline of the original cover only

This insulator is a small mounting and thermal-isolation part that cushions and separates internal components to help prevent heat transfer and unintended contact. It supports reliable appliance operation by protecting nearby parts from heat and vibration. What it does:

• Provides physical spacing to prevent electrical contact between adjacent components
• Reduces heat transfer to temperature-sensitive parts
• Cushions components to reduce vibration noise and wear
• Helps maintain proper alignment of mounted parts

• Disconnect power before accessing internal components to avoid shock
• Replace only with the same style and position to maintain proper spacing and thermal protection
• Inspect the surrounding area for heat or abrasion damage and replace any compromised parts

This bracket secures the turntable motor to the microwave oven cavity base, keeping the motor properly aligned so the glass tray can rotate smoothly for even heating.

• Supports and positions the turntable motor beneath the oven floor
• Helps resolve issues like a non-turning glass tray or jerky rotation
• May correct intermittent grinding or scraping noises from the tray area

• Unplug microwave before servicing; high-voltage components can retain a charge
• Remove the unit from its install location if required for bottom access
• Access turntable motor from the underside; support the cavity to prevent damage
• Reuse existing screws and motor unless otherwise specified

This AC synchronous motor assembly drives the appliance's rotating components to restore proper operation and consistent performance. It replaces a failed motor to stop stalling, humming or lack of rotation in affected units. What it does:

• Converts electrical input into smooth, synchronous rotational motion for the appliance's driven component
• Stops symptoms like no spin, intermittent rotation, or a motor that hums without turning
• Restores stable, timed movement where a synchronous motor is required
• Interfaces with the appliance's original mounting and wiring harness for direct replacement

• Disconnect power before beginning any repair to avoid electrical shock
• Verify wiring harness orientation and connector seating before applying power
• Inspect mounting points and shaft coupling for wear and secure per OEM guidelines

This incandescent oven lamp provides interior illumination so you can safely check food without opening the door. Direct replacement for a burned or dim oven/range light to restore cooking visibility. What it does

• Replaces a burned-out or flickering oven interior light bulb
• Restores clear visibility of the oven cavity for monitoring cooking progress
• Helps avoid opening the oven door unnecessarily, preserving oven temperature
• Fits the original lamp socket and installs in the oven light housing

• Disconnect power to the appliance before replacing the lamp to prevent electric shock
• Allow the oven and old bulb to cool completely before handling
• Use a cloth or gloves when installing the new lamp to avoid transferring oils from skin

A full-perimeter refrigerator door gasket that restores an airtight seal to help maintain proper cooling and reduce energy loss. Designed to replace a worn, cracked or torn door seal for reliable temperature control. What it does

• Seals the door to keep cold air in and warm air out, helping the appliance maintain set temperatures
• Common symptom: visible gaps, cracks, or tears in the gasket allowing cold air to escape
• Common symptom: excessive frost or condensation inside the compartment near the door
• Common symptom: refrigerator runs more often or works harder to maintain temperature
• Helps prevent food spoilage caused by inconsistent cooling when the original gasket fails

• One full-perimeter refrigerator door gasket

• High-level task: remove the old gasket and press the new gasket into the channel or attach per the manufacturer's method
• Gasket may require slight warming or alignment to seat evenly; follow OEM instructions for final fit
• Inspect mounting channel and clean surface before installation to ensure a proper seal
• Safety first: unplug the appliance before working on the door and take care not to damage trim or wiring

This pipe is the factory-design tubing used to route fluids inside the appliance, restoring proper flow and containment. Installing the correct pipe helps stop leaks and re-establish reliable fluid transfer where the original line has cracked or failed. What it does:

• Channels water or drain flow between internal components to maintain normal operation
• Prevents leaks by replacing cracked, split, or brittle tubing
• Helps restore proper filling, draining, or circulation when the original pipe is damaged
• Reduces risk of water-related faults and intermittent appliance behavior caused by compromised tubing

• One pipe as shown

• Turn off and unplug the appliance and shut off the water supply before starting work
• Remove any clips or fasteners carefully; save or replace clamps as needed
• Use the exact part number to ensure fit; route the pipe the same way as the original to avoid kinks

This nozzle directs and controls water flow within the appliance to ensure proper cleaning performance. Replacing a worn or damaged nozzle helps restore consistent spray and overall wash results.

• Directs water to targeted areas for effective washing
• Can help reduce unusual spray patterns or noisy water flow
• Restores intended wash coverage when the original nozzle is cracked or clogged

• Disconnect power and water before servicing
• Note the nozzle's orientation and connection points during removal
• Inspect seals and mating surfaces for debris or damage before reassembly
• Test for leaks and proper spray after installation
