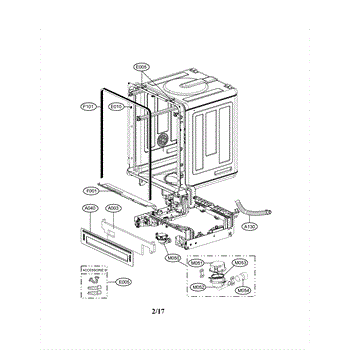

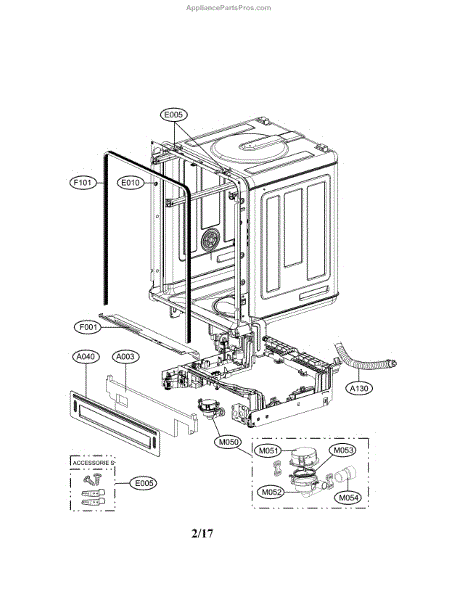

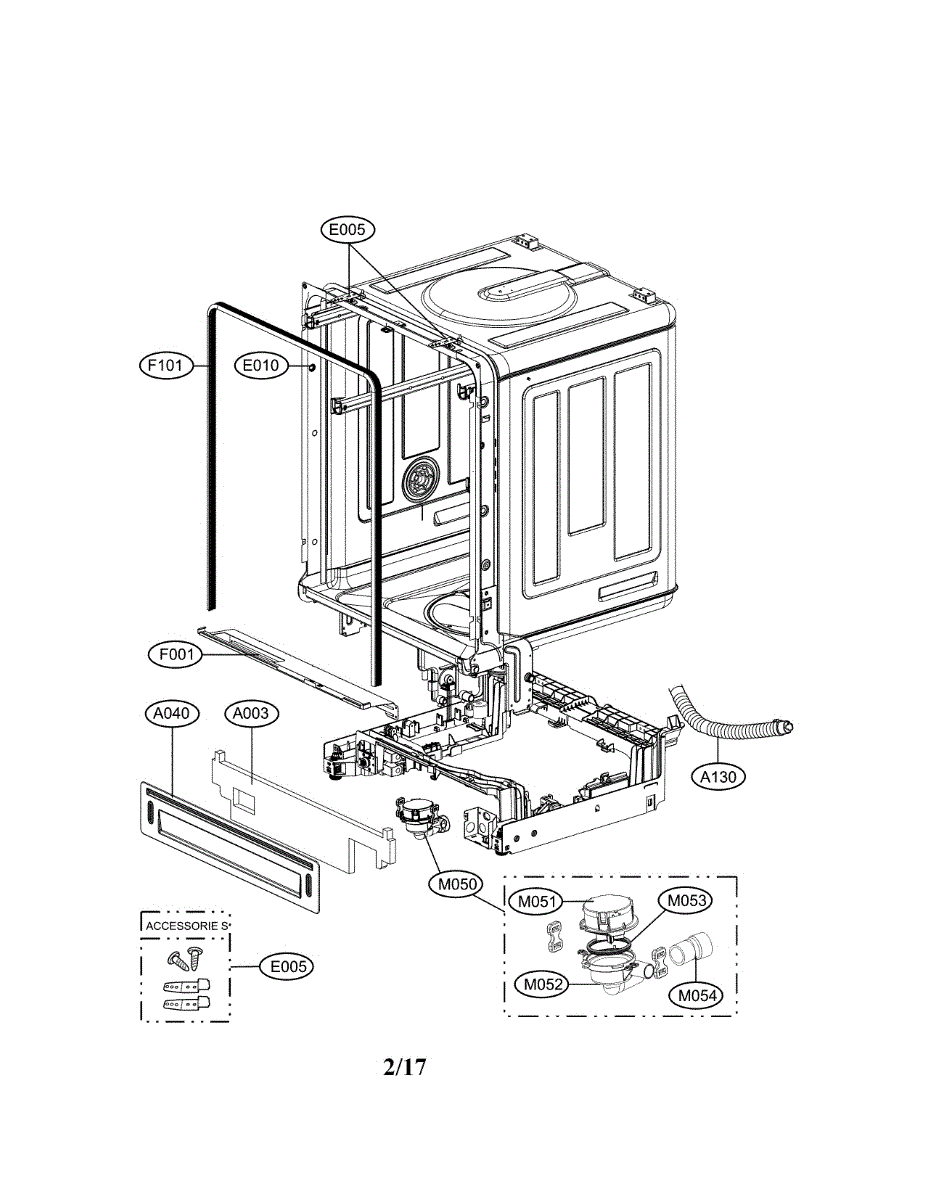

Parts for Kenmore 722.14693610 (72214693610, 722 14693610): Exploded View Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replaces the front cabinet frame that provides mounting surface for door components. Needed when original frame is cracked, bent, or damaged.

This refrigerator damper assembly opens and closes the air passage between the freezer and fresh food sections. Replacing a sticking or broken damper restores proper airflow and more stable temperatures, helping resolve warm spots or food freezing in the refrigerator.

• Regulates cold-air flow from the freezer into the refrigerator to maintain set temperatures
• Operates a flap within the air duct under control of the appliance's control system
• Helps reduce temperature fluctuations and improve overall cooling performance

• Disconnect power before servicing
• Access from inside the fresh food compartment; remove shelves and the damper/duct cover
• Remove mounting screws and disconnect the wire harness; transfer any foam seals or clips from the old unit if needed
• Seat the gasket evenly to prevent air leaks and route wiring away from the moving flap

This mounting bracket kit secures your dishwasher to the countertop from above, preventing it from tipping forward when the door is opened. It replaces worn or missing brackets that allow the dishwasher to move or become unstable during operation.

Small sleeve bushing that supports pivoting or rotating joints in your dishwasher. Replace when worn, cracked, or causing excess friction between moving parts.

This lower cover assembly replaces the lower access panel on the appliance to protect internal components and restore the cabinet appearance. It provides a secure barrier that keeps debris out and helps maintain safe operation. What it does:

• Covers and protects internal components at the appliance base
• Helps prevent debris, dust, and small objects from entering service areas
• Restores a finished look to the appliance cabinet after repairs
• Can reduce accidental contact with wiring or moving parts behind the panel

• One lower cover assembly

• Basic hand tools typically required; follow the manufacturer service manual for proper removal and installation
• Disconnect power (and water, if applicable) before servicing to avoid shock or injury
• Handle part carefully to avoid scratching the finish; align mounting tabs before fastening
• If screws or clips are damaged or missing, replace them with OEM fasteners for a secure fit

The dishwasher case forms the outer shell and structural framework of the dishwasher unit, housing all internal components. Replace this component when you notice significant rust, cracks, or structural damage that compromises the unit's integrity or causes water leaks.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replaces the outer housing that protects internal components. Order if your dishwasher case is cracked, warped, broken, or damaged. Restores appearance.

This packing seal provides a replacement sealing surface to help maintain an airtight, watertight closure and reduce leaks or drafts around the appliance opening. It restores the original sealing function for reliable performance. What it does

• Replaces worn or damaged packing to re-establish a secure seal
• Helps prevent water leaks and air infiltration at the door or panel seam
• Reduces moisture buildup and helps maintain proper internal temperatures
• Commonly used when a visible tear, deformation, or hardening is present

• One packing seal

• Inspect mating surfaces and clean thoroughly before installing the new packing
• Align the packing evenly and seat it fully into the channel or groove
• Use gentle, even pressure to avoid stretching or tearing the seal

Channels wastewater from your dishwasher to the household drain. Replace if cracked, kinked, clogged, or leaking to restore proper drainage during cycles.

Dishwasher packing is a rubber seal located around the door and pump areas that prevents water from leaking out of the unit. Replace when you notice water pooling under the dishwasher or visible cracks and wear in the rubber sealing material.

Replacement drain hose assembly for dishwashers. Directs used water from the tub to your drainage system. Replace if cracked, leaking, or brittle.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
