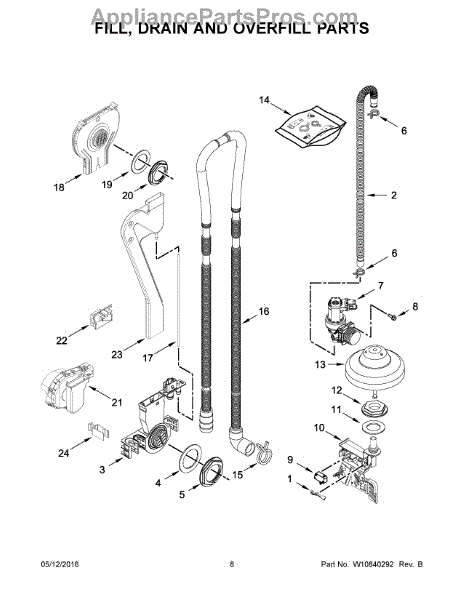

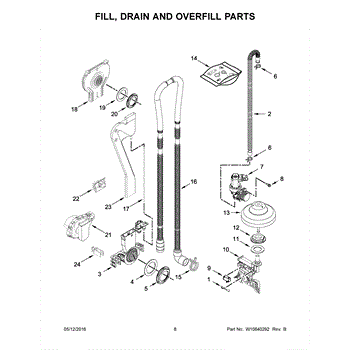

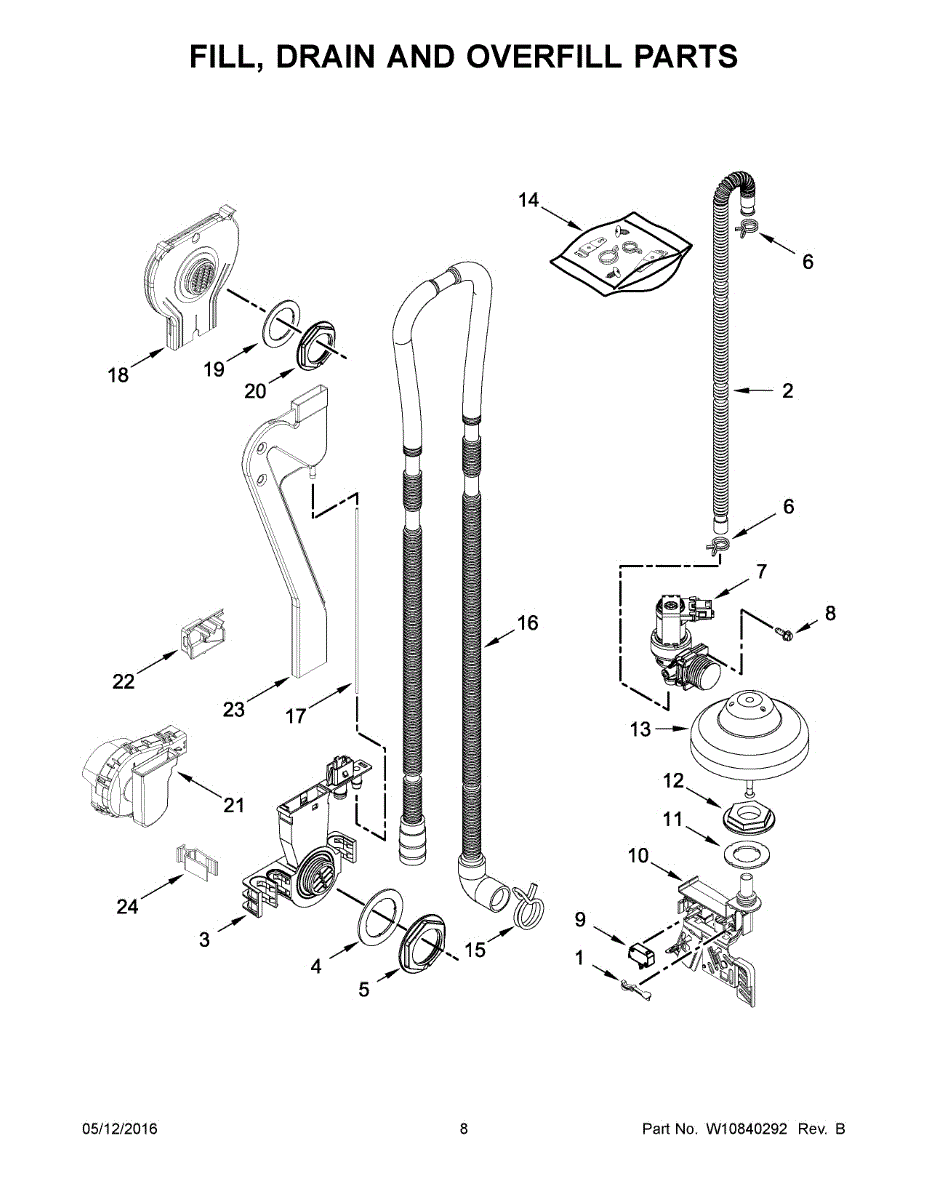

Parts for Kitchenaid KDTM384EBS0: 05 - Fill, Drain And Overfill Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Water Level Float Lever is an OEM part for Whirlpool dishwashers. This lever is connected to the water level float, which monitors and regulates the water level inside the dishwasher. It ensures that the correct amount of water is used during the wash cycle, preventing overflows and maintaining optimal washing performance.

Common causes of a bad float lever include wear and tear, accumulation of food particles or mineral deposits, and physical damage from improper handling.

Symptoms of a bad water level float lever include:

• The dishwasher not filling with water
• The dishwasher overfilling and causing leaks
• Inconsistent water levels during wash cycles
• Error codes related to water level issues

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Fill Hose is an OEM part for Whirlpool dishwashers. This hose is responsible for delivering water from your home’s water supply to the dishwasher during the wash cycles. It ensures that the appliance receives the necessary amount of water to clean dishes effectively.

Over time, the fill hose can become damaged due to wear and tear, exposure to high water pressure, or kinks and bends that restrict water flow. If the hose is compromised, it can lead to water supply issues or leaks, impacting the dishwasher’s performance.

Symptoms of a bad fill hose include:

• Water not entering the dishwasher
• Leaks or puddles around or under the dishwasher
• Error codes related to water supply issues
• Visible cracks, kinks, or damage to the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The water inlet is an OEM part for Whirlpool dishwashers. It serves as the water inlet valve, responsible for regulating the flow of water into the dishwasher during cycles.

Symptoms of a bad water inlet include:

• Inability to fill with water or intermittent filling
• Leaks or water spray from the inlet area
• Odd sounds like sputtering or crackling from the valve
• Soap residue or film left after cycles from insufficient rinsing

Causes of a bad inlet water valve can include mineral buildup from hard water, stuck or clogged waterways, or mechanical failure of sealing components. Over time and use, inlet valves can degrade leading to improper water distribution.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

The Tub Inlet Gasket is an OEM part for Whirlpool dishwashers. It ensures a watertight seal at the point where water enters the tub, preventing leaks and maintaining efficient water flow during the wash cycle.

Causes of a bad tub inlet gasket include wear and tear from regular use, damage from harsh cleaning chemicals, or drying out and cracking due to age.

Symptoms of a bad tub inlet gasket include:

• Water leaking from the front or bottom of the dishwasher
• Poor cleaning results due to insufficient water pressure
• Visible cracks or wear on the gasket
• Unusual noises from the dishwasher during the filling cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This compression tube nut secures water inlet tubing to a threaded fitting to create a reliable, leak-resistant seal. Replace a cracked or stripped nut to stop drips at the connection and keep your appliance's water system working properly.

• Compresses the tubing against the fitting to seal the water line at the inlet valve, filter head, or other water-system connections
• Helps correct leaks at the water line connection point
• Replaces nuts that are cracked, cross-threaded, or deformed
• Common symptoms: water dripping at the connection, difficulty tightening the line, or a poor seal after reassembly

• Shut off the water supply and disconnect power before servicing.
• Slide the nut onto the tubing first, seat the tube fully on the fitting, then hand-tighten and snug with a wrench; do not overtighten.
• Inspect and reuse the existing sleeve/ferrule and tube insert if in good condition; replace if worn.
• Restore water and check for leaks at the connection.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool dishwashers. It regulates the flow of water into the machine. This valve opens and closes to allow the right amount of water in during various cycles, ensuring dishes are cleaned effectively without wasting water.

Over time, the water inlet valve can fail due to mineral buildup from hard water, wear and tear from frequent use, or mechanical failure of the valve components. A malfunctioning valve can lead to problems such as insufficient water entering the dishwasher, leading to poorly cleaned dishes, or leaking, which can cause water damage over time.

Symptoms of a bad Water Inlet Valve include:

• Dishwasher not filling with water
• Water filling too slowly or overfilling
• Unusual noises during the fill cycle
• Leaks around the dishwasher

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

10 - 16 x 1/2

The Water Level Switch Bracket is an OEM part for Whirlpool dishwashers. This bracket holds the water level switch in place. The water level switch is a part that monitors and regulates the amount of water inside the dishwasher.

Causes of a bad Water Level Switch Bracket can include physical damage that may occur during use or installation, corrosion over time due to exposure to moisture and detergents, or general wear that compromises its ability to securely hold the water level switch.

Symptoms of a bad Water Level Switch Bracket include:

• The dishwasher not filling with the correct amount of water
• Water leaking from the dishwasher if the switch moves out of position and fails to regulate the water level accurately.
• Unusual noises during the fill cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Float Switch Base Gasket is an OEM part for Whirlpool dishwashers. This gasket is specifically designed to seal the area around the float switch base, preventing water leaks that can occur during the dishwasher's operation.

Causes of damage to the Float Switch Base Gasket often involve normal wear and tear, as the rubber or plastic material can degrade over time due to exposure to detergents, hot water, and the mechanical action of the float switch.

Symptoms of a bad Float Switch Base Gasket include:

• Water leaking from the bottom of the dishwasher
• Signs of water damage or corrosion around the float switch area
• The dishwasher may malfunction or display error codes related to water filling issues if water leaks interfere with the float switch operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Nut is an OEM part for Whirlpool dishwashers. This nut secures the float switch, a key component in regulating the water level within the dishwasher. The float switch ensures your dishwasher does not overfill by triggering the water to stop once it reaches a certain level.

Over time and with regular use, the nut that holds the float switch in place can become loose or damaged. This could potentially allow water to seep through gaps, leading to leaks, or could cause the float switch to malfunction, affecting the dishwasher's ability to regulate water levels accurately.

Symptoms of a faulty Nut include:

• Water leaks from the base of the dishwasher
• The dishwasher overfills or underfills
• Unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Water Level Float is an OEM part for Whirlpool dishwashers. It helps regulate the water level within the dishwasher by rising with the water level and signaling the control board to shut off the water inlet valve when the appropriate level is reached.

Causes of a bad water level float can include wear and tear, mineral buildup or debris obstructing its movement, or damage due to mishandling. Over time, these issues can prevent the float from moving freely or accurately signaling the water level.

Symptoms of a bad water level float include:

• Dishwasher overfilling or underfilling
• Water leaks during the wash cycle
• The dishwasher not completing cycles correctly
• Error codes related to water level issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This drain hose channels used water from the appliance's drain pump to the household plumbing. Replacing a cracked, kinked, or clogged hose stops leaks and helps your unit drain correctly at the end of the cycle.

• Directs wastewater from the drain pump to the home drain system
• Helps maintain proper outflow during the drain portion of the cycle
• Common symptoms: standing water after a cycle, water on the floor, drain error codes, visible cracks or kinks in the hose
• Old hoses can become brittle, split, or obstructed over time

• Disconnect power; shut off water supply if applicable
• Place towels or a pan to catch residual water when removing the old hose
• Note original routing; install the new hose without sharp bends or kinks and secure all connections with existing clamps or appropriate replacements
• Run a test drain/cycle and check every connection for leaks

This tube-vent routes dryer air from the blower housing to the exhaust port, helping maintain proper airflow for efficient drying and safe venting. It's a direct-replacement component used where the original vent tube is damaged or disconnected. What it does:

• Channels hot, moist air from the dryer's blower to the external vent
• Helps prevent air leaks that can reduce drying performance
• Reduces lint bypass around the blower housing when properly installed
• Can address symptoms like reduced drying efficiency or poor airflow at the outside vent

• One tube-vent

• Disconnect power (and gas supply for gas dryers) before beginning any service
• Inspect and clean surrounding lint and venting before installing the new tube
• Ensure all clamps and seals are tight to prevent air leaks; replace damaged clamps or gaskets as needed

This replacement refrigerator door gasket creates a tight seal around the fresh-food compartment door to help keep cold air in and warm, humid air out, improving cooling performance and reducing frost buildup. What it does

• Forms an airtight seal around the fresh-food door to help maintain interior temperature
• Helps prevent warm air and moisture from entering, reducing frost and condensation
• Can reduce compressor runtime caused by a leaking door seal
• Common symptom: visible gaps, tears, or warped edges around the door; uneven cooling or frost along the door perimeter

• One refrigerator door gasket

• Inspect and clean the door flange before installing to ensure a proper seal
• Start installation at the corners and work around the perimeter, pressing the gasket into the channel to seat it evenly
• Warm the gasket slightly if needed to make it more flexible for fit; avoid overheating
• Disconnect power only if required by your refrigerator model and follow all safety precautions

The Vent is an OEM part for Whirlpool dishwashers. It is located inside the dishwasher tub and is responsible for releasing steam generated during wash cycles. The vent works to properly ventilate the tub interior by releasing hot air and steam upwards and out of the dishwasher.

Causes for a bad vent can include cracks, deterioration of vent material over many cycles, or blockages that prevent proper steam release.

Symptoms of a bad vent include:

• Excess moisture inside the dishwasher tub
• Reduced drying effectiveness
• Potential water leaks from the vent area
• Error codes related to moisture sensors

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models that use the same vent design.
