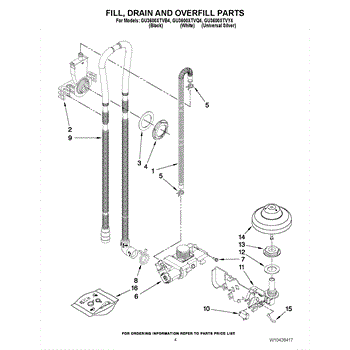

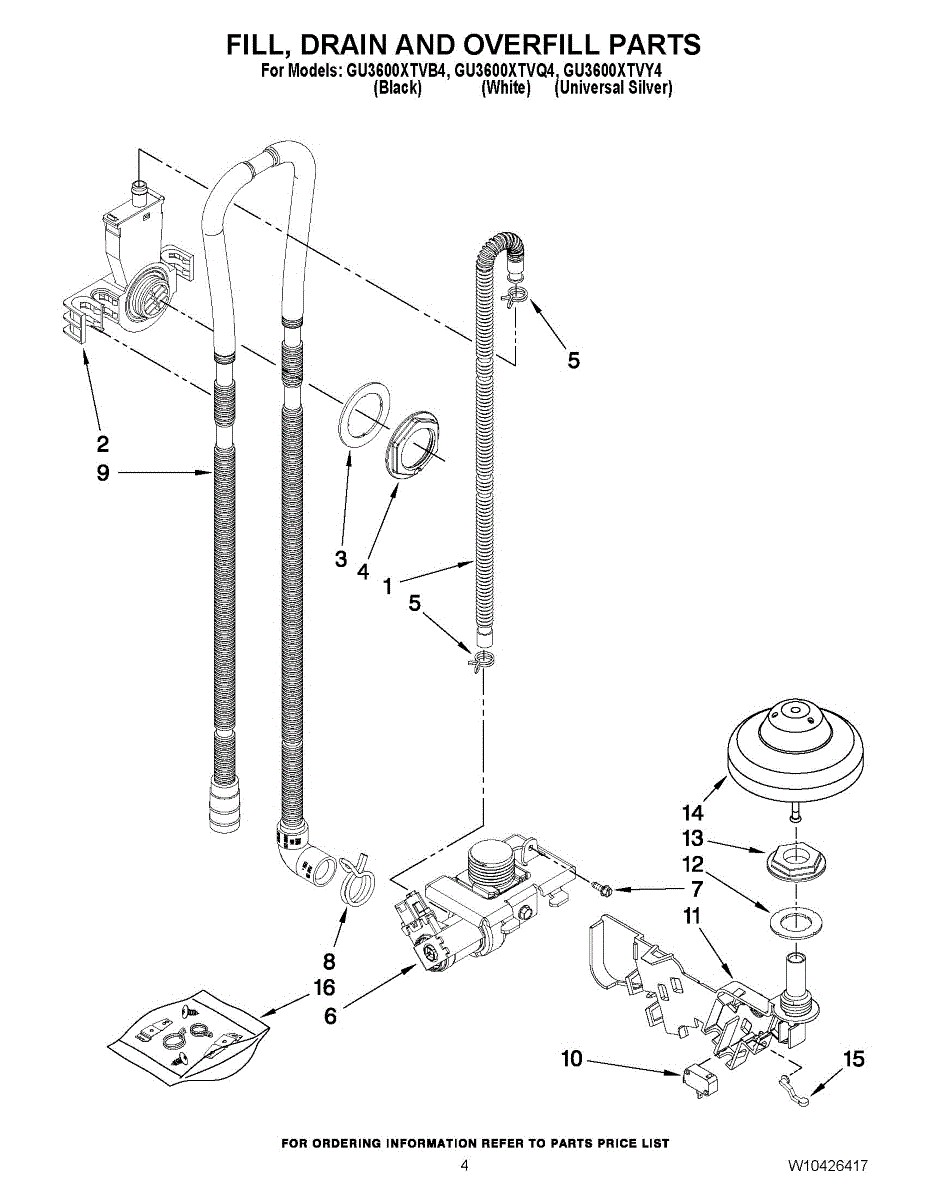

Parts for Whirlpool GU3600XTVB4: 04 - Fill, Drain And Overfill Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Fill Hose is an OEM part for Whirlpool dishwashers. This hose is responsible for delivering water from your home’s water supply to the dishwasher during the wash cycles. It ensures that the appliance receives the necessary amount of water to clean dishes effectively.

Over time, the fill hose can become damaged due to wear and tear, exposure to high water pressure, or kinks and bends that restrict water flow. If the hose is compromised, it can lead to water supply issues or leaks, impacting the dishwasher’s performance.

Symptoms of a bad fill hose include:

• Water not entering the dishwasher
• Leaks or puddles around or under the dishwasher
• Error codes related to water supply issues
• Visible cracks, kinks, or damage to the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Inlet Assembly is an OEM part for Whirlpool dishwashers. It is responsible for controlling the flow of water into the dishwasher during the wash cycle. This assembly ensures that the correct amount of water enters the dishwasher to clean dishes effectively.

You should replace the inlet assembly if it becomes faulty. Causes of a bad inlet assembly can include wear and tear from regular use, blockages from debris or mineral buildup, or electrical issues. A malfunctioning inlet assembly can lead to inadequate water flow, which affects the dishwasher’s cleaning performance.

Symptoms of a bad inlet assembly include:

• The dishwasher not filling with water or filling slowly
• Water leaks around the inlet area
• Error codes related to water intake issues
• The dishwasher stopping mid-cycle or not starting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Tub Inlet Gasket is an OEM part for Whirlpool dishwashers. It ensures a watertight seal at the point where water enters the tub, preventing leaks and maintaining efficient water flow during the wash cycle.

Causes of a bad tub inlet gasket include wear and tear from regular use, damage from harsh cleaning chemicals, or drying out and cracking due to age.

Symptoms of a bad tub inlet gasket include:

• Water leaking from the front or bottom of the dishwasher
• Poor cleaning results due to insufficient water pressure
• Visible cracks or wear on the gasket
• Unusual noises from the dishwasher during the filling cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This compression tube nut secures water inlet tubing to a threaded fitting to create a reliable, leak-resistant seal. Replace a cracked or stripped nut to stop drips at the connection and keep your appliance's water system working properly.

• Compresses the tubing against the fitting to seal the water line at the inlet valve, filter head, or other water-system connections
• Helps correct leaks at the water line connection point
• Replaces nuts that are cracked, cross-threaded, or deformed
• Common symptoms: water dripping at the connection, difficulty tightening the line, or a poor seal after reassembly

• Shut off the water supply and disconnect power before servicing.
• Slide the nut onto the tubing first, seat the tube fully on the fitting, then hand-tighten and snug with a wrench; do not overtighten.
• Inspect and reuse the existing sleeve/ferrule and tube insert if in good condition; replace if worn.
• Restore water and check for leaks at the connection.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM replacement part for Whirlpool dishwashers. The water inlet valve is responsible for regulating the flow of water into the dishwasher. It is connected to the main water supply and opens and closes as needed to allow water to enter the appliance at the appropriate time and in the correct quantity.

Causes of a bad Water Inlet Valve can include mineral deposits that clog the valve, a failure in the valve's solenoid, or wear and tear over time that affects the valve's ability to open and close properly.

Symptoms of a bad Water Inlet Valve include:

• Dishwasher not filling with water
• Water filling too slowly or too quickly
• Water leaking from the dishwasher
• Unusual noises during the fill cycle

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Note: The white plug connector can be disconnected to allow for connection of the dishwasher wiring if needed.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Drain Hose is an OEM part for Whirlpool dishwashers. It is designed to transport wastewater from the dishwasher to the household drain system, ensuring efficient and safe removal of water after each wash cycle. This drain hose is 67” long and includes the check valve.

Symptoms of a bad Drain Hose include:

• Water leaking from underneath or behind the dishwasher.
• Signs of water damage or mold near the appliance, indicating persistent dampness.
• Poor draining performance, with water remaining in the dishwasher after cycles.

Causes of a bad drain hose can include physical damage such as cracks or holes, clogging from food particles or grease, or improper connections that lead to leaks or kinks in the hose.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This overfill switch monitors water level and signals the appliance to stop filling to help prevent overflows. Use it to restore correct water-level control when the original switch fails or malfunctions. What it does:

• Detects excess water and interrupts the fill cycle as a safety cutoff
• Works with the washer's control to maintain proper water level
• Common symptoms of a failing switch: continuous filling, overfilling, or water-level related error codes
• Can also cause cycles to stop or not advance if the machine thinks tank is overfilled

• One overfill control switch

• Disconnect power and water supply before servicing to avoid shock or flooding
• Typically located behind the control console or rear access panel
• Handle wiring connectors gently and secure all connections before testing

The Float Switch Kit is an OEM part for Whirlpool dishwashers. It includes the float and the switch mechanism that monitors and controls the water level inside the dishwasher. The float switch ensures that the dishwasher does not overfill by signaling the water inlet valve to shut off the water supply once the appropriate level is reached.

Causes of a bad float switch can include debris or mineral buildup, wear and tear over time, or electrical failures within the switch mechanism. A malfunctioning float switch can lead to water overfilling, which may cause leaks and inefficient washing performance.

Symptoms of a bad float switch kit include:

• Dishwasher overfilling with water
• Water leaks during operation
• Dishwasher not filling with enough water
• Error codes related to water levels

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Float Switch Base Gasket is an OEM part for Whirlpool dishwashers. This gasket is specifically designed to seal the area around the float switch base, preventing water leaks that can occur during the dishwasher's operation.

Causes of damage to the Float Switch Base Gasket often involve normal wear and tear, as the rubber or plastic material can degrade over time due to exposure to detergents, hot water, and the mechanical action of the float switch.

Symptoms of a bad Float Switch Base Gasket include:

• Water leaking from the bottom of the dishwasher
• Signs of water damage or corrosion around the float switch area
• The dishwasher may malfunction or display error codes related to water filling issues if water leaks interfere with the float switch operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Nut is an OEM part for Whirlpool dishwashers. This nut secures the float switch, a key component in regulating the water level within the dishwasher. The float switch ensures your dishwasher does not overfill by triggering the water to stop once it reaches a certain level.

Over time and with regular use, the nut that holds the float switch in place can become loose or damaged. This could potentially allow water to seep through gaps, leading to leaks, or could cause the float switch to malfunction, affecting the dishwasher's ability to regulate water levels accurately.

Symptoms of a faulty Nut include:

• Water leaks from the base of the dishwasher
• The dishwasher overfills or underfills
• Unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This overfill float and shaft assembly monitors the dishwasher's water level. As the tub fills, the float rises and triggers the float switch to shut off the inlet water, helping prevent overfilling and leaks.

• Senses tub water level and moves up/down with the water
• Activates the float switch to stop filling at the correct level
• Helps protect against overfill-related leaks
• Common symptoms include: won't fill (float stuck up), continuous filling/overfilling (float stuck down or damaged), or float not moving freely

• Disconnect power and turn off the water supply before servicing
• Lift the old float straight up from inside the tub; access the underside (behind the toe panel) as needed to release the shaft from the float switch lever
• Install the new shaft through the guide and onto the switch lever; seat the float so it moves freely
• Verify smooth float movement and test a fill cycle while checking for leaks

This replacement lever operates the overflow/level switch assembly to help the washer detect and respond to water level changes. It restores the mechanical action that tells the control when the tub is full. What it does:

• Moves the overflow/level switch mechanism so the machine can sense water level correctly
• Helps address overfilling, continuous filling, or erratic fill behavior caused by a worn or broken lever
• Restores reliable engagement between the float/actuator and the switch
• Works as the mechanical linkage for the overflow/level sensing assembly

• Disconnect power and turn off the water supply before beginning service.
• Access typically requires removing the cabinet or control console; keep fasteners organized.
• Install the lever so it aligns with the switch actuator and float linkage; verify smooth movement after assembly.

Includes two screws, two clamps, and undercounter mounting brackets.
