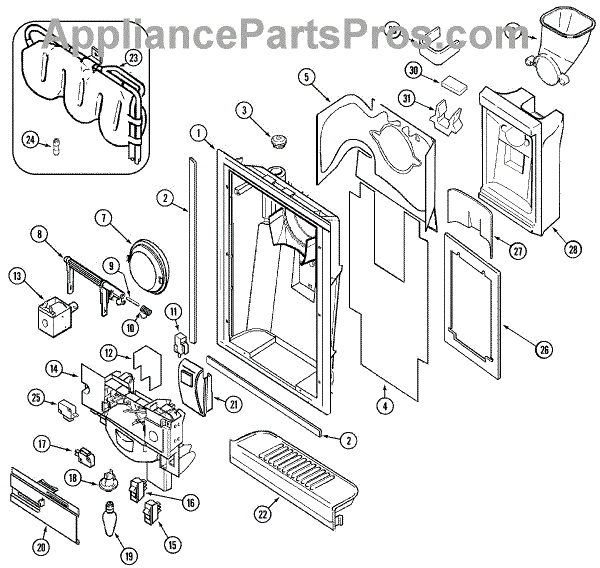

Parts for Magic Chef CSD2524ARW: 03 - Fountain Parts

This genuine replacement screw secures appliance panels and trim so covers, consoles, and components stay firmly in place for safe, quiet operation. It replaces worn or missing fasteners to restore proper fit and reduce vibration and rattling. What it does:

• Secures control panels, trim pieces, or access panels to the appliance frame
• Keeps panels aligned to prevent gaps and light leaks
• Reduces vibration-related noise from loose panels or components
• Helps maintain safe operation by keeping covers and guards properly attached

• The replacement screw shown/listed

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start the screw by hand to ensure proper thread engagement, then tighten securely but do not overtighten

This genuine replacement screw secures appliance panels and trim so covers, consoles, and components stay firmly in place for safe, quiet operation. It replaces worn or missing fasteners to restore proper fit and reduce vibration and rattling. What it does:

• Secures control panels, trim pieces, or access panels to the appliance frame
• Keeps panels aligned to prevent gaps and light leaks
• Reduces vibration-related noise from loose panels or components
• Helps maintain safe operation by keeping covers and guards properly attached

• The replacement screw shown/listed

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start the screw by hand to ensure proper thread engagement, then tighten securely but do not overtighten

The Ice Door Fountain Kit is an OEM replacement part for Whirlpool refrigerators with built-in ice makers. It directs water to the ice molding trays and facilitates automated ice cube harvesting. Kit includes flapper, solenoid, strike arm, solenoid plunger, and instructions. Spring is not included. For the spring order 61004388.

Causes of a bad ice door fountain kit can include wear and tear over time, buildup of ice or debris obstructing the door mechanism, or damage to the components from frequent use.

Symptoms include:

• Incomplete ice cubes or low ice yield
• Drips or leaks in the ice maker area
• The ice drawer fails to eject cubes fully

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This is a small knurled roll pin that serves as the hinge pivot for the ice chute door on a refrigerator dispenser. It allows the chute door flap to swing open and closed when dispensing ice or water. Replace this pin if the chute door is loose, hanging crooked, or has fallen off, which can cause cold air leaks and frost buildup in the dispenser area.

Replacement spring for refrigerator ice dispenser chute door. Restores closing tension when original is fatigued, broken, or missing. Installs on strike arm.

2 terminal interlock switch.

Size: 8-32 x 1/4 inch.

This genuine replacement screw secures appliance panels and trim so covers, consoles, and components stay firmly in place for safe, quiet operation. It replaces worn or missing fasteners to restore proper fit and reduce vibration and rattling. What it does:

• Secures control panels, trim pieces, or access panels to the appliance frame
• Keeps panels aligned to prevent gaps and light leaks
• Reduces vibration-related noise from loose panels or components
• Helps maintain safe operation by keeping covers and guards properly attached

• The replacement screw shown/listed

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start the screw by hand to ensure proper thread engagement, then tighten securely but do not overtighten

Color: Black

The Light Bulb is an OEM part for Whirlpool refrigerators. This part illuminates the water and ice dispenser area, providing visibility and ease of use, especially in low light conditions.

Over time, the light bulb can fail due to normal wear and tear, electrical surges, or damage from vibrations and impacts.

Symptoms of a bad light bulb include:

• The dispenser area not lighting up when activated
• Flickering or dim lighting
• The bulb failing to turn on consistently

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This gray actuator pad is the button you press to dispense water or ice from your refrigerator door. It activates the internal dispenser mechanism when pressed and provides tactile feedback for operation. Replace this part if the dispenser button feels stuck, loose, or fails to activate when pressed.

Refrigerator water tank assembly located behind the lower crisper drawer. Replace if cracked, leaking, or damaged to restore proper water storage.

Connects water line sections in your refrigerator. Replace if cracked, leaking, or damaged to restore secure connections to ice maker and dispenser.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)
