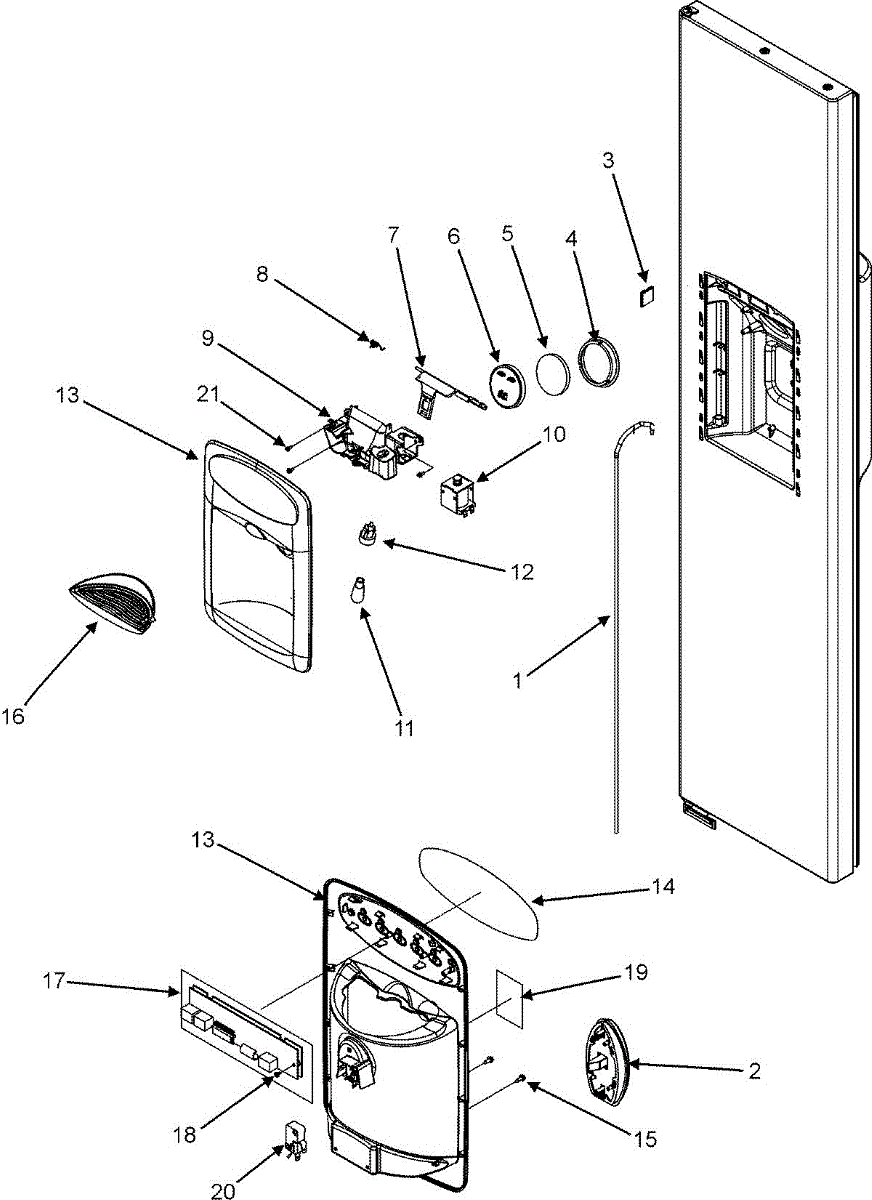

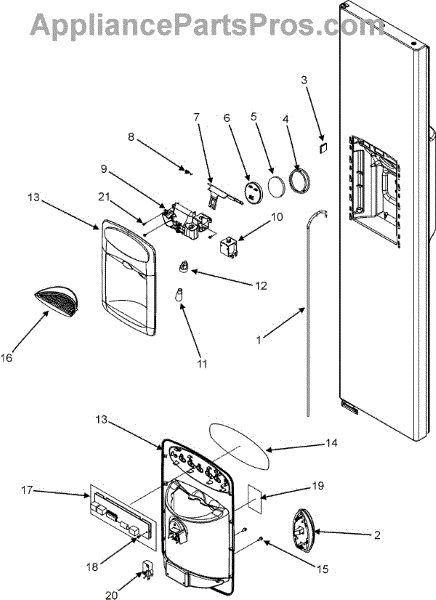

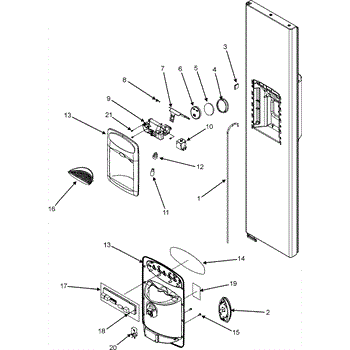

Parts for Magic Chef CSD2610KRW: 07 - Fountain Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This waterline assembly supplies water from the household line to the refrigerator's ice maker and/or water dispenser, restoring reliable water flow and preventing leaks from damaged tubing. Ideal when the fridge isn't filling or water is leaking. What it does

• Carries water from the home supply to the refrigerator ice maker/water dispenser
• Replaces cracked, pinched, or leaking tubing that causes visible leaks or puddles
• Restores normal fill to the ice maker and consistent water flow to the dispenser
• Helps eliminate slow or intermittent fill issues caused by restricted or damaged lines

• One waterline assembly with attached fittings as shown

• Shut off the home water supply and unplug the refrigerator before starting
• Tighten fittings to manufacturer torque—do not overtighten plastic fittings
• Inspect existing connections and replace any damaged shutoff valves or connectors
• After installation, turn water back on and check all connections for leaks; flush line per manufacturer instructions

The Ice Chute Door is an OEM replacement part for Whirlpool side-by-side refrigerators. It provides access to the dedicated ice and water storage and dispensing compartment located on the refrigerator door.

Causes of a faulty chute door can include normal wear from frequent use. Internal temperature fluctuations may cause durability issues over several years.

Symptoms of problems include:

• Failure to fully close or form a tight seal
• Difficulty dispensing ice or water due to door misalignment
• Premature cooling loss from unsealed opening
• Physical damage preventing proper closing

This OEM door is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerators.

The ice chute hinge mounts in the dispenser and lets the ice door pivot open and closed. Replacing a worn hinge restores smooth movement and a tighter seal, helping prevent frost, moisture, and warm-air leaks at the dispenser.

• Supports and pivots the dispenser's ice chute door/flap
• Helps the door seat firmly to reduce warm air infiltration
• Wear or damage can cause sticking, sagging, or misalignment
• Common symptoms: frosting or condensation at the dispenser, ice clumping, or a door that won't open/close smoothly

• Unplug the refrigerator or disconnect power before servicing the dispenser
• Remove dispenser trim/control panel per service instructions; support the ice door when detaching the hinge
• Transfer the ice door and any spring/fasteners to the new hinge; reuse original hardware if applicable
• Verify free movement and full closure of the door before reassembly

The Ice Chute Door Spring is an OEM part for Whirlpool refrigerators. This part returns the ice chute door to its closed position after ice has been dispensed, ensuring the door remains sealed to maintain proper temperature and efficiency.

Causes of a bad ice chute door spring can include wear and tear over time, corrosion from exposure to moisture, or damage due to repeated use or mishandling.

Symptoms of a bad ice chute door spring include:

• The ice chute door not closing properly
• Ice or frost buildup around the ice chute
• Warm air entering the freezer compartment
• Difficulty in dispensing ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Light Bulb is an OEM part for Whirlpool refrigerators. This part illuminates the water and ice dispenser area, providing visibility and ease of use, especially in low light conditions.

Over time, the light bulb can fail due to normal wear and tear, electrical surges, or damage from vibrations and impacts.

Symptoms of a bad light bulb include:

• The dispenser area not lighting up when activated
• Flickering or dim lighting
• The bulb failing to turn on consistently

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: black. Measures about 8-1/2 inches wide by 4 inches deep.

6 - 19 x .250

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles
