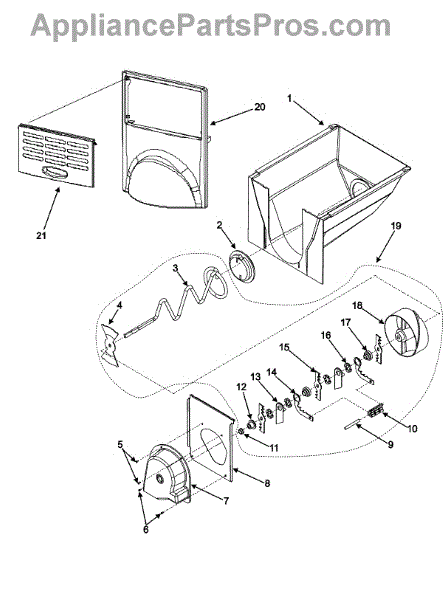

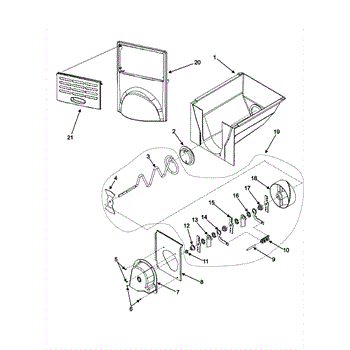

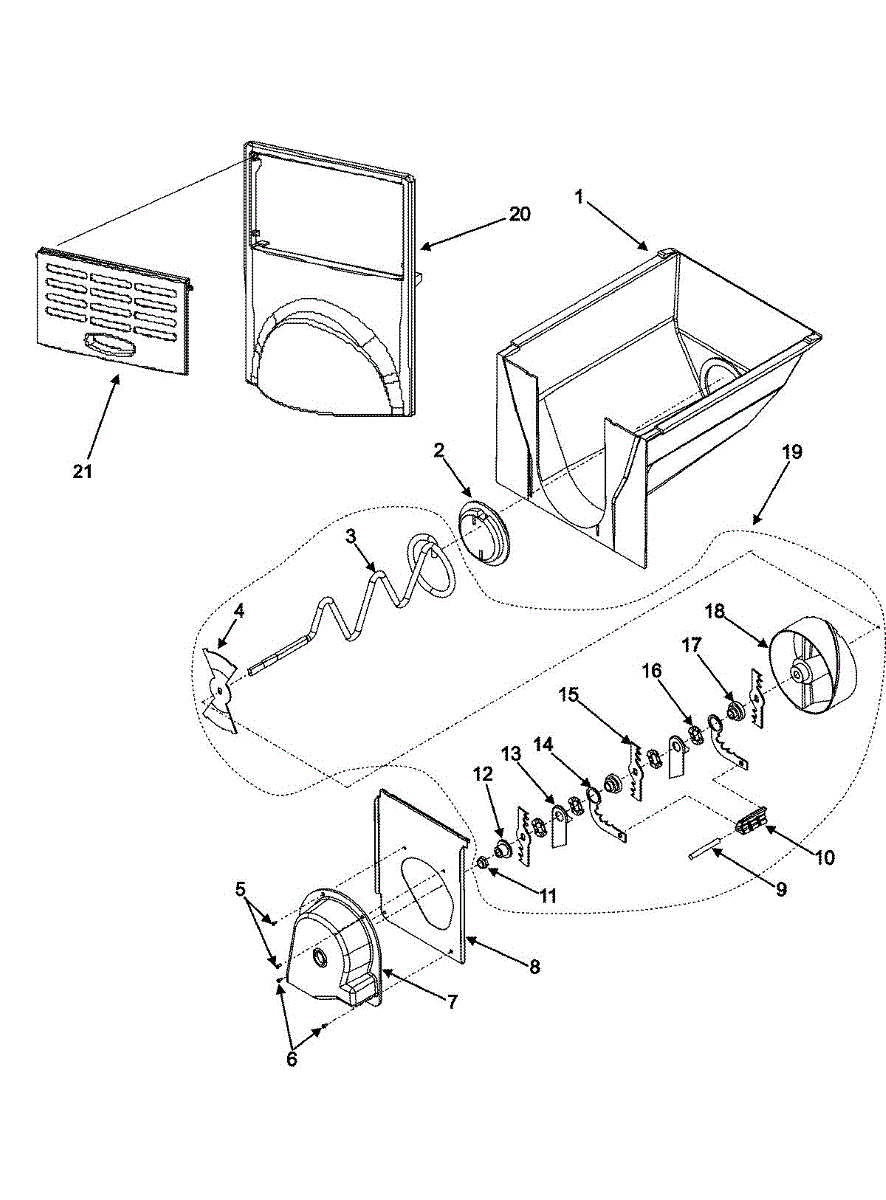

Parts for Magic Chef CSD2610KRW: 13 - Ice Bucket Assy. Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Ice Crusher Bucket is an OEM part for Whirlpool refrigerators. It serves as a container for holding and crushing ice from the icemaker. The bucket houses the crushing mechanism that breaks down ice cubes into smaller pieces, making it convenient for dispensing crushed ice through the refrigerator's door.

Over time, the ice crusher bucket can become worn out or damaged due to regular use, exposure to moisture, or accidental impact.

Symptoms of a bad ice crusher bucket include:

• The bucket not holding ice properly
• Issues with dispensing crushed ice
• Unusual noises during ice crushing
• Visible cracks or damage to the bucket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This end cap fits on the front of the ice-bin auger. It secures the auger shaft and blade stack inside the ice container so cubes or crushed ice dispense smoothly and the auger stays properly aligned.

• Secures the front of the auger and blades in the ice bucket
• Maintains auger alignment with the drive for reliable ice dispensing
• Helps prevent jams and rattling in the ice container
• Common symptoms of a failed cap: weak/no ice dispense, loose/wobbly auger, grinding or rattling noises, visible cracks or a missing cap

• Disconnect power and remove the ice bin before servicing
• Note the order of blades, spacers, and washers; take a photo for reassembly
• Replace the cap and reassemble in the original order using existing hardware
• Ensure the bin is fully seated and test dispense after restoring power

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

A locking nut that secures threaded shafts and fasteners to prevent loosening from vibration and regular use. Fits where a small, self-retaining nut is required to keep components firmly attached. What it does:

• Threads onto compatible studs/bolts to lock assemblies in place
• Resists vibration-related loosening for more reliable operation
• Commonly used on appliance control or mechanical linkages
• Small replacement part that restores secure fastening where the original nut is damaged or missing

• One locking nut

• Turn off and unplug the appliance before accessing internal components
• Match nut thread size and type to the stud before installation
• Use appropriate tools and torque; avoid overtightening which can strip threads

The ice auger and crusher blade crush and shave the ice that dispenses on a refrigerator. This part can be used to repair a refrigerator that is no longer dispensing ice. Sometimes when the ice dispenser malfunctions and makes a loud noise but doesn't dispense cubed or shaved ice, the problem is with the auger and crusher blade. Perform a visual inspection of the auger and crusher blade to ensure no external damage is done to the components.Disconnect the refrigerator from its power source before starting this repair. Open the freezer door to access the ice bucket and dispenser area. The bucket is held in place by fastening clips that can be pushed to remove the bucket. Lay the bucket flat on its back with the auger and blade facing upwards. Remove the old auger and crusher blade by removing the four hex screws. Remove the helix end-cap from the old auger system and replace it with the new one. Repeat these steps in reverse to install the new component.This Whirlpool ice auger and crusher is a genuine OEM product sourced directly from Whirlpool. The part listed is only available individually and is not included with any other parts or original appliances. This part is compatible with Whirlpool, Amana, Kenmore, and Maytag appliances.
