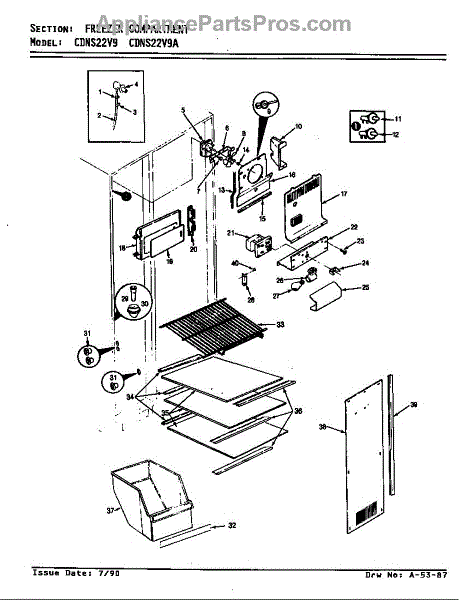

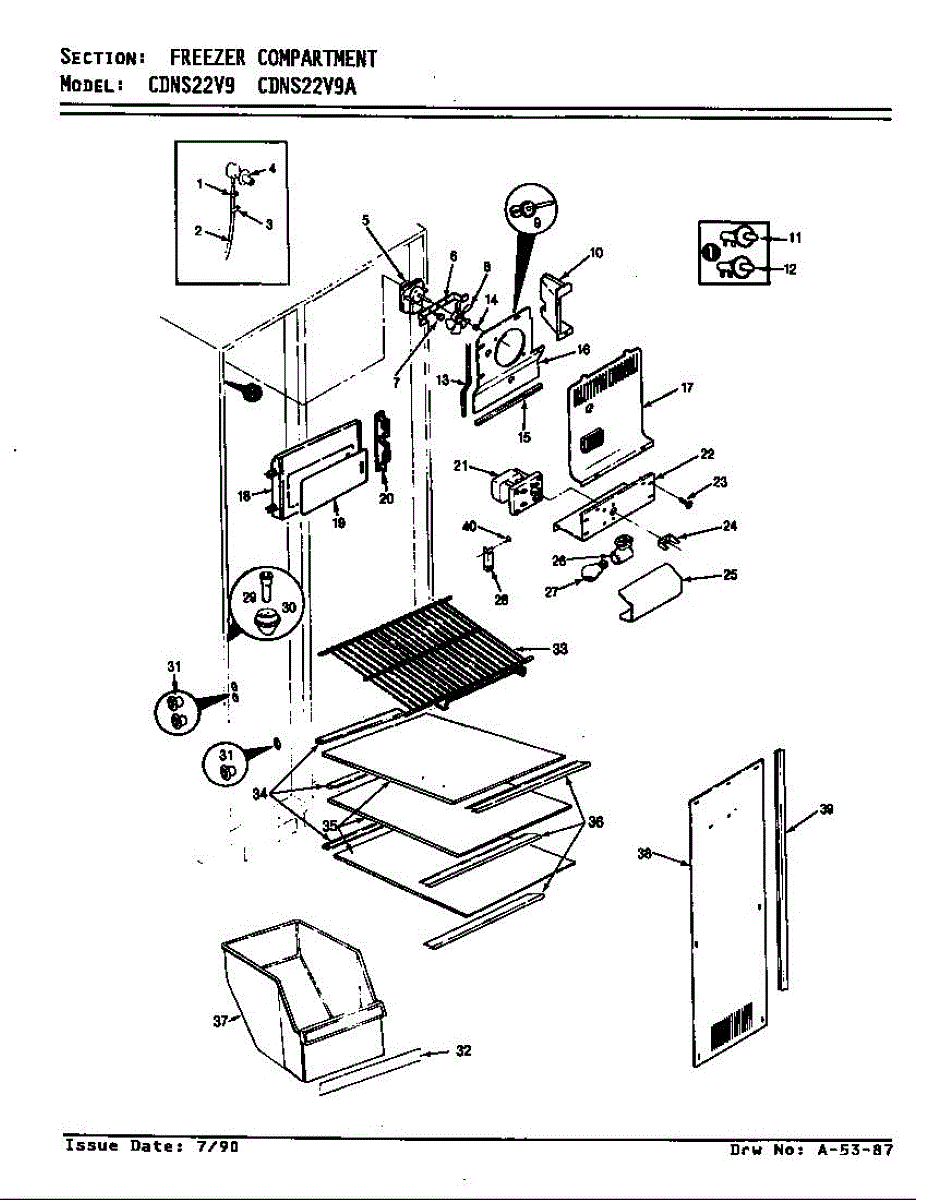

Parts for Maytag CDNS22V9A/BR35A: Freezer Compartment (Cdns22v9 / Ar35a) (Cdns22v9 / Br35a) (Cdns22v9a / Ar36a) (Cdns22v9a / Br36a) Parts

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

Ice maker water line: 1/4x 8ft.

CW. 5/8" stack

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 8-32 x 1/4 inch.

This auger motor and yoke assembly powers the auger that moves ice from the freezer bin through the dispenser, restoring reliable ice delivery when the auger no longer turns or dispenses ice properly. What it does:

• Drives and supports the auger shaft that pushes ice to the dispenser chute
• Replaces a failed or noisy auger motor to restore normal ice dispensing
• Helps when the auger does not rotate, ice won't dispense, or the motor is unusually loud
• Interfaces with the dispenser gearbox/yoke to keep the auger aligned and turning

• One auger motor and yoke assembly

• Disconnect power to the refrigerator before beginning any work
• Remove the ice bin and any obstructing panels to access the auger assembly
• Handle parts and panels carefully—sharp edges may be present

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Ice Dispenser Yoke is an OEM replacement part for Whirlpool refrigerators. It houses the ice dispensing mechanism and guides ice from the ice bucket into the chute upon user activation.

Causes of a bad ice dispenser yoke include worn gears or parts that lead to failure of the dispensing mechanism. Broken pieces or cracks in the yoke itself can also prevent proper ice delivery.

Symptoms of a bad ice dispenser yoke include:

• Ice jams or fails to dispense from the refrigerator door
• Chunky or uneven pieces of ice dispensed
• Grinding or sticking sounds coming from the ice dispensing area
• Dispenser mechanism not activating or operating as intended

This OEM Whirlpool part keeps operations efficient without spills or frustration. It's also compatible with models by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper refrigerators.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
