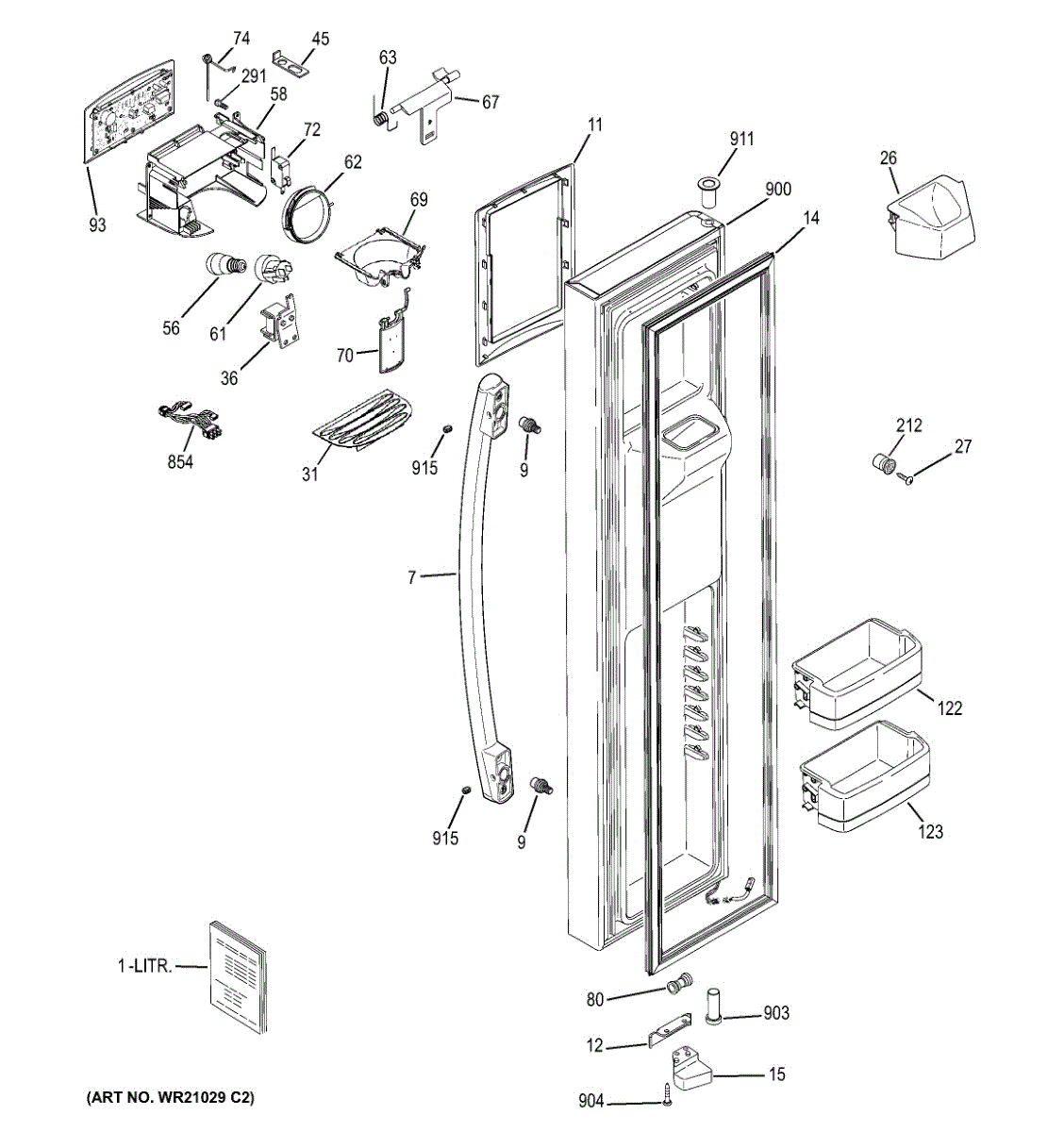

Parts for Ge GZS23HSECFSS: Freezer Door Parts

The Arc Handle is an OEM part for GE refrigerators. It is designed to provide a sturdy and ergonomic grip for opening and closing the refrigerator door. The handle measures approximately 34 inches long by 2 inches wide.

Causes of a bad arc handle can include wear and tear from frequent use, accidental impacts, or stress from excessive force. A faulty handle can compromise the convenience and safety of using the refrigerator.

Symptoms of a bad Arc Handle include:

• The handle feeling loose or wobbly
• Cracks or visible damage on the handle
• Difficulty in opening or closing the door
• The handle detaching from the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement fastener for refrigerator door handles. Secures handle to door with durable metal construction. Needed when original is cracked or broken.

Replaces broken or cracked refrigerator door stop. Installs on door to limit swing range and prevent cabinet damage. Needed when missing or worn.

Seals freezer door to prevent warm air entry and cold air loss. Replace if torn, cracked, or causing frost buildup. Confirm fit with your model number.

Replaces a broken or worn freezer door cam closure on side-by-side refrigerators. Installs on the door to control opening range and secure latching.

Directs ice from the ice maker into the bin or dispenser chute. Replace if cracked, broken, or missing to prevent ice spills and misalignment.

Replacement mounting screw for refrigerator installation. Used to secure components and panels. Replace if lost, stripped, or damaged during service.

Color: Chrome. It measures about 7-1/2 inches wide by 4 inches deep. For Black, order WR17X12324.

Ice won't dispense or dispenser flap sticks open? The ice dispenser solenoid controls ice flow. DIY-friendly repair with our install video.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Illuminates water and ice dispenser area for visibility in low light. Replace when bulb burns out or dispenser area stays dark. Confirm fit with model.

Replace your refrigerator's housing shield cover if it's cracked, broken, or missing. This protective cover installs over internal components for a clean finish.

Fix a light that won't turn on or flickers in your refrigerator. This E12 socket replacement is straightforward with our step-by-step video guide.

Ice dispenser door assembly seals the ice chute opening on your refrigerator. Replace if cracked, warped, or the rubber gasket is damaged and leaking air.

Spring that provides closing tension for the refrigerator water/ice dispenser door flap. Keeps the dispenser sealed when not in use. Replace if door hangs open or won't close.

Replacement dispenser door recess crank for refrigerators. Operates the ice/water dispenser door mechanism. Replace if broken, worn, or corroded.

Replaces a cracked, broken, or worn ice chute funnel in your refrigerator door dispenser. Directs ice from the auger to your glass or container.

This dispenser lever activates your refrigerator's water or ice dispensing system when pressed. The lever triggers the internal mechanisms that deliver water or ice through the door dispenser. Replace this lever if it's broken, sticks, or doesn't properly activate the water or ice dispenser.

Water or ice dispenser not working? This dispenser switch activates when you press the lever. Easy DIY repair—takes about 30 minutes with basic tools.

Spring that controls dispenser arm movement in refrigerators. Installs on the paddle assembly. Replace if broken, detached, or missing to restore arm function.

Connects water supply tubing sections in your refrigerator. Replace this plastic compression union if it's cracked, leaking, or broken. Installs inline.

The Interface Dispenser Assembly is an OEM replacement part for GE refrigerators. It is responsible for controlling and managing the functions of the refrigerator's dispenser system. It features buttons and a display panel that allow you to select different dispensing options and monitor the status of the dispenser system.

A bad interface dispenser assembly can occur due to electrical issues, component failure, or damage to the assembly itself. If you notice symptoms such as unresponsive buttons, error messages on the display panel, or the dispenser not functioning properly, it may indicate a need to replace the interface dispenser assembly.

Symptoms of a bad interface dispenser assembly include:

• Unresponsive buttons
• Error messages on the display panel
• Dispenser not functioning properly

Restore your refrigerator's dispenser system by replacing the faulty interface dispenser assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Replaces a broken, cracked, or missing freezer shelf module in side-by-side refrigerators. Installs in factory side supports for organized storage.

This fixed freezer module shelf supports and secures the freezer module assembly, restoring stable storage and preventing items from shifting or contacting the module. It's a direct replacement for a cracked, warped, or missing shelf. What it does:

• Holds and supports the freezer module assembly so it stays properly positioned.
• Keeps stored items from contacting or damaging the module.
• Replaces shelves that are cracked, broken, or bent and that allow items to slide or fall.
• Reduces rattling or movement caused by a loose or broken shelf.

• Disconnect power to the refrigerator before servicing to prevent electrical hazard.
• Empty the freezer area and remove loose shelves or bins that block access.
• Align the shelf with its mounting points and seat it gently; do not force or modify the part.
• If fasteners are present, reuse OEM fasteners or replace with manufacturer-specified hardware.

This small molded grommet secures the appliance base grille to the cabinet and cushions the grille against vibration and wear. It helps keep the grille seated and reduces rattling or movement for a tidy appearance. What it does:

• Provides a snap-fit mounting point for the lower/base grille
• Cushions grille edges to reduce vibration noise and rubbing
• Keeps the grille aligned and prevents loose or sagging fit
• Commonly replaced when torn, cracked, missing, or allowing grille movement

• Disconnect power before beginning any work on the appliance
• Remove the base grille or access panel to reach the grommet mounting location
• Press the grommet into the grille or cabinet opening until fully seated; replace damaged mounting clips as needed

Rubber grommet secures the base grille on your refrigerator. Replace if cracked, worn, or missing to restore a snug fit and reduce vibration or rattle.

This is a mounting screw used to secure various internal or external components in the refrigerator. It is a small Phillips pan-head fastener designed for use with the specific thread and length required by the appliance. Replace this screw if the original is stripped, lost, or damaged during a repair, causing a component to be loose or improperly secured.

Insulation foam assembly that installs inside your refrigerator's freezer door panel. Replace if the original foam is compressed, deteriorated, or missing.

Plastic bushing that fits inside the lower freezer door hinge assembly. Replace when cracked, worn, or broken to restore smooth door operation.

Replacement mounting screw for refrigerator panels, brackets, door handles, and trim. Needed when original hardware is missing, stripped, or corroded.

Bushing that lines the upper hinge pin on refrigerator doors. Replace if cracked, worn, or missing to restore smooth door swing and proper alignment.

The Set Screw is an OEM part for GE refrigerators. The set screw fits into the handle assembly, ensuring a tight and stable connection to the refrigerator door. This set screw is essential for preventing the door handle from becoming loose or coming off, which can affect the ease of opening and closing the refrigerator door.

Causes of a malfunctioning Set Screw can vary. Normal wear and tear is a common issue, causing the screw to strip or loosen over time. Incorrect installation is another factor.

Symptoms of a bad Set Screw include:

• A loose refrigerator door handle, which may wobble or detach partially from the door.
• Difficulty in opening or closing the refrigerator door due to a lack of secure grip.
• The need to frequently retighten the door handle.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
