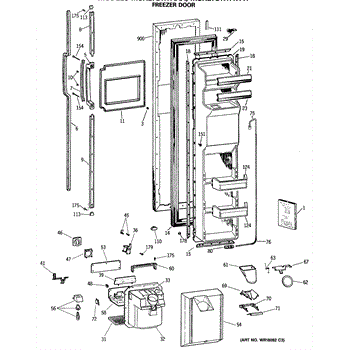

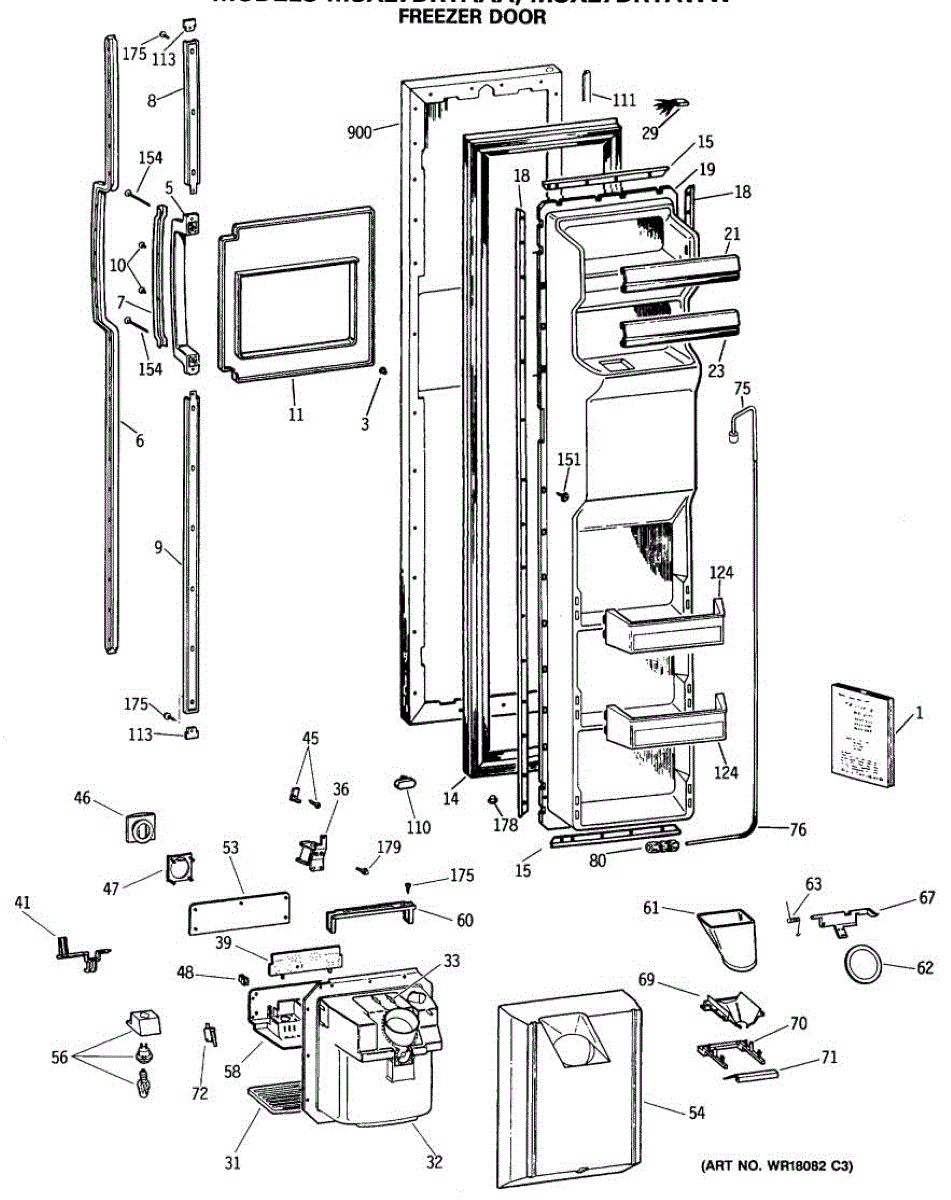

Parts for Ge MSX27DRTAAA: 01 - Freezer Door Parts

Tubular fastener bushing for refrigerators. Secures and stabilizes internal components. Replace if cracked, broken, or missing to restore proper fit.

Mounting screw for refrigerator internal components. Replaces lost, stripped, or damaged screws used to secure panels, brackets, and parts inside your unit.

Fix an unresponsive or cracked dispenser control panel with this refrigerator touchpad trim assembly. Restores full function to water and ice controls.

This part is white.

Door solenoid with plunger.

This control board comes with 2 slide switches and is mounted in the dispenser area.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

Color: clear. It's 7 watts 130 volts.

Ice dispenser door assembly seals the ice chute opening on your refrigerator. Replace if cracked, warped, or the rubber gasket is damaged and leaking air.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace missing or stripped mounting screws in your washer dryer combo. This 12-pack secures panels, components, and internal parts during assembly or repair.

Links the dispenser solenoid to the ice chute door in your refrigerator. Replace if the crank is broken, cracked, or worn, preventing proper closure.

Color: Black.

Color: Black.

Secures wire harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number before ordering.

Connects water supply tubing sections in your refrigerator. Replace this plastic compression union if it's cracked, leaking, or broken. Installs inline.

Size: 8-32 TT FL 1/2 S.

Includes 12 screws. Size: 8-18 ab.

Replace the end cap trim on your refrigerator door handle. This decorative trim piece covers the handle end and may need replacement if cracked or missing.

Replacement 8-18 x 9/16 machine screw for securing panels, brackets, and internal components. Needed when fasteners are stripped, missing, or worn.

Includes 12 screws.

Refrigerator mounting screw used to secure internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.

8 - 18 x .375

Wire freezer shelf for side-by-side refrigerators. Adds storage space in freezer compartment. Replace if cracked, broken, or missing from unit.

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

Ice dispenser only making crushed ice instead of cubes? This solenoid valve kit fixes the cube/crushed ice selector. Easy DIY repair with video guide.

Replacement handle pan for your refrigerator. Installs behind the door handle. Order a new one if yours is cracked, broken, or missing.

2 wire insulator.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

Secures water tube to cabinet, preventing kinks and flow issues. Replace if tube is loose, vibrating, or causing noise. Confirm fit with your model number.

Black. 8-18 AB HXW 3/8
