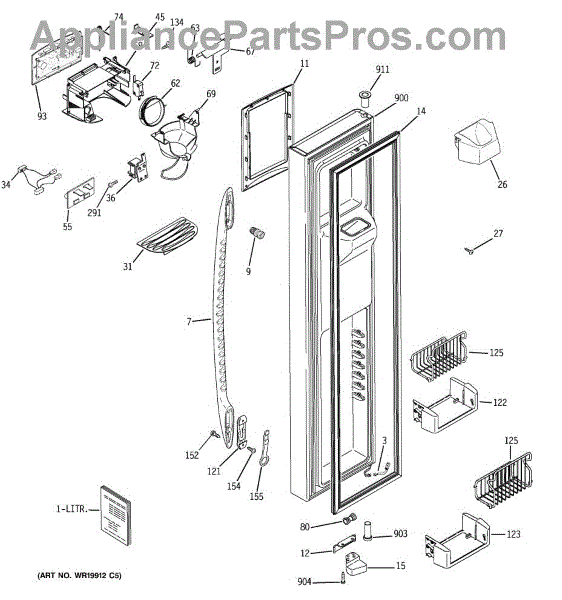

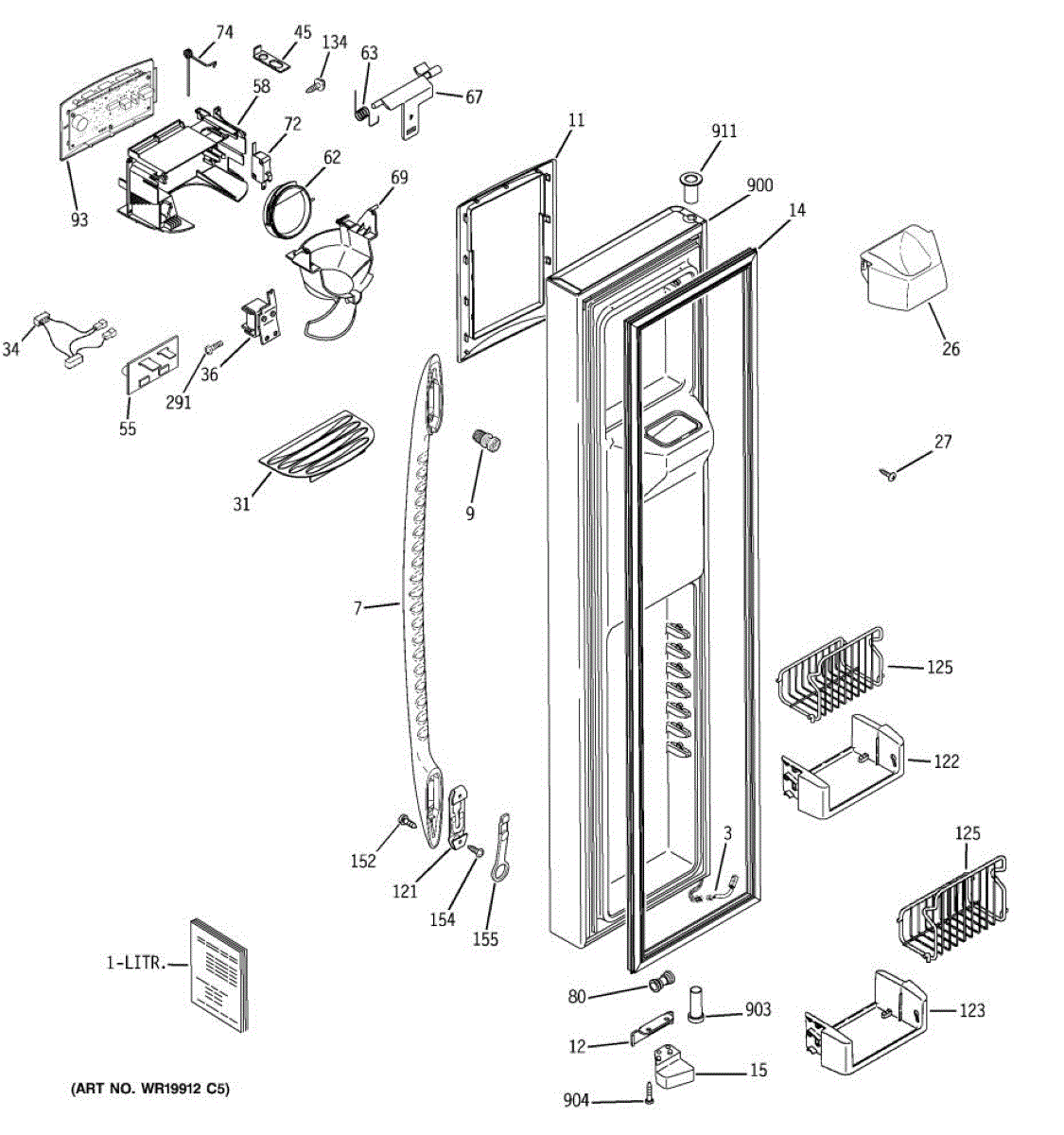

Parts for Ge PCF25PGSCCC: 01 - Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This shelf support is the small rear rail clip that secures a refrigerator shelf or drawer rail in place. A worn or broken support can let the shelf tilt or drop, making storage unstable.

• Holds the rear of the shelf or rail securely to the cabinet wall
• Helps correct issues like a sagging, tilting, or loose shelf
• Replaces cracked, missing, or deformed supports causing poor fit
• Restores proper alignment so bins and shelves slide/seat correctly

• Unplug refrigerator before service
• Remove the shelf/bin to access the support
• Depress locking tabs and slide the old support out; snap the new one into the cabinet slot
• Ensure it's fully seated before reinstalling the shelf

This stainless-steel handle fastener secures the appliance door handle to the door assembly, restoring a solid, rattle-free grip and proper handle alignment. Designed to replace a worn, loose, or missing fastener quickly and easily. What it does:

• Secures the door handle to the appliance door so the handle stays firmly attached
• Stops handle wobble, clicking, or partial detachment when opening or closing the door
• Restores proper handle alignment and feel after a stripped or corroded fastener
• Matches OEM finish for a consistent look with stainless-steel handles

• One stainless-steel handle fastener

• Disconnect power to the appliance before beginning any repair
• Access may require removing the handle or inner trim; follow for guidance
• Use appropriate hand tools and tighten the fastener until snug—do not over-torque

This recessed dispenser trim restores the finished edge and appearance around a refrigerator's ice/water dispenser opening. It replaces damaged, dented, or missing trim to keep the dispenser area looking clean and protected. What it does:

• Covers and finishes the recessed dispenser opening for a seamless look
• Protects underlying cabinet edges from chips, dings, and wear
• Helps guide cups and containers into the dispenser area
• Common symptoms: cracked, bent, scratched, or missing trim; visible gap or rough edge around dispenser

• High-level replacement — typically snaps or screws into the dispenser recess; your model's service manual for fastener locations
• Disconnect power to the appliance before starting work to avoid accidental actuation of electrical components
• Use non-marring tools and light force to avoid scratching the clad finish
• If clips or fasteners are damaged, replace them to ensure a secure fit

This cam closure is the small plastic latch that helps the freezer door align and stay closed, restoring a tight seal for efficient cooling and preventing frost buildup. Fits the freezer door hinge area and replaces worn or broken closures. What it does:

• Guides and secures the freezer door into the closed position for a reliable seal
• Replaces broken, cracked, or missing cam closures that let the door sag or catch
• Helps reduce air leaks that can cause frost buildup or higher energy use
• Works with the freezer hinge/cam assembly to maintain proper door alignment

• Disconnect power before working on the refrigerator to avoid electrical or injury risk.
• Remove the freezer door or inner liner panels as required to access the cam closure; follow the refrigerator model service manual.
• Install the cam in the correct orientation and ensure smooth door movement and alignment before reassembly.
• If hinges, screws, or adjacent parts are damaged, inspect/replace those parts as needed for a lasting repair.

This ice guide directs ice from the ice maker into the bin or dispenser, reducing jams and misfeeds for smoother ice delivery. Durable molded plastic fits into the ice path to keep cubes aligned as they drop. What it does

• Guides ice from the ice maker to the storage bin or dispenser chute
• Helps prevent cubes from getting stuck or misdirected during harvest
• Maintains a clear path to reduce clumping and improve dispensing consistency
• Replaces a cracked, broken, or missing plastic guide

• One ice guide

• Disconnect power to the appliance before starting any work
• Remove the ice bin or access panels as needed for clear access
• Usually installs by snapping into place or securing with the existing fastener(s); do not force parts

This 8-18 x 7/8 inch stainless steel screw secures appliance panels, brackets and components for a safe, stable fit. Its machine thread and corrosion-resistant finish make it suitable for interior and mildly exposed locations. What it does:

• Fastens panels, brackets or trim where an 8-18 x 7/8" screw is specified
• Restores secure mounting for loose or rattling parts
• Resists corrosion to help maintain fit over time
• Provides the correct thread size to prevent stripping when installed properly

• One 8-18 x 7/8 in stainless steel screw

• Use the correct driver and engage threads straight to avoid cross-threading
• Tighten until snug; avoid over-torquing which can strip threads or damage parts
• Replace only with identical size and thread type to ensure proper fit
• Disconnect power and follow appliance safety guidelines before working on the unit

This lower front trim piece attaches to the refrigerator base to cover and protect the grille area while keeping the appliance's front panel looking finished. It restores appearance and helps keep debris away from vents and components. What it does:

• Covers the lower front grille opening for a finished, OEM appearance
• Protects underlying vents and components from dust and accidental contact
• Helps direct airflow around the condenser/vent area for proper operation
• Replaces damaged, cracked, or missing trim to improve aesthetics

• One grille recess lower front trim

• Disconnect power to the refrigerator before attempting installation
• Typically secures with snap tabs and/or screws; align tabs and press or fasten as required
• Handle carefully to avoid scratching the finish and to prevent breakage of plastic tabs
• Obtain OEM replacements for secure installation

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Bisque

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Torsion Spring is an OEM part for GE refrigerators. It is essential for maintaining the proper tension and operation of the refrigerator door. This spring ensures the door closes smoothly and stays securely shut, preventing cold air from escaping and maintaining the appliance’s efficiency.

Causes of a bad torsion spring can include metal fatigue from regular use, corrosion from exposure to moisture, or damage due to excessive force or mishandling. Over time, these factors can weaken the spring, affecting the door’s performance.

Symptoms of a bad Torsion Spring include:

• Door not staying closed
• Difficulty in opening or closing the door
• Door feels loose or unbalanced
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fixed freezer module shelf provides a secure mounting surface for the freezer control/module assembly, keeping electronics and components stable for reliable operation. Designed as a direct replacement for damaged or missing shelves. What it does

• Secures the freezer control/module assembly to prevent shifting or vibration
• Provides a stable platform to maintain correct component placement
• Prevents contact between module components and other internal parts
• Commonly replaced when the shelf is cracked, broken, or the module feels loose

• Disconnect power to the appliance before beginning any repair
• Handle plastic parts carefully to avoid cracking; use basic hand tools
• Confirm correct orientation and seating of the shelf before reassembling panels

6 - 10 pl flp 1/2 s

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly
