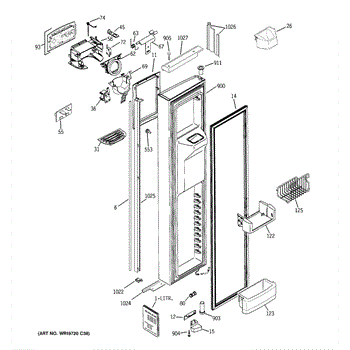

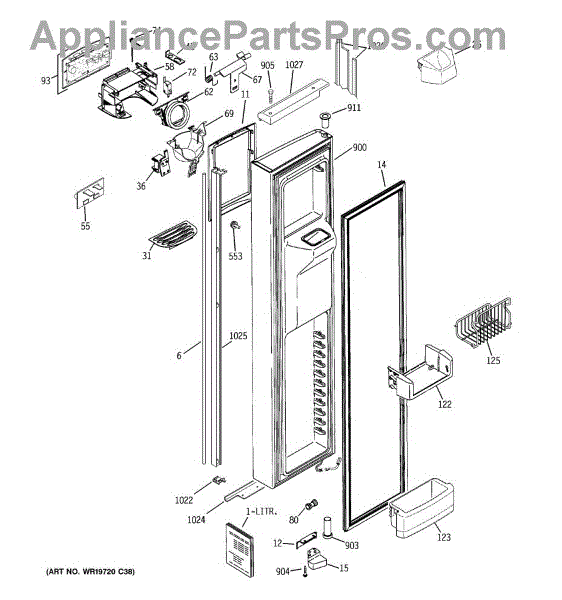

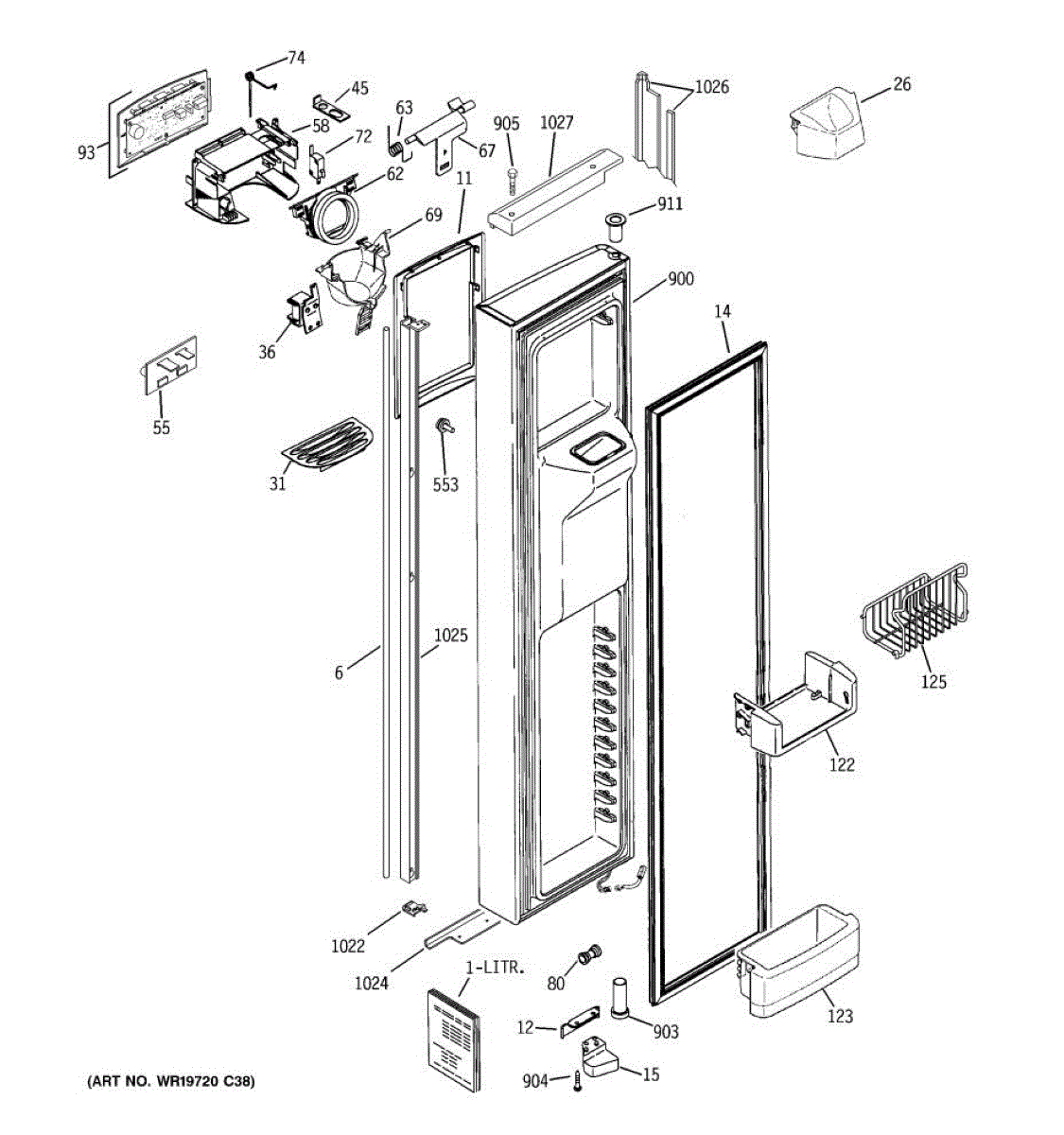

Parts for Ge PSIC5RGXCFBV: 01 - Freezer Door Parts

For the same part in black, purchase WR02X13425.

For the same part in white, purchase WR02X13424.

This door gasket seals the refrigerator/freezer compartment to keep cold air inside and help maintain consistent temperatures. A tight seal reduces frost buildup and lowers energy use while helping food stay fresher. What it does

• Forms an airtight seal around the door to prevent warm air from entering
• Helps maintain proper internal temperature and reduce compressor run time
• Reduces frost and ice buildup by keeping humidity out of the compartment
• Common symptoms of a failing gasket: visible gaps, cold air leaks, increased frost, or higher energy bills

• Clean the door frame and gasket channel before installation for a secure fit
• Warm the gasket slightly to aid installation if needed; avoid overstretching
• Unplug the appliance or disconnect power before working on the door for safety

This cam closure is the small plastic latch that helps the freezer door align and stay closed, restoring a tight seal for efficient cooling and preventing frost buildup. Fits the freezer door hinge area and replaces worn or broken closures. What it does:

• Guides and secures the freezer door into the closed position for a reliable seal
• Replaces broken, cracked, or missing cam closures that let the door sag or catch
• Helps reduce air leaks that can cause frost buildup or higher energy use
• Works with the freezer hinge/cam assembly to maintain proper door alignment

• Disconnect power before working on the refrigerator to avoid electrical or injury risk.
• Remove the freezer door or inner liner panels as required to access the cam closure; follow the refrigerator model service manual.
• Install the cam in the correct orientation and ensure smooth door movement and alignment before reassembly.
• If hinges, screws, or adjacent parts are damaged, inspect/replace those parts as needed for a lasting repair.

The Freezer Door Cam Closure is an OEM replacement part for GE side-by-side refrigerators. As a primary security component, it utilizes a cam mechanism to firmly latch the freezer door shut.

Causes of failure include wear from years of operation, and broken or misaligned cam parts reducing secure closure power.

Symptoms involve:

• Air leaks detectable around door seals when closure frozen
• Freezer door no longer clamping fully closed
• Light penetration into gasket if door poorly seated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

This ice guide directs ice from the ice maker into the bin or dispenser, reducing jams and misfeeds for smoother ice delivery. Durable molded plastic fits into the ice path to keep cubes aligned as they drop. What it does

• Guides ice from the ice maker to the storage bin or dispenser chute
• Helps prevent cubes from getting stuck or misdirected during harvest
• Maintains a clear path to reduce clumping and improve dispensing consistency
• Replaces a cracked, broken, or missing plastic guide

• One ice guide

• Disconnect power to the appliance before starting any work
• Remove the ice bin or access panels as needed for clear access
• Usually installs by snapping into place or securing with the existing fastener(s); do not force parts

This lower front trim piece attaches to the refrigerator base to cover and protect the grille area while keeping the appliance's front panel looking finished. It restores appearance and helps keep debris away from vents and components. What it does:

• Covers the lower front grille opening for a finished, OEM appearance
• Protects underlying vents and components from dust and accidental contact
• Helps direct airflow around the condenser/vent area for proper operation
• Replaces damaged, cracked, or missing trim to improve aesthetics

• One grille recess lower front trim

• Disconnect power to the refrigerator before attempting installation
• Typically secures with snap tabs and/or screws; align tabs and press or fasten as required
• Handle carefully to avoid scratching the finish and to prevent breakage of plastic tabs
• Obtain OEM replacements for secure installation

This is a refrigerator ice and water dispenser drip tray located on the freezer door. Color: White. It measures about 8 inches wide by 4 inches deep. For black order WR17X11655.

The Dispenser Drip Tray is an OEM part for GE refrigerators. It serves as a catchment area for any drips or spills that may occur during the dispensing process. It helps prevent water or ice from dripping onto the floor or making a mess on the front of the refrigerator. For white order WR17X11654.

Causes of a faulty or damaged dispenser drip tray can include regular use, accumulation of debris, or cracks. These factors can result in issues such as water or ice leaking onto the floor, an unsightly appearance, or difficulties in cleaning and maintenance.

Symptoms of a bad dispenser drip tray may include:

• Water or ice leaking from the dispenser area
• Cracks or damage to the drip tray
• Difficulty in removing and cleaning the drip tray

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

White

The Refrigerator Dispenser Arm Kit is an OEM component for GE French door refrigerator models. This kit contains the arm mechanism responsible for dispensing ice and water from the external dispenser tap.

Proper functioning of the dispenser arm allows for effortless access to ice and water directly from the refrigerator door. Over time, cold temperatures, mineral deposits, and high usage can cause mechanical failure.

Symptoms of a problematic refrigerator dispenser arm kit include:

• Ice or water dispensing slower than normal or in inconsistent amounts
• Blockages that prevent full dispensing
• Leaks or drips around the dispenser tap area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Bisque

White

The Refrigerator Dispenser Arm Kit is an OEM component for GE French door refrigerator models. This kit contains the arm mechanism responsible for dispensing ice and water from the external dispenser tap.

Proper functioning of the dispenser arm allows for effortless access to ice and water directly from the refrigerator door. Over time, cold temperatures, mineral deposits, and high usage can cause mechanical failure.

Symptoms of a problematic refrigerator dispenser arm kit include:

• Ice or water dispensing slower than normal or in inconsistent amounts
• Blockages that prevent full dispensing
• Leaks or drips around the dispenser tap area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Torsion Spring is an OEM part for GE refrigerators. It is essential for maintaining the proper tension and operation of the refrigerator door. This spring ensures the door closes smoothly and stays securely shut, preventing cold air from escaping and maintaining the appliance’s efficiency.

Causes of a bad torsion spring can include metal fatigue from regular use, corrosion from exposure to moisture, or damage due to excessive force or mishandling. Over time, these factors can weaken the spring, affecting the door’s performance.

Symptoms of a bad Torsion Spring include:

• Door not staying closed
• Difficulty in opening or closing the door
• Door feels loose or unbalanced
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This union connector joins two sections of appliance water tubing to maintain a watertight supply line for icemakers or dispensers. It's a direct replacement piece that helps stop leaks and restore proper water flow. What it does

• Connects two water tubing segments to create a sealed junction for appliance water supply lines
• Stops leaks or drips at a damaged or corroded tubing connection
• Restores proper water flow to icemakers, dispensers, or other water-fed components
• Compatible with standard appliance water tubing sizes where this OEM connector is specified

• Turn off the appliance water supply (and unplug appliance if advised) before beginning work
• Remove the damaged connector and clean tubing ends before installing the new union
• Hand-start fittings, then tighten securely; check for leaks with the water supply back on

Color: Bisque

Color: Black

This fixed freezer module shelf provides a secure mounting surface for the freezer control/module assembly, keeping electronics and components stable for reliable operation. Designed as a direct replacement for damaged or missing shelves. What it does

• Secures the freezer control/module assembly to prevent shifting or vibration
• Provides a stable platform to maintain correct component placement
• Prevents contact between module components and other internal parts
• Commonly replaced when the shelf is cracked, broken, or the module feels loose

• Disconnect power to the appliance before beginning any repair
• Handle plastic parts carefully to avoid cracking; use basic hand tools
• Confirm correct orientation and seating of the shelf before reassembling panels

The Freezer Door Lower Hinge Bushing is an OEM replacement part for GE refrigerators. It is a component located within the freezer door hinge.

Causes of failure typically involve normal wear over extended use. Refrigerator doors experience frequent adjustment which can deteriorate hinge bushings.

Symptoms of a bad lower hinge bushing include:

• The freezer door being loose or wobbly in its closed position
• Excessive noise, grinding, or vibration coming from the door hinge area
• Difficulty smoothly opening or closing the door

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This is a replacement 10-32 x 1 machine screw used to fasten appliance components. It restores secure mounting of panels, brackets and hardware so parts stay aligned and vibration or rattling is reduced. What it does:

• Secures panels, brackets, housings and small components to the appliance frame
• Keeps control boards, motors or assemblies held firmly in place
• Prevents loose parts that can cause vibration, noise or intermittent connections
• Matches the OEM thread and length for proper fit when replacing a worn or missing screw

• Disconnect power before working inside the appliance
• Use the correct 10-32 driver or bit to avoid stripping the head
• Thread into the original hole and tighten snugly; avoid over-torquing
• Replace with the same size and thread type to ensure proper fit and safety

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal
