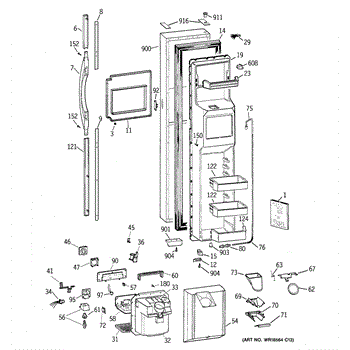

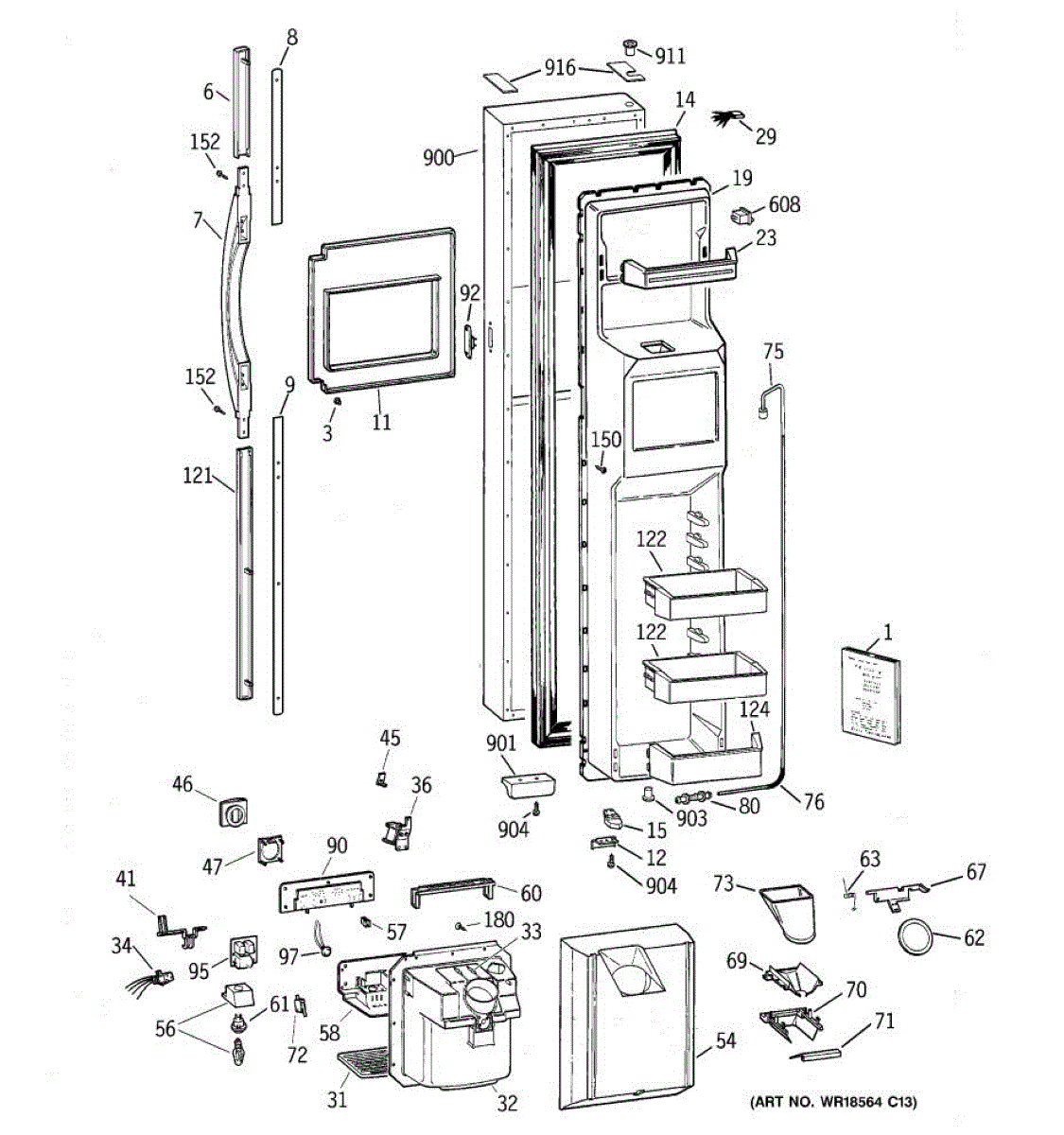

Parts for Ge TFM30PBBBWW: 01 - Freezer Door Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Tubular fastener bushing for refrigerators. Secures and stabilizes internal components. Replace if cracked, broken, or missing to restore proper fit.

Size: 10-32 GXTT FLP.595 S

A removable tray that catches drips and spills from the water and ice dispenser. Located at the bottom front of the dispenser area on the refrigerator door. Replace when the tray is cracked, stained beyond cleaning, or doesn't fit properly in its housing.

Wire harness for refrigerator recessed dispenser assembly. Replaces damaged, frayed, or disconnected wiring. Restores electrical connections in door.

Door solenoid with plunger.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

Replaces a damaged or corroded refrigerator lamp socket that powers the interior light. Replace if bulb won't illuminate or flickers. Verify fit.

Color: clear. It's 7 watts 130 volts.

Fix a refrigerator light that won't turn on or off with this door-activated light switch. Simple 15-minute repair for most home DIYers.

Fix a light that won't turn on or flickers in your refrigerator. This E12 socket replacement is straightforward with our step-by-step video guide.

Ice dispenser door assembly seals the ice chute opening on your refrigerator. Replace if cracked, warped, or the rubber gasket is damaged and leaking air.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Links the dispenser solenoid to the ice chute door in your refrigerator. Replace if the crank is broken, cracked, or worn, preventing proper closure.

Color: Black.

Color: Black.

Connects water supply tubing sections in your refrigerator. Replace this plastic compression union if it's cracked, leaking, or broken. Installs inline.

Size: 8-32 TT FL 1/2 S.

Includes 12 screws. Size: 8-18 ab.

Replacement tail piece for refrigerator door handles. Installs at the end of the handle assembly. Order if your original is cracked, broken, or missing.

This is a screw intended for use in refrigerators, specifically as the top mounting screw for the handle. If the screw in the handle is missing, stripped, or otherwise not performing its function, a replacement screw should be ordered.A visual inspection will determine if a screw is missing. If the door handle is loose or falling off from the top, it is a sign that a replacement screw is required. This repair is a quick and easy process. It involves the use of a screwdriver. Remove the old screw if there is one in place. Line up the holes on the door and the door handle component before twisting the new screw into position. Wear gloves to protect hands during the repair.This screw is a genuine OEM replacement part. It is sourced directly from the manufacturer. The screw is sold individually. The screw is compatible with several different models of refrigerators. It can be installed in ranges made by Electrolux, Frigidaire, Gibson, Westinghouse, and Kelvinator.

8 - 18 x .375

Package of 12

Freezer light not turning on or off? This door light switch activates interior lighting when opened. Moderate DIY repair—press tab, rotate out old switch.

Size: 10-16 ab.

Panel mounting screw for refrigerators. Secures access panels, trim pieces, and internal brackets. Replace lost, stripped, or corroded fasteners.

Mounting clip for refrigerators. Secures components and panels in place. Replace if clip is broken, cracked, or missing to restore proper fitment.

Replacement mounting screw for refrigerator panels, brackets, and hardware. Secures loose components and reduces rattling from missing or stripped screws.
