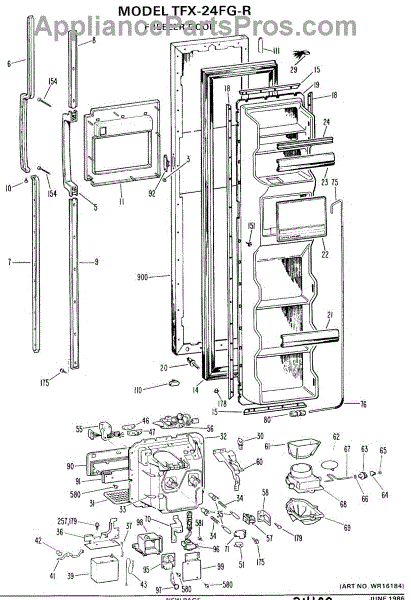

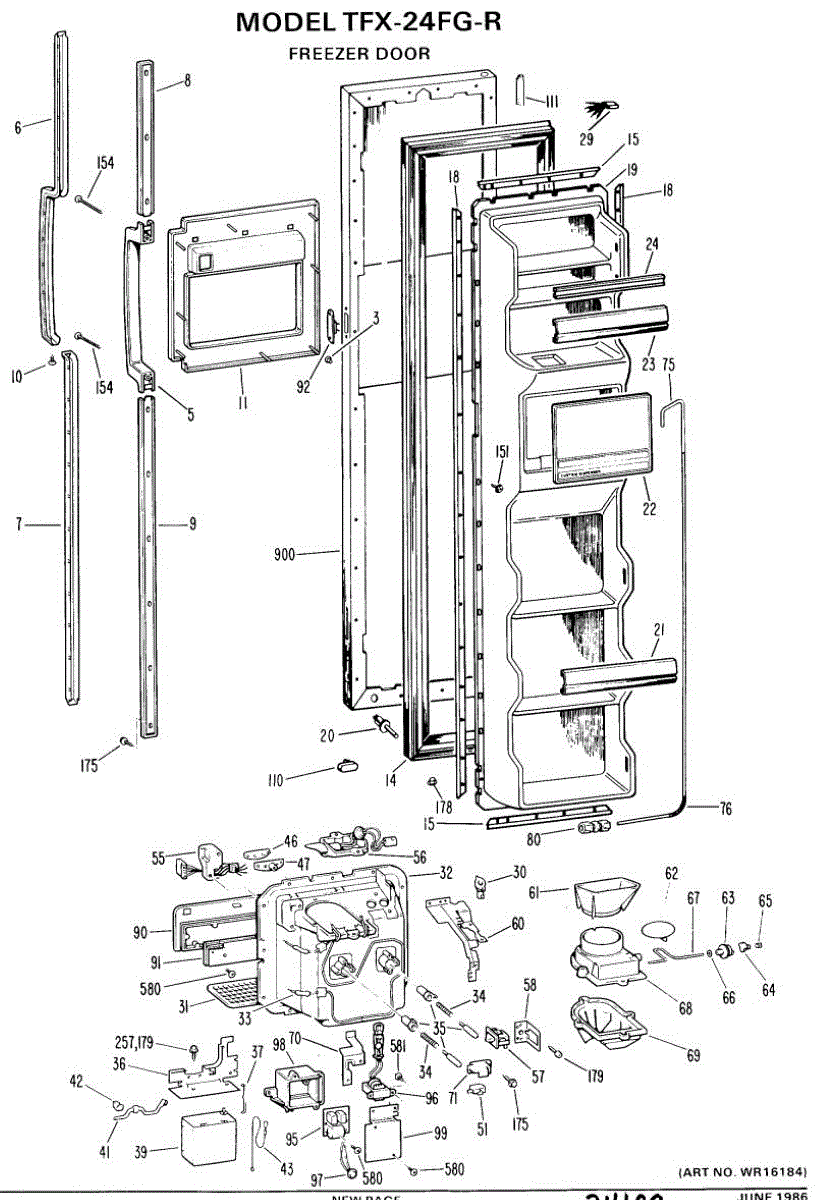

Parts for Ge TFX24FGR: 01 - Freezer Door Parts

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Color: clear. It's 7 watts 130 volts.

This part has been discontinued and is no longer available.

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

This is the right side duct gasket. For left side use WR14X247.

This is the left side duct gasket. For right side use WR14X246.

This part has been discontinued and is no longer available.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

This housing power module supplies the main power/control interface inside the appliance housing, restoring electrical distribution and control signals so features like lights, fans, and dispenser can operate reliably. What it does:

• Routes power from the main harness to internal components and control circuits
• Replaces a failed housing module that can cause partial or complete loss of power to lights, fans, dispenser, or control functions
• Helps resolve intermittent operation, no-power at certain modules, or safety shutdowns tied to the housing electronics
• Works as the internal mounting and connection point for related wiring and connectors

• One housing power module assembly

• Disconnect power to the appliance before servicing to avoid shock or damage
• Requires removal of the control/housing panel; keep track of screws and connectors
• Handle with care to avoid bending pins or damaging wiring; use anti-static precautions if available

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

Includes 12 screws.

Includes 12 screws.

This mechanical defrost timer controls the refrigerator's automatic defrost cycle, clearing frost from the evaporator and helping maintain stable temperatures. Replacing a faulty timer restores regular defrost intervals to prevent frost buildup and inconsistent cooling.

• Cycles the system between cooling and defrost at set intervals to remove frost from the evaporator coils
• Heavy frost on the freezer back wall or evaporator cover may indicate a failed timer
• Fresh food section warming while the freezer seems cold, or unit stuck in defrost with no cooling
• Compressor runs continuously or never restarts; timer does not advance as expected

• Disconnect power before servicing to avoid electrical shock
• Access location varies by model; commonly in the control housing, behind the kick plate, or at the rear near the compressor
• Photograph or label wiring and transfer wires one at a time to the matching terminals
• Mount securely, restore power, and confirm normal cooling/defrost operation

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Includes 12 screws.

Package of 12

Size: 10-16 ab.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser sleeve comes with plunger, sleeve, and screw.

This OEM Replacement Part is an ice container assembly for GE side-by-side refrigerators from 1998 models and newer with 24 to 27 cubic feet capacity. The assembly includes a 12 3/8” wide x 12 3/8” long x 14 5/8” tall ice bucket with an integrated auger to rotate and move ice into the dispenser chute. The auger within the assembly helps move the ice cubes forward, enabling easy access and dispensing.

Causes of a bad assembly can include wear and tear over time, damage from frequent use or mishandling, and issues with the auger motor or blades that prevent proper ice movement.

Symptoms of a bad Ice Bucket and Auger Assembly include:

• Ice not dispensing properly
• The auger not turning or making unusual noises
• Cracks or damage to the ice bucket
• Ice jams or clogs in the dispenser chute

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
