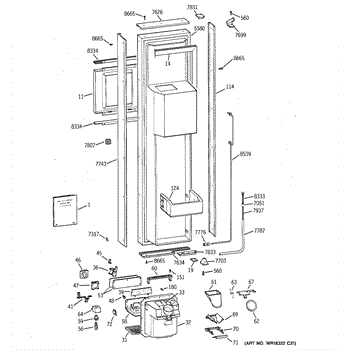

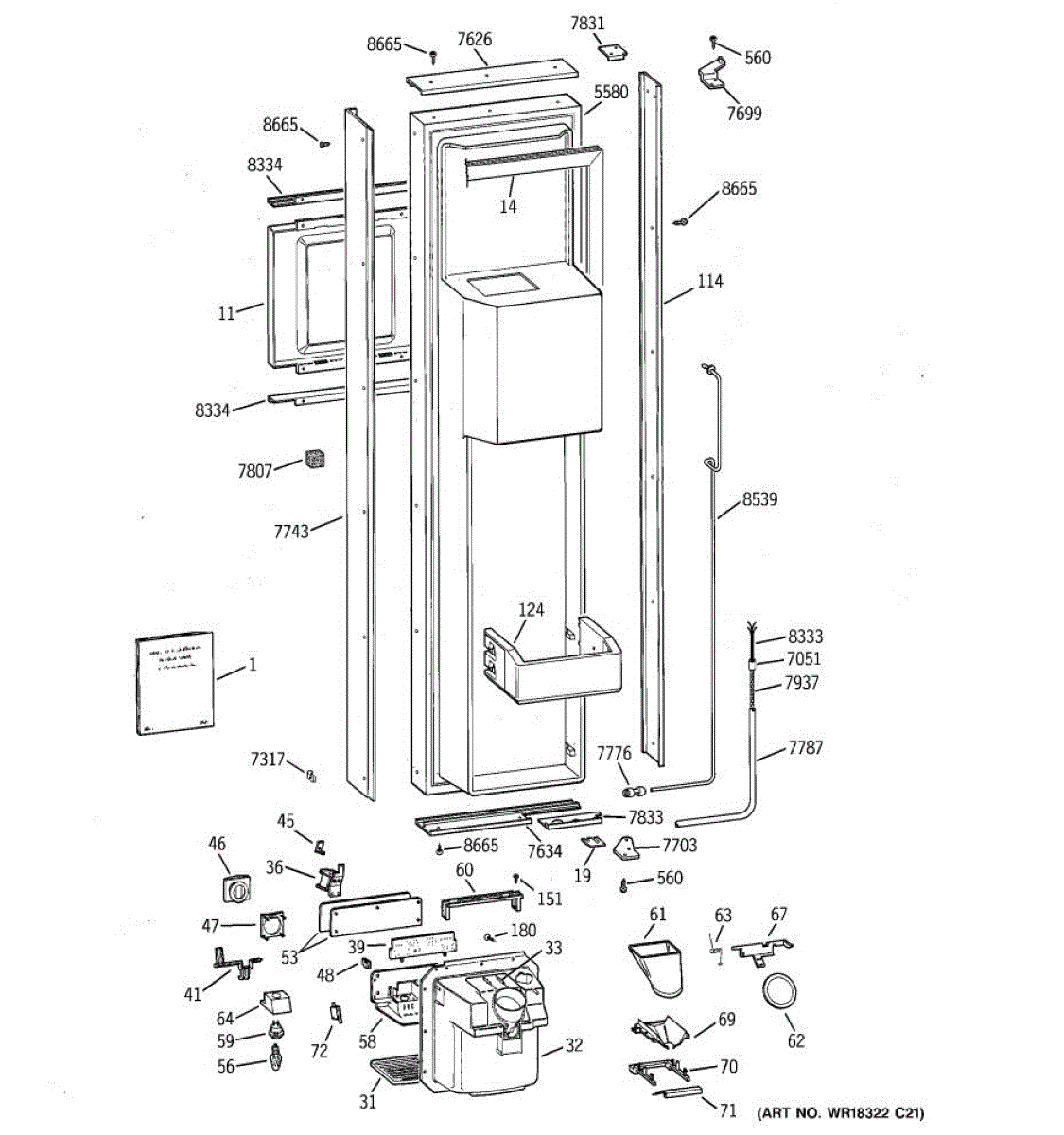

Parts for Ge ZISB36DCA: 01 - Freezer Door Parts

Color: Black.

This is the magnetic door gasket that seals the refrigerator compartment. A tight, intact gasket helps maintain proper temperature and reduces energy loss by keeping warm air out and cold air in.

• Creates an airtight seal between the refrigerator door and cabinet
• Helps prevent temperature swings, frost, and moisture around the door
• Worn, torn, or warped gaskets can cause warm spots, condensation, or doors not closing properly
• Replace if you see cracks, gaps, or if the gasket no longer holds a seal

• Unplug the appliance before service and remove door contents for easier handling
• Gently warm the gasket (hair dryer on low) to relax folds and improve fit
• Transfer and reuse any retaining hardware; seat the gasket fully in the channel
• Check door alignment and perform a dollar-bill test around the perimeter to confirm sealing

This .030-inch shim is a thin leveling spacer used to correct small height and alignment gaps. It helps stabilize and align appliance components for proper fit and reduced vibration during operation. What it does:

• Provides a precise 0.030-inch thickness to raise or level panels, doors, or chassis components
• Helps eliminate small gaps that can cause rubbing, misalignment, or uneven sealing
• Reduces vibration or rocking by evening out contact points and load distribution
• Useful during cabinet installation or when replacing worn leveling feet or brackets

• Disconnect power (and water if applicable) to the appliance before performing service
• Use appropriate hand tools and keep shims flat and properly seated under the component being adjusted
• Add shims incrementally—do not force parts into position or over-tighten fasteners after shimming

Color: Black. Other colors: For white use WR17X4153, for almond use WR17X4151.

Color: Black.

Door solenoid with plunger.

This control board comes with 2 slide switches and is mounted in the dispenser area.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

Color: clear. It's 7 watts 130 volts.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser crank links the dispenser solenoid and the ice chute door. When you press the dispenser lever, the crank pivots to open and close the ice door so cubes or crushed ice can dispense cleanly without warm air leaking into the freezer.

• Connects the solenoid to the ice chute door to control door movement
• Helps seal the chute when not dispensing to reduce frost and moisture issues
• Common failure signs include ice door not opening/closing, constant frost around chute, or warm/moist air leakage at dispenser
• Can cause ice clumping, frost buildup, or water/ice dispensed irregularly when worn or broken

• Disconnect power before servicing the dispenser area
• Access typically requires removing the dispenser front panel and trim; use care with plastic tabs and wiring
• Note linkage orientation to the solenoid and door flap before removal
• Inspect related parts for wear while open

Color: Black.

Color: Black.

Freezer door side trim.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

8 - 18 x .375

This screw handle trim replaces the small decorative cover that hides and secures the mounting screw on a range/oven handle, restoring a finished look and preventing debris buildup around the screw. What it does:

• Covers the handle mounting screw and provides a clean finished appearance
• Helps keep crumbs and grease out of the screw cavity
• Stops a loose or missing trim from catching on clothing or hands
• Restores cosmetic look after handle removal or damage

• One screw handle trim

• Safety first: unplug the appliance or shut off power to the range before working
• Remove the handle screw, fit the trim over the screw area, then reinstall and tighten the screw securely (do not overtighten)
• Use the correct screwdriver and avoid forcing the trim; check alignment before final tightening
• If the original mounting hardware is damaged, replace it with OEM hardware

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

Nut for 1/4 inch tubing.

Freezer foamed door assembly for 36 and 42 inch GE/Monogram refrigerators.

Size: 1/4 inch diameter.

Freezer door top trim.

Freezer door bottom trim.

Freezer side bottom door hinge.

This water line connector links the refrigerator's water supply tubing to the appliance, restoring a secure water feed for the dispenser and ice maker. A direct-fit replacement that fixes loose or damaged supply connections. What it does:

• Provides a sealed connection between the supply tubing and the refrigerator water system
• Stops leaks caused by cracked, broken or loose connectors
• Restores proper water flow to the dispenser and ice maker when the original connector fails
• Fits the original mounting/location for a direct replacement

• One water line connector

• Turn off the water supply and unplug the appliance before installing
• Inspect tubing for damage and cut back to clean pipe if necessary; ensure proper seating of tubing in the connector
• Hand-tighten fittings; check for leaks after restoring water and power

Freezer side top hinge shim. For bottom hinge shim use WR2X8593.

Freezer side bottom hinge shim. For top hinge shim use WR2X8592.

This fiberglass sleeve protects and insulates tubing and wiring, helping prevent chafing and damage where lines pass through openings or near sharp edges. It's a simple, durable way to extend component life and reduce noise from rubbing. What it does:

• Provides abrasion protection for water lines, hoses, and electrical wiring
• Adds thermal insulation to help reduce condensation and exposure to temperature extremes
• Cushions components where they pass through metal or plastic panels to prevent wear
• Helps reduce rubbing noises caused by vibration or movement

• Disconnect power and water supply before starting
• Inspect surrounding areas for sharp edges or corrosion; replace sleeve if frayed or damaged
• Slide sleeve over the hose or wire; trim to length with scissors if needed and ensure full coverage of exposed areas
• Use appropriate clamps or zip-ties as required to secure the sleeve without compressing it

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.
