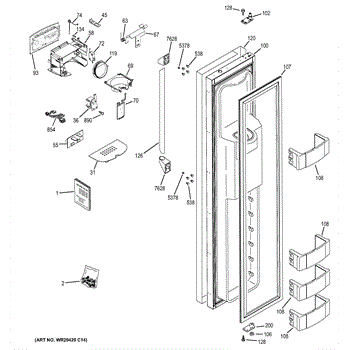

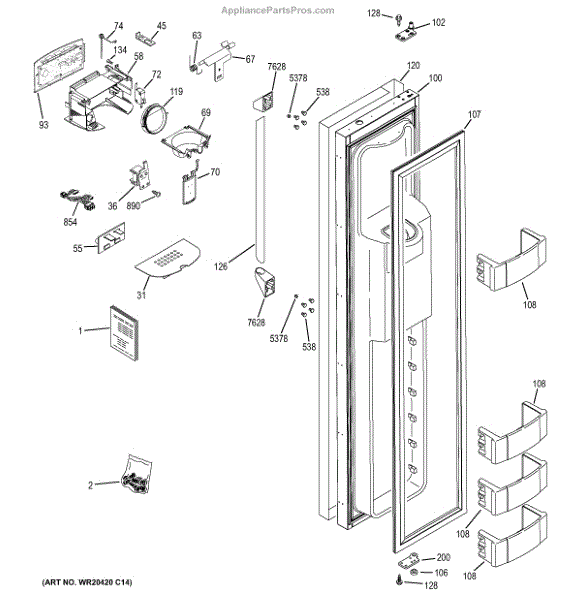

Parts for Ge ZISP480DHBSS: Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This hardware pack provides the assorted fasteners needed to secure trim, panels, and small appliance components, helping replace missing or damaged screws and clips for a clean, stable fit. What it does

• Replaces lost or damaged screws, clips and small fasteners used on appliance trim and panels
• Helps stop rattling or loose panels by restoring proper fastening
• Secures small components during reassembly after maintenance or part replacement
• Useful when original mounting hardware is missing or corroded

• Disconnect power to the appliance before servicing to reduce shock risk
• Use the correct screwdriver or driver bit to avoid stripping fasteners
• Keep small parts away from children and pets; work on a covered surface to catch dropped pieces

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Chute Funnel is an OEM part for GE refrigerators. It directs ice from the dispenser to the glass.

Causes of a bad ice chute funnel can include wear and tear over time, cracking or breaking due to frequent use, or damage from attempting to clear jams or blockages.

Symptoms of a bad ice chute funnel include:

• Ice spilling or missing the glass during dispensing
• Difficulty in dispensing ice or frequent jams
• Cracks or visible damage to the funnel
• Ice buildup or blockages in the dispenser chute

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This paddle dispenser replaces a damaged or worn dispenser paddle on refrigerator doors to restore a solid surface for activating the water and/or ice dispenser. It provides a direct, durable lever for normal dispenser use. What it does

• Acts as the exterior lever you press to engage the water or ice dispenser.
• Transfers user pressure to the dispenser switch or actuator inside the door.
• Restores proper alignment and feel if the original paddle is cracked, loose, or broken.
• Helps prevent debris from entering the dispenser opening when properly installed.

• One paddle dispenser

• Disconnect power to the refrigerator and shut off the water supply before servicing.
• Depending on model, you may need to remove the dispenser bezel or inner door panel to access mount points.
• Handle the door trim carefully to avoid scratching or cracking plastic pieces during removal and reassembly.

The Dispenser Arm Spring is an OEM part for GE refrigerators. This spring is a crucial component that helps control the movement of the dispenser arm, ensuring it returns to its original position after use. It plays a key role in the functionality of the ice and water dispenser, allowing for smooth operation and consistent performance. Please note the springs are sold individually.

Causes of a bad Dispenser Arm Spring can include wear and tear from frequent use, corrosion due to moisture exposure, or accidental damage from excessive force. A malfunctioning spring can lead to operational issues with the dispenser.

Symptoms of a bad Dispenser Arm Spring include:

• The dispenser arm not returning to its resting position
• Difficulty or resistance when using the dispenser
• Unusual noises during the dispenser operation
• Inconsistent dispensing of ice or water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement freezer bottom hinge bushing helps the freezer door pivot smoothly and maintain proper alignment, reducing rubbing and uneven wear for more reliable closing. What it does:

• Provides a smooth pivot surface for the freezer bottom hinge
• Restores proper door alignment to help ensure a tight seal
• Reduces hinge noise, sticking, and rubbing during door movement
• Helps prevent premature wear of the hinge and door components

• One freezer bottom hinge bushing

• Disconnect power to the appliance and empty or support the door before starting
• Support the door while removing hinge fasteners to prevent falling or injury
• Inspect the hinge and shaft for wear; replace the hinge assembly if damaged
• Do not overtighten fasteners; test door operation after installation

This gasket and label assembly is used on side-by-side refrigerators to restore a proper seal at the specified location and provide the matching identification decal. A tight seal helps keep cold air in, moisture out, and performance consistent.

• Creates an air-tight seal between mating refrigerator parts or panels
• Helps maintain stable temperatures and reduce frost/condensation
• Replace if the gasket is torn, deformed, brittle, or missing
• Helps address sweating around edges, warm spots, or longer run times

• Disconnect power before servicing; turn off water supply if working near water components
• Remove the old gasket/label and clean/dry the surfaces thoroughly
• Seat the gasket evenly without twists; ensure full contact all around
• Apply the label in the specified location per your model's documentation

This bin door assembly is the flip-up cover for a small door bin compartment on your refrigerator. Replacing a cracked or missing cover keeps items contained and restores convenient access and a clean, finished look. What it does:

• Covers the door bin compartment and flips up for easy access
• Helps keep items from falling out when the door opens and closes
• Restores proper function when the original cover is cracked, warped, or missing
• Typical symptoms include broken hinge tabs, a cover that won't stay closed, or a loose/misaligned lid

• Includes 1 bin door assembly

• Remove items from the affected bin
• Release the old cover from the hinge tabs or pins and lift it off
• Align the new cover's tabs with the bin hinges and press/snap into place
• Do not force parts; verify smooth open/close after installation

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This stainless steel hex cap screw fastens appliance panels and components where a 1/4-20 threaded fastener is required. Durable corrosion-resistant finish helps maintain secure mounting and reliable operation. What it does

• Secures panels, brackets, and internal components to frame or chassis.
• Replaces stripped, rusted, or missing mounting screws that cause loose or rattling parts.
• Restores proper alignment and prevents movement that can lead to wear or noise.

• Use the correct 1/4 in hex socket or wrench; avoid rounded or worn tools.
• Tighten until snug; do not over-torque — overtightening can strip threads or crack plastic parts.
• Replace any damaged mating hardware (nuts, clips, or threaded inserts) for a secure fit.
• Power tools may be used carefully on low torque settings to avoid over-driving.

Size: 8-16 x 2 inch ss.
