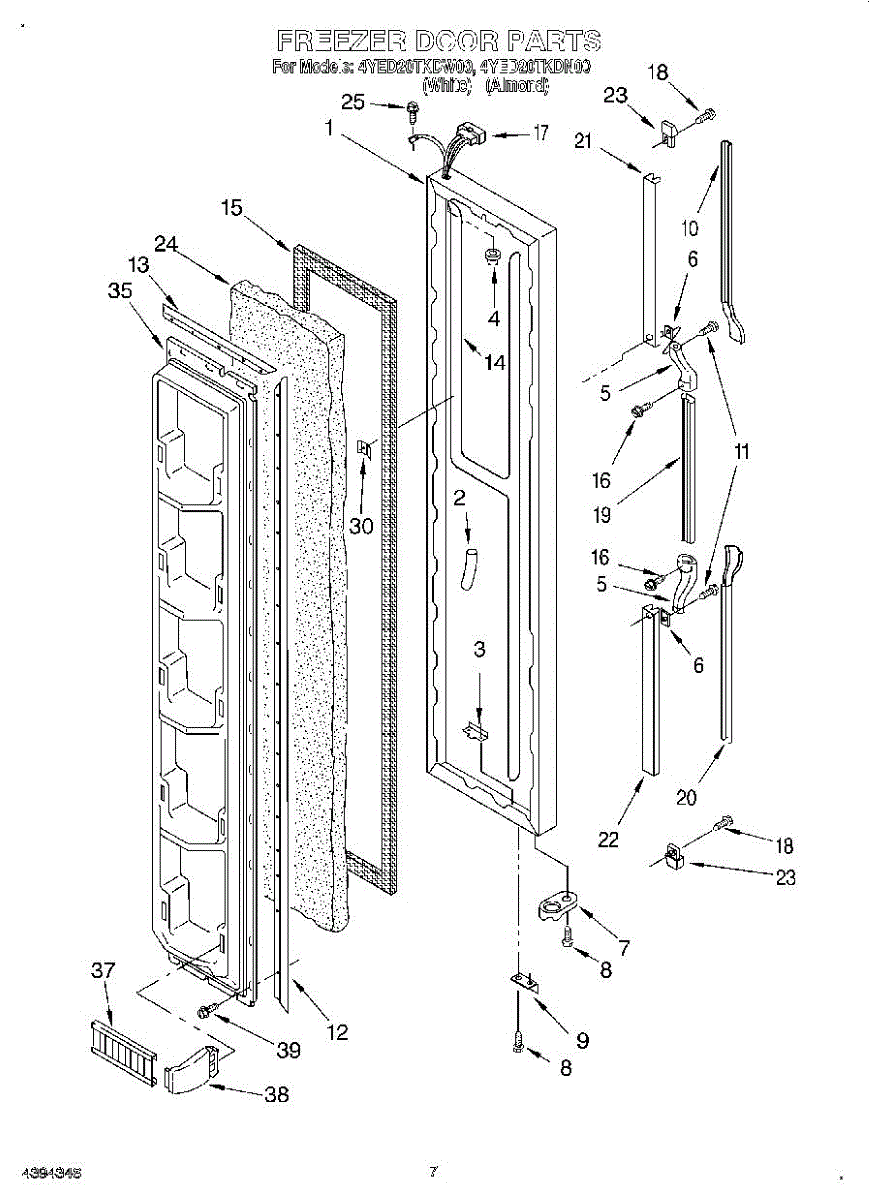

Parts for Whirlpool 4YED20TKDN00: 05 - Freezer Door Parts

The Door Closer Kit is an OEM part for Whirlpool refrigerators. This kit contains essential components for smooth refrigerator door closing: door cams and screws ensure gentle closure, proper seal, and prevent cool air leakage.

Parts in a door closer kit can wear out over time from frequent use, causing issues like improper closing, the need for extra force to shut, or failed sealing, affecting the refrigerator's cooling.

Symptoms of a bad Door Closer Kit include:

• The refrigerator door feels loose or wobbles when opened or closed
• The door does not close fully on its own or requires extra force to close
• You notice an increase in the refrigerator’s energy consumption due to cool air leaking
• Condensation or frost buildup near the door seal area due to improper sealing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

Chrome. No longer made in black.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This freezer door gasket creates a tight seal around the door to keep cold air in and humid air out. Replacing a worn gasket restores proper temperature control, reduces frost, and helps the door close and seal correctly.

• Seals the gap between the freezer door and cabinet to maintain cold temperatures
• Blocks warm, moist room air that can cause frost and ice buildup
• Helps prevent sweating/condensation around the door perimeter
• Addresses issues from torn, shrunken, brittle, or deformed gaskets that won't seal

• Disconnect power before servicing; clear items from the door
• Lay gasket flat and warm gently (hot water or low heat) to relax kinks before installation
• Loosen inner-liner screws/retainer, press gasket fully into the channel, then tighten screws evenly
• Perform a dollar-bill test around the perimeter; gently warm stiff areas to smooth and adjust door alignment if needed

Size: 8-32 x 1/4 inch.

Color: white. It measures about 2 inches high by 3 inches deep.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
