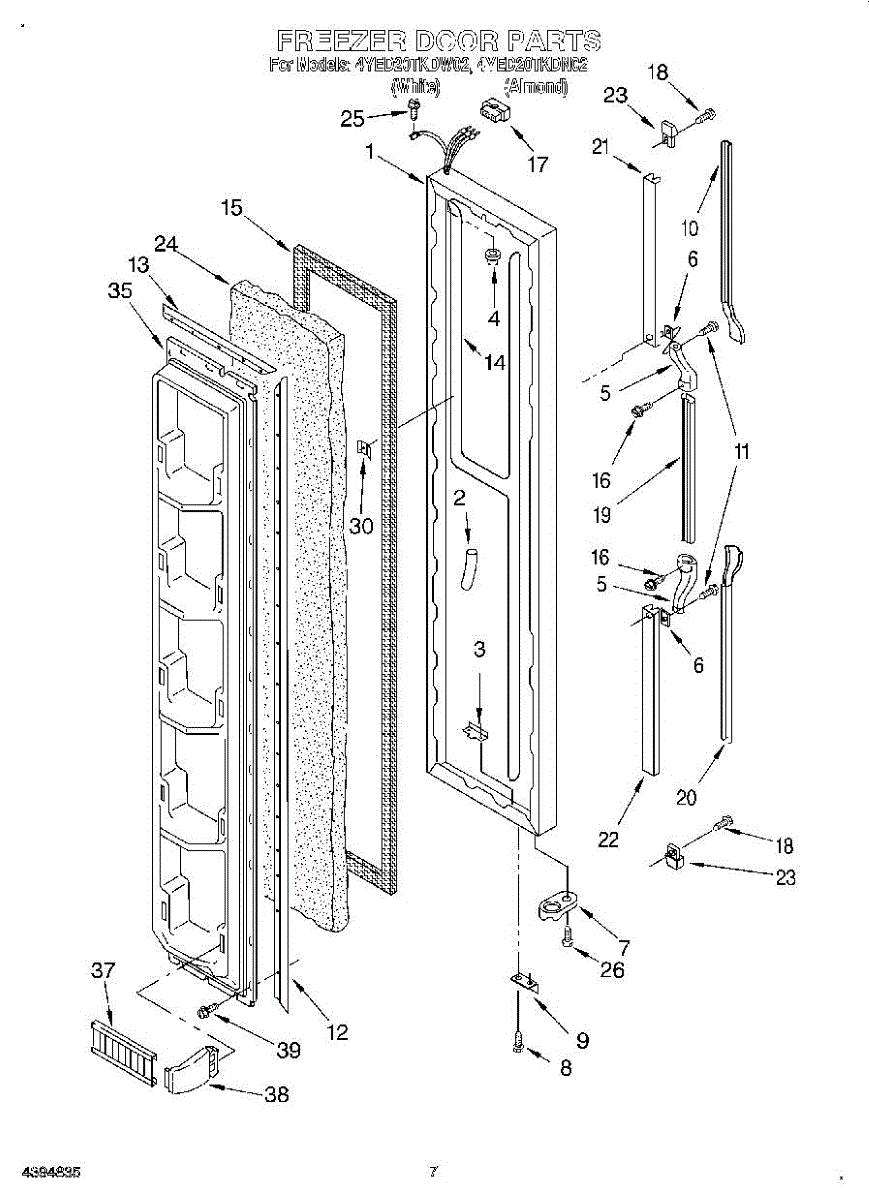

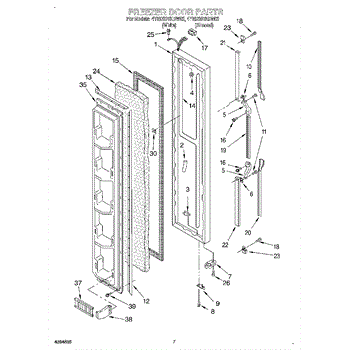

Parts for Whirlpool 4YED20TKDN02: 05 - Freezer Door Parts

The Door Closer Kit is an OEM part for Whirlpool refrigerators. This kit contains essential components for smooth refrigerator door closing: door cams and screws ensure gentle closure, proper seal, and prevent cool air leakage.

Parts in a door closer kit can wear out over time from frequent use, causing issues like improper closing, the need for extra force to shut, or failed sealing, affecting the refrigerator's cooling.

Symptoms of a bad Door Closer Kit include:

• The refrigerator door feels loose or wobbles when opened or closed
• The door does not close fully on its own or requires extra force to close
• You notice an increase in the refrigerator’s energy consumption due to cool air leaking
• Condensation or frost buildup near the door seal area due to improper sealing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Chrome. No longer made in black.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This freezer door gasket creates a tight seal around the door to keep cold air in and humid air out. Replacing a worn gasket restores proper temperature control, reduces frost, and helps the door close and seal correctly.

• Seals the gap between the freezer door and cabinet to maintain cold temperatures
• Blocks warm, moist room air that can cause frost and ice buildup
• Helps prevent sweating/condensation around the door perimeter
• Addresses issues from torn, shrunken, brittle, or deformed gaskets that won't seal

• Disconnect power before servicing; clear items from the door
• Lay gasket flat and warm gently (hot water or low heat) to relax kinks before installation
• Loosen inner-liner screws/retainer, press gasket fully into the channel, then tighten screws evenly
• Perform a dollar-bill test around the perimeter; gently warm stiff areas to smooth and adjust door alignment if needed

Color: Almond

Color: White. 23" in length. Cut to fit. May be longer than original.

Size: 8-32 x 1/4 inch.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

Color: white. It measures about 2 inches high by 3 inches deep.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
