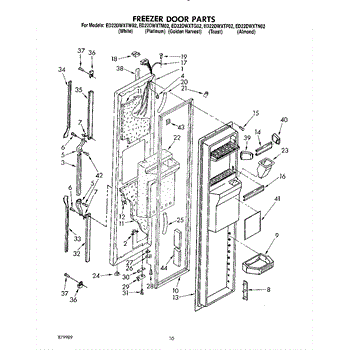

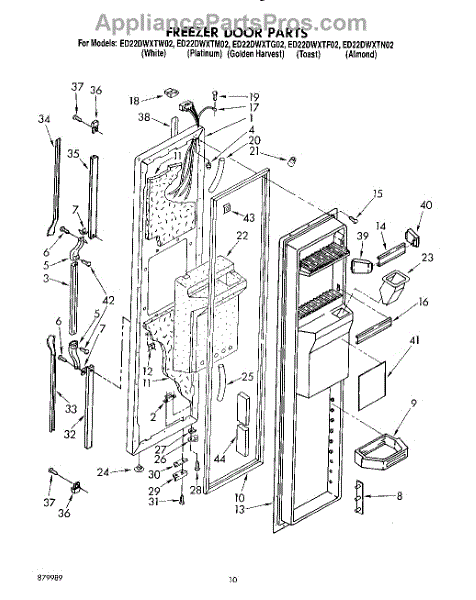

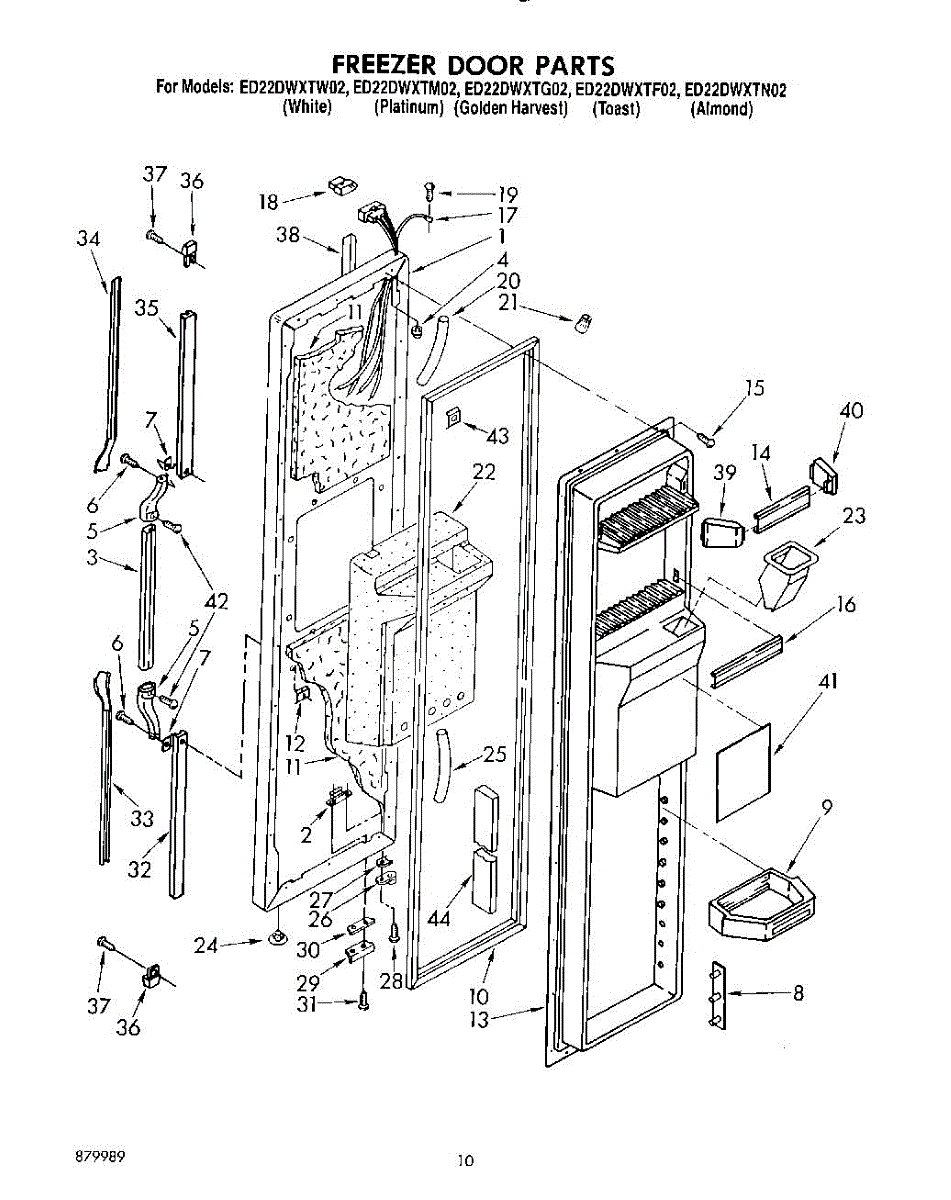

Parts for Whirlpool ED22DWXTF02: 08 - Freezer Door Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This freezer door gasket creates a tight seal around the door to keep cold air in and humid air out. Replacing a worn gasket restores proper temperature control, reduces frost, and helps the door close and seal correctly.

• Seals the gap between the freezer door and cabinet to maintain cold temperatures
• Blocks warm, moist room air that can cause frost and ice buildup
• Helps prevent sweating/condensation around the door perimeter
• Addresses issues from torn, shrunken, brittle, or deformed gaskets that won't seal

• Disconnect power before servicing; clear items from the door
• Lay gasket flat and warm gently (hot water or low heat) to relax kinks before installation
• Loosen inner-liner screws/retainer, press gasket fully into the channel, then tighten screws evenly
• Perform a dollar-bill test around the perimeter; gently warm stiff areas to smooth and adjust door alignment if needed

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 8-32 x 1/4 inch.

The Door Closer Kit is an OEM part for Whirlpool refrigerators. This kit contains essential components for smooth refrigerator door closing: door cams and screws ensure gentle closure, proper seal, and prevent cool air leakage.

Parts in a door closer kit can wear out over time from frequent use, causing issues like improper closing, the need for extra force to shut, or failed sealing, affecting the refrigerator's cooling.

Symptoms of a bad Door Closer Kit include:

• The refrigerator door feels loose or wobbles when opened or closed
• The door does not close fully on its own or requires extra force to close
• You notice an increase in the refrigerator’s energy consumption due to cool air leaking
• Condensation or frost buildup near the door seal area due to improper sealing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This shim for the door closer helps align and support the door assembly so it closes smoothly and reduces rubbing or misalignment. Small and simple to fit, it restores proper door movement when the original shim is worn or missing. What it does:

• Spaces and stabilizes the door closer assembly to maintain correct door alignment
• Reduces door rubbing, binding, or uneven gaps caused by a damaged or missing shim
• Helps the door latch and seal engage consistently for proper operation
• Used when the door feels loose, drags, or does not close evenly

• One door closer shim

• Intended for users comfortable with basic appliance disassembly; disconnect power before starting
• Handle small parts carefully and keep track of fasteners and orientation for reassembly

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Chrome. No longer made in black.

This screw anchor is a small plastic fastener that secures panels and trim on appliances, preventing screws from stripping or pulling out. It provides a reliable anchor point for screws where threaded material is thin or absent. What it does:

• Creates a secure mounting point for screws in sheet metal, plastic or thin panels
• Helps prevent screw looseness, stripping, and parts that shift or rattle
• Commonly used to hold trim, panels, or interior components in place
• Works with compatible screws to distribute load and stabilize attachments

• Use the correct screw size and length; anchors are made for specific screw diameters—do not force oversize screws
• Align anchor in the prepared hole before driving the screw to avoid cracking the anchor or surrounding material
• Hand-start screws until seated, then tighten gradually—do not overtighten to prevent stripping or damage
• Disconnect power and follow appliance safety procedures before accessing internal panels
