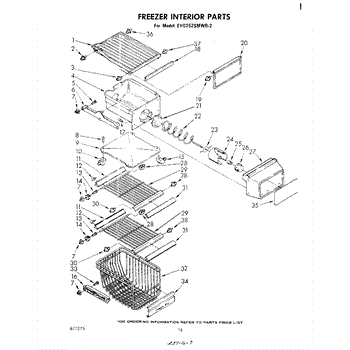

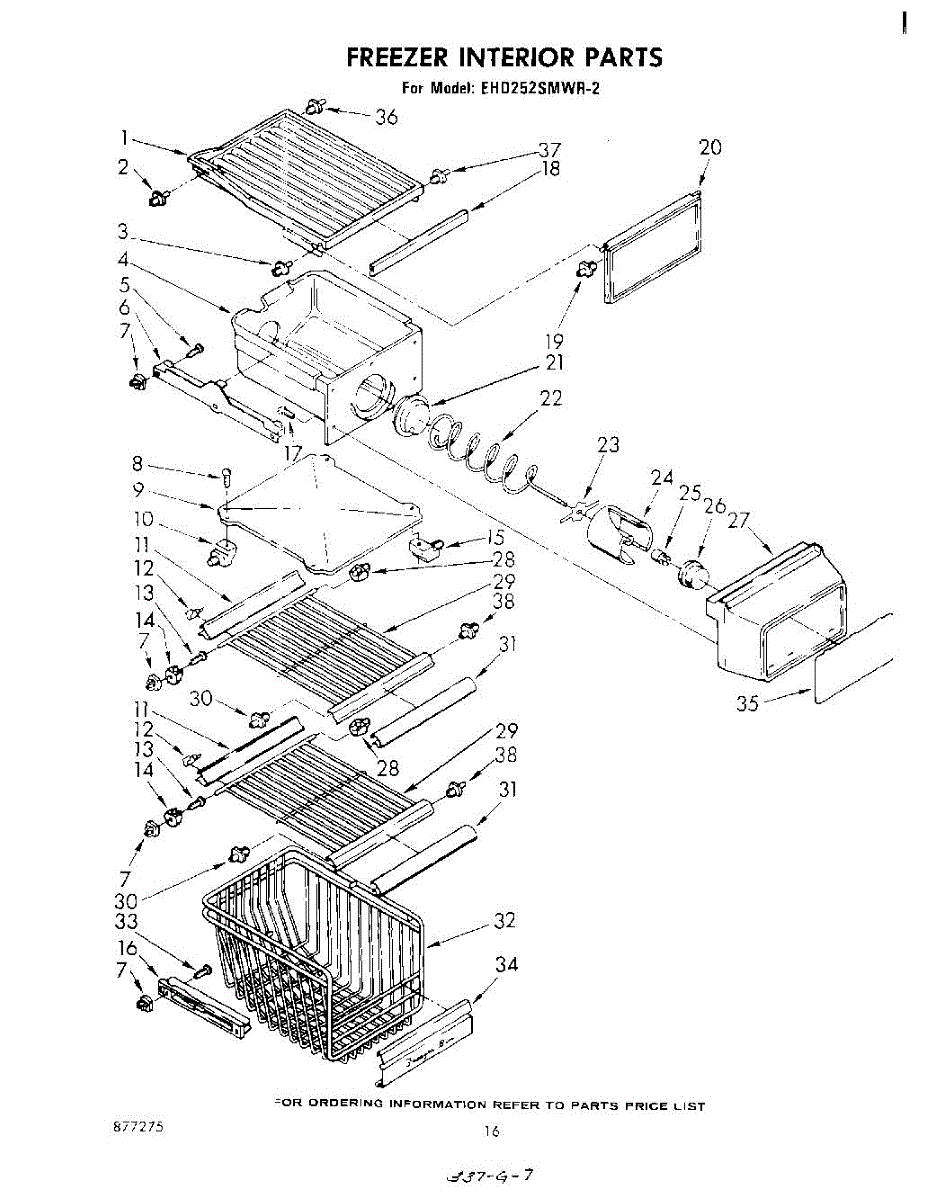

Parts for Whirlpool EHD252SMWR2: 09 - Freezer Interior Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Size; 8-18 x 1/2 inch.

This coupling is the small connector that links a drive motor to its mating component, transferring rotation so the appliance operates smoothly. Replacing a cracked or stripped coupling restores reliable drive and helps prevent further wear.

• Connects the motor shaft to the driven part to transmit torque
• Maintains alignment to reduce wobble and slippage
• Failure signs can include no movement, intermittent operation, clicking/grinding, or visible cracks/rounding
• Restores consistent motion of the connected part once replaced

• Disconnect power (and shut off water/gas if applicable) before servicing
• Access the drive area and remove any covers/tray/drive components as needed
• Pull the old coupling straight off the keyed or D-shaped shaft; clean and inspect the shaft
• Align and press the new coupling fully onto the shaft, reassemble, and test

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming
