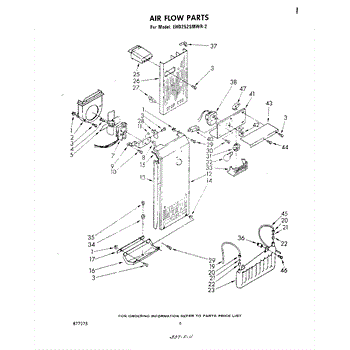

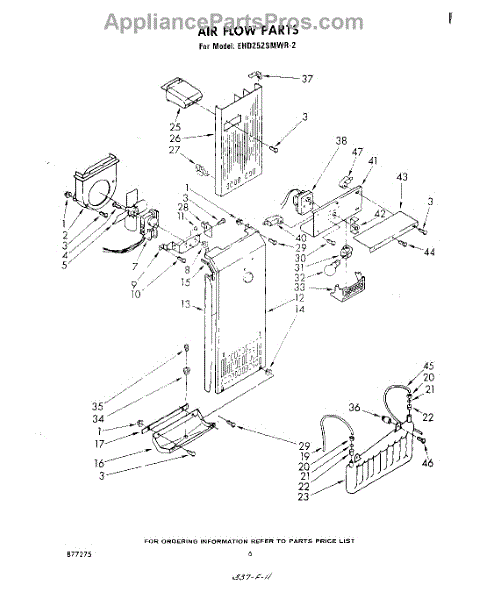

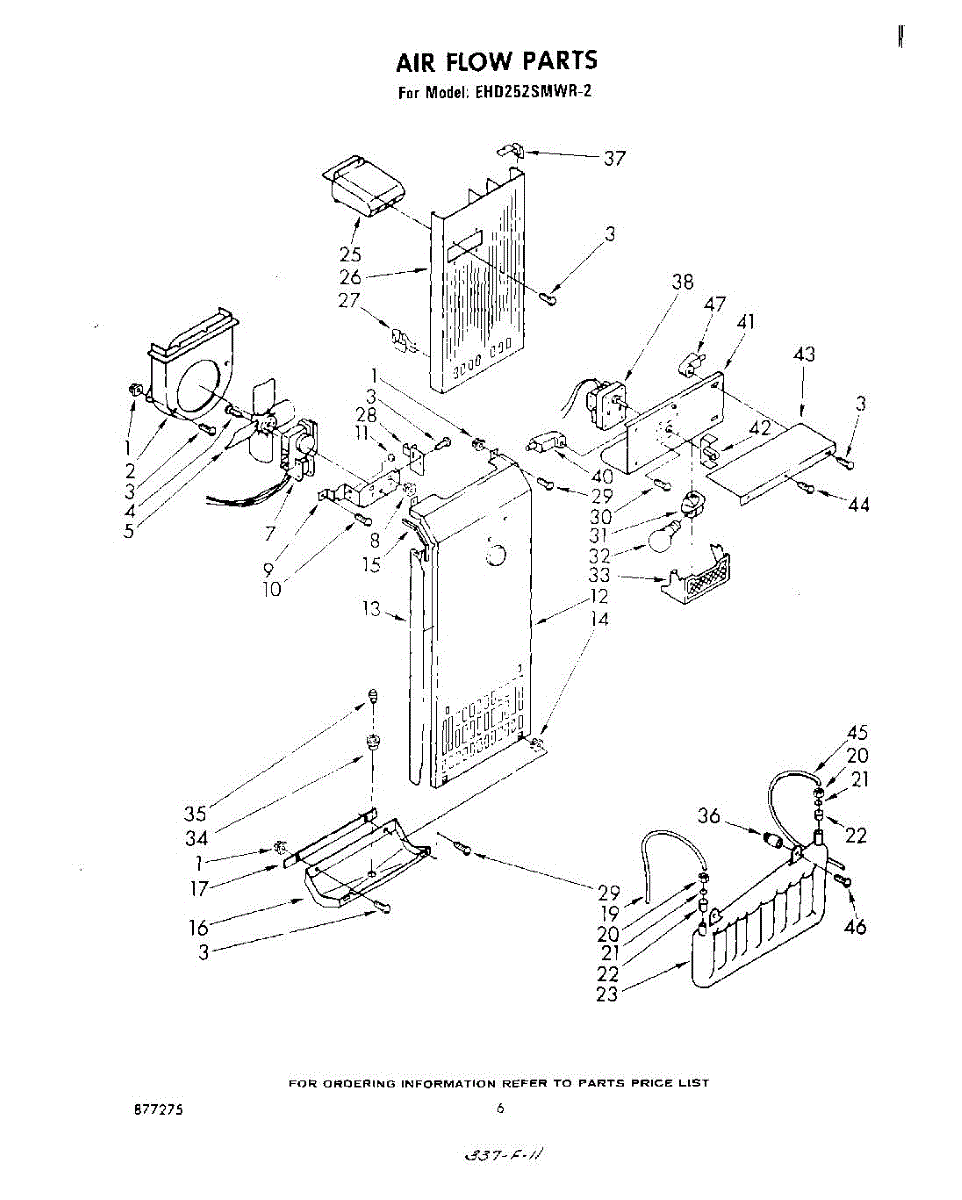

Parts for Whirlpool EHD252SMWR2: 04 - Air Flow Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

Refrigerator not cooling or making screeching noise? This evaporator fan motor kit stops those symptoms. DIY-friendly repair, typically done in 15 minutes.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Comes with 4 nuts and 2 inserts. Instruction sheet included.

This part has been discontinued and is no longer available.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

Stores and chills water before dispensing. Replace if cracked, leaking, or causing slime/film buildup in dispensed water. Installs inside refrigerator.

Secures air duct to housing, maintaining proper airflow alignment. Replace if broken or loose to prevent air leaks. Confirm fit with your model.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Refrigerator light won't turn on? This light socket kit restores interior lighting when bulbs won't work. Simple DIY repair with video guide.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This part has been discontinued by the manufacturer and is no longer available.

Ice dispenser not working or coupling spins freely? This motor coupling connects the dispenser motor to the auger. 10-minute fix with channel lock pliers.

Screw: 8-16 x 3/8 inch.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
