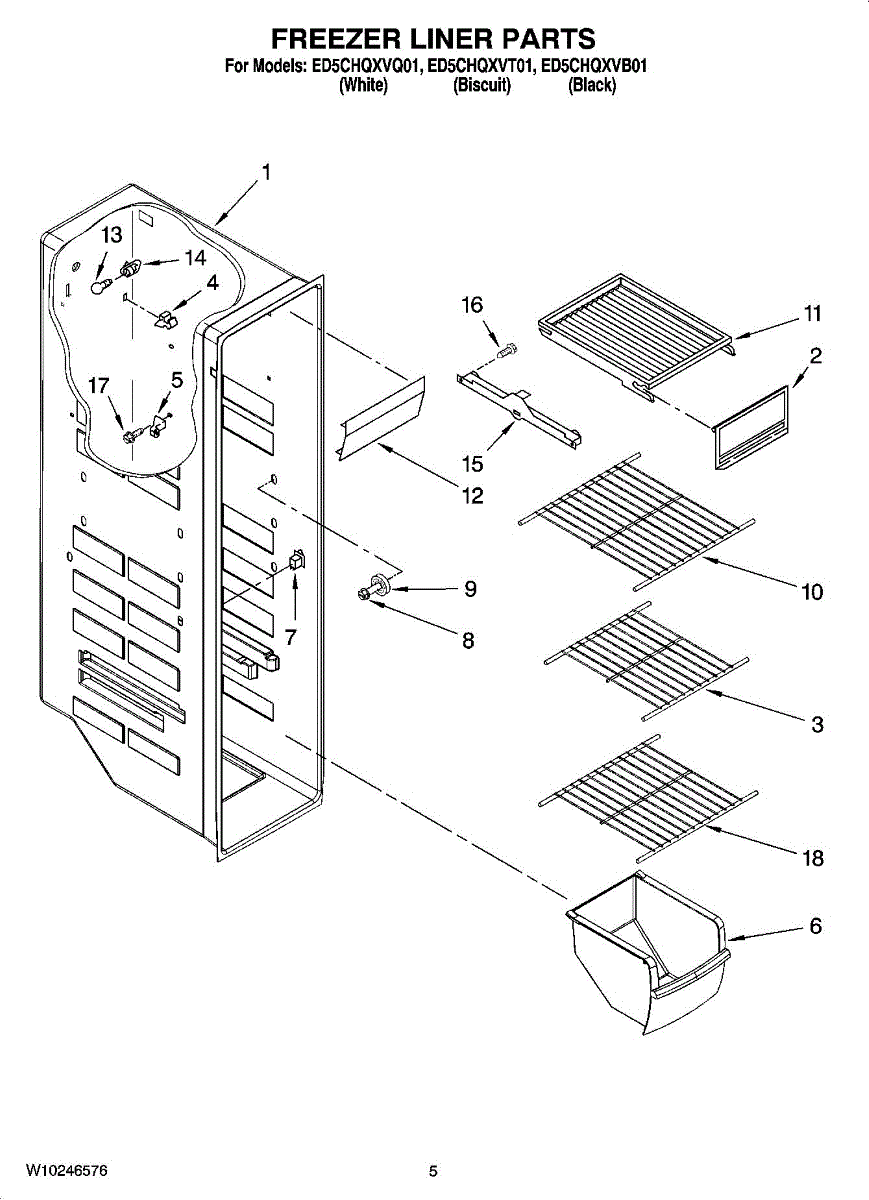

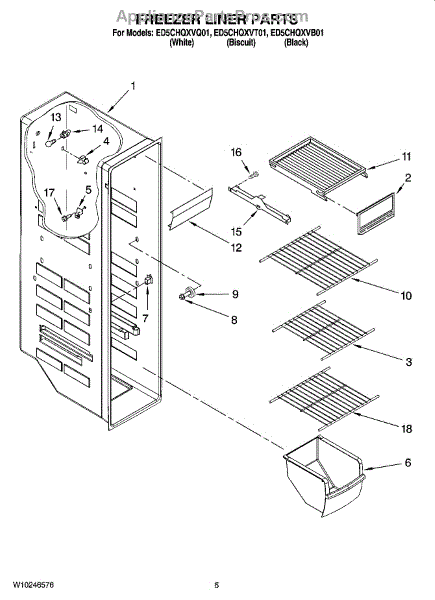

Parts for Whirlpool ED5CHQXVB01: 04 - Freezer Liner Parts

This ice compartment door closes off the ice storage area inside the freezer, helping contain cold air and keep ice clean. Replace a cracked or warped door to restore a proper seal and easy access to the bin.

• Covers the ice compartment opening to help maintain temperature around the ice bin
• Hinged panel provides convenient access to the ice container
• Helps minimize frost and moisture at the compartment opening
• Common signs it's needed: cracked/missing door, broken hinge tabs, won't stay closed, frost buildup, or ice clumping near the opening

• Disconnect power to the refrigerator before servicing
• Remove screws, pins, or clips securing the old door; note hinge orientation
• Transfer any reusable hinge pins, latches, or trim from the original if required
• Install and align the new door; confirm smooth operation and a tight closure

This freezer wire shelf restores sturdy, ventilated storage in the freezer compartment. Replace a bent, rusted, or missing shelf to regain safe support and organize frozen items at the correct height.

• Provides level support and organization for frozen foods
• Open-wire construction allows air to circulate around stored items
• Helps maximize usable space by maintaining an extra storage level
• Replace if the shelf is bent, coating is chipped/rusting, welds are broken, or the shelf is missing

• For safety, disconnect power before servicing
• Remove or relocate contents to access the shelf position
• Slide the old shelf out of the side rails; align and insert the new shelf into the same rail slots
• Wear gloves to protect hands from sharp edges

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This shelf support stud secures a refrigerator shelf or rail to the liner wall, restoring proper support so shelves sit level and stay in place during everyday use.

• Provides a stable mounting point for the shelf/rail in the cabinet wall
• Helps correct a sagging, loose, or uneven shelf
• Replaces a broken, stripped, or missing stud
• Helps prevent shelves from slipping or falling when loaded

• Unplug refrigerator and wear cut-resistant gloves
• Remove the shelf/rail to access the mounting point
• Install the new stud fully seated and aligned before reinstalling the shelf
• Do not overtighten or force; replace any damaged mating parts for a secure fit

This replacement freezer door bin restores secure storage on the freezer door. It keeps smaller frozen items organized and easy to reach, replacing cracked or missing bins to help maintain a tidy, usable freezer space.

• Attaches to the freezer door to create a convenient storage shelf
• Holds and organizes frozen foods, condiments, and small packages
• Direct replacement for cracked, warped, or missing bins
• Helps the door close properly when the bin is correctly seated

• Empty the old bin, then lift up and out to remove from the door tabs/rails
• Align the new bin's hooks with the slots and press down until it locks in place
• Ensure the bin is fully seated before loading items
• Handle plastic carefully to avoid cracking; wear gloves if the old bin is broken

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

The Wire Shelf is an OEM part for Whirlpool refrigerators. This shelf provides additional storage space within the refrigerator, allowing for organized and accessible placement of various food items.

Causes of a bad wire shelf can include frequent heavy loading, accidental impacts, or general wear and tear over time.

Symptoms of a bad wire shelf include:

• Bent or warped wires
• Coating peeling off the wires
• Difficulty fitting the shelf securely into place
• Reduced storage capacity due to instability

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This lens covers the interior lamp in the refrigerator compartment, diffusing light and protecting the bulb. Replacing a cracked or missing lens restores even illumination and keeps the bulb safely shielded from bumps and splashes. What it does:

• Diffuses the compartment light for clearer, more even illumination
• Shields the bulb from accidental contact, debris, and moisture
• Common fix for broken tabs, a yellowed/warped or cracked lens, or a missing cover
• Helps reduce glare from an exposed bulb and improves visibility inside

• 1 lens

• Disconnect power and let the bulb cool before starting
• Release the retaining tabs or remove screws; support the lens as you take it off
• Align and fully seat the new lens; ensure clips engage or screws are snug—do not overtighten

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This track is the replacement rack guide that supports and guides a dishwasher or oven rack so it slides smoothly in and out. It restores proper rack alignment and prevents the rack from sticking or tipping. What it does:

• Provides a smooth sliding surface for a rack to roll or glide along
• Restores proper rack alignment to prevent tipping and rubbing
• Replaces worn, cracked, or broken guides that cause sticking or noisy operation
• Compatible with factory mounting points to maintain original movement

• Disconnect power and water (if applicable) before servicing the appliance
• Remove the affected rack and any retaining clips or screws to replace the track
• Tighten fasteners securely and test rack movement after installation

This track is the replacement support rail that guides and stabilizes a sliding component so it moves smoothly and stays aligned. Replacing a worn track restores proper slide action and reduces binding or scraping. What it does:

• Guides a drawer, rack or assembly along a straight path to prevent tipping or catching
• Keeps the sliding component aligned for smooth opening and closing
• Reduces noise and wear caused by a worn or damaged rail
• Common symptom: drawer or rack sticks, drops, or moves unevenly when operated

• Disconnect power (or unplug appliance) before starting repairs to reduce shock risk
• Keep track of all screws, clips and any retained fasteners during removal
• Use basic hand tools; support the sliding component while removing/installing the track
