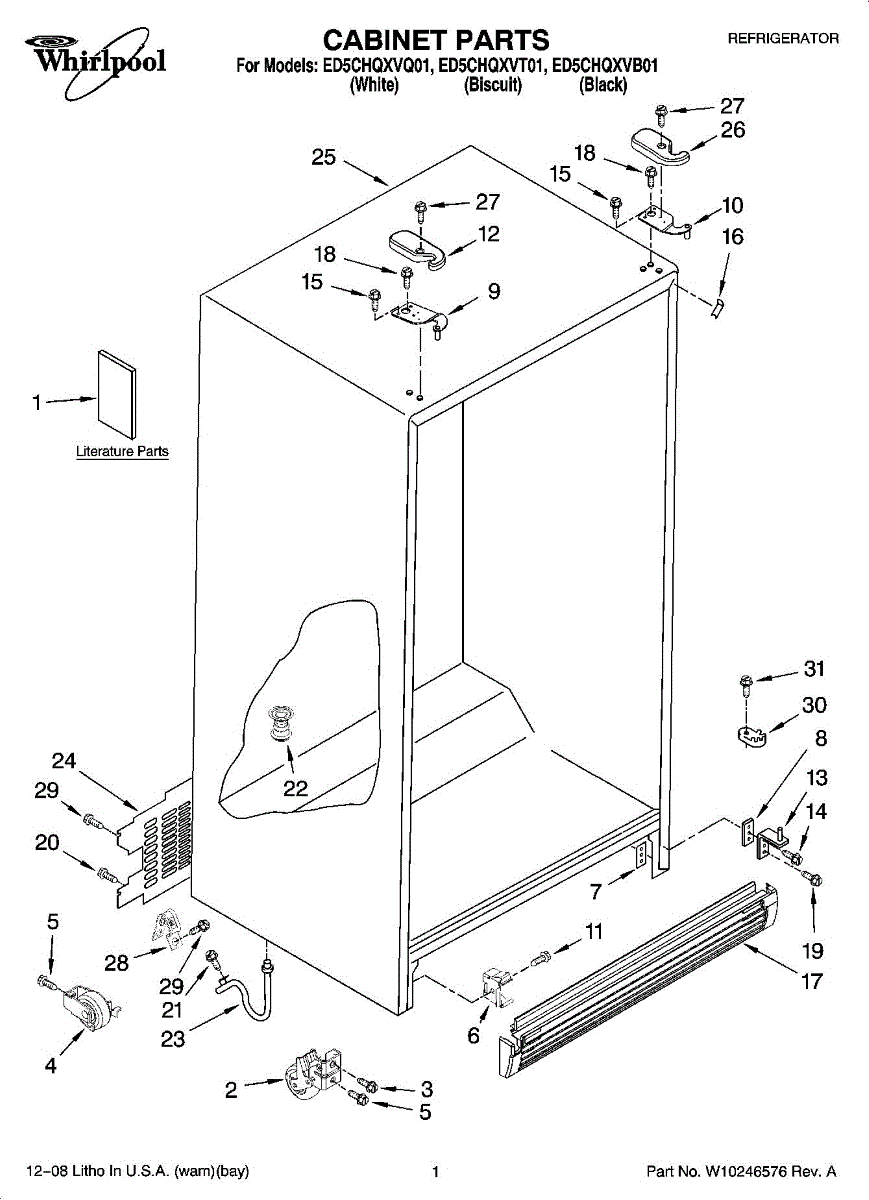

Parts for Whirlpool ED5CHQXVB01: 01 - Cabinet Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cabinet roller assembly supports the refrigerator at the base and lets you roll the unit forward for cleaning or service. Replace a cracked or seized roller to restore smooth movement and a stable, level stance. What it does:

• Supports the refrigerator cabinet and helps maintain proper leveling
• Allows the unit to roll for easier cleaning and servicing
• Replaces worn, cracked, or seized rollers and damaged brackets
• Helps resolve wobbling, uneven stance, scraping noises, or difficulty moving the fridge

• One complete cabinet roller assembly

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a second person or an appliance dolly to safely tilt or move the unit
• Remove mounting fasteners, swap the assembly in the original position, and reuse hardware if applicable
• After installation, level the refrigerator and verify doors close and seal properly

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

This bottom hinge plate mounts at the base of the refrigerator cabinet to anchor the lower door hinge. Replacing a worn or bent plate restores smooth door swing and a reliable seal for consistent cooling performance.

• Anchors the lower door hinge to the cabinet frame
• Supports door weight and helps maintain proper alignment
• Promotes smooth door operation and consistent gasket contact
• If bent or worn, can cause door sagging, rubbing, or poor sealing

• Disconnect power; turn off water supply if applicable
• Support or remove the door before loosening hinge fasteners
• Reuse existing screws/hinge components; install the plate flush and tighten securely
• Adjust hinge as needed

A replacement lower hinge shim that helps level and align a refrigerator door for smoother opening and a better seal. Use when a door sits unevenly, rubs the cabinet, or doesn't close flush. What it does

• Provides a thin, durable spacer under the bottom hinge to correct door tilt and height
• Restores proper door alignment to improve sealing and reduce rubbing or binding
• Helps stop uneven wear on gasket edges caused by a misaligned door
• Works with the existing hinge assembly; often used during hinge replacement or adjustment

• Disconnect power and remove food from the door area before starting work
• Support the door while loosening or removing hinge fasteners to prevent it from falling
• Install the shim under the bottom hinge plate as needed, then re-torque fasteners and check door alignment

Fresh freezer cabinet top hinge.

The Top Hinge is an OEM part for Whirlpool refrigerators. This hinge ensures the proper alignment and smooth operation of the refrigerator door, allowing it to open and close securely. It supports the weight of the door and helps maintain an airtight seal.

Causes of a bad top hinge can include general wear and tear, heavy use, or accidental damage.

Symptoms of a bad top hinge include:

• Refrigerator door sagging or misaligned
• Difficulty in opening or closing the door
• Door not sealing properly, leading to temperature fluctuations
• Unusual noises when the door is operated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw: 8-16 x 3/8 inch.

Color: Biscuit

Color: White

Color: Black

This Door Hinge Kit is an OEM replacement part for Whirlpool refrigerators. It includes the left and right lower door hinges. These hinges are crucial components that allow the refrigerator doors to swing open and close both smoothly and securely.  This kit includes both the freezer and refrigerator door hinges.

Symptoms of bad door hinges can include:

• The door not sealing properly when closed
• Difficulty opening or closing the door
• Excessive noise emanating from the hinge area
• Door alignment issues where it does not sit flush

Causes of failure typically involve hinge components wearing down over extended use. Hinges may also become loose, misaligned, or damaged due to impact over time.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This screw secures appliance components to restore proper fit and stop parts from shifting. Replacing a missing or damaged screw helps eliminate rattling and keeps panels, trim and small assemblies aligned during normal use. What it does:

• Fastens panels, brackets, trim or small internal assemblies to maintain structural fit.
• Replacing a worn or missing screw can stop rattling, vibration or loose parts.
• Uses OEM-design fit and thread profile for correct engagement and to avoid stripped threads.
• Intended for use in specific Whirlpool assemblies.

• Disconnect power and, if applicable, shut off gas or water supply before servicing.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the screw head.
• Tighten snugly but do not overtighten — overtightening can strip threads or damage components.
• If threads or inserts are damaged, replace or repair per OEM instructions before reinstalling.

Color: Biscuit

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

The Grille is an OEM part for Whirlpool bottom-mount refrigerators. It is an attractive decorative grille installed on the top of the refrigerator, above the freezer compartment. The grille covers internal fans and vents while maintaining an airy design aesthetic.

Symptoms of a faulty grille include:

• Gaps or openings around the edges compromising seals
• Loose or detached mounting points from vibration
• Damage like dents, scratches or cracks affecting appearance

Causes can be normal wear and tear over time, accidental impacts, or degradation from cleaning chemicals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This black grille extension replaces a damaged or faded lower front trim to restore the appliance's finished appearance and help direct airflow at the base. Fits models that use the WPW10283946 grille extension. What it does:

• Covers and protects the lower front opening of the appliance while providing a finished look
• Helps channel air intake/exhaust at the base so the appliance can ventilate properly
• Replaces cracked, warped, or discolored trim that no longer sits flush or locks into the cabinet
• Visible cosmetic fix that can eliminate rough edges or gaps at the toe-kick area

• One black grille extension

• Disconnect power to the appliance before attempting removal or installation
• Usually secures with clips or a few screws; remove adjacent trim pieces as needed to access fasteners
• Handle plastic trim carefully to avoid cracking; align tabs and press or fasten until secure

This black grille extension replaces a damaged or faded lower front trim to restore the appliance's finished appearance and help direct airflow at the base. Fits models that use the WPW10283946 grille extension. What it does:

• Covers and protects the lower front opening of the appliance while providing a finished look
• Helps channel air intake/exhaust at the base so the appliance can ventilate properly
• Replaces cracked, warped, or discolored trim that no longer sits flush or locks into the cabinet
• Visible cosmetic fix that can eliminate rough edges or gaps at the toe-kick area

• One black grille extension

• Disconnect power to the appliance before attempting removal or installation
• Usually secures with clips or a few screws; remove adjacent trim pieces as needed to access fasteners
• Handle plastic trim carefully to avoid cracking; align tabs and press or fasten until secure

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This replacement screw secures panels, brackets, or trim on compatible Whirlpool appliances to restore proper fit and reduce rattles and movement. Use it when a fastener is missing, loose, or stripped. What it does:

• Secures appliance panels, trim pieces, brackets, or small components in place
• Restores proper fit to eliminate rattling, gaps, or shifting parts
• Replaces missing, worn, or damaged screws that compromise mounting
• Matches OEM form and function when the correct screw is specified for the repair

• Turn off power to the appliance before working near controls, heating elements, or wiring
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten
• Keep removed screws in a container to ensure none are lost during reassembly

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Drain Connector is an OEM part for Whirlpool refrigerators. It is responsible for directing water and condensation from the evaporator fan coil and defrost into the drain pan.

Causes of a bad drain connector can include cracks, breaks or deformations caused by repeated thermal cycling or impact damage. Mineral or lime buildup inside the connector over many years can also restrict water flow.

Symptoms of a bad drain connector include:

• Water or condensation leaks around the connector area
• Puddles or watermarks on the floor behind the fridge
• Slow drainage of water from the evaporator fan coil
• Mold or mildew growth near the connector or drain area

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Rear Access Cover is an OEM part for Whirlpool refrigerators. It protects the rear components of the refrigerator, such as the compressor, condenser coils, and electrical connections, ensuring these vital parts are shielded from dust, debris, and potential damage while still allowing for necessary ventilation.

Causes of a bad rear access cover can include wear and tear from prolonged use, accidental impacts that cause cracks or breaks, or damage during maintenance or repairs.

Symptoms of a bad rear access cover include:

• Cracks or visible damage to the cover
• Difficulty securing the cover in place
• Excessive dust or debris around internal components
• Rattling or noise from a loose cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Biscuit

Color: Black

Color: White

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Cam is an OEM part for Whirlpool refrigerators. It functions as a critical component in the door closing mechanism, facilitating the smooth opening and closing of the refrigerator door. The door cam helps to lift and lower the door slightly as it opens and closes, reducing stress on the hinges and ensuring a tight seal.

Causes of a bad Door Cam can include wear from regular use, cracking due to excessive force when opening or closing the door, or misalignment that prevents the door from functioning properly.

Symptoms of a bad Door Cam include:

• The refrigerator door making noise when opened or closed
• Difficulty in shutting the door completely
• Increased energy consumption as the fridge works harder to maintain its internal temperature due to a poor seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
