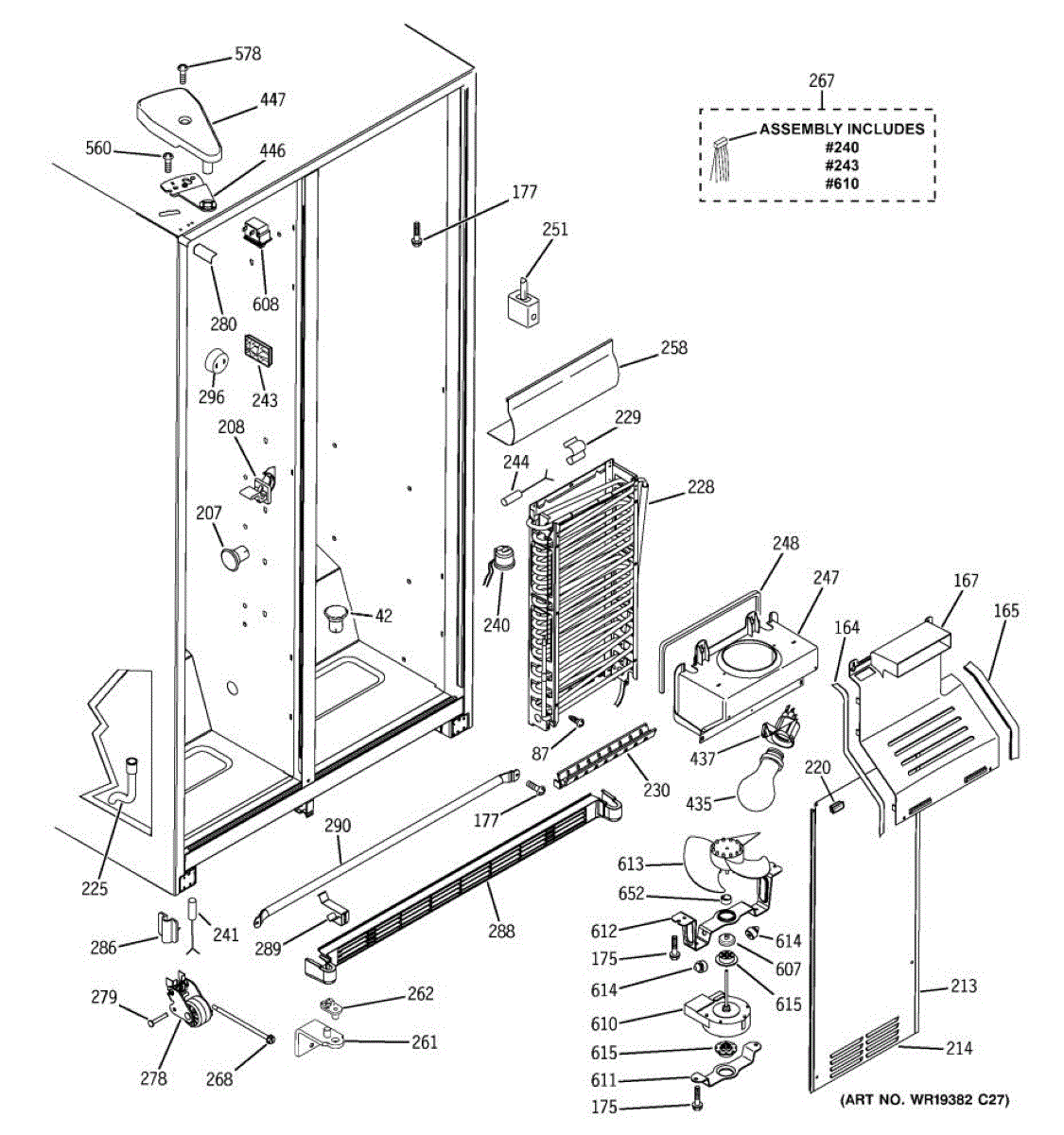

Parts for Ge GSHS5KGXECSS: 03 - Freezer Section Parts

This plenum fan moves cold air from the evaporator into the refrigerator cabinet to help maintain even temperatures and proper cooling performance. It's a direct-replacement evaporator air-moving component. What it does:

• Circulates cold air from the evaporator coil through the refrigerator compartments
• Helps the appliance reach and hold set temperatures for food safety
• Commonly associated with weak cooling, uneven temperatures, or excessive frost buildup when failing
• Works with the evaporator motor system to maintain proper airflow

• One plenum fan (evaporator) assembly

• Disconnect power to the appliance before beginning any repair
• Handle evaporator fins and fan blades carefully to avoid damage
• May require removing interior panels or the evaporator cover; use basic hand tools

Specs: 8-18 AB IHW 5/8 S

The Gasket Evaporator Cover is an OEM part for GE refrigerators. This part seals the evaporator cover, ensuring that cold air does not escape and that the refrigerator operates efficiently.

Causes of a bad Gasket Evaporator Cover can include wear and tear over time, exposure to extreme temperatures that degrade the material, or physical damage that breaks the seal.

Symptoms of a bad Gasket Evaporator Cover include:

• Noticeable frost buildup in the freezer compartment
• The refrigerator runs more frequently or for longer periods
• An increase in energy consumption
• Difficulty maintaining consistent temperatures within the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Heater and Bracket Assembly is an OEM replacement part for GE refrigerators. It is responsible for facilitating the defrosting process, which is essential for maintaining proper cooling and preventing excessive ice buildup within the freezer compartment.

Symptoms of a faulty Defrost Heater and Bracket Assembly include:

• Excessive frost or ice buildup in the freezer compartment
• Inefficient cooling or temperature fluctuations
• Water leaks or puddles forming inside the freezer
• Unusual noises or burning smells during the defrost cycle

Causes of a bad defrost heater and bracket assembly can include normal wear and tear over time, electrical malfunctions, or physical damage to the heating element or bracket.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

NOTE: For a 9" double glass tube heater use WR51X10101

The Defrost Thermostat is an OEM part for GE refrigerators. This component is essential in regulating the defrost cycle, ensuring that the refrigerator's evaporator coils do not become frosted over, which can impede airflow and cooling efficiency. The thermostat monitors the temperature of the coils and activates the defrost heater when necessary to melt any accumulated frost.

Symptoms of a failing Defrost Thermostat include:

• Excessive frost buildup on the evaporator coils
• The refrigerator or freezer compartments being too warm
• The refrigerator running continuously without cycling off
• Water leakage inside the refrigerator due to melting frost
• Unusual noises as the compressor overworks to maintain temperature

Causes of a bad defrost thermostat can include normal wear and tear over time, exposure to moisture that can cause electrical issues, or a failure in the internal sensing mechanism that prevents accurate temperature regulation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Freezer Light Cover is an OEM replacement part for GE refrigerators designed to protect the light bulb in the freezer compartment from any potential damage or breaks. It helps maintain a safe and well-lit freezer environment, making it easier to locate and retrieve items.

A bad freezer light shield cover can occur due to regular wear and tear or accidental damage. If you notice symptoms such as a flickering or dim freezer light, or if the light bulb is exposed and vulnerable, it may indicate a need to replace this part.

Symptoms of a bad freezer light cover include:

• Flickering or dim freezer light
• Exposed or broken light bulb
• Insufficient lighting

Restore lighting in your freezer by replacing the faulty freezer light cover with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement bottom door hinge and pin assembly fits refrigerators. The lower hinge supports the door's weight and provides the pivot point, restoring smooth swing and proper alignment for a reliable close and consistent gasket seal.

• Serves as the door's lower pivot and load-bearing support
• Maintains alignment so the gasket seals correctly
• Restores smooth opening and closing after hinge/pin wear
• Common symptoms: door sagging or dragging, popping/squeaking at the hinge, gaps or poor sealing, door not staying closed

• Disconnect power and remove items from the door before servicing
• Support the door, remove bottom hinge fasteners, and lift the door off
• Position the new hinge and transfer any spacers/shims as found
• Reinstall the door, tighten hardware, and verify alignment and gasket seal

This is a mobility screw used to secure mobility-related components in compatible appliances, providing a reliable fastener for stable operation and correct alignment. It replaces worn or missing screws to restore secure mounting. What it does

• Fastens and secures mobility/bracket components to prevent movement or misalignment.
• Helps maintain proper alignment of moving parts that can cause noise or binding when loose.
• Commonly replaced when mounting points are stripped, damaged, or missing.
• Small replacement part that supports overall appliance stability and safe operation.

• One screw as shown/packaged by the manufacturer.

• Use the correct screwdriver or bit to avoid stripping the screw head.
• Ensure the appliance is powered off and disconnected from the power source before accessing internal components.
• Do not overtighten; snug to manufacturer torque or until the part is secure.
• If mounting hardware or threaded inserts are damaged, replace or repair those components before installing this screw.

This mobility front assembly replaces the worn front caster/roller that helps a refrigerator glide when pulled out for cleaning or service. Restores smooth forward movement and stable front support for safe access. What it does:

• Provides a rolling front support so the appliance moves smoothly on the floor
• Helps stabilize the front of the refrigerator when it is pulled out or pushed in
• Reduces sticking and uneven movement caused by worn or damaged rollers
• Can help minimize scraping or surface damage during repositioning

• One mobility front assembly

• Disconnect power and, if applicable, water supply before servicing
• Empty or secure loose items and have a second person help when tilting or moving the appliance
• Remove the kickplate or access panel as required to reach and replace the front assembly
• Tighten fasteners to OEM torque and test mobility before returning the appliance to normal use

This corner cap is a small trim piece that protects and finishes the corner of an oven door. It restores the door's appearance and helps keep the glass and trim edges covered for a clean, finished look. What it does:

• Covers and protects the outer corner of the oven door trim to prevent exposed edges
• Helps secure door trim and maintain a finished appearance
• Commonly replaced when cracked, broken, missing, or loose after impact or wear
• Fits where a small molded corner protector is required

• One corner cap as shown

• Disconnect power to the appliance before attempting any repair and allow the oven to cool completely
• Remove any screws or trim pieces that obstruct access; corner caps typically snap or slide into place
• Handle door glass and metal trim carefully to avoid chips or cuts

This grille base is the lower front kick grille that restores the refrigerator's finished look and helps direct airflow at the appliance base. It replaces a cracked, broken, or missing lower grille for a secure fit and neat appearance. What it does:

• Covers and protects the refrigerator's lower front area and internal components from debris.
• Helps channel airflow across condenser/vent openings to maintain proper ventilation.
• Replaces damaged or broken grille pieces that can cause rattling or poor fit.
• Restores the appliance's finished look by replacing warped or discolored trim.

• Disconnect power to the appliance before beginning any service.
• Handle edges carefully; align clips/tabs with mating slots for a secure fit.
• Some models use snap-in tabs or screws—retain hardware and reattach in the original locations.
• If tabs or mounting points are broken, inspect surrounding trim for additional damage.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The Evaporator Fan Motor Assembly is an OEM part for GE refrigerators. It plays a crucial role in circulating air over the evaporator coils, which helps maintain the proper temperature in both the refrigerator and freezer compartments. Used in side-by-side units, this motor includes a 2-wire thermistor in the harness. The assembly includes one Fan Motor with a 6-Pin Harness and Thermistor Assembly. The harness and plug measure 13-7/8" in length.

Common causes of a bad fan motor include electrical issues, debris accumulation, or wear and tear over time. These issues can hinder the motor's ability to circulate air effectively, leading to temperature inconsistencies.

Symptoms of a bad evaporator fan motor assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent or warm temperatures in the fridge or freezer
• Frost buildup on the evaporator coils
• The refrigerator running continuously without cycling off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Evaporator Bottom Bracket secures the lower edge of the evaporator assembly inside your refrigerator, keeping components properly aligned. Replace a cracked or missing bracket to restore a solid mount and help prevent looseness or rattling.

• Supports and stabilizes the bottom of the evaporator assembly
• Helps keep panels/components aligned to reduce vibration and noise
• Restores proper seating of the evaporator area after damage or wear
• Typical signs: broken or missing bracket, loose or rattling panel that won't stay seated

• Disconnect power before servicing; wear cut-resistant gloves
• Remove shelves/bins and the evaporator cover to access the bracket
• Reuse existing screws/fasteners; match the original bracket orientation
• After reassembly, ensure panels are fully seated and clear of the fan/coil

This #8-18 x 5/8-inch Torx T20 screw secures panels, brackets, and trim in your appliance. It replaces missing or damaged hardware to restore a tight, reliable hold and reduce looseness or rattling.

• Fastens sheet-metal or plastic components to the appliance cabinet or frame
• Replaces missing, stripped, or corroded screws to maintain proper fit
• Helps reduce vibration and rattling from unsecured parts
• Torx T20 drive; #8-18 thread; 5/8-inch length

• Disconnect power and shut off water before servicing
• Use a T20 Torx driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping
• Wear cut-resistant gloves; sheet-metal edges can be sharp

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
