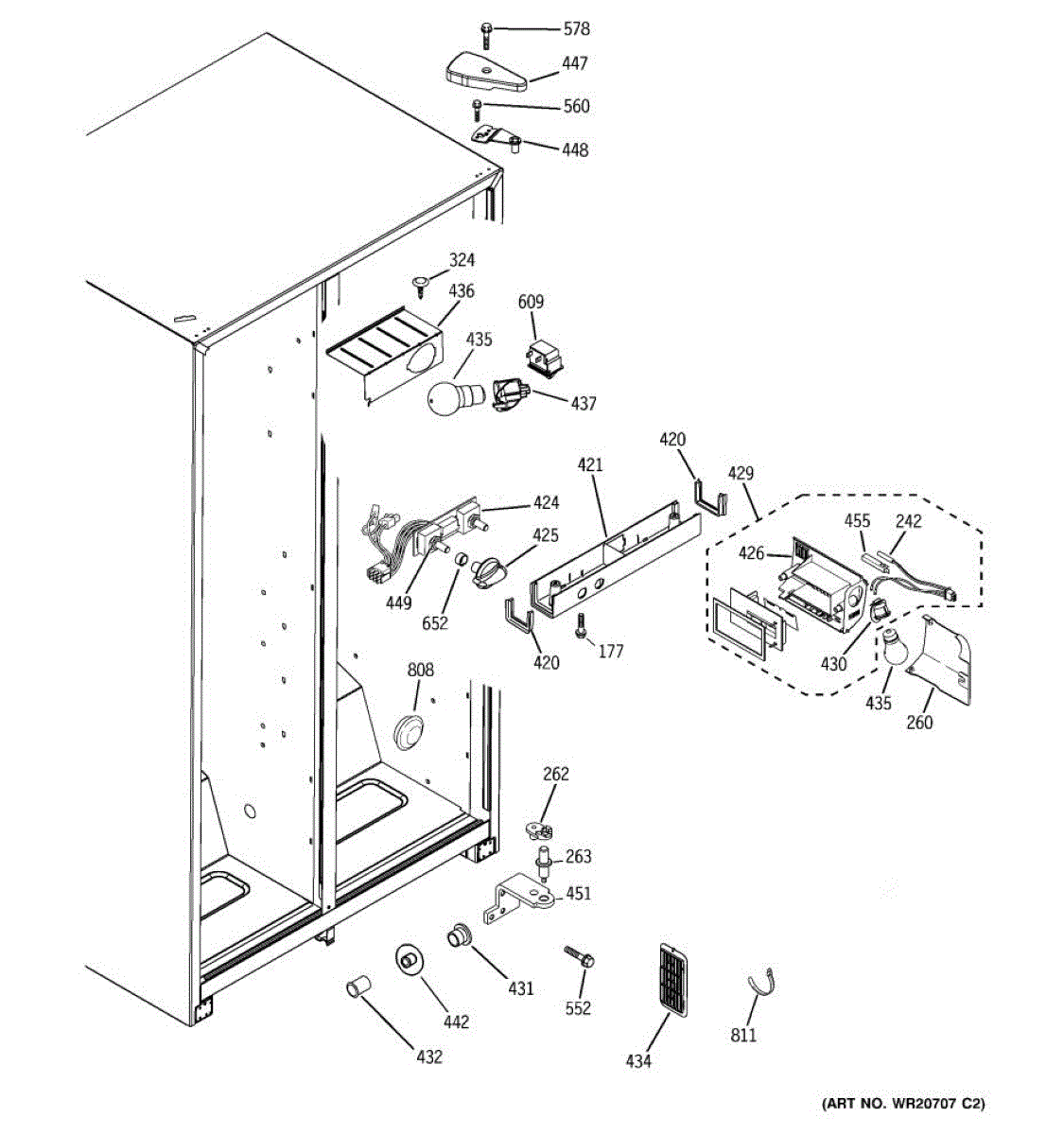

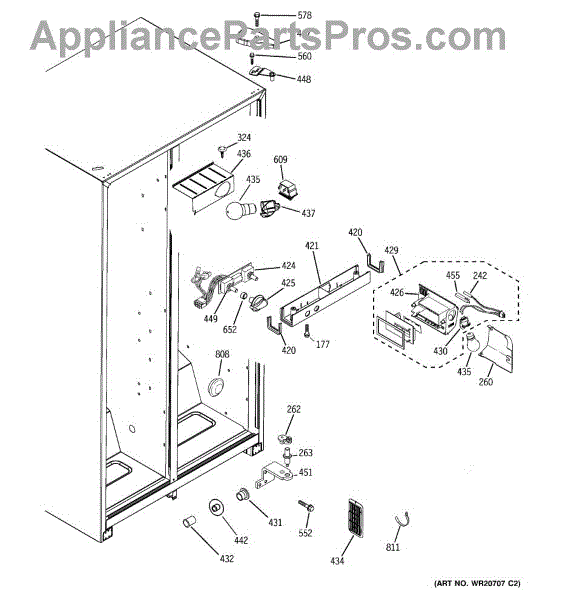

Parts for Ge GSHS5KGXECSS: 05 - Fresh Food Section Parts

This bottom hinge pin supports and serves as the pivot for the refrigerator door. An accurate, tight-fitting hinge pin helps the door swing smoothly and seal properly to maintain temperature and reduce wear.

• Serves as the lower pivot point for the door on the bottom hinge
• Helps keep the door aligned for proper closing and gasket contact
• Replacing a worn pin can improve door movement and reduce stress on the hinge

• Unplug the appliance before servicing
• Support the door to relieve weight from the hinge before removing hardware
• Transfer any spacers/shims in their original order to maintain alignment
• Tighten fasteners securely and check door swing and seal after installation

The Lamp Socket is an OEM component specifically designed for GE refrigerator interiors. It provides the connection point for interior lighting.

The lamp socket mounts near the top of the interior and includes contacts that receive and hold the installed light bulb firmly in position. Proper socket operation enables convenient and dependable interior illumination.

Causes of a bad socket can include wear from repeated bulb replacements, damaged contacts from moisture exposure over time, or loose electrical connections.

Symptoms include:

• Intermittent or no interior light function
• Bulbs that will not screw in securely or pop out easily
• Exposed or frayed electrical wire connections
• Visible cracks or breaks in the socket assembly

This genuine OEM GE replacement socket ensures clear vision inside refrigerator shelves for years. Compatible with additional brands including Hotpoint, RCA, or Kenmore refrigerator models.

This middle reflector assembly directs and focuses interior light for a clean, even appearance inside the appliance. It replaces a cracked, missing, or misaligned reflector to restore proper light distribution and finish. What it does:

• Reflects and redirects interior lamp output for improved visibility
• Covers and protects the light area from debris and accidental contact
• Restores finished appearance where a reflector is cracked, discolored, or missing
• Works with the appliance's lamp housing to maintain intended illumination pattern

• One middle reflector assembly

• Disconnect power before starting any work to avoid shock
• Remove shelves or trim as needed to access the reflector; handle carefully to avoid scratches
• Align and secure the reflector into the existing housing using original clips or fasteners
• If lamp or housing is damaged, inspect those components and replace as needed.

This light socket connects the interior lamp to the refrigerator wiring so the interior light turns on when the door opens. It replaces a damaged or burned socket to restore reliable lighting. What it does:

• Holds the interior lamp securely and provides the electrical contact for operation
• Restores lighting when a damaged socket causes the light to fail or flicker
• Prevents intermittent connections from poor contacts or heat damage
• Works with the appliance's existing wiring and bulb style

• Disconnect power to the appliance before inspecting or replacing the socket.
• Handle bulbs and sockets carefully; use gloves to avoid cuts and for hygiene.
• Test operation after installation; replace the bulb if necessary.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This hinge top pin is the pivot stud for the freezer door's upper hinge. Replace a bent or worn pin to restore smooth door swing, proper alignment, and a reliable gasket seal that helps maintain interior temperatures. What it does:

• Provides the upper pivot point for the freezer door
• Helps keep the door aligned so it closes and seals properly
• Replaces a bent, worn, or broken pin causing wobble, sagging, rubbing, or poor closing
• Helps prevent air leaks that can lead to frost or temperature fluctuations

• 1 top hinge pin

• Unplug the refrigerator and support the door before servicing hinges
• Remove the top hinge cover and screws; lift the door off the lower hinge
• Replace the pin in the hinge, transferring any spacers/washers as found
• Reinstall and align the door for even gaps; verify gasket seal before restoring power

This is the top hinge pin for a refrigerator door. It serves as the pivot point for the door at the upper hinge, helping the door swing smoothly and stay aligned so it seals properly.

• Provides the upper pivot for the door at the hinge
• Worn or bent pins can cause sagging, squeaking, or poor door closure
• May help resolve doors that don't seal, bind, or drop
• Replacing a damaged pin can improve door alignment and operation

• Unplug the refrigerator before servicing
• Support the door while removing the upper hinge
• Keep track of any spacers/washers and reinstall in the same order
• Tighten hinge fasteners and check door alignment and seal after installation

This bottom door hinge supports the refrigerator door and serves as the pivot point for smooth opening and closing. Replacing a worn hinge restores proper alignment and sealing to help prevent door sagging and cooling loss. What it does:

• Supports the door's weight at the lower corner and maintains alignment
• Provides the pivot for opening/closing and reduces friction at the door base
• Wear can cause door sagging, rubbing/binding, or the door not closing fully
• Misalignment may lead to poor gasket contact, warm spots, or condensation/frost near the door

• 1 bottom door hinge

• Disconnect power and, if applicable, shut off water before starting
• Remove items from the door and have a helper support it during removal
• Remove the upper hinge to lift the door off the lower hinge; retain any shims/spacers
• Swap the hinge, transfer shims as found, align the door, tighten fasteners, and verify the gasket seals all around

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

The Light Switch is an OEM part for GE refrigerators. It controls the refrigerator's interior light, turning it on when the door is opened and off when the door is closed. This ensures energy efficiency and convenience, illuminating the refrigerator's interior for easy visibility while searching for items.

Causes of a bad light switch include mechanical wear from constant use, damage from an impact, or electrical issues.

Symptoms of a bad Light Switch include:

• The interior light does not turn on when the refrigerator door is opened
• The light stays on when the door is closed, potentially leading to overheating or melted plastic components in the light housing area
• Intermittent functioning of the light, indicating a loose or damaged switch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This foam insulation tube slips over refrigerator tubing to help reduce condensation and protect lines from moisture and minor abrasion. It's a simple replacement that restores padding and prevents dripping in affected areas. What it does:

• Insulates exposed tubing to reduce surface condensation and water buildup
• Cushions lines to help prevent chafing and minor damage
• Helps maintain a dry cabinet area by limiting drips from sweating lines
• Useful when original insulation is torn, compressed, or missing

• Disconnect power to the appliance before servicing; follow all safety guidelines
• Slide the foam sleeve over the tubing; trim to fit with a sharp blade if necessary
• Replace any damaged or brittle tubing discovered during install
• Do not use if foam is melted, charred, or contaminated
