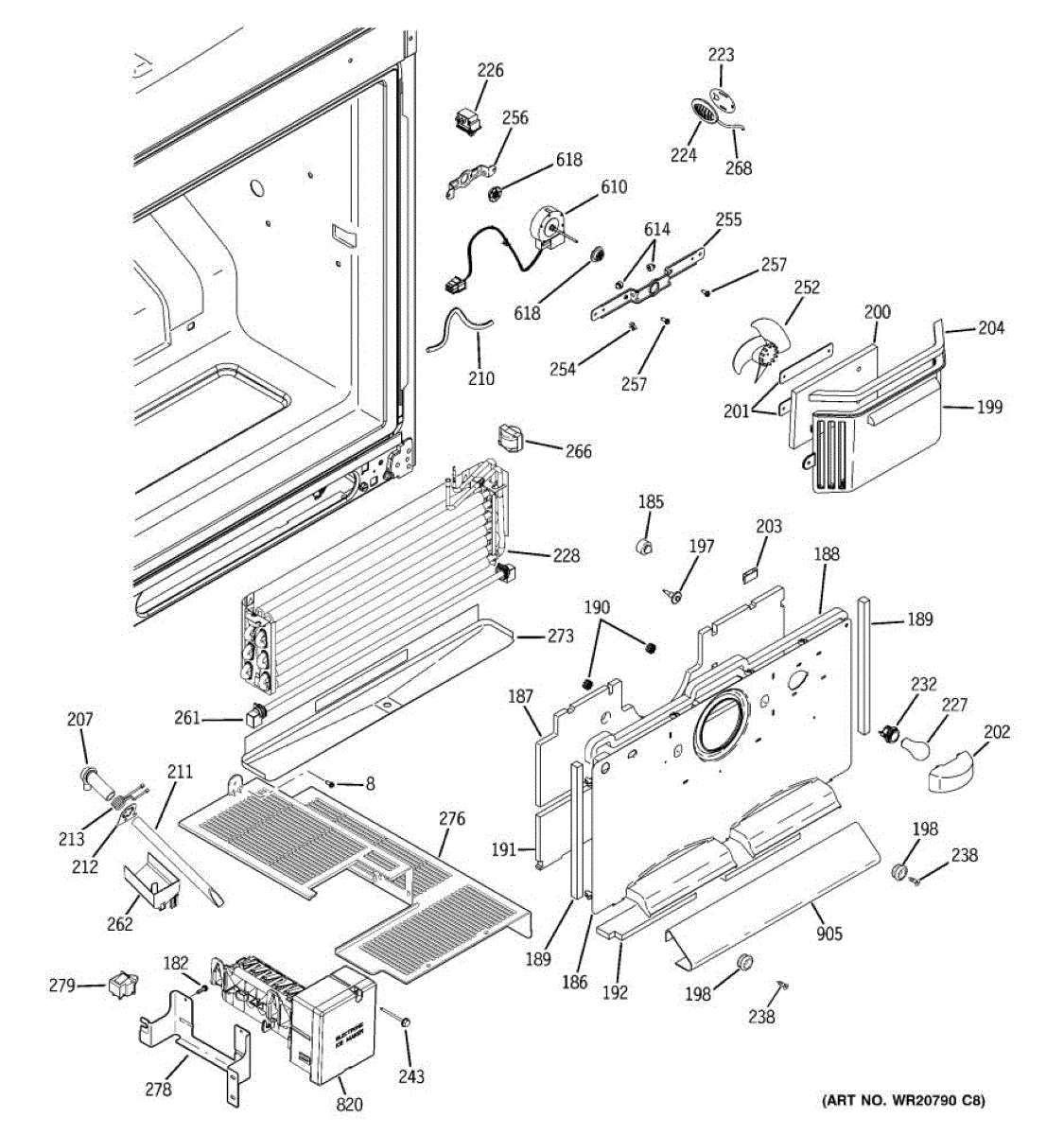

Parts for Ge PGSS5NFZCSS: 03 - Freezer Section Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This silicon controlled rectifier (SCR) is an electronic switching device used to control power to oven/stove heating circuits, helping the appliance regulate temperature and heat output for cooking performance. What it does:

• Switches and regulates AC power to heating elements for controlled heat
• Enables cycle-based or phase-controlled heating used by oven/range controls
• Common replacement when an element won't heat consistently or unit won't maintain temperature
• Helps stop erratic heating caused by a failed power control component

• Disconnect power to the appliance before inspecting or replacing the SCR
• Observe ESD precautions and handle the component by insulated edges

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lower evaporator foam pad cover cushions and protects the evaporator assembly while helping direct airflow and reduce vibration noise. It's a simple replacement that restores fit and helps maintain proper refrigerator performance. What it does:

• Cushions and supports the evaporator housing to prevent contact and vibration
• Helps direct airflow around the evaporator for consistent cooling performance
• Reduces noise caused by loose or missing insulation components
• Helps protect nearby components from frost buildup and debris

• Disconnect power to the appliance before service to prevent shock or injury
• Access may require removing interior panels or the evaporator cover; keep fasteners organized
• Position the foam pad carefully so it seats fully around the evaporator housing and trim pieces

This replacement defrost heater warms the freezer's evaporator area during the automatic defrost cycle. It melts accumulated frost so air can circulate, helping maintain stable temperatures and preventing ice buildup on the back wall.

• Heats the evaporator to clear frost and ice during defrost
• Helps keep airflow passages and the defrost drain path open
• Common symptoms of a failed heater: heavy frost on the back panel/coils, poor cooling or warm sections, fan noise from ice contact, cooling returns temporarily after a manual defrost
• Typically located behind the rear freezer panel

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator by removing the freezer's rear panel; thaw heavy ice before removal
• Transfer any clips/brackets and route wires exactly as original, keeping them away from plastic parts
• After installation, ensure wiring connections are secure and the heater is not contacting plastic surfaces

This ground wire harness connects an appliance's metal chassis to its electrical ground to help maintain a safe, stable ground path and reduce risk of electrical faults. It's a direct-replacement harness used where the original ground lead is damaged or corroded. What it does

• Provides a dedicated grounding path between the appliance chassis and the household ground to help prevent electrical leakage and reduce shock risk.
• Restores proper chassis grounding when the original harness is broken, frayed, or shows corroded terminals.
• Can resolve intermittent electrical faults or nuisance tripping caused by a poor ground connection.
• Matches OEM connector types and routing points for a like-for-like replacement.

• One ground wire harness assembly

• Always disconnect power (unplug appliance or shut off circuit breaker) before inspecting or replacing grounding components.
• Verify correct routing and secure all terminal fasteners to the chassis; do not rely on paint or rusted surfaces for a good ground.
• Replace any corroded screws or mounting hardware; use manufacturer-specified fasteners where required.

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water fill tube directs water from the refrigerator's water supply to the ice maker mold, ensuring proper ice production. Replacing a damaged tube restores reliable fill and helps stop leaks that affect ice quality. What it does:

• Channels fill water to the ice maker mold so each cycle fills correctly
• Prevents water from leaking inside the freezer when intact
• Helps restore normal ice production when a cracked or clogged tube is the cause
• Works with the ice maker's fill system; does not include valve or ice maker assembly

• Disconnect power and turn off the water supply before starting work
• Replace with the exact OEM tube and secure any clamps or seals removed during disassembly
• Inspect adjacent fittings and the valve for damage or leaks while installing

This heater fill tube assembly routes water into the appliance's heater area to ensure proper water flow and prevent contact with electrical components. It replaces damaged or worn tubes to help stop leaks and restore normal fill operation. What it does:

• Directs incoming water to the heater/tub area so the appliance can heat and circulate water correctly
• Shields the heating element and electrical connections from direct water exposure
• Common symptom fixes: visible leaks, water pooling, or interrupted fill cycles
• Helps prevent intermittent heating issues caused by improper water routing

• Disconnect power and shut off the water supply before beginning repair
• Verify correct orientation and seating of any seals, grommets or clamps during installation
• Handle clips and plastic fittings gently to avoid breakage; replace damaged fasteners as needed

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This screw is a genuine General Electric part, sold individually. This screw can be used as a replacement part for a refrigerator. A screw can suffer damage in the lifespan of a refrigerator. It can also be easily lost or misplaced. Screws are small parts and are usually installed in multiples to ensure components are reliably attached, so one screw loosening or going missing might not necessarily affect the operability of the refrigerator. However, if the components loosen or the screw suffers damage that strips the part, such as punctures or erosion to the metal material from general wear and tear or from a direct impact, the screw should be removed and replaced with this genuine OEM replacement part. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This screw is compatible with the following appliance brands: General Electric, Hotpoint, RCA, and Americana.

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan bracket secures the evaporator fan assembly behind the rear panel. A rigid, correct-fit mount preserves blade clearance and airflow across the evaporator coils for steady temperatures while minimizing vibration and noise.

• Holds the evaporator fan assembly firmly in position
• Maintains alignment and clearance to prevent fan rubbing and excess noise
• Supports proper airflow through the evaporator compartment for consistent cooling
• Replace if the bracket is cracked, warped, or loose; symptoms may include rattling, scraping sounds, or the fan contacting the shroud

• Disconnect power before servicing and use cut-resistant gloves
• Remove shelves/drawers and the rear evaporator cover to access the fan assembly
• Transfer the fan motor and existing hardware to the new bracket; ensure the blade spins freely without contact
• Avoid damaging the evaporator coils; reassemble panels and restore power to test

The Heater Defrost Assembly is an OEM part for GE refrigerators. This part melts any frost or ice that accumulates on the evaporator coils, ensuring efficient cooling and preventing frost buildup that can impede airflow.

Causes of a bad heater defrost assembly can include electrical failures, wear and tear over time, or damage from fluctuating temperatures.

Symptoms of a bad heater defrost assembly include:

• Excess frost buildup on the evaporator coils
• The refrigerator not cooling properly
• Water leaking inside the refrigerator
• The defrost cycle not activating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.

The Defrost Thermostat is an OEM part for GE refrigerators. It plays a crucial role in the defrost system by monitoring the temperature of the evaporator coil and ensuring that it stays within the optimal range to prevent frost buildup.

Over time, the defrost thermostat can fail due to normal wear and tear, electrical issues, or exposure to moisture. If the thermostat is not functioning correctly, it can lead to excessive frost buildup or the refrigerator not defrosting properly.

Symptoms of a bad defrost thermostat include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer not cooling efficiently
• The defrost heater not activating
• Unusual temperatures in the refrigerator or freezer compartments

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Evaporator Fan Motor is an OEM part for GE refrigerators. This motor is responsible for circulating air over the evaporator coils, which are crucial for maintaining the desired temperature inside the refrigerator compartment.

Symptoms of a bad evaporator fan motor:

• Inadequate cooling or temperature fluctuations
• Loud or unusual noises coming from the refrigerator
• Ice buildup or frost accumulation on the evaporator coils
• The fan not running or rotating properly

Causes of a faulty evaporator fan motor can include general wear and tear over time, dust or debris buildup inhibiting proper operation, or electrical issues such as short circuits or faulty wiring.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Maker is an OEM part for GE refrigerators. It is a crucial component responsible for producing and dispensing fresh ice cubes, providing a convenient source of ice for your beverages and other needs. The ice maker is designed to automatically replenish the ice supply, ensuring you never run out.

Symptoms of a bad ice maker include:

• Failure to produce ice or produce an insufficient amount
• Ice cubes that are misshapen or stuck together
• Water leaks or overflow from the ice maker area

Causes of a bad ice maker can range from issues with the water supply line or freezing mechanism, to mechanical failures or blockages within the ice maker itself. Over time, mineral buildup or freezing can also impact the ice maker's ability to function properly.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
