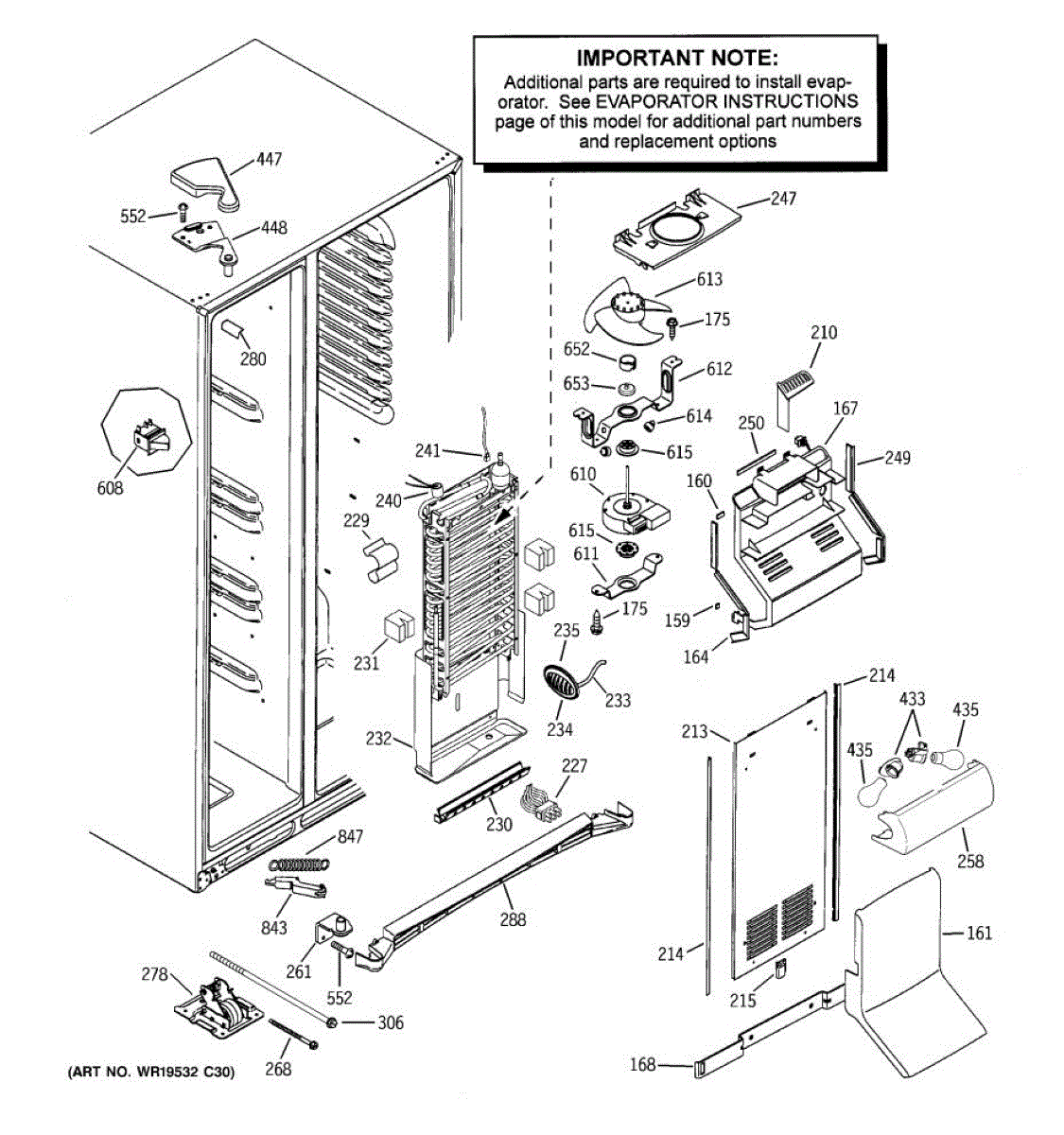

Parts for Ge PIE23NGTCFKB: 04 - Freezer Section Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Specs: 8-18 AB IHW 5/8 S

This replacement gasket seals the evaporator cover to the cabinet, preventing air leaks and directing airflow where it belongs. Restores a tight seal to help minimize frost buildup and temperature swings for more consistent cooling performance.

• Seals the perimeter of the evaporator cover to prevent air bypass and warm-air infiltration
• Helps maintain proper airflow through the evaporator and air ducts
• Can reduce frost/ice on or around the rear panel and air outlets
• Improve and stabilize refrigerator/freezer temperatures when the original gasket is torn, compressed, or missing

• Disconnect power to the refrigerator and wear cut-resistant gloves
• Remove shelves/bins and the evaporator cover; retain screws/clips
• Remove the old gasket and clean mating surfaces; seat the new gasket evenly without gaps or twists
• Reinstall the cover and restore power and verify no air leaks

This upper freezer tower bracket secures the ice/tower assembly inside the freezer, keeping the tower aligned so ice fills and dispenses correctly. It restores proper support to reduce movement and rattling. What it does:

• Holds the upper section of the freezer/ice tower in position to maintain alignment
• Prevents tower movement that can cause noise or interfere with ice delivery
• Helps keep internal components stable so ice fills and dispenses normally
• Supports proper fit of surrounding trim and panels

• Disconnect power to the refrigerator before beginning any work
• Remove ice bin and any nearby trim for safe access to the tower area
• Use appropriate tools and retain original fasteners; replace damaged fasteners if needed
• Inspect surrounding components for damage and test ice operation after installation

This intermediate freezer wire harness restores reliable electrical connections within the freezer section. It bridges the cabinet wiring to freezer components so they receive the power and control signals needed for consistent operation and dependable cooling performance.

• Provides a secure, plug-in connection between the main cabinet harness and freezer components
• Replaces harnesses with broken conductors, brittle insulation, or heat-damaged connectors
• Can help when freezer components have intermittent or no power, or when visible wiring/connector damage is present
• Maintains correct routing and strain relief to reduce chafing and shorts

• Disconnect power and wear cut-resistant gloves before servicing
• Photograph connector locations and wire routing for reference during reassembly
• Route the new harness along the original path; secure in existing clips/ties and avoid pinching or stretching wires
• Fully seat each connector until it latches; restore power and test operation

This defrost heater and bracket assembly melts frost from the evaporator during the automatic defrost cycle, restoring airflow and stable temperatures so your refrigerator and freezer cool as designed. What it does:

• Heats the evaporator coil at set intervals to clear frost and ice
• Keeps air passages open for consistent temperatures and efficient cooling
• Helps prevent excessive run times and ice buildup on the freezer back wall
• Failure signs can include heavy frost accumulation, weak/uneven cooling, or fan noise from ice

• One defrost heater pre-mounted to its bracket

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator behind the freezer's rear panel; safely defrost built-up ice before removal
• Note/photograph wire routing and connections; transfer like-for-like
• Avoid damaging evaporator fins and ensure the heater sits in the original position without touching plastic components

This evaporator block seal replaces the rubber gasket that seals the evaporator block assembly to the freezer cabinet, helping maintain proper airflow and prevent leakage. It restores a tight seal around the evaporator block for reliable cooling performance. What it does:

• Seals the evaporator block to the cabinet to prevent warm air intrusion and water leaks
• Helps direct refrigerant-condensed water into the drain rather than inside the cabinet
• Commonly used when you see frost build-up around the evaporator or water pooling in the freezer
• Helps maintain consistent cold temperatures by preserving the sealed evaporator area

• One evaporator block seal

• Designed for field replacement; inspect surrounding gaskets and mounting surfaces for damage before installing
• Clean and dry mating surfaces thoroughly to ensure a proper seal
• Use common hand tools; avoid over-stretching or cutting the seal during installation
• Disconnect power to the appliance before servicing and follow safety precautions for refrigeration components

This shield trough assembly catches and channels defrost and condensation water away from the refrigerator cabinet to help prevent leaks and ice buildup. It's a direct-fit replacement that restores proper water drainage and containment. What it does

• Collects defrost and condensation runoff and directs it to the drain pan
• Helps prevent water pooling inside the cabinet and under the appliance
• Reduces ice or frost accumulation caused by redirected water
• Provides structural support for adjacent trim and evaporator covers where applicable

• Disconnect power to the appliance before beginning any repair.
• Remove relevant shelves, drawers, and trim panels to access the trough; keep fasteners organized.
• Handle gently to avoid bending or damaging mounting tabs and seal surfaces.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Thermostat is an OEM part for GE refrigerators. It plays a crucial role in the defrost system by monitoring the temperature of the evaporator coil and ensuring that it stays within the optimal range to prevent frost buildup.

Over time, the defrost thermostat can fail due to normal wear and tear, electrical issues, or exposure to moisture. If the thermostat is not functioning correctly, it can lead to excessive frost buildup or the refrigerator not defrosting properly.

Symptoms of a bad defrost thermostat include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer not cooling efficiently
• The defrost heater not activating
• Unusual temperatures in the refrigerator or freezer compartments

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This orifice fan assembly is the replacement airflow/orifice component that helps the appliance regulate flow through the burner/vent area for more consistent operation. It restores proper function when the original assembly is worn or damaged. What it does:

• Directs and meters airflow through the appliance's orifice/fan area to support stable operation
• Can resolve weak or uneven heating, inconsistent flame or burner performance, and airflow-related symptoms
• Helps reduce abnormal noises or vibration tied to a damaged orifice or assembly
• Works as the OEM-design replacement to restore original fit and function

• Disconnect power to the appliance before starting work; for gas appliances also shut off the gas supply
• Handle the assembly carefully to avoid bending or damaging the orifice; use appropriate hand tools
• Reinstall using OEM hardware and follow the manufacturer's service instructions where available

The Freezer Light Cover is an OEM replacement part for GE refrigerators designed to protect the light bulb in the freezer compartment from any potential damage or breaks. It helps maintain a safe and well-lit freezer environment, making it easier to locate and retrieve items.

A bad freezer light shield cover can occur due to regular wear and tear or accidental damage. If you notice symptoms such as a flickering or dim freezer light, or if the light bulb is exposed and vulnerable, it may indicate a need to replace this part.

Symptoms of a bad freezer light cover include:

• Flickering or dim freezer light
• Exposed or broken light bulb
• Insufficient lighting

Restore lighting in your freezer by replacing the faulty freezer light cover with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement bottom door hinge and pin assembly fits refrigerators. The lower hinge supports the door's weight and provides the pivot point, restoring smooth swing and proper alignment for a reliable close and consistent gasket seal.

• Serves as the door's lower pivot and load-bearing support
• Maintains alignment so the gasket seals correctly
• Restores smooth opening and closing after hinge/pin wear
• Common symptoms: door sagging or dragging, popping/squeaking at the hinge, gaps or poor sealing, door not staying closed

• Disconnect power and remove items from the door before servicing
• Support the door, remove bottom hinge fasteners, and lift the door off
• Position the new hinge and transfer any spacers/shims as found
• Reinstall the door, tighten hardware, and verify alignment and gasket seal

This is a mobility screw used to secure mobility-related components in compatible appliances, providing a reliable fastener for stable operation and correct alignment. It replaces worn or missing screws to restore secure mounting. What it does

• Fastens and secures mobility/bracket components to prevent movement or misalignment.
• Helps maintain proper alignment of moving parts that can cause noise or binding when loose.
• Commonly replaced when mounting points are stripped, damaged, or missing.
• Small replacement part that supports overall appliance stability and safe operation.

• One screw as shown/packaged by the manufacturer.

• Use the correct screwdriver or bit to avoid stripping the screw head.
• Ensure the appliance is powered off and disconnected from the power source before accessing internal components.
• Do not overtighten; snug to manufacturer torque or until the part is secure.
• If mounting hardware or threaded inserts are damaged, replace or repair those components before installing this screw.

This mobility front assembly replaces the worn front caster/roller that helps a refrigerator glide when pulled out for cleaning or service. Restores smooth forward movement and stable front support for safe access. What it does:

• Provides a rolling front support so the appliance moves smoothly on the floor
• Helps stabilize the front of the refrigerator when it is pulled out or pushed in
• Reduces sticking and uneven movement caused by worn or damaged rollers
• Can help minimize scraping or surface damage during repositioning

• One mobility front assembly

• Disconnect power and, if applicable, water supply before servicing
• Empty or secure loose items and have a second person help when tilting or moving the appliance
• Remove the kickplate or access panel as required to reach and replace the front assembly
• Tighten fasteners to OEM torque and test mobility before returning the appliance to normal use

This replacement corner cap restores the finished edge and protective cover on an oven door corner for a clean appearance and proper fit. It replaces a cracked, chipped, or missing corner that can catch debris or show damage. What it does:

• Covers and protects the outer corner of the oven door from chips and dents
• Helps maintain a smooth door edge so the door closes and seals properly
• Improves cosmetic appearance when the original corner is cracked or worn
• Reduces sharp or rough edges that can catch on clothing or cause minor cuts

• Turn off power to the appliance and allow the oven to cool before servicing
• Installation may require partially removing the oven door or trim; have basic hand tools ready
• Handle the door and trim carefully to avoid scratching finished surfaces

The Base Grille is an OEM component for GE bottom-mount refrigerators. It functions as the aesthetic frame surrounding the condenser coils and fan at the base. The base grille works to contain stored cold and hot air within the refrigeration system.

Symptoms of a bad base grille include:

• Excessive dust or pet hair buildup obstructing airflow
• Visible damage or cracks allowing air leaks
• Detachment from the refrigeration system

Over many years, repeated vacuuming can weaken mounting tabs while physical impacts compromise integrity. Proper evaporator function relies on controlled air circulation. Repairing air leaks maintains energy efficiency.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore bottom-freezer models.

The Bulb Light is an OEM part for GE refrigerators. It is designed to illuminate the interior of the refrigerator and freezer compartments, making it easier to see and access food items. This light bulb fits securely into the designated socket and provides bright, reliable lighting to enhance visibility.

You should replace the bulb light if it burns out or becomes damaged. Causes of a bad bulb light can include regular wear and tear, electrical issues, or physical damage from impacts or vibrations. A faulty bulb can leave the refrigerator compartments dim or completely dark, making it difficult to find items.

Symptoms of a bad bulb light include:

• The light not turning on when the refrigerator door is opened
• Flickering or intermittent lighting
• A visibly burned-out or broken bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures panels, brackets, and other hardware in your appliance. Installing a new fastener restores a tight, rattle-free fit when the original is missing, stripped, or corroded, helping keep components properly aligned.

• Fastens components, trim, and brackets to the cabinet or frame
• Replaces a missing, stripped, or rusted screw
• Helps reduce rattles, vibration, and loose panels or handles
• Maintains proper alignment of panels and hardware

• Disconnect power (and water/gas if applicable) before servicing.
• 12-24 thread, approximately 0.90-inch length; match to the original location.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Replace any additional damaged fasteners to ensure even clamping and a secure fit.

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan bracket secures the evaporator fan assembly behind the rear panel. A rigid, correct-fit mount preserves blade clearance and airflow across the evaporator coils for steady temperatures while minimizing vibration and noise.

• Holds the evaporator fan assembly firmly in position
• Maintains alignment and clearance to prevent fan rubbing and excess noise
• Supports proper airflow through the evaporator compartment for consistent cooling
• Replace if the bracket is cracked, warped, or loose; symptoms may include rattling, scraping sounds, or the fan contacting the shroud

• Disconnect power before servicing and use cut-resistant gloves
• Remove shelves/drawers and the rear evaporator cover to access the fan assembly
• Transfer the fan motor and existing hardware to the new bracket; ensure the blade spins freely without contact
• Avoid damaging the evaporator coils; reassemble panels and restore power to test

Keep the refrigerator's rear fan assembly secure and airflow on track with this fan orifice bracket. It supports the fan shroud/orifice so the motor and blade stay aligned, helping maintain proper cooling and reduce vibration.

• Secures the fan orifice/shroud to the machine-compartment frame
• Maintains correct fan motor and blade positioning for smooth operation
• Helps direct airflow through the condenser area for effective heat removal
• Typical symptoms of a failed bracket include rattling/buzzing from the back, a loose or wobbling fan assembly, reduced airflow, or warm temperatures

• Disconnect power and move the refrigerator to access the rear machine compartment
• Remove the rear access cover; support the fan motor/blade before loosening fasteners
• Transfer any reusable mounting hardware to the new bracket; align the orifice/shroud properly
• Ensure the fan spins freely and the assembly is secure before reinstalling the rear cover and restoring power

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

Color: Black

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.
