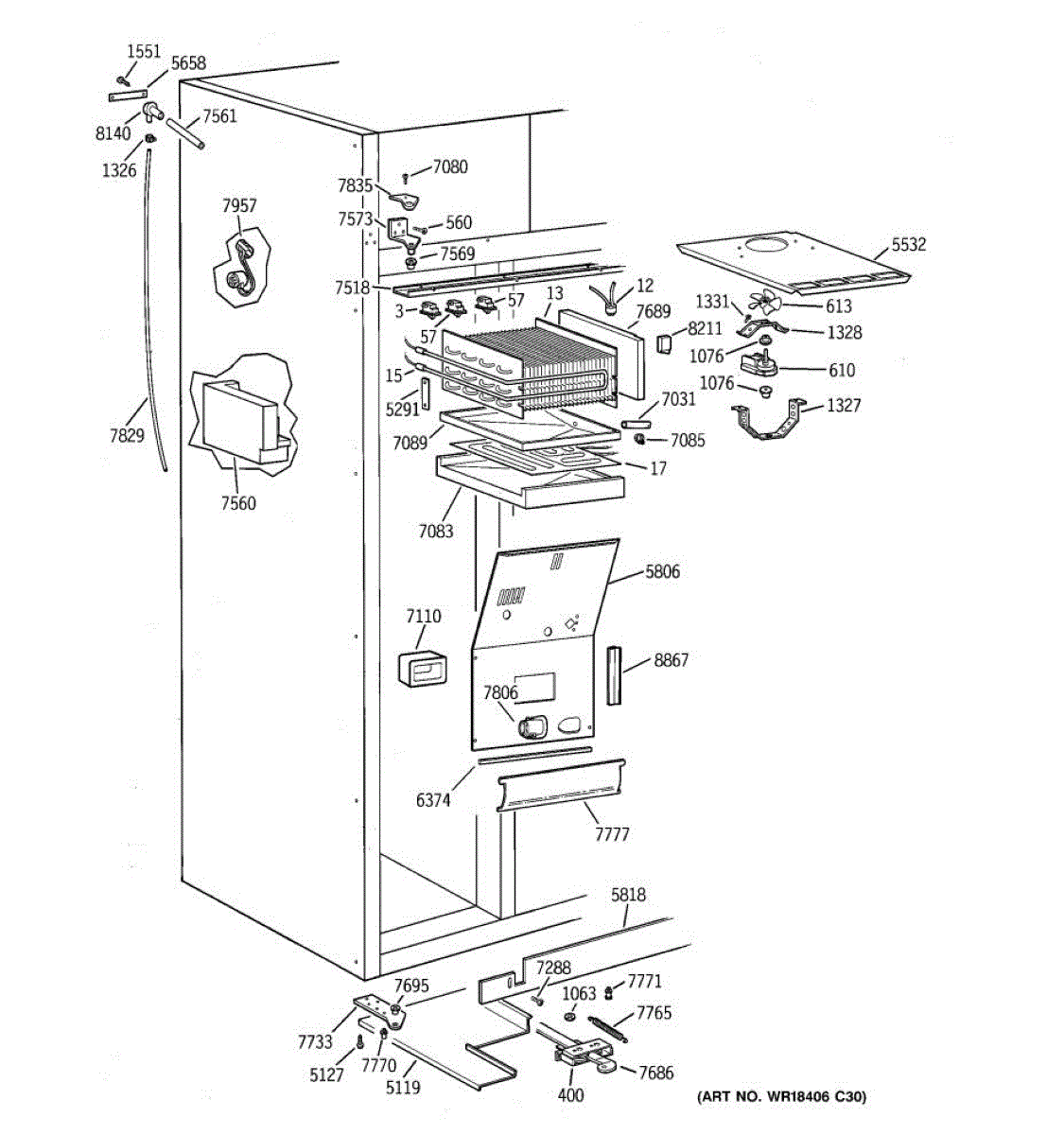

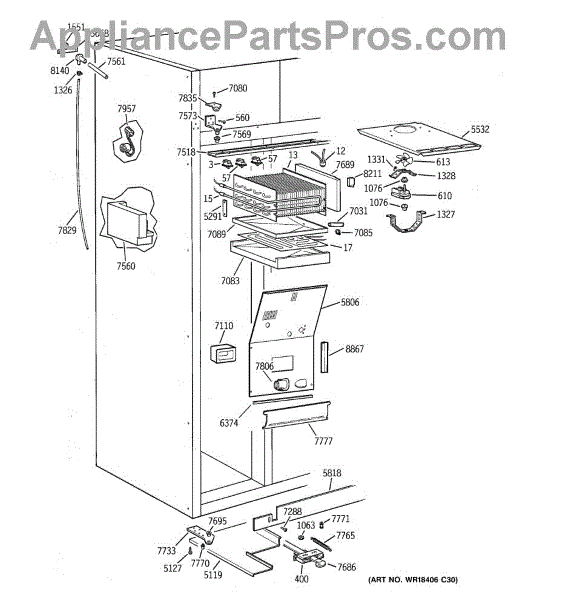

Parts for Ge ZISS42DCBSS: 03 - Freezer Section Parts

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Open - 45, close - 25

This is a GE refrigerator defrost heater assembly. The defrost heater assembly is the component responsible for defrosting the freezer compartment.If the refrigerator has been having trouble defrosting or making loud noises when the defrost heater turns on, this part could need a replacement. When this part malfunctions there could be a noticeable increase in ice building up in the freezer compartment. This situation should be fixed quickly because the increasing ice could damage other parts. Start any repairs by unplugging the refrigerator first. Take all the shelves out of the freezer and remove the freezer light shield. Unthread the two screws securing the rear freezer panel inside of the freezer. Detach the clip and remove the panel. The defrost heater should be accessible at this point. This part is located near the bottom of the freezer. Unthread the screws holding it in place and disconnect it from its wiring. Repeat these steps in reverse to install the new appliance.This is a genuine OEM replacement product sourced directly from GE. This heater assembly is only available individually and is not included with other parts.

This icing kit is a factory update designed to reduce frost build-up in the ice/dispenser area. It improves sealing and insulation to help keep the ice path clear and restore reliable dispensing performance.

• Reduces frost or ice accumulation caused by air leaks or condensation in the ice path
• Improves sealing/insulation so the ice door closes properly and maintains a tight seal
• Helps prevent blocked ice flow and intermittent dispensing due to icing
• Common symptoms include frost around the dispenser opening, ice door not closing fully, or a sticking/jamming dispenser

• Disconnect power and turn off the water supply before servicing
• Follow the manufacturer's installation instructions for your specific model
• After reassembly, verify the ice door operates freely and seals without gaps
• Allow up to 24 hours of normal operation for temperatures and moisture levels to stabilize

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This evaporator fan blade mounts on the freezer fan motor and circulates air across the evaporator coils. Replacing a cracked or warped blade restores proper airflow for even cooling and more consistent temperatures throughout the refrigerator.

• Moves chilled air from the evaporator through the ducts to both compartments
• Helps maintain uniform temperatures and overall cooling performance
• Common symptoms of a faulty blade: weak airflow, poor cooling or warm spots, rattling/scraping noises from the freezer, longer run times
• Visual signs include a cracked hub, loose fit on the shaft, or broken/missing vanes

• Disconnect power before servicing
• Remove freezer shelves/ice bin and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; align the hub and press the new blade on until fully seated
• Verify blade orientation and free rotation inside the shroud before reassembly

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This is the rear fan bracket. For front bracket use WR2X7137.

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

This is a bottom door hinge screw that secures the lower hinge assembly to the appliance door, restoring proper alignment and stable door movement. Use it to replace stripped, missing, or damaged hinge hardware. What it does

• Secures the bottom hinge to the door and helps keep the door aligned and level.
• Restores smooth, consistent opening and closing when a worn or missing screw causes sagging or misalignment.
• Prevents further wear to hinge components by maintaining correct hinge positioning.
• Works with original hinge assemblies; use the correct screw to avoid loose or unstable doors.

• Disconnect power to the appliance before performing any door or hinge repairs.
• Support the door while removing/installing the hinge screw to prevent the door from falling or causing injury.
• Use the correct screwdriver or bit to avoid stripping the screw head.
• Replace any additional worn hinge hardware as needed for proper alignment.

This replacement bracket secures the freezer/refrigerator heater or defrost assembly in place to keep the heater aligned and stable for reliable defrost operation. It prevents movement that can cause poor contact or damage to the heater. What it does:

• Holds and positions the heater/defrost assembly within the freezer/refrigerator compartment
• Keeps heater clips and wiring stable to maintain proper heater contact
• Can prevent intermittent defrosting caused by a loose or broken bracket
• Useful when original bracket is cracked, bent, or missing mounting points

• Disconnect power to the appliance before servicing to avoid shock hazard
• Remove interior panels or shelves as needed to access the heater assembly
• Handle heater element and wiring carefully; do not pull or strain connections
• Use basic hand tools;

A simple replacement mounting strap used to secure internal components and prevent movement or vibration. Replaces a worn or broken strap to restore proper support and reduce rattling or sagging inside the appliance. What it does:

• Secures panels, assemblies or harnesses to keep parts in place during operation
• Reduces vibration and rattling caused by loose or damaged straps
• Prevents chafing or movement that can lead to wiring or component wear
• Helps maintain correct alignment of the secured component for reliable performance

• Disconnect power to the appliance before beginning any repair
• Use appropriate hand tools; avoid over-tightening fasteners which may damage the strap or mounting points

Size: 42 inches long.

This fill tube delivers water from the refrigerator supply to the icemaker so trays fill properly for ice production. Made to match OEM fit and restore normal ice maker water fill operation. What it does:

• Directs water from the supply line to the icemaker fill cup so each cycle fills the ice tray.
• Commonly replaced when the tube is cracked, frozen shut, or damaged and ice trays do not fill.
• Helps prevent unwanted water leaks in the freezer compartment when intact and properly installed.
• Works with the icemaker fill system; does not include water valve or tubing.

• One fill tube.

• Disconnect power and shut off the water supply before starting any repair.
• Remove freezer liners/evaporator cover as needed to access and replace the tube; follow manufacturer disassembly steps.
• Handle the tube carefully to avoid kinks or damage; ensure secure connection to the water inlet and icemaker.
• If you see continued filling issues after replacement, check the water valve, inlet line, and icemaker assembly for faults.

To order bottom hinge use WR13X641.

To order top hinge use WR13X640.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

This part has been discontinued by the manufacturer and is no longer available.

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rubber grommet cushions and seals an opening to protect wiring or tubing and reduce vibration on compatible GE appliances. It restores a snug fit where a torn or missing grommet lets parts rub, vibrate, or shift. What it does:

• Protects wiring, hoses or tubing from abrasion where they pass through a panel or frame
• Cushions components to reduce vibration and rattling noises
• Helps maintain a seal to limit drafts and minor moisture intrusion at the opening
• Common symptom fixes: visible tear or missing grommet, rubbing or chafing of wires/hoses, increased noise or vibration

• Disconnect power to the appliance before starting any work.
• Access the mounting area by removing the panel or door as required by your model.
• Press the grommet into the hole by hand; use a plastic trim tool if needed to avoid damage.
• Inspect nearby wiring/hose for wear and replace if damaged.
