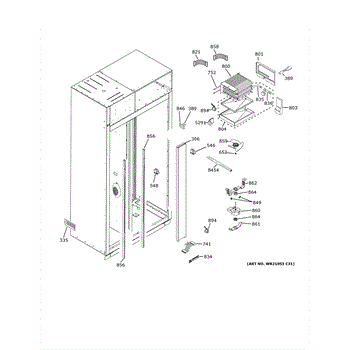

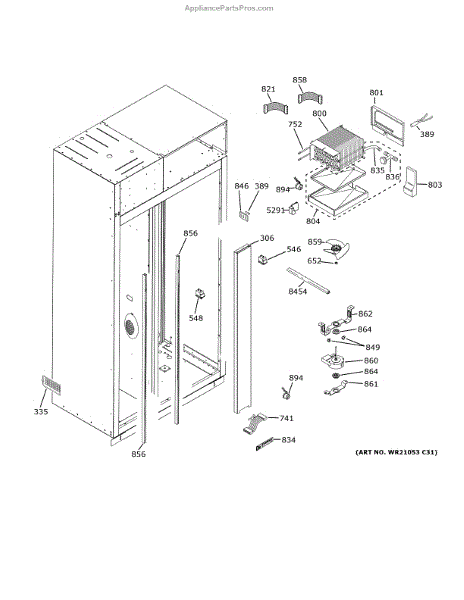

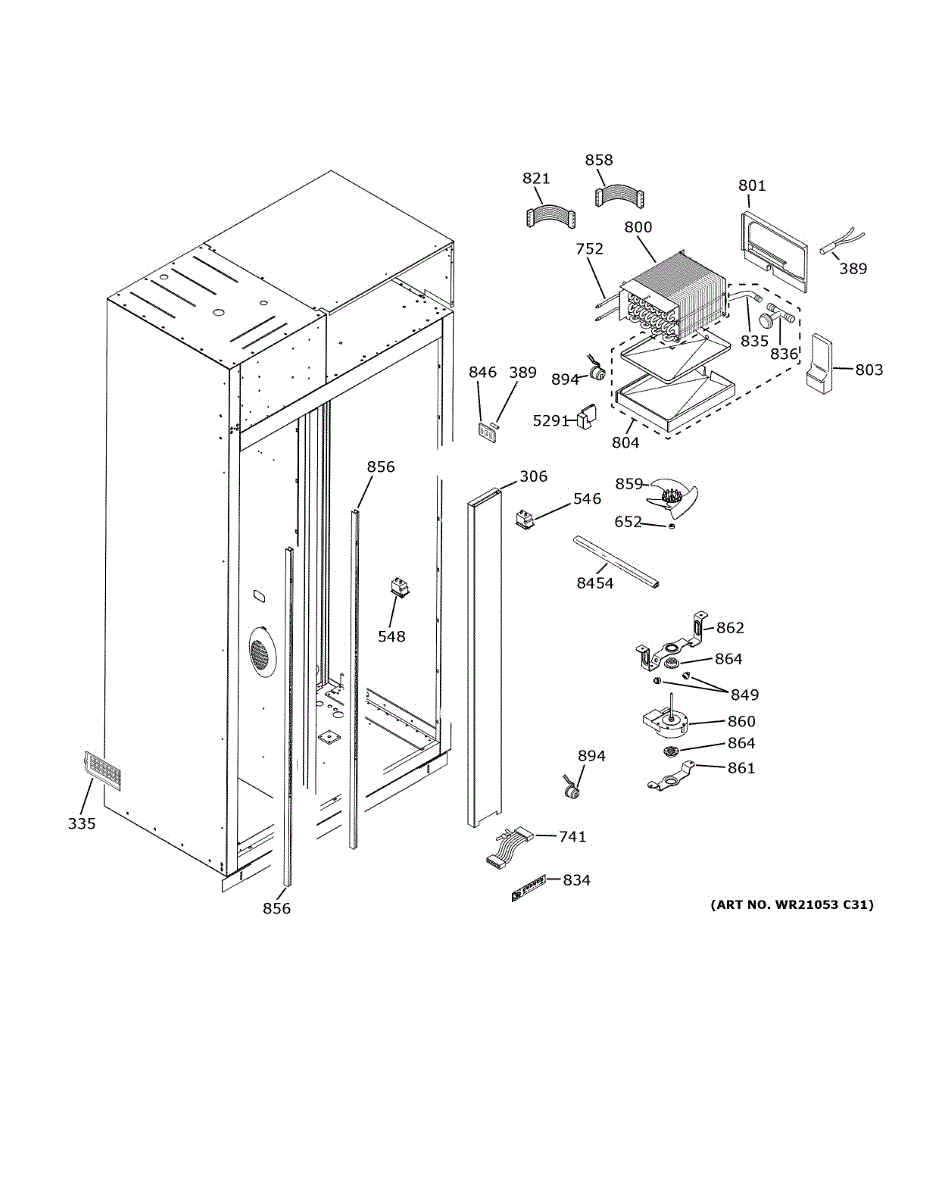

Parts for Ge CSB48WP2NCS1: Freezer Section Parts

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a replacement rocker-style light switch that restores interior appliance lighting control so lights turn on and off reliably. Designed to match OEM fit and function for compatible GE appliances. What it does

• Replaces a worn or failed rocker light switch so the interior light responds correctly
• Common fix when the light stays off, flickers, or only works intermittently
• Provides the same on/off switching action and terminal connections as the original
• Works with the appliance's existing wiring and mounting locations

• One rocker-style light switch

• Disconnect power to the appliance before starting — unplug or turn off the circuit breaker
• Remove only the panels necessary to access the failed switch; keep track of fasteners and wire positions
• Confirm wiring and switch orientation match the old switch; labeling photos can help during reassembly

This door push-button light switch controls the refrigerator/freezer interior lamp when the door opens and closes, restoring reliable lighting and proper light-off behavior. Fits common top-mount and side-mounted interior light housings. What it does:

• Opens or closes the light circuit when the door is opened or closed
• Replaces a switch that fails to turn the interior lamp on
• Stops the light from staying on when the door is closed (prevents unnecessary run time)
• Restores normal door-sill light operation and user visibility inside the compartment

• One door push-button light switch

• Disconnect power to the appliance before beginning work to avoid shock
• Typically accessed by removing the light lens or door switch bezel; may be snap-fit or secured with screws
• Observe and reconnect the wire terminals to the same positions; use needle-nose pliers if needed

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This defrost heater melts frost and ice buildup on the evaporator coils so the refrigerator can maintain proper cooling and airflow. It restores the defrost function that prevents ice blockages and inefficient cooling. What it does:

• Provides heat along the evaporator to remove accumulated frost and ice
• Helps maintain normal airflow and temperature by keeping coils clear
• Often used when frost accumulates on the evaporator or freezer cooling is reduced
• Works with the defrost thermostat and control to cycle only when needed

• One defrost heater assembly

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing interior panels or the evaporator cover; handle fins carefully to avoid damage
• Inspect defrost thermostat/thermistor and wiring while panels are open; replace any faulty components as needed

A replacement drain pan heater kit that helps melt frost and clear the refrigerator's drain so defrost water can flow to the evaporator pan. Restores proper defrost drainage and reduces water pooling under the unit. What it does:

• Heats the drain channel to melt ice and thaw frozen blockages
• Helps restore normal defrost water flow to the pan
• Can stop or reduce water pooling or dripping under the refrigerator
• Resolve repeated drain clogs caused by ice buildup

• Disconnect power to the appliance before servicing to avoid electric shock
• Allow freezer to fully defrost and dry before installing the heater
• Handle wiring and connectors carefully; match original connections and routing

This tower LED is the refrigerator interior light assembly that restores bright, even illumination inside the fresh-food compartment for easy visibility of contents. What it does

• Replaces a failed or dim interior LED tower to restore normal lighting inside the refrigerator.
• Provides bright, consistent illumination and reduces dark spots in the fridge cavity.
• Commonly used when interior light does not turn on, flickers, or is noticeably dim.
• Connects to the existing wiring harness and mounts in the light cavity/panel.

• One tower LED interior light assembly.

• Disconnect power to the appliance before attempting any service.
• Remove shelves or panels as needed for access; keep small parts and fasteners organized.
• Handle the LED assembly and connector carefully to avoid damage; do not force or bend the housing.

This flexible drain tube routes defrost and condensation water from the evaporator to the drain pan to help prevent water pooling and ice buildup in the freezer or refrigerator. Durable, shaped tubing makes routing through the cabinet easier. What it does:

• Channels defrost and condensate water away from the evaporator area to the drain pan
• Helps stop water from collecting inside the fridge or forming ice on the evaporator
• Flexible design eases routing through tight cabinet spaces and around components
• Used when the original drain tube is cracked, clogged, hardened, or leaking

• Disconnect power to the appliance before starting work to avoid shock or injury
• Remove food and any panels blocking access to the evaporator housing
• Ensure proper seating and routing of the tube; secure with existing clamps or clips and trim excess only if specified by OEM instructions
• After installation, pour a small amount of water into the evaporator drain area to verify proper flow to the drain pan

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

An evaporator fan blade mounts on the evaporator fan motor to move cold air across the coils and throughout the refrigerator compartments. Replacing a cracked, warped, or loose blade restores proper airflow, temperature balance, and quiet operation.

• Circulates air across the evaporator and into the fresh food and freezer sections to maintain even temperatures
• Helps reduce frost/ice buildup on the evaporator cover by improving airflow after defrost
• Common symptoms of a damaged blade: rattling or scraping noises behind an interior panel, weak or no airflow at vents, warming in the fresh food section, or uneven cooling
• A cracked or loose blade may spin but move little air even when the motor runs

• Disconnect power to the refrigerator before service
• Access the evaporator fan behind the interior rear panel; remove the cover/shroud as required (varies by model)
• Note blade orientation; seat the new blade fully on the motor shaft and verify clearance inside the shroud
• Reassemble panels, restore power, and confirm the fan spins freely without rubbing

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Rear evaporator fan motor bracket secures the evaporator fan motor to the refrigerator cabinet, maintaining airflow over the coils for efficient cooling. Replaces a bent or broken mounting bracket so the fan runs steadily. What it does:

• Holds the evaporator fan motor in the correct position to maintain steady rotation and consistent airflow across the evaporator coils.
• Prevents the motor from rubbing against the housing or fan blades, reducing noise and vibration.
• Common replacement when bracket is cracked, corroded, or bent — symptoms include noisy fan operation, intermittent fan movement, or reduced cooling performance.
• Restores proper motor alignment to help prevent premature motor wear.

• Always disconnect power to the appliance before beginning any repair.
• Remove the evaporator cover or access panel to reach the bracket; retain original mounting hardware unless replacements are provided.
• Ensure the fan blades spin freely and the motor is undamaged before reassembly; ensure the bracket seats securely and the fan does not contact the housing.
• If the motor or fan blade shows damage, replace those parts separately rather than relying on the bracket alone.

Keep the refrigerator's rear fan assembly secure and airflow on track with this fan orifice bracket. It supports the fan shroud/orifice so the motor and blade stay aligned, helping maintain proper cooling and reduce vibration.

• Secures the fan orifice/shroud to the machine-compartment frame
• Maintains correct fan motor and blade positioning for smooth operation
• Helps direct airflow through the condenser area for effective heat removal
• Typical symptoms of a failed bracket include rattling/buzzing from the back, a loose or wobbling fan assembly, reduced airflow, or warm temperatures

• Disconnect power and move the refrigerator to access the rear machine compartment
• Remove the rear access cover; support the fan motor/blade before loosening fasteners
• Transfer any reusable mounting hardware to the new bracket; align the orifice/shroud properly
• Ensure the fan spins freely and the assembly is secure before reinstalling the rear cover and restoring power

The Defrost Thermostat is an OEM part for GE refrigerators. This part monitors the temperature of the evaporator coil to ensure it remains within optimal operating limits. When the temperature gets too high, the defrost thermostat signals the defrost heater to activate, preventing ice buildup on the coils.

Common causes of failure include electrical malfunctions, wear and tear over time, or physical damage to the thermostat or its wiring.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup in the freezer
• The refrigerator running constantly or not maintaining the correct temperature
• Water leaks inside the refrigerator due to ice melting and refreezing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement edge trim piece that restores a clean, finished edge and helps protect cabinet or door surfaces from chips and wear. It improves the appearance and prevents edges from catching on seals or gaskets. What it does:

• Covers and protects exposed metal or plastic edges on appliance doors or panels
• Replaces cracked, split, or missing trim that can catch on clothing or seals
• Helps maintain a smooth sealing surface to reduce gaps or snags
• Restores finished appearance after damage or wear

• One edge trim piece as shown

• Remove any old adhesive or debris before installing for a secure fit
• Trim to length if required and press firmly into place; some installations use adhesive or snaps
• Wear gloves to avoid sharp edges during removal and installation
