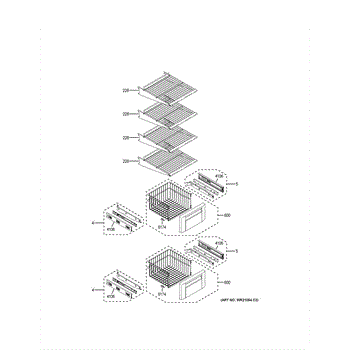

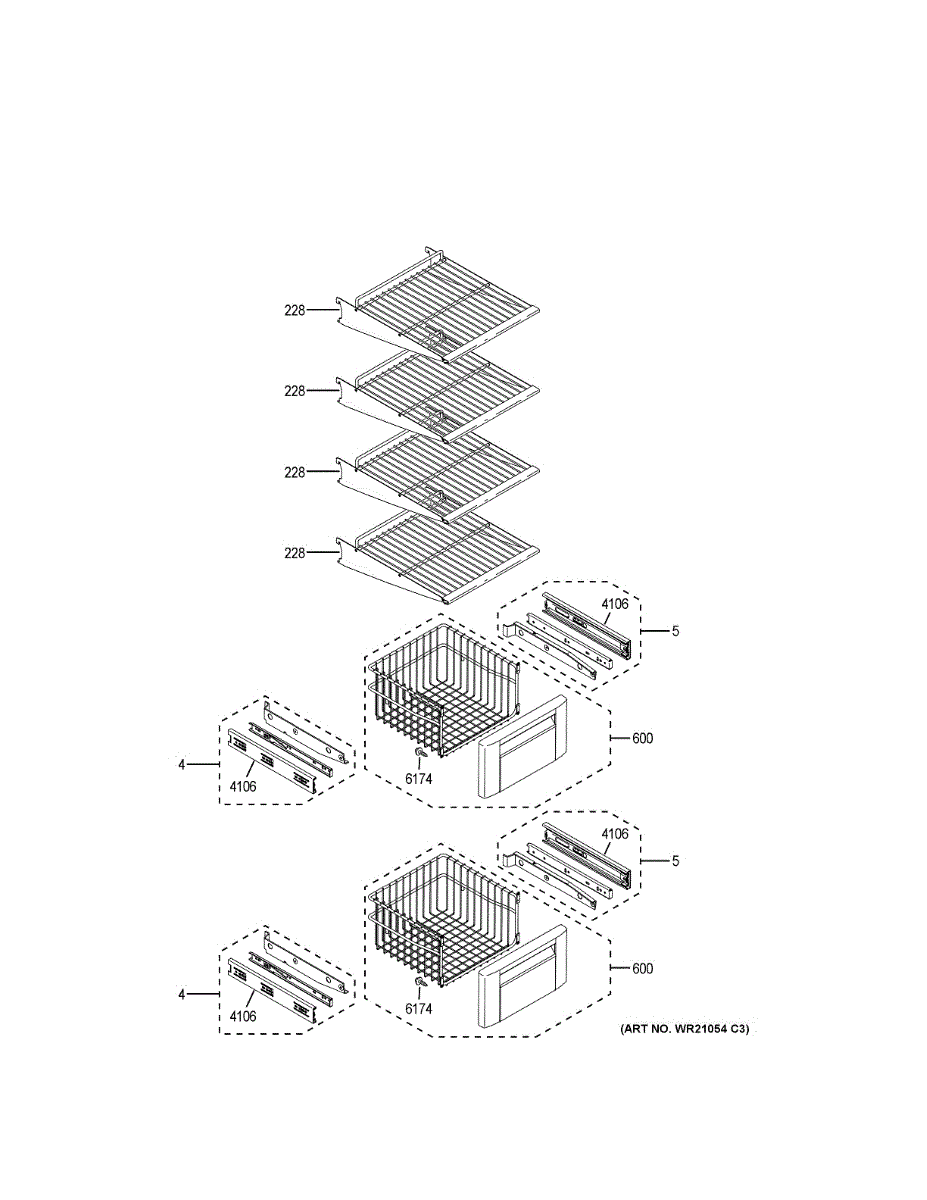

Parts for Ge CSB48WP2NCS1: Freezer Shelves Parts

This left-hand freezer slide assembly supports and guides the freezer drawer or basket so it opens and closes smoothly and stays aligned. Replacing a worn slide restores proper movement and helps ensure the drawer seals correctly.

• Supports the freezer drawer/basket on the left side
• Provides smooth sliding action for opening and closing
• Maintains alignment to help the freezer drawer seal properly
• Replaces a bent, damaged, or seized slide
• Symptoms include: hard-to-open/close drawer, binding or grinding, misalignment, or the drawer coming off track

• Disconnect power and remove contents from the freezer drawer
• Pull out and lift the drawer/basket to remove it from the slides
• Remove screws securing the left slide, position the new slide, and secure with existing hardware
• Reinstall the drawer/basket and check for smooth, even operation and proper closure

This right-hand freezer slide assembly mounts to the cabinet wall and provides the track and support for the freezer basket/drawer. Replacing a worn slide restores smooth travel and proper alignment so the drawer opens and closes easily.

• Supports and guides the freezer basket/drawer on the right side
• Helps keep the drawer level and on track for smooth operation
• Common symptoms: hard-to-open or sticking drawer, rough/grinding movement, sagging on the right side, or the drawer not closing fully
• Side-specific component for the right-hand side

• Unplug the refrigerator before servicing; remove food and the freezer basket/drawer
• Remove mounting screws/clips and slide out the old rail, noting orientation
• Position the new slide and secure with the original screws; do not overtighten
• Reinstall the basket/drawer and confirm smooth, level travel on both sides

This Slide Outer is the outer rail that supports and guides a refrigerator shelf/drawer, restoring smooth movement and proper alignment. It replaces a worn or broken outer slide to help shelves glide and stay level. What it does:

• Guides the shelf or drawer on one side and provides structural support during use
• Replaces a cracked, bent, or worn outer rail that causes sticking or uneven movement
• Helps restore proper alignment when a shelf tilts or binds while sliding
• Works with the matching inner slide and mounting hardware to enable smooth operation

• Disconnect power and empty the shelf/drawer before starting work
• Remove the shelf/drawer and any clips or screws holding the old slide; install in reverse order
• Use only the matching inner slide and hardware; fit before final assembly
• If mounting points are damaged, inspect cabinet/frame and replace as needed for secure installation

A 6 x 1/2 inch pan-head Phillips screw used to fasten panels, trim, brackets and small assemblies on appliances. Replacing worn or missing screws restores secure mounting and reduces vibration or rattling. What it does:

• Fastens panels, brackets and trim where a 6 x 1/2 in. pan-head Phillips screw is required.
• Stops loose or rattling parts caused by missing, stripped or corroded screws.
• Provides the correct head profile for a Phillips driver to allow proper torque and seating.
• Used in non-structural fastening points on appliances.

• Always disconnect power and unplug the appliance before beginning repairs.
• Use the correct-size Phillips screwdriver to avoid cam-out and head damage.
• Do not over-tighten; over-torquing can strip threads or deform mating parts.
• Inspect mating threads and replace damaged components before installation.
