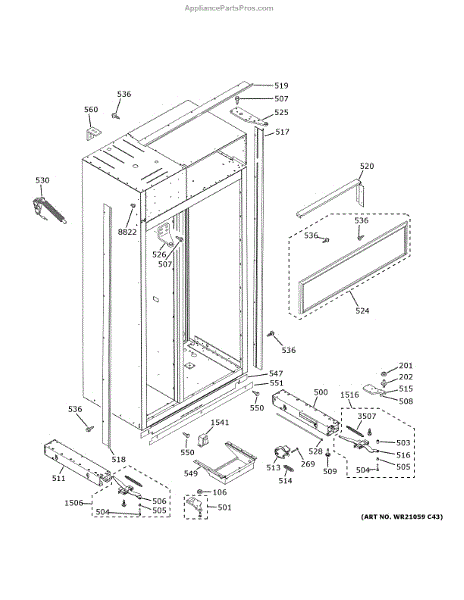

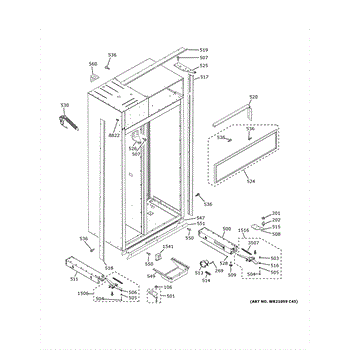

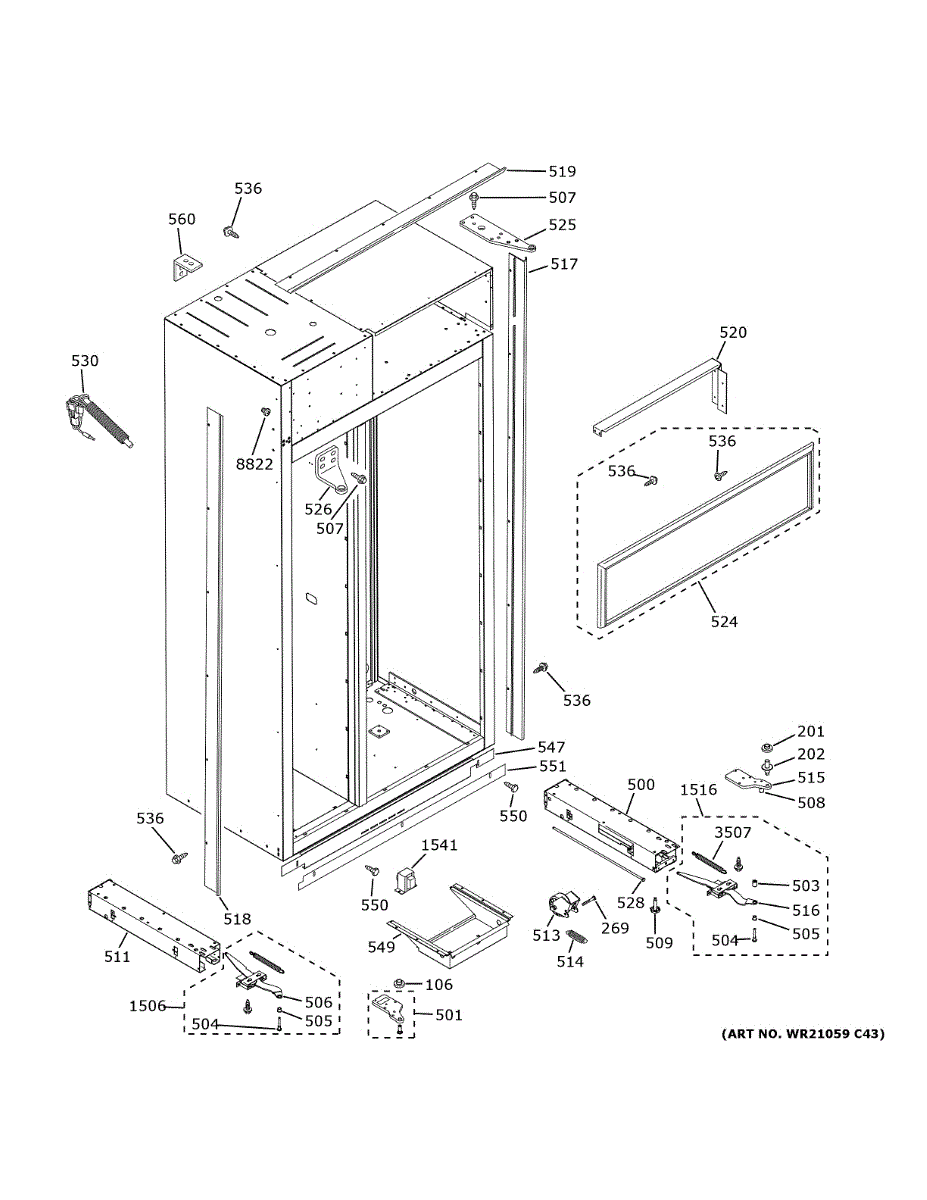

Parts for Ge CSB48WP2NCS1: Case Parts

This replacement freezer bottom hinge bushing helps the freezer door pivot smoothly and maintain proper alignment, reducing rubbing and uneven wear for more reliable closing. What it does:

• Provides a smooth pivot surface for the freezer bottom hinge
• Restores proper door alignment to help ensure a tight seal
• Reduces hinge noise, sticking, and rubbing during door movement
• Helps prevent premature wear of the hinge and door components

• One freezer bottom hinge bushing

• Disconnect power to the appliance and empty or support the door before starting
• Support the door while removing hinge fasteners to prevent falling or injury
• Inspect the hinge and shaft for wear; replace the hinge assembly if damaged
• Do not overtighten fasteners; test door operation after installation

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

This replacement key pivot is the small pivoting pin that supports the refrigerator/freezer door key or latch mechanism, restoring secure pivoting and smooth operation at the key location. A direct-fit OE-design replacement. What it does

• Provides the pivot point for the door/key mechanism so the key or latch rotates smoothly
• Restores proper alignment when the original pivot is worn, bent, or broken
• Helps prevent a loose or wobbly key or a latch that fails to engage
• Works as a simple, serviceable part of the door/lock assembly

• One key pivot

• Disconnect power to the appliance before beginning any repair
• Remove door trim or access panel as needed; keep small parts organized
• Replace the pivot and check movement; avoid forcing parts that do not align

This replacement bottom freezer hinge case secures the freezer door hinge to the cabinet, restoring proper door alignment and operation. Fits the factory hinge location to help stop door sagging and ensure a tight seal. What it does:

• Secures the bottom freezer hinge assembly to the cabinet frame
• Restores proper door alignment and prevents binding or uneven gaps
• Helps the door close fully to maintain proper temperature and seal
• Replaces damaged, cracked, or worn hinge mounting points

• Disconnect power to the appliance before beginning any repairs.
• Support or remove the freezer door per manufacturer instructions to avoid damage or injury.
• Inspect hinge hardware and replace any stripped screws or worn components as needed.
• Use proper tools and wear gloves to protect hands from sharp edges.

This nylon hinge arm secures and guides a refrigerator/freezer door, providing smooth pivoting and reliable door alignment to help prevent sagging and uneven seals. Durable nylon resists wear at hinge contact points. What it does:

• Supports the door at the hinge pivot to maintain proper alignment and sealing
• Reduces metal-on-metal wear by providing a low-friction contact surface
• Helps stop door sag and uneven closing that can lead to poor sealing
• Works with the hinge assembly to enable smooth opening and closing

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing or installing hinge components to prevent movement or injury
• Basic hand tools are typically required; avoid overtightening fasteners

This is a bottom door hinge screw that secures the lower hinge assembly to the appliance door, restoring proper alignment and stable door movement. Use it to replace stripped, missing, or damaged hinge hardware. What it does

• Secures the bottom hinge to the door and helps keep the door aligned and level.
• Restores smooth, consistent opening and closing when a worn or missing screw causes sagging or misalignment.
• Prevents further wear to hinge components by maintaining correct hinge positioning.
• Works with original hinge assemblies; use the correct screw to avoid loose or unstable doors.

• Disconnect power to the appliance before performing any door or hinge repairs.
• Support the door while removing/installing the hinge screw to prevent the door from falling or causing injury.
• Use the correct screwdriver or bit to avoid stripping the screw head.
• Replace any additional worn hinge hardware as needed for proper alignment.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

This OEM trim case fits the freezer side and restores the refrigerator's finished edge for a clean, factory look. It replaces cracked, dented or missing trim that can make the door look worn or sit unevenly. What it does:

• Provides the finished exterior trim along the freezer-side door edge for a factory appearance
• Covers and protects the door edge and underlying components from everyday damage
• Helps maintain proper door alignment by restoring the door's original fit and trim
• Commonly replaced when trim is cracked, chipped, bent or missing

• One side trim case (freezer side)

• For most installs you'll remove the door trim or door assembly; follow your model's service instructions
• Use proper hand tools and keep fasteners in a safe place for reassembly
• Disconnect power to the appliance or unplug the refrigerator before performing service
• Wear gloves to avoid sharp edges and protect the new trim from scratches during installation

This is the upper case hinge that secures and lets the refrigerator/freezer door pivot smoothly, restoring correct door alignment and sealing. Durable, direct-fit replacement for the refrigerator upper door hinge. What it does

• Supports the top of the door and provides the pivot point for opening and closing
• Keeps the door aligned to maintain a proper seal and even closing
• Replaces a cracked, bent, or worn hinge that can cause door sag or rubbing
• Works with the existing hinge pin and mounting hardware when in good condition

• One upper case hinge

• Unplug the appliance or turn off power before starting work
• Support the door while removing and installing the hinge to prevent drop or damage
• Reuse original screws and hinge pin if undamaged; replace any stripped hardware
• After installation, check door alignment and seal; adjust as needed for even gaps

This 8-32 x 5/8" Phillips screw is a stainless steel fastener used to secure panels and components in appliances. It resists corrosion and provides a reliable, low-profile Phillips head fastening solution. What it does:

• Fastens panels, brackets and trim where an 8-32 x 5/8" screw is specified
• Stainless steel construction helps resist rust in humid or food-prep environments
• Phillips head accepts standard drivers for quick, positive installation
• Replaces worn or stripped fasteners that cause loose or rattling parts

• One 8-32 x 5/8" Phillips stainless steel screw

• Unplug the appliance or disconnect power before beginning work
• Use a properly sized Phillips screwdriver to avoid cam-out or stripping
• Tighten until snug; avoid over-tightening which can strip threads or crack plastics

This tray transformer is the low-voltage power converter used with the warming tray assembly. It provides the control voltage needed for the tray's control circuit so the tray can heat and operate reliably. What it does:

• Converts incoming appliance power to the low-voltage supply used by the tray control circuit
• Enables the warming tray to reach and maintain heat when functioning correctly
• Failing part can cause the tray to not heat, heat intermittently, or controls to be unresponsive
• Helps protect control electronics by providing the required voltage for proper operation

• One tray transformer assembly (single unit)

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle wiring carefully; match connector orientation and secure all fasteners

Has 3 mounting slots for adjustability. Works with toe kick WR74X35045 which has 3 round mounting holes.

This replacement link actuator controls the freezer linkage assembly to restore proper door/damper movement and component alignment. It's a direct-fit OEM-design part for affected GE refrigerators, helping stop sticking or misaligned freezer linkages. What it does:

• Engages the freezer linkage to move the damper/door linkage as intended
• Restores smooth movement when a frozen or stiff linkage causes binding
• Helps correct intermittent operation or noisy linkage movement
• Prevents further wear by replacing a worn or broken actuator

• One link actuator

• Disconnect power to the appliance before starting work
• Basic hand tools are typically required; remove any panels blocking access
• Handle the actuator and linkage gently to avoid damaging plastic gears or tabs
• Verify proper operation after installation; do not force parts into place

This LED transformer supplies low-voltage power for your refrigerator's interior lighting. Replacing the transformer can restore consistent illumination when the doors open.

• Steps down line voltage to the proper low voltage for the refrigerator's LED light modules
• Provides stable power for consistent brightness across multiple lamps
• Failure symptoms include interior lights that are dim, flicker, strobe, or stay off
• Often multiple or all lights go out at once when this power component fails

• Disconnect power to the appliance before servicing
• Location varies by model; access the module behind the appropriate cover or panel
• Move connectors one at a time to the new transformer, matching orientation
• Route wiring away from sharp edges and moving parts; test lighting before reassembly

The Spring Closure is an OEM part for GE refrigerators. This spring aids in the automatic closing of the refrigerator door, ensuring it seals tightly after each use to maintain optimal internal temperatures.

Causes of a bad spring closure can include regular wear and tear, corrosion due to moisture, or accidental damage that compromises its function.

Symptoms of a bad spring closure include:

• The refrigerator door not closing completely or staying ajar
• Difficulty in opening or closing the door smoothly
• Increased energy consumption as cold air escapes
• Frost buildup around the door seal area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A single replacement screw used to secure appliance panels, trim, and internal brackets so components stay aligned and reduce rattling. Simple, direct-fit fastener for restoring proper mounting and stable operation. What it does:

• Secures panels, mounting brackets, trim pieces and other appliance components
• Helps stop rattling, vibration, or loose panels caused by missing or stripped fasteners
• Restores proper alignment of doors and access panels when original screw is lost or damaged
• Matches the OEM fastening point for a straightforward hardware replacement

• Disconnect power to the appliance before working on electrical components or access panels
• Use the correct screwdriver to avoid stripping the head; match drive type to the screw
• Tighten firmly but do not overtighten—stop when snug to avoid damaging threads or parts
• Keep removed fasteners organized and compare with the replacement to ensure correct fit
