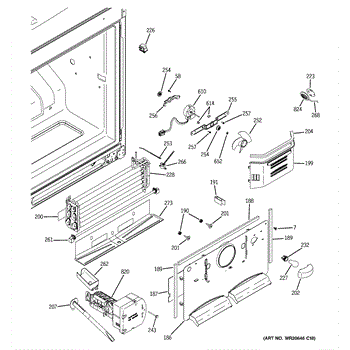

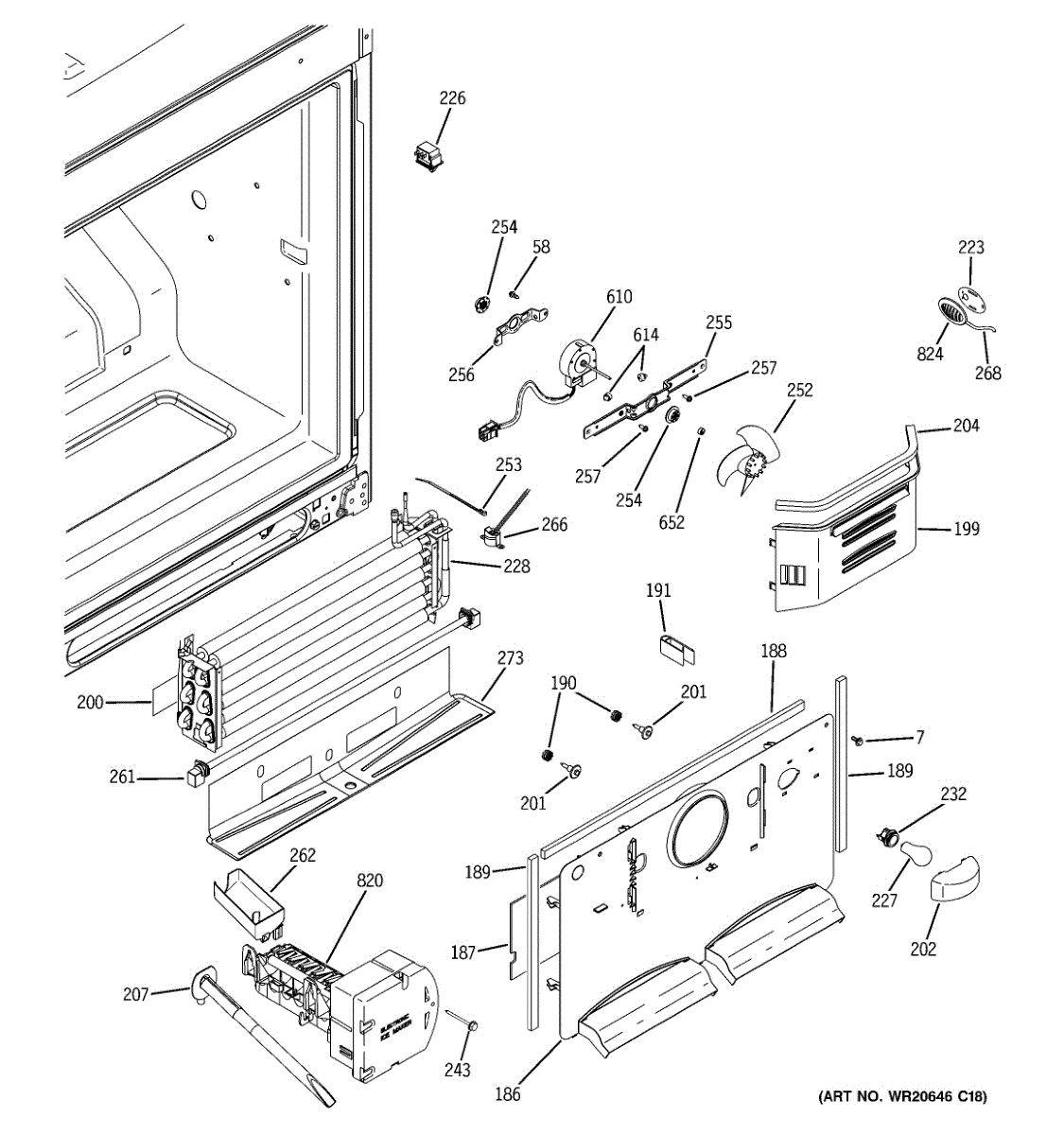

Parts for Ge PFSF0MFCABB: Freezer Section Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

8-18 CA HX 1/2 S

This self-adhesive foam strip replaces worn or missing foam used to seal gaps and reduce vibration in refrigerators and freezers. It helps improve insulation and quiet operation by filling small openings where air or moisture can pass. What it does:

• Provides a compressible seal to reduce air leaks that can cause frost buildup or uneven cooling
• Dampens vibration and rattling between panels or trim pieces
• Helps block dust and moisture from entering cabinet seams
• Can restore proper door and panel contact where original foam has deteriorated

• Unplug the appliance before starting any repair
• Clean and dry the mounting surface; remove backing and press strip firmly in place
• Trim to fit with scissors or utility knife as needed; avoid stretching the foam
• Only replace foam where original is missing or damaged; follow OEM placement for best seal

A self-adhesive foam strip that cushions gaps and seals edges to reduce air leaks, vibration, and moisture intrusion. Simple peel-and-stick design makes it a fast way to restore proper sealing and quiet operation. What it does

• Creates a soft seal along doors, panels or trim to help stop cold air loss and drafts.
• Dampens vibration and rattles caused by loose or worn mounting surfaces.
• Helps block dust and moisture from entering seams and crevices.
• Works where a thin, compressible filler is needed for a snug fit.

• Clean and dry the mounting surface thoroughly before installation for best adhesion.
• Measure and trim foam to fit; peel backing and press firmly to adhere along the entire length.
• Avoid stretching the foam during installation; allow adhesive to set before regular use.
• If adhesive residue remains on hands or surfaces, use a mild solvent per manufacturer guidance.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

The Defrost Thermostat is an OEM part for GE refrigerators. It plays a crucial role in the defrost system by monitoring the temperature of the evaporator coil and ensuring that it stays within the optimal range to prevent frost buildup.

Over time, the defrost thermostat can fail due to normal wear and tear, electrical issues, or exposure to moisture. If the thermostat is not functioning correctly, it can lead to excessive frost buildup or the refrigerator not defrosting properly.

Symptoms of a bad defrost thermostat include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer not cooling efficiently
• The defrost heater not activating
• Unusual temperatures in the refrigerator or freezer compartments

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Evaporator Fan Motor is an OEM part for GE refrigerators. This motor is responsible for circulating air over the evaporator coils, which are crucial for maintaining the desired temperature inside the refrigerator compartment.

Symptoms of a bad evaporator fan motor:

• Inadequate cooling or temperature fluctuations
• Loud or unusual noises coming from the refrigerator
• Ice buildup or frost accumulation on the evaporator coils
• The fan not running or rotating properly

Causes of a faulty evaporator fan motor can include general wear and tear over time, dust or debris buildup inhibiting proper operation, or electrical issues such as short circuits or faulty wiring.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This grille sensor is the temperature-sensing probe that monitors heat in the appliance grille area to help controls regulate cooking temperature and safety features. It provides accurate feedback so the oven or grill can maintain set temperatures. What it does:

• Senses temperature in the grille/grill area and sends readings to the control board
• Helps the appliance maintain consistent cooking or broiling temperatures
• Can cause temperature-related errors or inconsistent heating when failed
• Common symptom: oven or broil function runs too hot, too cool, or shows error codes related to temperature sensing

• One grille sensor

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle the sensor carefully; avoid bending or contaminating the sensing tip
• Route and secure the sensor wiring as OEM designed to prevent heat or pinch damage
