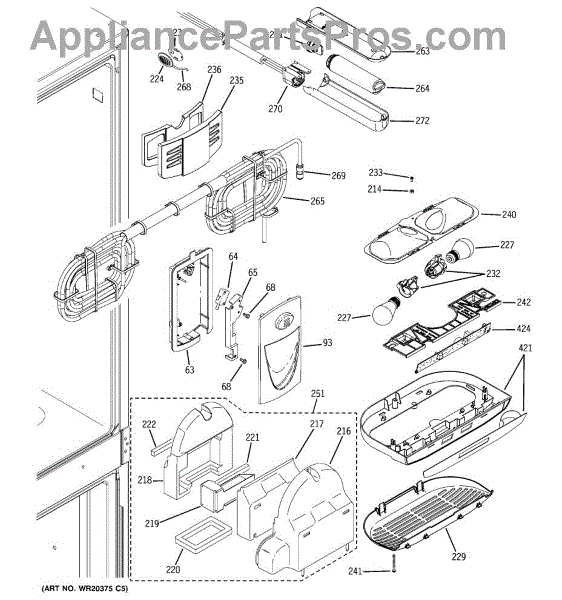

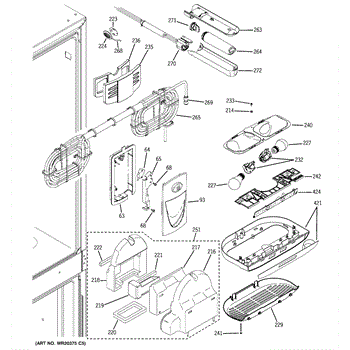

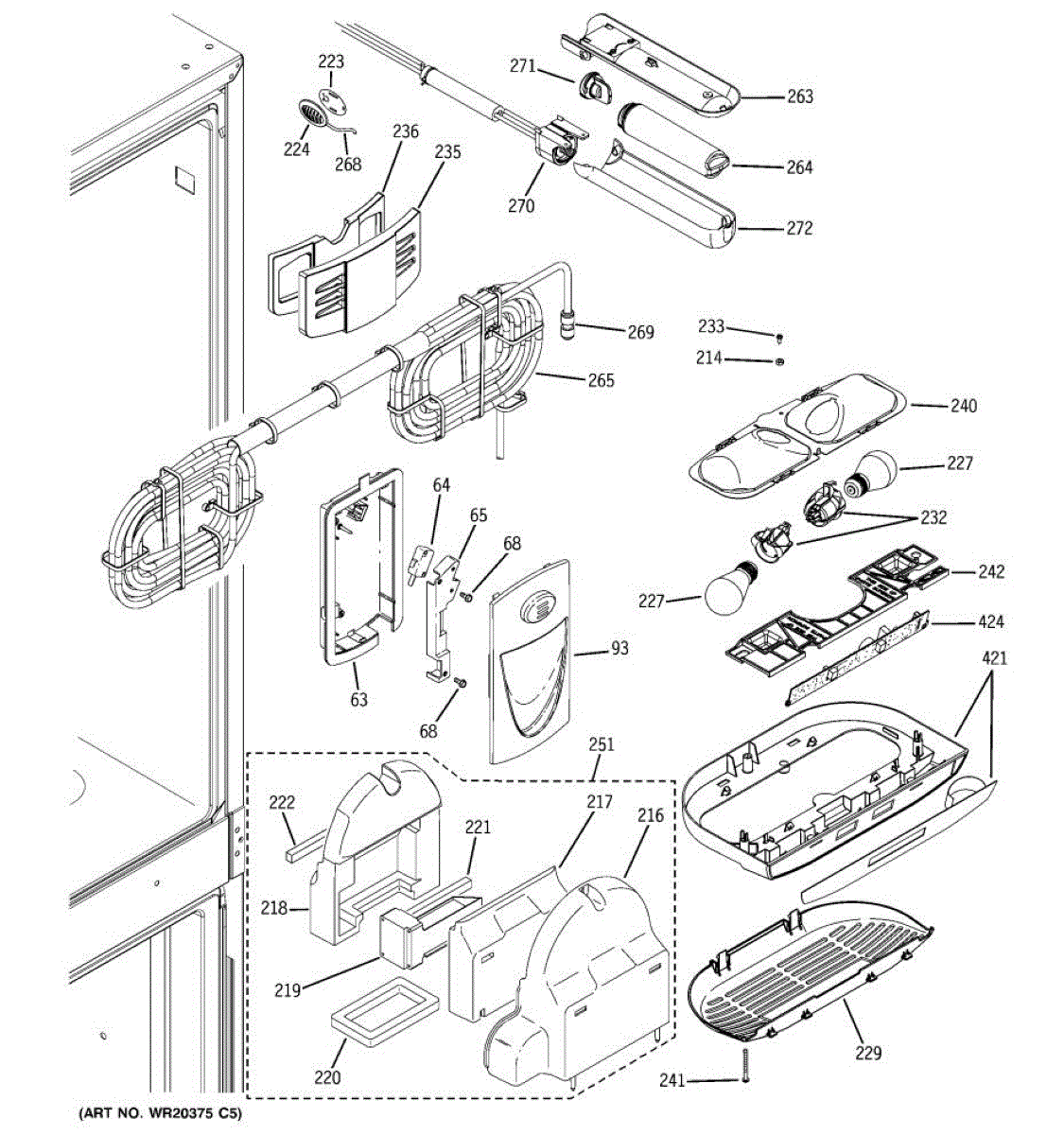

Parts for Ge CFCP1NIXCSS: 04 - Fresh Food Section Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This refrigerator switch actuator is the small linkage that presses a microswitch when the matching lever or door moves. Replacing a worn or broken actuator helps restore reliable response when you press the control or close the door.

• Engages the microswitch when the associated lever or mechanism is pressed
• Transfers motion from the user control to trigger the intended function
• Helps maintain proper alignment for consistent switch engagement
• Common clues it's failing: no response unless pressed hard, intermittent operation, or visible damage/missing piece

• Disconnect power to the refrigerator before servicing; also turn off the water supply
• Note the actuator's orientation and take a quick photo before removal
• Use small tools to release locking tabs; avoid prying against the microswitch or wiring
• After installation, manually press the actuator to confirm the switch clicks and responds before reassembly

This 6-22 pan head Phillips screw (3/8 in) secures panels and trim on compatible appliances, providing a reliable fastener replacement for loose or missing hardware. It's a small but essential part for stable assembly. What it does:

• Fastens panels, brackets, trim, and light housings in appliance assemblies
• Restores secure mounting when screws are missing, stripped, or worn
• Reduces rattling, movement, or gaps caused by loose fasteners
• Matches common 6-22 thread applications found on many appliance components

• Turn off and unplug the appliance before replacing hardware to avoid injury
• Use a correctly sized Phillips screwdriver to avoid stripping the head
• Inspect mating threads or inserts for damage; replace damaged inserts before installing
• Tighten securely but avoid over-torquing, which can strip threads or crack plastic

The Dispenser Assembly is an OEM replacement part for GE refrigerators. This actuator is responsible for controlling the functions of the refrigerator's dispenser, allowing you to dispense water or ice.

A bad dispenser actuator assembly can occur due to wear and tear, damage, or component failure over time. If you notice symptoms such as the dispenser not responding to your input, loose or wobbly movement of the actuator, or the dispenser not dispensing water or ice properly, it may indicate a need to replace the actuator assembly.

Symptoms of a bad dispenser actuator assembly include:

• Unresponsive dispenser
• Loose or wobbly actuator movement
• Improper dispensing of water or ice

Restore your refrigerator's dispenser by replacing the faulty dispenser actuator assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement air tower assembly is the vertical duct that channels chilled air through the refrigerator compartment. Replacing a damaged tower restores proper airflow to help maintain even temperatures and consistent cooling from top to bottom.

• Directs cold air from the evaporator to vents in the fresh food section
• Helps balance temperatures and reduce warm spots
• Often replaced when the original is cracked, broken, or warped
• Common symptoms: weak airflow from refrigerator vents and uneven cooling in the fresh food compartment

• Disconnect power to the refrigerator before servicing.
• Remove shelves and bins for access; release tabs or remove screws securing the old tower.
• Transfer any clips or sensors from the original, if present; seat and secure the new tower.
• Restore power and verify airflow from the vents.

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This light shield is the clear cover over the fresh food compartment light. It diffuses brightness and protects the bulb or LED from bumps, restoring even illumination and a finished look inside your refrigerator.

• Covers and protects the fresh food compartment light assembly
• Diffuses light to reduce glare and hot spots
• Replaces a cracked, yellowed, loose, or missing light cover/lens
• Helps the lens stay secured when original tabs are broken

What's included: One light shield for the fresh food compartment. Install notes:

• Unplug the refrigerator or switch off power before service
• Allow the lamp to cool; remove shelves for access if needed
• Release retaining tabs or hardware, noting the shield's orientation
• Seat the new shield fully; avoid forcing tabs or overtightening hardware

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vertical vent duct directs internal airflow inside the cabinet to help maintain consistent temperatures and proper circulation. It replaces a cracked, warped or missing duct to restore designed airflow paths and reduce uneven cooling. What it does:

• Channels cold air between compartments to support even cooling and freezing
• Prevents air leaks that can cause warm spots or extra run time
• Helps maintain proper defrost and frost patterns when installed correctly
• Reduces noise from rattling or vibrating panels if damaged ducts are secured

• Disconnect power to the appliance before starting any repair
• Remove shelves, panels or evaporator cover as needed to access the old duct
• Inspect adjacent seals and fasteners; replace damaged clips or gaskets for best fit
• Reassemble panels securely and test operation; for model-specific instructions

This replacement air tower assembly is the vertical duct that channels chilled air through the refrigerator compartment. Replacing a damaged tower restores proper airflow to help maintain even temperatures and consistent cooling from top to bottom.

• Directs cold air from the evaporator to vents in the fresh food section
• Helps balance temperatures and reduce warm spots
• Often replaced when the original is cracked, broken, or warped
• Common symptoms: weak airflow from refrigerator vents and uneven cooling in the fresh food compartment

• Disconnect power to the refrigerator before servicing.
• Remove shelves and bins for access; release tabs or remove screws securing the old tower.
• Transfer any clips or sensors from the original, if present; seat and secure the new tower.
• Restore power and verify airflow from the vents.

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

The Single Coil Water Tank is an OEM replacement part for GE refrigerators. This component stores and cools water before dispensing it, ensuring a refreshing supply of chilled water on demand. Its design allows it to fit seamlessly within the refrigerator’s water system.

Over time, the water tank can develop leaks, cracks, or clogs due to sediment buildup, freezing, or normal wear and tear. These issues can compromise the water flow or lead to contamination.

Symptoms of a bad water tank include:

• Leaks around the refrigerator
• Water dispenser not functioning properly
• Odd taste or odor in the dispensed water
• Reduced water flow or inconsistent dispensing

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Filter Housing and Tube Assembly is an OEM part for GE refrigerators. This assembly is responsible for securely holding the water filter in place while directing water through the filter and into the dispenser or ice maker. Approximate dimensions: 18" x 14.7" x 3.3"

Over time, the water filter housing and tube assembly can become damaged due to regular use, exposure to high water pressure, or mineral deposits building up inside the tubes. Such damage may lead to leaks or reduced water flow, affecting the performance of the refrigerator's water and ice systems.

Symptoms of a faulty water filter housing and tube assembly include:

• Water leaks around the filter area
• Low water flow to the dispenser or ice maker
• Difficulty installing or removing the water filter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement filter bypass adapter lets a refrigerator water line run without a filter cartridge installed, providing a secure connection so the dispenser and ice maker can continue to get water when a filter is removed. What it does:

• Replaces the filter cartridge with a sealed bypass so water flows through the housing without a filter element
• Restores normal dispenser and ice maker flow after removing or bypassing a cartridge
• Prevents leaks at the filter housing when a cartridge is not installed
• Useful when using an alternate filtration system or awaiting a replacement cartridge

• Shut off the water supply and run the dispenser until flow stops before starting
• Remove the old filter or cartridge per the owner's manual, then install the bypass in the same orientation
• Inspect the housing O-ring and replace if damaged to ensure a tight seal

Approximate dimensions: 15.3" x 4" x 4"

This refrigerator temperature control board regulates cooling by reading sensor inputs and directing the compressor, fans, and defrost cycle. Replacing a failed board helps restore accurate temperatures and responsive controls.

• Monitors temperature sensors and maintains set points
• Controls the compressor, fans, and defrost cycle as designed
• Interfaces with the temperature buttons/display where equipped
• A failing board can cause drifting temps or no cooling, unresponsive controls, or intermittent cycling

• Disconnect power before servicing and verify no voltage is present
• Use ESD protection; handle the board by the edges only
• Photograph wiring; move keyed connectors one at a time and seat fully
• After installation, restore power and allow up to 24 hours for temperatures to stabilize; follow any model-specific setup on the service sheet
