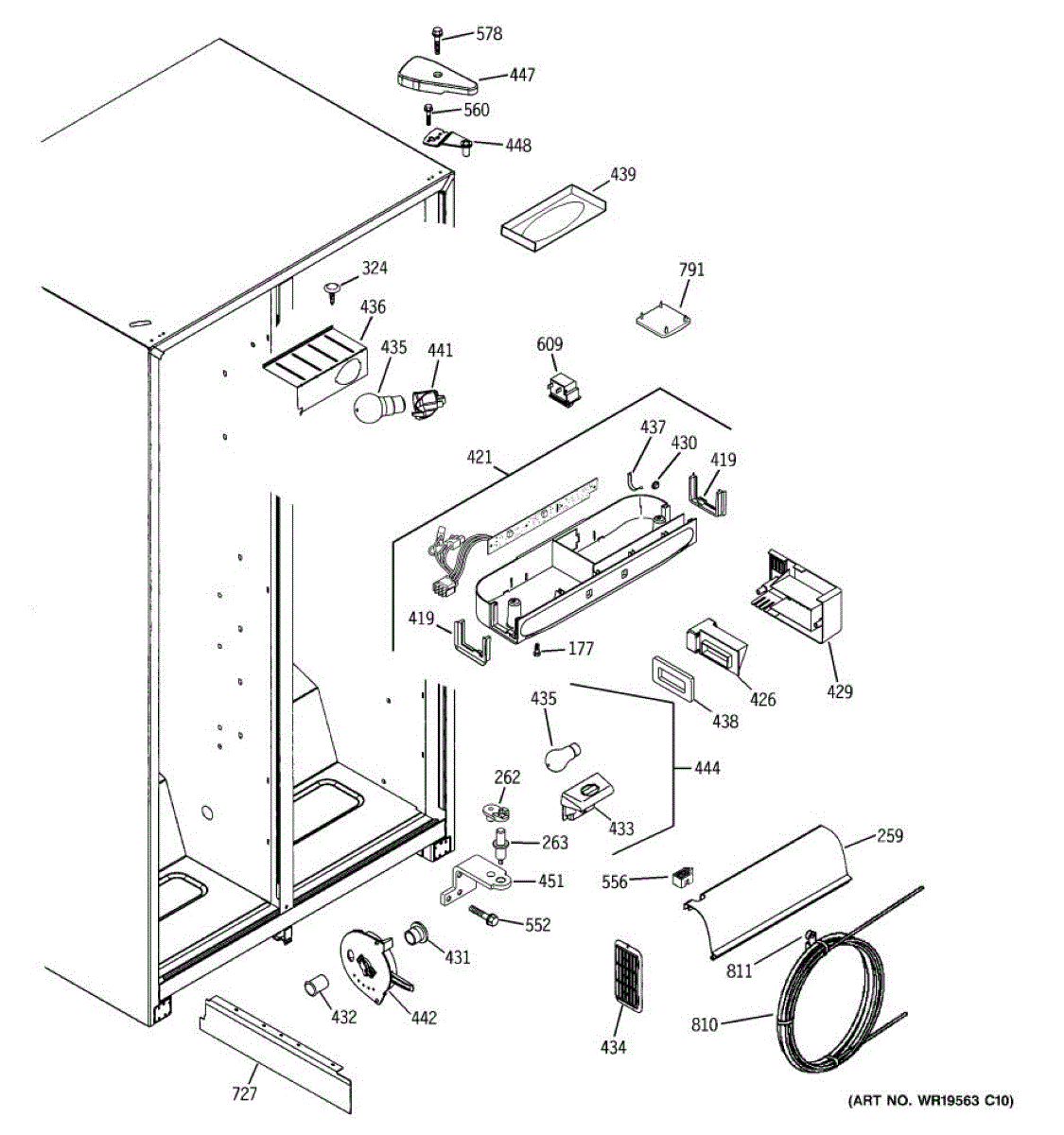

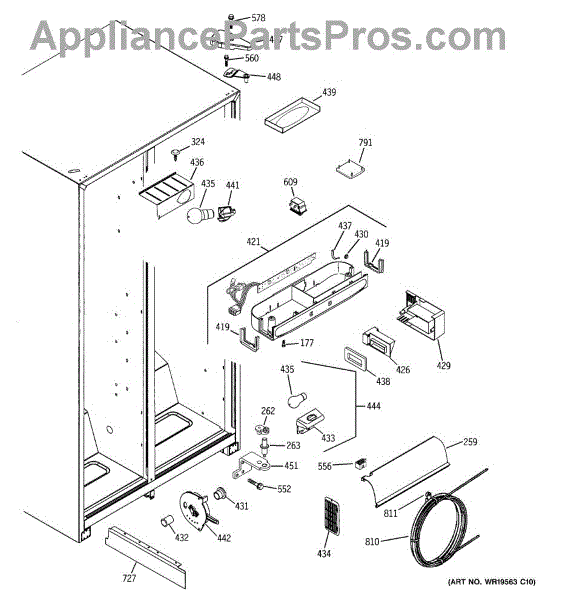

Parts for Ge PSA22MIPHFBB: 06 - Fresh Food Section Parts

This in-line water filtration system reduces water contaminants and improves taste of drinking water and ice. Reduces the taste and odor of chlorine through high quality carbon block media without removing minerals beneficial to your health. The filter should be replaced every six months or 300 galleons for best performance. The Quick Connect feature makes filter replacement fast and easy. Flow rate: 0.5 gpm/1.9 lpm. 1/4" quick connect fittings on both ends.

This lower light shield is the clear lens that covers the lower refrigerator lamp, diffusing brightness and protecting the bulb from contact. Replace a cracked, missing, or yellowed cover to restore even lighting and a clean, finished look.

• Diffuses the lower compartment light for softer, more even illumination
• Acts as a barrier to help prevent accidental contact with the bulb and splashes
• Replace if the cover is cracked, discolored, warped, missing, or won't stay secured
• Installs over the lower light using the appliance's existing tabs or screws

• Disconnect power to the refrigerator before servicing
• Allow the bulb to cool before handling the lens
• Release retaining tabs or remove screws carefully; avoid over-flexing the plastic
• When reinstalling, do not overtighten to prevent cracking the shield

The Lower Cam Riser is an OEM replacement part for GE refrigerators. It is located at the bottom hinge of the refrigerator door. The cam riser aids in the smooth opening and closing of the door, lifting it slightly as it swings open and allowing it to settle securely when closed.

Causes for a malfunctioning Lower Cam Riser can include wear and tear from the regular opening and closing of the refrigerator door, mechanical damage, or issues arising from a misaligned door that adds stress to the cam.

Symptoms of a bad Lower Cam Riser include:

• Difficulty in opening or closing the refrigerator door
• A sagging door that doesn’t align properly with the frame
• Unusual noises, such as grinding or clicking, during door operation
• Wear or damage visible on the cam

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Damper and Gasket Assembly is an OEM replacement part for GE refrigerators. It includes a moving damper plate that regulates airflow through vents, as well as its surrounding sealing gasket.

Symptoms of a bad assembly include:

• Inability to maintain proper internal temperatures
• Frost or condensation buildup inside from restricted airflow
• Odors or flavors transferring between compartments
• Noisy ventilation from a loose damper plate

Causes of a bad assembly can be worn over extended use, cracks forming in the damper component itself, or a degraded gasket failing to seal properly.

This genuine GE replacement is compatible with additional GE refrigerator brands including Hotpoint and RCA.

This mullion duct cap closes and protects the end of the refrigerator mullion air duct, helping maintain directed airflow and a finished appearance on the door jamb. It replaces a cracked or missing end cap to reduce drafts and keep the duct sealed. What it does:

• Caps and protects the open end of the mullion air duct to preserve airflow routing
• Helps prevent air leakage that can contribute to uneven cooling or frost buildup near the door
• Restores a clean, finished look to the door mullion area
• Keeps debris and moisture out of the duct to reduce odors and buildup

• One mullion duct end cap

• Disconnect power to the appliance before beginning any work
• Typically installs by snapping or sliding into the duct end; use moderate force and avoid prying with metal tools
• Inspect surrounding trim and fasteners and replace any damaged clips as needed

The Bulb Light is an OEM part for GE refrigerators. It is designed to illuminate the interior of the refrigerator and freezer compartments, making it easier to see and access food items. This light bulb fits securely into the designated socket and provides bright, reliable lighting to enhance visibility.

You should replace the bulb light if it burns out or becomes damaged. Causes of a bad bulb light can include regular wear and tear, electrical issues, or physical damage from impacts or vibrations. A faulty bulb can leave the refrigerator compartments dim or completely dark, making it difficult to find items.

Symptoms of a bad bulb light include:

• The light not turning on when the refrigerator door is opened
• Flickering or intermittent lighting
• A visibly burned-out or broken bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This damper gasket seals the refrigerator air damper opening between the freezer and fresh food compartments to prevent air leaks and help maintain stable temperatures. A new seal supports proper airflow and helps reduce moisture or frost near the damper. What it does:

• Seals the perimeter of the air damper/baffle to prevent bypass air leaks
• Helps regulate airflow from freezer to refrigerator for consistent cooling
• Wear, flattening, or tears can lead to warm spots in the fresh food section
• May also contribute to condensation, frost, or whistling/draft at the damper cover

• 1 damper gasket

• Unplug the refrigerator before servicing
• Remove the interior damper cover/grille to access the damper; note gasket orientation
• Seat the new gasket evenly around the damper frame without stretching or twisting
• Reinstall cover, restore power, and verify airflow and door sealing

Black

12-24 TT HX .811

Harness to corset & shifter

12-24 CA HX 7/8 S

This hinge cover screw fastens the hinge cover in place, helping keep it secure and protecting the hinge components beneath. Replace a missing or stripped screw to stop the cover from loosening or rattling.

• Secures the hinge cover to the door/cabinet hinge
• Helps protect hinge hardware and wiring under the cover
• Replaces stripped, rusted, or missing hardware
• Common symptoms: loose or missing hinge cover, vibration or rattling at the hinge area

• Disconnect power to the appliance before servicing near the hinge area
• Use the correct screwdriver; start threads by hand to avoid cross-threading
• Align the cover properly and tighten snugly—do not overtighten to prevent stripping
• Keep the door closed during work to minimize movement

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A direct-replacement hi side air separator that helps remove trapped air from the appliance high-side fluid line to restore steady flow and reliable performance. Replaces a worn or clogged separator to address flow interruptions and noise. What it does:

• Separates trapped air from the high-side fluid line so the system can maintain proper flow
• Helps reduce symptoms like intermittent flow, sputtering or aerated output, and unusual operational noise
• Restores consistent performance when a damaged or blocked separator is the cause
• Works as a direct-fit replacement when the OEM separator has failed

• One hi side air separator

• Disconnect power to the appliance before starting any work
• Shut off water or service valves as applicable and relieve system pressure per manufacturer instructions
• Inspect surrounding fittings and seals; replace any damaged components to prevent leaks

The cold water reservoir is an OEM replacement part for GE refrigerators. It serves a dual purpose, holding the supply of cold water needed for both the ice maker and water dispensing functions. This ensures that each ice cube is formed from chilled water and that cold water is always ready to be dispensed.

Causes of a bad reservoir can include cracks, fractures, or leaks developing in the plastic over time due to repeated filling and draining. Mineral deposits or contamination of the water supply can also compromise performance.

Symptoms of an issue include:

• Inability to fill with water or retain water levels
• Leaking water inside the refrigerator
• Irregular or inconsistent ice production

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
