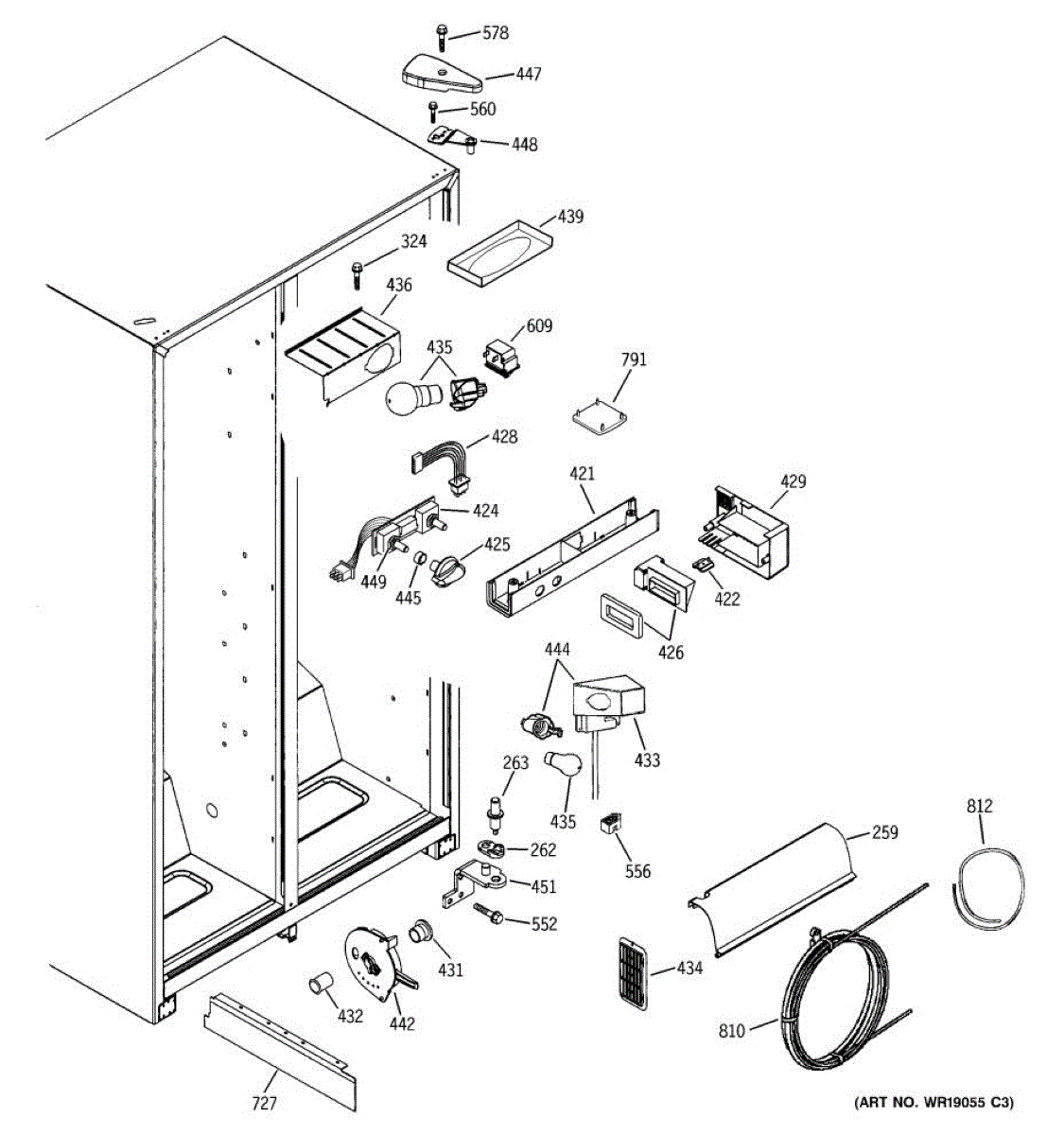

Parts for Ge PSA22SIMCFBS: 06 - Fresh Food Section Parts

This in-line water filtration system reduces water contaminants and improves taste of drinking water and ice. Reduces the taste and odor of chlorine through high quality carbon block media without removing minerals beneficial to your health. The filter should be replaced every six months or 300 galleons for best performance. The Quick Connect feature makes filter replacement fast and easy. Flow rate: 0.5 gpm/1.9 lpm. 1/4" quick connect fittings on both ends.

This lower light shield is the clear lens that covers the lower refrigerator lamp, diffusing brightness and protecting the bulb from contact. Replace a cracked, missing, or yellowed cover to restore even lighting and a clean, finished look.

• Diffuses the lower compartment light for softer, more even illumination
• Acts as a barrier to help prevent accidental contact with the bulb and splashes
• Replace if the cover is cracked, discolored, warped, missing, or won't stay secured
• Installs over the lower light using the appliance's existing tabs or screws

• Disconnect power to the refrigerator before servicing
• Allow the bulb to cool before handling the lens
• Release retaining tabs or remove screws carefully; avoid over-flexing the plastic
• When reinstalling, do not overtighten to prevent cracking the shield

This encoder board assembly interprets user input from the range/oven control console and sends the correct signals to the appliance control system, restoring reliable button/knob response and control selection behavior. What it does:

• Converts knob/button movements into electronic signals the main control can read
• Helps ensure accurate selection of temperature, modes and timers
• Common symptom: controls are unresponsive or selections don't register
• Common symptom: erratic or intermittent control behavior when using the console

• Disconnect power at the breaker before starting any work
• Handle the board carefully and avoid static discharge; ground yourself or use an anti-static strap
• Keep track of screws and mounting hardware; label harnesses or take photos before disconnecting
• Reconnect harnesses fully and test function before reassembling the console

This damper gasket seals the refrigerator air damper opening between the freezer and fresh food compartments to prevent air leaks and help maintain stable temperatures. A new seal supports proper airflow and helps reduce moisture or frost near the damper. What it does:

• Seals the perimeter of the air damper/baffle to prevent bypass air leaks
• Helps regulate airflow from freezer to refrigerator for consistent cooling
• Wear, flattening, or tears can lead to warm spots in the fresh food section
• May also contribute to condensation, frost, or whistling/draft at the damper cover

• 1 damper gasket

• Unplug the refrigerator before servicing
• Remove the interior damper cover/grille to access the damper; note gasket orientation
• Seat the new gasket evenly around the damper frame without stretching or twisting
• Reinstall cover, restore power, and verify airflow and door sealing

The Refrigerator Damper and Gasket Assembly is an OEM replacement part for GE refrigerators. It includes a moving damper plate that regulates airflow through vents, as well as its surrounding sealing gasket.

Symptoms of a bad assembly include:

• Inability to maintain proper internal temperatures
• Frost or condensation buildup inside from restricted airflow
• Odors or flavors transferring between compartments
• Noisy ventilation from a loose damper plate

Causes of a bad assembly can be worn over extended use, cracks forming in the damper component itself, or a degraded gasket failing to seal properly.

This genuine GE replacement is compatible with additional GE refrigerator brands including Hotpoint and RCA.

This mullion duct cap closes and protects the end of the refrigerator mullion air duct, helping maintain directed airflow and a finished appearance on the door jamb. It replaces a cracked or missing end cap to reduce drafts and keep the duct sealed. What it does:

• Caps and protects the open end of the mullion air duct to preserve airflow routing
• Helps prevent air leakage that can contribute to uneven cooling or frost buildup near the door
• Restores a clean, finished look to the door mullion area
• Keeps debris and moisture out of the duct to reduce odors and buildup

• One mullion duct end cap

• Disconnect power to the appliance before beginning any work
• Typically installs by snapping or sliding into the duct end; use moderate force and avoid prying with metal tools
• Inspect surrounding trim and fasteners and replace any damaged clips as needed

The Bulb Light is an OEM part for GE refrigerators. It is designed to illuminate the interior of the refrigerator and freezer compartments, making it easier to see and access food items. This light bulb fits securely into the designated socket and provides bright, reliable lighting to enhance visibility.

You should replace the bulb light if it burns out or becomes damaged. Causes of a bad bulb light can include regular wear and tear, electrical issues, or physical damage from impacts or vibrations. A faulty bulb can leave the refrigerator compartments dim or completely dark, making it difficult to find items.

Symptoms of a bad bulb light include:

• The light not turning on when the refrigerator door is opened
• Flickering or intermittent lighting
• A visibly burned-out or broken bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

12-24 TT HX .811

Harness to corset & shifter

12-24 CA HX 7/8 S

Package of 12

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A direct-replacement hi side air separator that helps remove trapped air from the appliance high-side fluid line to restore steady flow and reliable performance. Replaces a worn or clogged separator to address flow interruptions and noise. What it does:

• Separates trapped air from the high-side fluid line so the system can maintain proper flow
• Helps reduce symptoms like intermittent flow, sputtering or aerated output, and unusual operational noise
• Restores consistent performance when a damaged or blocked separator is the cause
• Works as a direct-fit replacement when the OEM separator has failed

• One hi side air separator

• Disconnect power to the appliance before starting any work
• Shut off water or service valves as applicable and relieve system pressure per manufacturer instructions
• Inspect surrounding fittings and seals; replace any damaged components to prevent leaks

This assembly combines the refrigerator's internal water reservoir (tank) with its attached tubing to deliver chilled water to the dispenser. Replace a cracked or leaking tank to restore proper water flow and prevent leaks inside the fresh food compartment. What it does:

• Stores a reserve of water so dispensed water is cooled
• Routes water through the dispenser circuit via the attached tubing
• Typical failure symptoms: slow or no water from the dispenser, leaks or puddles inside the refrigerator, visible cracks or bulging in the tank
• Corrects issues caused by a frozen/split reservoir or brittle tubing

• One water tank with attached tubing assembly

• Unplug the refrigerator and shut off the water supply before servicing
• Access is typically behind the lower rear interior panel; remove drawers/shelves as needed
• Note original tube routing; cut tubing square and fully seat push-in fittings to prevent leaks
• Restore water and power, check connections, and dispense water to purge air from the system

The cold water reservoir is an OEM replacement part for GE refrigerators. It serves a dual purpose, holding the supply of cold water needed for both the ice maker and water dispensing functions. This ensures that each ice cube is formed from chilled water and that cold water is always ready to be dispensed.

Causes of a bad reservoir can include cracks, fractures, or leaks developing in the plastic over time due to repeated filling and draining. Mineral deposits or contamination of the water supply can also compromise performance.

Symptoms of an issue include:

• Inability to fill with water or retain water levels
• Leaking water inside the refrigerator
• Irregular or inconsistent ice production

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
