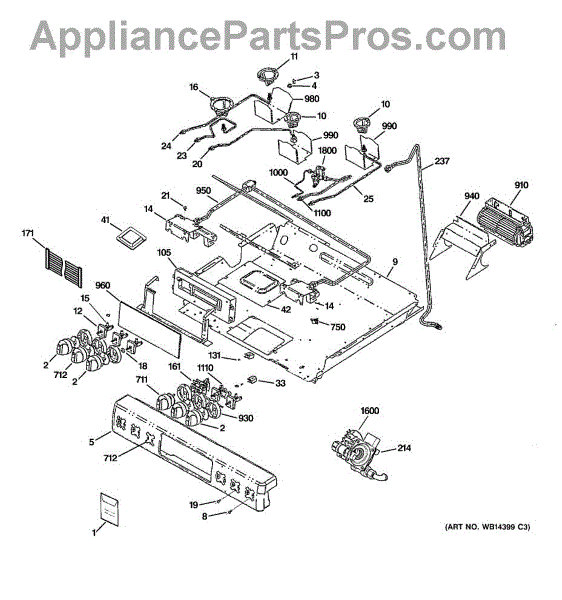

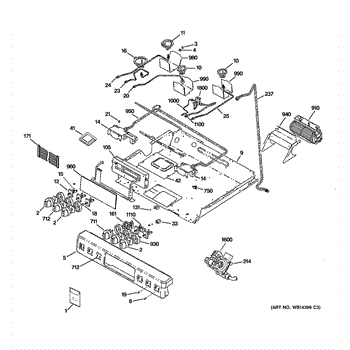

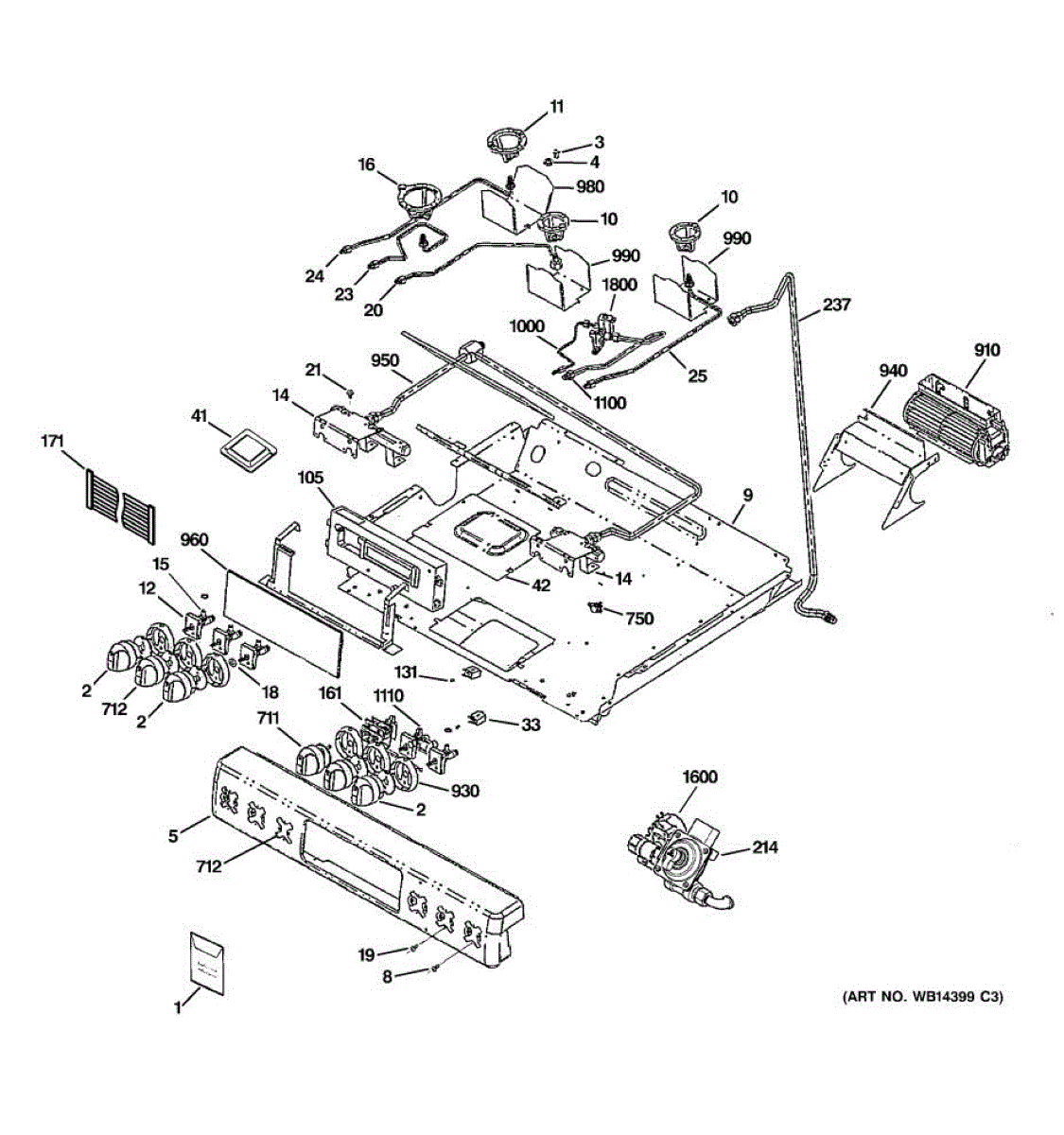

Parts for Ge C2S980SEM3SS: 01 - Gas & Burner Parts

Note: Kit to convert to LP gas

The Knob Assembly is an OEM part for GE gas ranges. The knob regulates cooktop burner temperatures. Color: metallic. It measures about 2 inches in diameter.

Causes relate to unavoidable heat stress and abrasion from everyday cooking tasks gradually wearing down plastic and metal interface points over 10+ years. Regular cleaning chemicals may also degrade markings prematurely.

Symptoms of a bad knob assembly include:

• Loose, wobbly or detached knob disconnecting from valve stem
• Knob difficult to rotate between settings or accidentally changing positions
• Faded or damaged markings inhibiting visual confirmation of settings
• Non-responsive rotation failing to adequately valve gas flow

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Liquid propane. Main burner.

Liquid propane. Simmer burner

Liquid propane

Medium LP orifice

LP gas. SM .63mm

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

A replacement burner valve that controls gas flow to a single cooktop burner, restoring reliable ignition and stable flame performance. Fits compatible GE gas ranges and cooktops where the original burner valve has failed. What it does:

• Regulates gas supply to a single burner so the flame ignites and holds steady
• Helps correct symptoms like a burner that won't light, has a weak flame, or won't respond to control knob changes
• Works as the direct replacement for the OEM burner valve assembly used on affected gas burners

• One valve burner 270 assembly (single valve)

• Turn off gas supply and electrical power before starting any service
• Check all fittings for leaks after installation and follow local codes for gas appliance service
• Do not modify the part; use only with compatible appliance models

This burner valve 270 is the gas control valve used on compatible ranges and ovens to restore regulated gas flow to a single burner assembly, helping the burner light and maintain a steady flame for reliable cooking. What it does:

• Regulates gas flow to the burner so the burner can ignite and hold a steady flame.
• Replaces the worn or leaking valve assembly that controls gas delivery to the burner.
• Interfaces with the range's ignition and gas supply lines; correct orientation and sealing are required.

• Always shut off both the appliance power and the gas supply before beginning service.
• Use proper fittings and replace any damaged tubing, gaskets, or seals; test all connections for leaks with an approved leak-detection method after installation.

This surface burner valve regulates gas flow to a high-output burner, restoring smooth flame control and dependable lighting. Replacing a worn valve helps ensure safe operation and precise adjustment across the full flame range.

• Controls and shuts off gas to a surface burner for safe, reliable operation
• 270° Hi-Cap configuration specified for high-output burner positions
• Restores smooth knob action and consistent flame adjustment
• A failing valve may cause no flame or weak flame, poor flame control, a hard-to-turn/spinning knob, or gas leakage at the valve

• Disconnect power and shut off the gas supply before servicing
• Note and match all manifold/tubing connections during removal and installation
• Use an approved gas-rated thread sealant where specified and tighten fittings to manufacturer guidelines
• After installation, leak-test all connections with a soap solution; verify ignition and full flame adjustment before use

This Range Cooktop Bracket secures the main top to the appliance frame for a tight, stable fit. Replacing a bent or missing bracket can correct a loose, misaligned, or rattling cooktop and help it sit flush.

• Secures the main cooktop to the chassis to prevent lifting or shifting during use
• Helps maintain proper alignment and a flush fit with surrounding trim
• Common symptoms include a loose or uneven cooktop, rattling, or visible gaps
• Useful when the original hold-down bracket is bent, missing, or damaged

• Disconnect power; for gas ranges, shut off the gas supply before servicing.
• Support the cooktop while replacing the bracket; beware of sharp edges.
• Reuse manufacturer-specified fasteners where applicable and tighten securely without overtightening.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This orifice holder secures the burner orifice for the right-rear cooktop burner, restoring correct gas flow for consistent ignition and flame performance. Use when a burner shows weak flame, uneven heating, or fails to light. What it does:

• Holds the gas orifice in the correct position under the burner for stable flame shape and output
• Helps restore reliable ignition and consistent burner heat when the orifice or mount is damaged or loose
• Prevents misalignment that can cause sputtering, low flame, or burner blowouts
• Works with the burner head and cap as part of the gas delivery assembly

• One right-rear orifice holder

• Turn off gas supply and electrical power to the appliance before servicing
• Remove burner cap and head to access the orifice holder; replacement typically requires basic hand tools
• Reinstall carefully and check for proper alignment; after reassembly, check for gas leaks with a leak-detection solution (do not use an open flame)

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This electronic oven control manages the oven's functions and user interface so you can set bake, broil, timer, and clock functions reliably. Replaces a failed control to restore normal oven operation and display feedback. What it does:

• Regulates oven heating cycles and timing for bake, broil, self-clean, and timer functions
• Provides the front-panel display and control inputs for selecting modes and settings
• Fixes symptoms like unresponsive controls, blank or error displays, or ovens that won't start heating
• Works with the oven's wiring harness to send commands to broil/bake elements and safety systems

• Disconnect power to the appliance at the breaker before replacing the control
• Handle the control by its edges and avoid touching circuit contacts or components
• Photograph or label wiring before disconnecting to ensure correct reconnection

This replacement indicator light lens covers the lamp opening on the control panel, protecting the opening while keeping the ON indicator easy to see. Replacing a cracked or missing lens restores visibility and a finished look.

• Covers and protects the indicator lamp opening in the panel
• Diffuses light so the appliance's ON status is easy to see
• Helps keep dust, grease, and moisture out of the control area
• Common signs to replace: lens cracked, missing, cloudy/discolored, or won't stay seated

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the panel area; release the old lens tabs or retainer from the back side and remove
• Align and press the new lens fully into the opening until it sits flush
• Restore power and verify the indicator illuminates correctly

This oven thermostat monitors and regulates oven temperature so your range maintains consistent baking and roasting results. It replaces a failed or inaccurate thermostat to restore proper oven temperature control. What it does:

• Senses oven temperature and signals the heating element or burner to cycle on and off
• Helps correct ovens that run too hot, too cold, or have inconsistent temperatures
• Restores temperature regulation for better baking and cooking performance
• Works with oven control systems that use a mechanical/electromechanical thermostat

• 1 oven thermostat

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Access may require removing the oven control panel or inner back panel; follow your model's service manual
• Replace with the exact part number shown on your appliance or parts list to ensure fit and function

This pressure regulator controls and stabilizes the incoming gas supply to your range/oven's manifold, delivering steady burner flames and consistent oven heat. Replace a failed regulator to correct weak flames, surging, or erratic heating performance.

• Regulates incoming gas line pressure to the appliance manifold for proper operation
• Helps address symptoms such as low heat, yellow/orange flames, surging/lifting flames, or burners that won't stay lit
• Supports consistent oven temperatures by maintaining stable fuel pressure
• Typically located where the gas supply enters the rear of the range

• Shut off gas supply and disconnect electrical power before servicing
• Orient the regulator's flow arrow toward the appliance/manifold
• Use a gas-rated thread sealant on tapered pipe threads; do not overtighten
• After installation, leak-test all connections with an approved solution—never with an open flame

Color: stainless steel. It measures about 2 inches in diameter.

This knob assembly replaces a damaged or missing control knob so you can reliably turn the appliance's control shaft and select settings. A new knob restores proper fit, smooth operation, and a clean, like-new appearance.

• Attaches to the control shaft to adjust temperature, burner, or other settings
• Restores a secure fit and consistent feel while turning the control
• Replaces cracked, stripped, or missing knobs to bring back precise control
• Common symptoms: knob broken, wobbly, spins without turning the shaft, or falls off

• Disconnect power; for gas appliances, also shut off the gas supply
• Pull the old knob straight off the shaft—do not pry against the panel
• Align the new knob with the shaft and press straight on until fully seated
• Test knob operation to ensure smooth turning and proper engagement

This bimetal limit thermostat is a safety temperature cutoff that stops heat when an oven or range overheats, helping protect the appliance and prevent further damage. It replaces a failed thermal cutoff that won't reset or maintain safe temperatures. What it does:

• Opens the circuit to the oven heating system when internal temperature exceeds safe limits
• Helps prevent overheating and reduces risk of heat-related component failure
• Common symptom: oven heats inconsistently or will not come up to temperature
• Common symptom: oven elements or burners remain off after an overheat event

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Access typically requires removing the oven back panel or control housing; follow OEM service instructions.
• Replace only with the exact part number; do not attempt to modify or bend the thermostat.

The Blower Motor is an OEM part for GE ranges. Within the oven cavity, it circulates air to help distribute heat evenly for thorough cooking.

Causes of a bad Blower Motor include wear from long term use, residue buildup on fan blades inhibiting air movement, or electrical issues such as loose wiring connections or a burned out motor coil.

Symptoms of a bad Blower Motor are:

• Inconsistent or improper baking and broiling
• Hot and cold spots inside the oven cavity
• Extended cooking times needed for foods

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Skirt is an OEM replacement part for GE cooktops and ranges. It is a trim piece designed to enhance the aesthetic appearance of the appliance and provide a secure fit around the cooktop or burner area. This part also helps protect internal components by covering gaps and exposed areas.

Causes of a damaged skirt can include accidental impact, heat-related wear, or improper cleaning methods. Over time, the material may warp, crack, or become discolored, detracting from the appliance’s appearance and functionality.

Symptoms of a bad skirt include:

• Visible cracks, chips, or warping
• Loose or detached trim around the cooktop
• Gaps exposing internal components
• Difficulty securing the skirt in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This glass/touch board assembly replaces a cracked or unresponsive front glass control panel and touch controls, restoring a clean surface and reliable input for affected GE appliances. What it does:

• Replaces the front glass and integrated touch/control interface used to select functions and settings.
• Restores responsive touch input when the original glass or touch surface is cracked, chipped, or unresponsive.
• Resolves common symptoms like unregistered touches, intermittent control response, or visible glass damage.
• Works with the existing connector and mounting points to integrate with the appliance's control electronics.

• Disconnect power at the breaker or unplug the appliance before beginning any work.
• Handle the glass carefully to avoid cuts and prevent damage to the new assembly.
• Inspect and reconnect wiring harnesses and grounding per the service manual; ensure connectors are fully seated.
