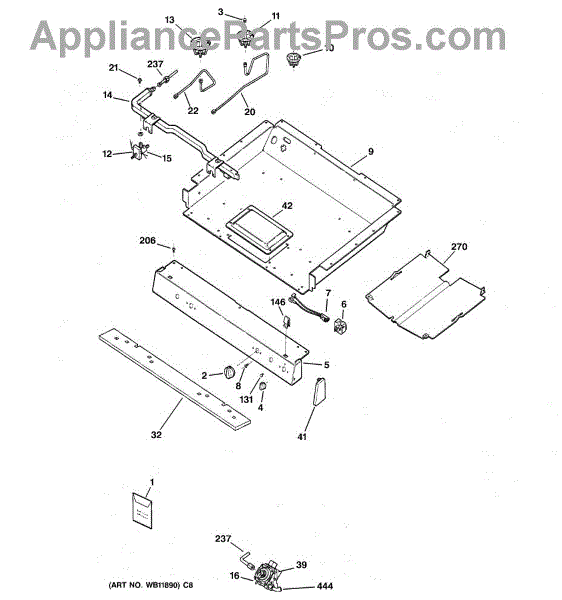

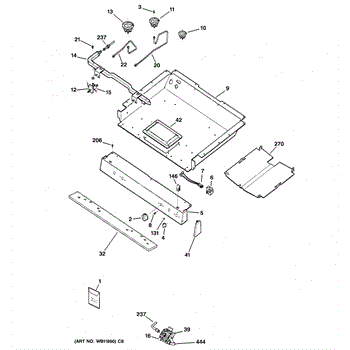

Parts for Ge J2B900BEF1BB: 01 - Gas & Burner Parts

This knob kit replaces worn or broken range/cooktop control knobs, restoring a secure fit and clear control of your burner or oven settings while refreshing the appliance's factory look.

• Replaces damaged or missing control knobs for surface burners or oven controls
• Restores accurate selection of heat/flame and positive "Off" alignment
• Common symptoms: cracked or stripped knob, loose/slipping knob, faded/illegible indicators, knob falls off
• Press-fit design provides smooth operation when turning the control shaft

• Disconnect power or shut off gas and allow the appliance to cool before servicing
• Pull the old knob straight off the control shaft; avoid prying against the control panel
• Align the new knob with the stem orientation and press straight on until fully seated
• Match each knob to its original location and verify smooth operation

Natural gas. Med 1.50mm

Natural gas. SM 1.07mm

Natural gas. LG 1.68mm

LP Gas. LG .99mm

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP gas. SM .63mm

Size: 8 - 32 inch.

Small

Restore smooth, controllable flame on a gas cooktop burner. This surface burner valve regulates gas flow to an individual top burner, allowing precise adjustment from low simmer to full boil and helping stop leaks when turned off.

• Controls gas flow to one surface burner
• Common failure signs: burner won't light or is very weak, knob turns hard or feels loose, gas odor at the valve, flame will not adjust smoothly
• Helps ensure reliable ignition and steady flame once replaced

• Disconnect gas and power before servicing; ventilate the area if gas odor is present
• Label and transfer the knob shaft orientation and any mounting hardware from the original
• Check and reuse the correct orifice and inlet fittings from the old valve if required by your model
• After installation, perform a leak check on all connections with approved leak-detection solution

Rear Burner Tube

Left rear

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

The Left Front Burner Tube is an OEM part for GE ranges and cooktops, specifically engineered to ensure the efficient and safe delivery of gas to the left front burner. This component plays a pivotal role in the appliance's cooking performance, allowing for precise flame control and even heat distribution. Designed to fit perfectly with GE models, this burner tube is crucial for maintaining optimal functionality and safety during cooking.

The causes of these issues can vary, including blockages within the tube, wear and tear over time, or damage that can occur from cleaning or accidental impacts. Regular inspection and cleaning can help prevent blockages, but if wear or damage is evident, replacement of the burner tube is necessary to maintain the range's performance and safety.

Symptoms of a malfunctioning Left Front Burner Tube include:

• Inconsistent flame size or strength on the left front burner
• Difficulty lighting the burner or it failing to light at all
• A noticeable gas odor when attempting to use the burner, indicating potential leaks

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Right Front Burner Tube is an OEM part for GE ranges and cooktops, specifically designed to deliver gas to the right front burner, ensuring efficient and even cooking. This component is essential for the proper operation of the gas burner, facilitating the precise control of flame size and temperature. The burner tube's role is crucial for achieving the desired cooking results, whether you're simmering, boiling, or frying.

The causes for these issues often include clogs from food spills or debris, corrosion over time, or physical damage to the tube that can affect gas flow. Regular cleaning and maintenance of the burner and its components can help prevent some of these issues, but wear and tear over time may necessitate the replacement of the burner tube.

Symptoms of a malfunctioning Right Front Burner Tube include:

• The right front burner producing a weak or uneven flame
• Difficulty lighting the right front burner
• The burner flame going out unexpectedly
• A noticeable gas smell when the burner is turned on, indicating a potential leak

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Size: 10-32 GXTT FLP.595 S
