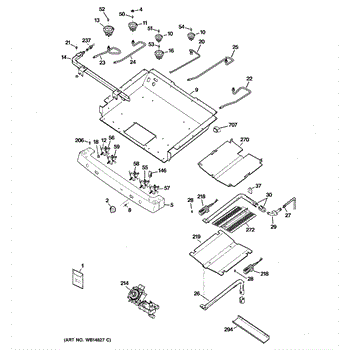

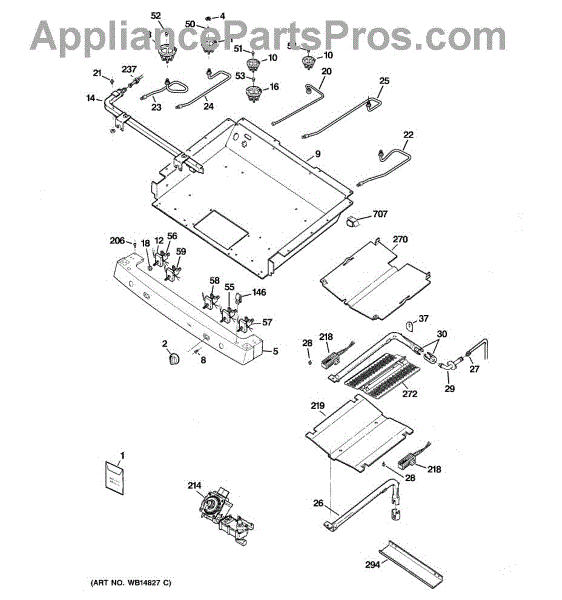

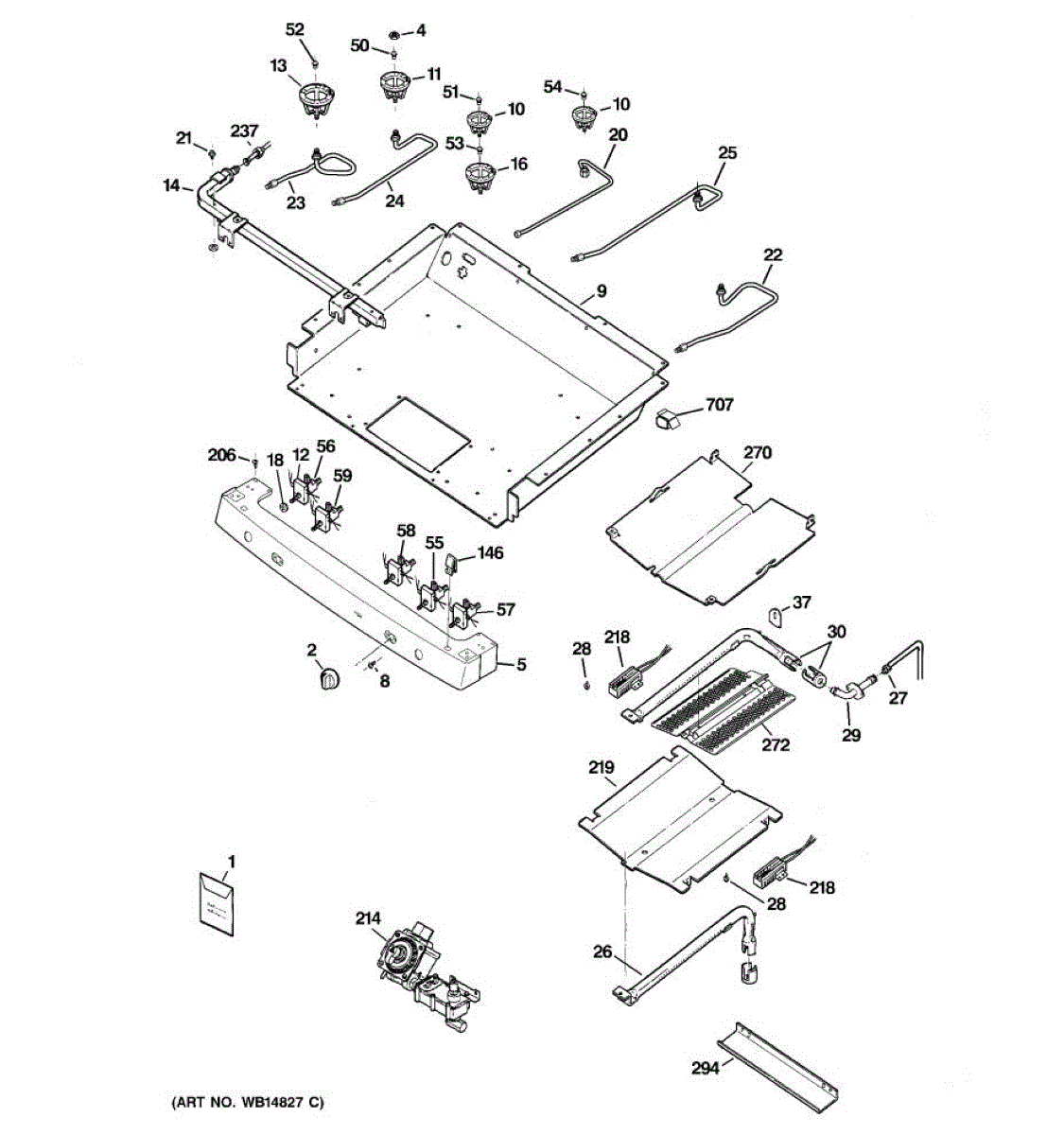

Parts for Ge JGB810DEP1BB: 01 - Gas & Burner Parts

Color: White

Color: Black

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This manifold panel is the front trim piece that covers and supports the control and valve area on compatible ranges. It restores the cooktop's finished appearance and helps protect underlying components from spills and debris. What it does:

• Covers the front of the manifold and provides a finished trim around controls
• Protects valves, wiring, and connections from food, grease and spills
• Helps align control knobs and switch components for proper operation
• Restores proper fit-and-finish after repair or replacement of manifold components

• Disconnect power and shut off the gas supply before starting work.
• Remove burner grates and control knobs to access mounting screws; keep hardware for reuse unless replacement is required.
• Handle the panel carefully to avoid scratching the finish; support underlying components while removing/replacing.

Size: 8 - 32 inch.

Burner box for gas ranges. Installs beneath the cooktop to house burner components. Replace if cracked, warped, rusted, or damaged from heat exposure.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mou

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and suppor

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Secures the cooktop to the range frame. Replace this bracket if it's bent, broken, or missing to restore proper alignment and eliminate rattling.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Replace your damaged or missing range orifice holder assembly. This structural component secures the burner orifice in place. Order today if cracked or broken.

This orifice holder secures the gas orifice in your range burner assembly. Replace it if cracked, broken, or missing to properly mount the orifice.

Fix an oven that won't heat, takes too long to preheat, or makes a whoosh sound when lighting. This bake burner assembly includes the igniter. DIY repair.

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

LP orifice spud meters liquid propane gas to your range burner. Replace when converting from natural gas to LP or if the jet is worn or incorrect.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

Fix burners that won't light, stay lit, or shut off completely with this gas control valve. Regulates flow to a single burner for steady flames and safe cooking.

Burner won't shut off or has weak flame? This top burner valve controls gas flow to restore proper ignition and flame adjustment on your range.

Fix a burner that won't light or shut off completely with this gas range top burner valve. Controls gas flow to restore reliable ignition. DIY repair.

Fix burners that won't light, stay lit, or shut off completely with this gas control valve. Regulates flow to a single burner for steady flames and safe cooking.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Gas valve control assembly for ranges. Manages gas flow to burners and allows precise flame adjustment. Replace if worn, leaking, or damaged to restore control.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

Burner deflector guard for gas ranges. Installs around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

Secures and routes wiring in your range. Replace if loose, broken, or wiring is exposed. Verify fit with your model number before ordering.
