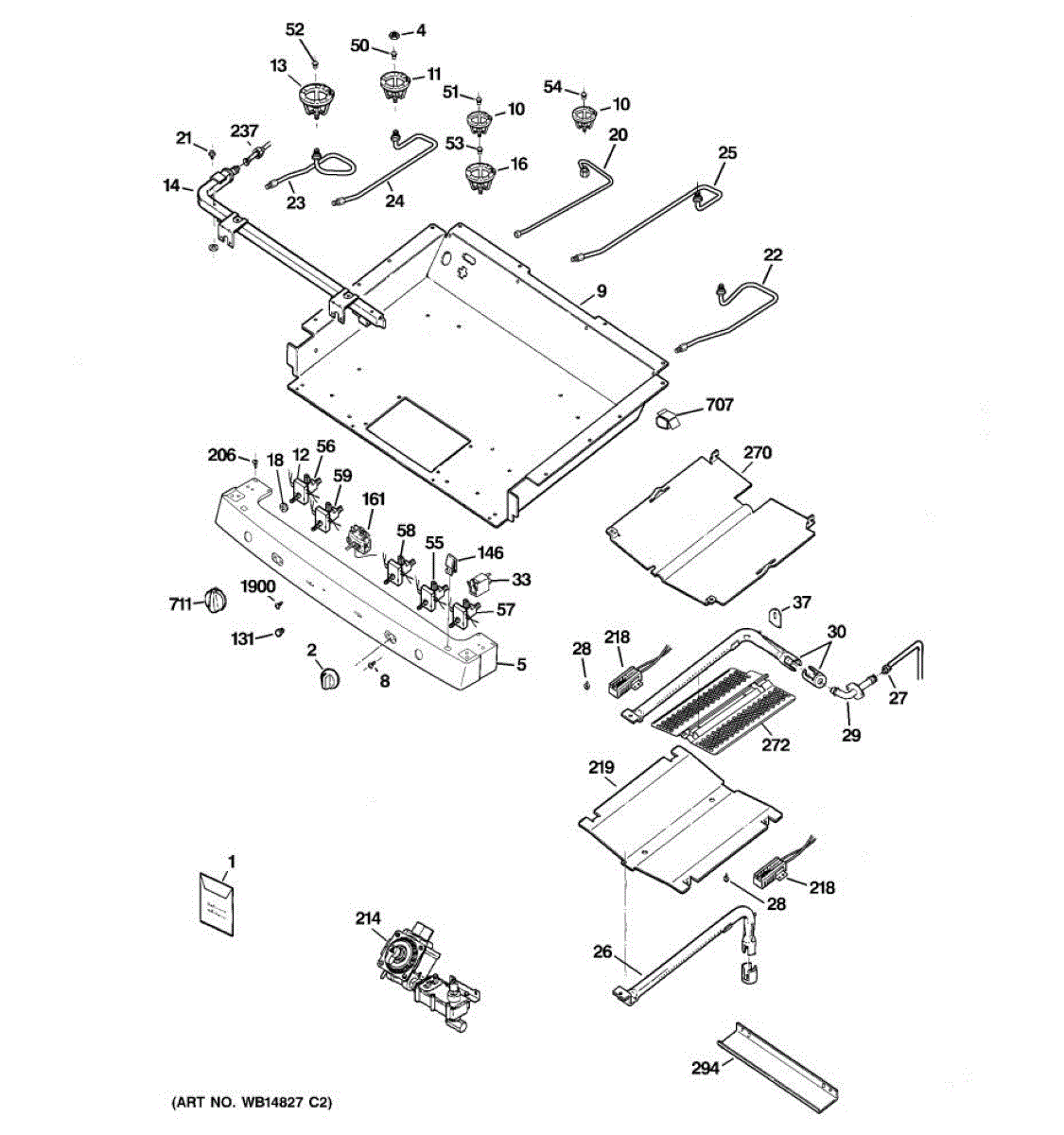

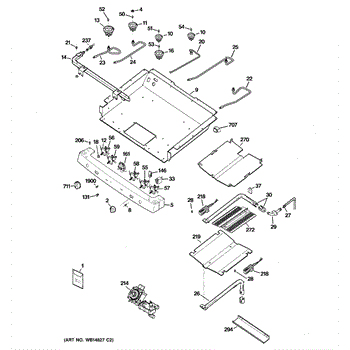

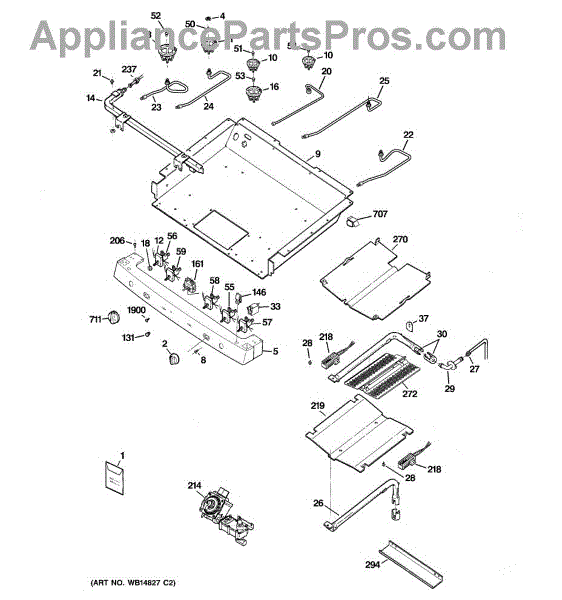

Parts for Ge JGB820DEP1BB: 01 - Gas & Burner Parts

White control knob for range burner valves. Replaces cracked, broken, or missing knobs. Installs on the control panel for precise temperature control.

Black control knob for range burner or oven settings. Installs on the control panel. Replace if cracked, broken, worn, or missing for proper appearance.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This OEM manifold panel replaces the front surface burner control panel that houses the burner valves and knob openings, restoring proper alignment and a finished appearance to the cooktop. Fits gas cooktop/range applications using this factory panel. What it does:

• Provides the mounting surface and openings for surface burner valves and control knobs
• Restores correct valve alignment and knob fit when the original panel is cracked, bent, or dented
• Helps prevent gas valve misalignment that can cause difficult knob operation or improper burner control
• Improves cooktop appearance by replacing a damaged or worn front control surface

• Manifold panel (1)

• Disconnect power to the range and shut off the gas supply before starting any service
• Remove grates, burner caps, and control knobs to access the panel; some models require removing the cooktop or backguard
• Handle with care to avoid bending the panel or damaging valve shafts; verify valve stems align with knob openings before reassembly

Phillips head mounting screw for range control knobs and switches. Replaces lost, stripped, or damaged screws. 8-32 thread size for secure installation.

Burner box for gas ranges. Installs beneath the cooktop to house burner components. Replace if cracked, warped, rusted, or damaged from heat exposure.

Small mounting bracket secures components beneath your cooktop surface. Replace if damaged, bent, or missing to restore proper alignment and stability.

Secures the electronic board or module inside your cooktop. Replace if the bracket is cracked, bent, or missing to prevent component movement and wiring issues.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Secures the cooktop to the range frame. Replace this bracket if it's bent, broken, or missing to restore proper alignment and eliminate rattling.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Replacement mounting screw for securing range components and panels. Needed when original screws are stripped, lost, or corroded during repairs.

This orifice holder secures the gas orifice in your range burner assembly. Replace it if cracked, broken, or missing to properly mount the orifice.

Fix an oven that won't heat, takes too long to preheat, or makes a whoosh sound when lighting. This bake burner assembly includes the igniter. DIY repair.

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

LP orifice spud meters liquid propane gas to your range burner. Replace when converting from natural gas to LP or if the jet is worn or incorrect.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

Fix burners that won't light, stay lit, or shut off completely with this gas control valve. Regulates flow to a single burner for steady flames and safe cooking.

Burner won't shut off or has weak flame? This top burner valve controls gas flow to restore proper ignition and flame adjustment on your range.

Fix a burner that won't light or shut off completely with this gas range top burner valve. Controls gas flow to restore reliable ignition. DIY repair.

Fix burners that won't light, stay lit, or shut off completely with this gas control valve. Regulates flow to a single burner for steady flames and safe cooking.

Covers and protects the indicator lamp opening on your range control panel. Replace when cracked, discolored, or missing to restore visibility. Confirm fit with your model number.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Gas valve control assembly for ranges. Manages gas flow to burners and allows precise flame adjustment. Replace if worn, leaking, or damaged to restore control.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

Oven won't heat or takes forever to reach temperature? This igniter creates the spark to ignite gas for baking. DIY-friendly repair, 20-30 minutes.

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

Burner deflector guard for gas ranges. Installs around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

Secures and routes wiring in your range. Replace if loose, broken, or wiring is exposed. Verify fit with your model number before ordering.
