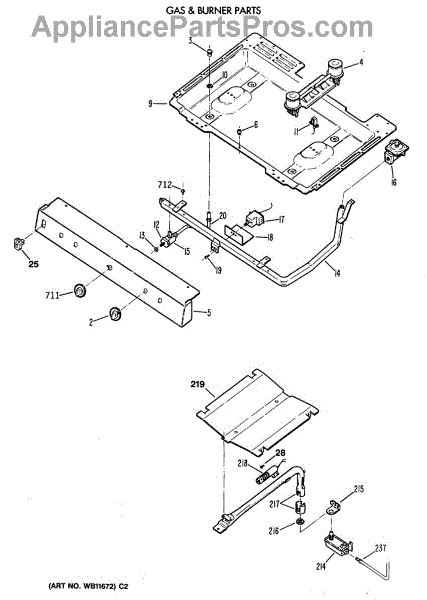

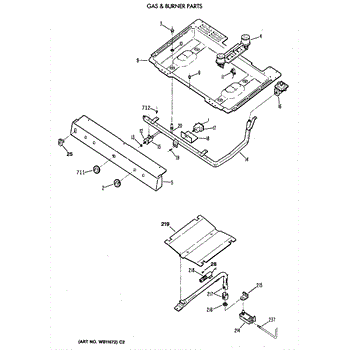

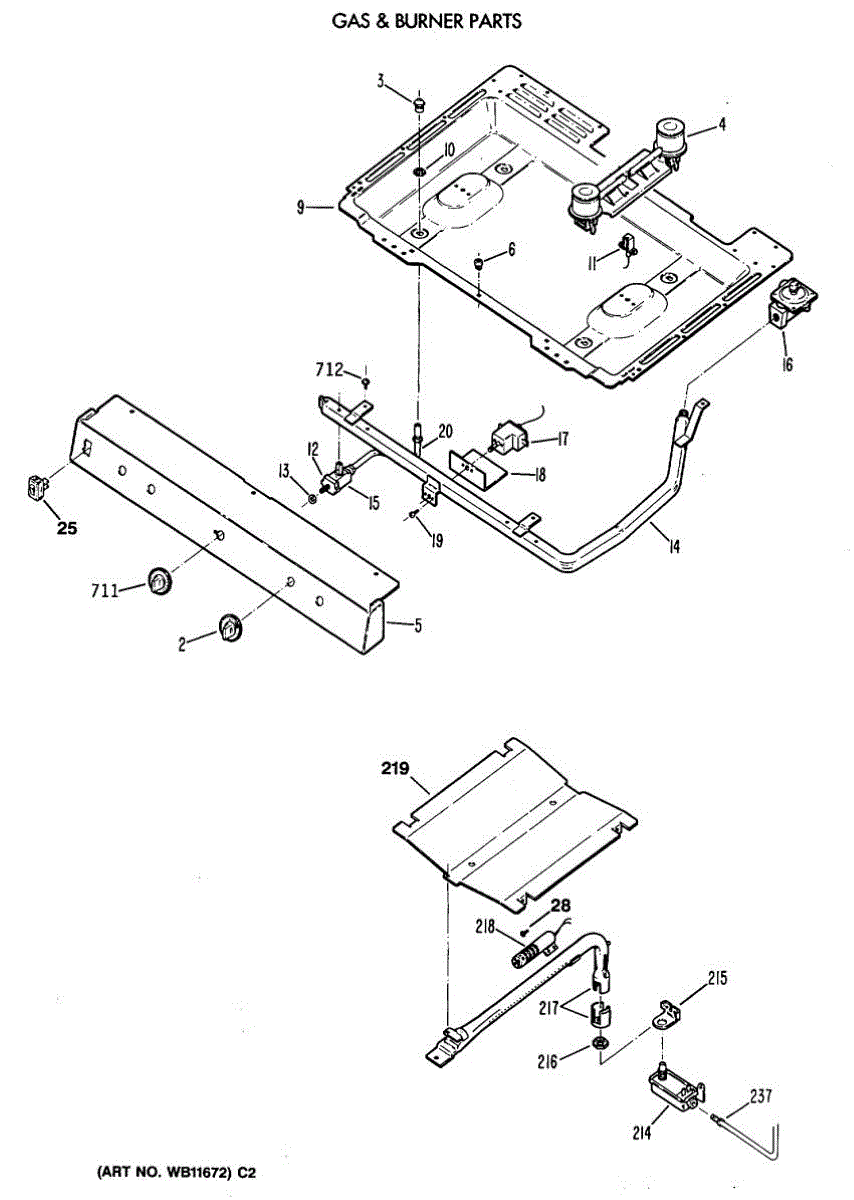

Parts for Ge JGBC17EV3AD: 01 - Gas & Burner Parts

Replacement orifice spud that threads into the cooktop surface burner holder to meter gas flow. Needed when converting fuel types or replacing worn parts.

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Burner won't light when you turn the knob? This spark electrode creates the electric arc that ignites your gas burner. Straightforward DIY repair.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Reduces and stabilizes gas supply pressure to your range manifold. Replace if cracked, leaking, or damaged to restore safe, consistent gas flow to burners.

Oven not reaching set temperature or won't turn off? The thermostat regulates oven heat. DIY repair typically takes 30-60 minutes with basic tools.

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Right rear.

Color: Black

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Strain relief cable retainer for ranges. Secures and protects electrical wiring at connection points. Replace if cracked, broken, or missing.

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Gas won't flow to burner or oven won't light? Safety valve controls gas flow to the burner assembly. Common fix when igniter glows but oven won't ignite.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

This tube routes water from the refrigerator's water valve to the dispenser or ice system, restoring proper water flow and stopping leaks when a cracked or clogged supply tube is the issue. Easy direct replacement for affected lines. What it does

• Carries water from the valve to the dispenser or ice maker so the appliance can fill and dispense properly.
• Commonly replaced when you see leaks at fittings, a puddle under the fridge, or a visibly cracked or split tube.
• Can restore normal water flow when the line is pinched, kinked, or partially obstructed.
• Works with factory fittings and clamps used on the valve-to-ice maker/dispenser connection.

• Turn off the refrigerator's water supply and unplug the appliance before starting; drain remaining water from the line.
• Inspect fittings for damage; loosen or remove existing clamps/fittings to swap the tube, then secure new tube and clamps to prevent leaks.
• After installation, restore water and power, check all connections for leaks, and run the dispenser/ice maker briefly to confirm proper flow.

Mounting screw for electric wall ovens, gas ranges, and refrigerators. Replaces lost, stripped, or damaged screws used to secure panels and components.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.
