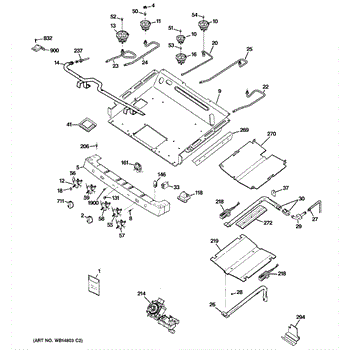

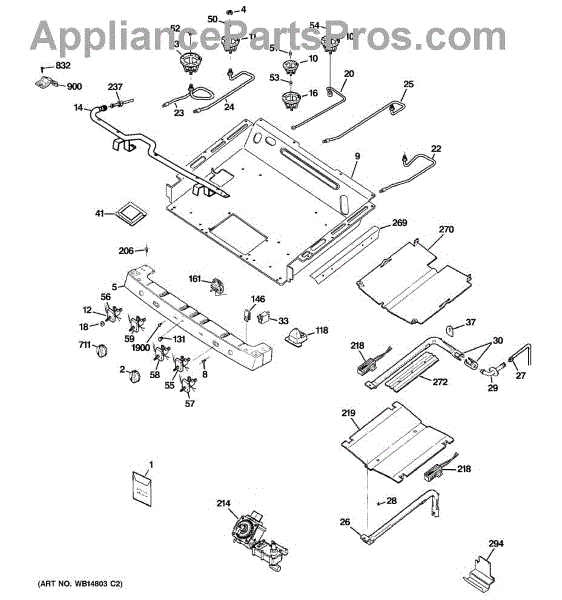

Parts for Ge JGBP89DEM3WW: 01 - Gas & Burner Parts

Color: White

Color: Black

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Round manifold pipe routes gas from the main supply to individual burner valves. Replace if damaged, corroded, cracked, or leaking to restore safe operation.

Secures the cooktop to the range frame. Replace this bracket if it's bent, broken, or missing to restore proper alignment and eliminate rattling.

Protective cover for your range thermostat. Replaces cracked, broken, or missing covers. Installs on the control panel to shield thermostat components.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Fix a weak or uneven center burner flame with this natural gas orifice and tube assembly. Restores proper fuel flow when the orifice is clogged or worn.

Gas range burner orifice holder directs gas flow from the valve to the stovetop burner. Replace if bent, broken, cracked, or missing for proper assembly.

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

This elbow is the oven broil element elbow piece that directs and secures the broil element connection, helping restore proper broil function and alignment for safe, even heating in the oven cavity. What it does:

• Provides the correct elbow connection for the high broil element assembly
• Keeps the broil element positioned and secured for reliable heating
• Helps prevent misalignment that can cause uneven broiling or element contact
• Commonly replaced when the elbow is cracked, broken, or no longer holds the element

• Disconnect power to the appliance before any service to avoid shock hazard
• Handle the broil element and elbow carefully; wear gloves to protect against sharp edges
• Inspect surrounding mounting hardware and element for damage; replace additional parts if necessary

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

LP orifice spud meters liquid propane gas to your range burner. Replace when converting from natural gas to LP or if the jet is worn or incorrect.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

This 270° burner valve controls gas flow to a single surface burner, restoring reliable flame adjustment and ignition on compatible gas ranges. Designed as a direct replacement to regain proper low-to-high flame control. What it does:

• Regulates gas flow to one surface burner for precise flame control across the full 270° rotation.
• Works with the control knob to adjust flame from low to high for cooking needs.
• Commonly replaces valves that cause a burner not to light, produce a weak or uneven flame, or not respond to the knob.
• Matches OEM function and mounting style for direct replacement where specified.

• Turn off the appliance power and shut off the gas supply before servicing.
• Check all gas fittings for tightness and test for leaks after installation using an approved leak-test method.
• Do not modify the valve or gas connections; follow OEM service instructions and local codes for gas appliances.

Burner won't turn off or leaks gas when off? This top burner valve regulates gas flow to your range burner. DIY-friendly repair restores flame control.

Covers and protects the indicator lamp opening on your range control panel. Replace when cracked, discolored, or missing to restore visibility. Confirm fit with your model number.

Oven not heating to correct temperature? This range oven thermostat regulates heat precisely. Direct replacement for common temperature control issues.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Gas valve control assembly for ranges. Manages gas flow to burners and allows precise flame adjustment. Replace if worn, leaking, or damaged to restore control.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.
