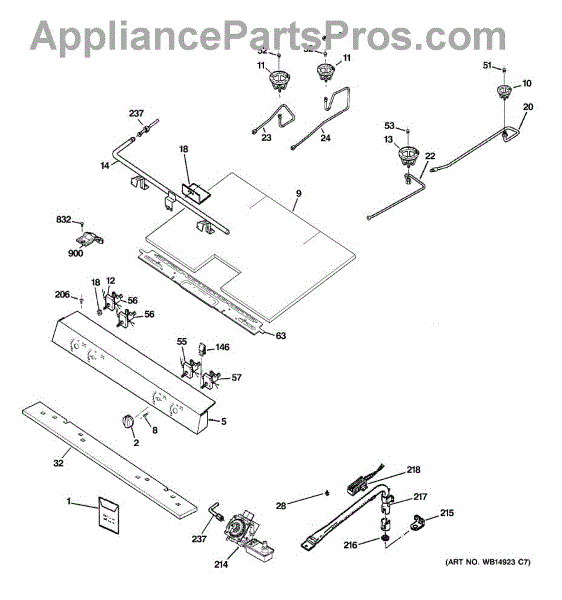

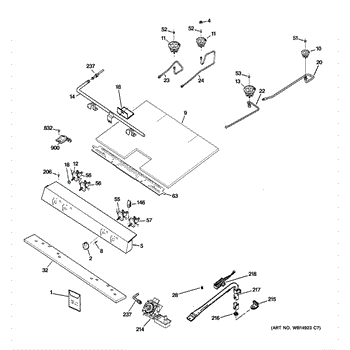

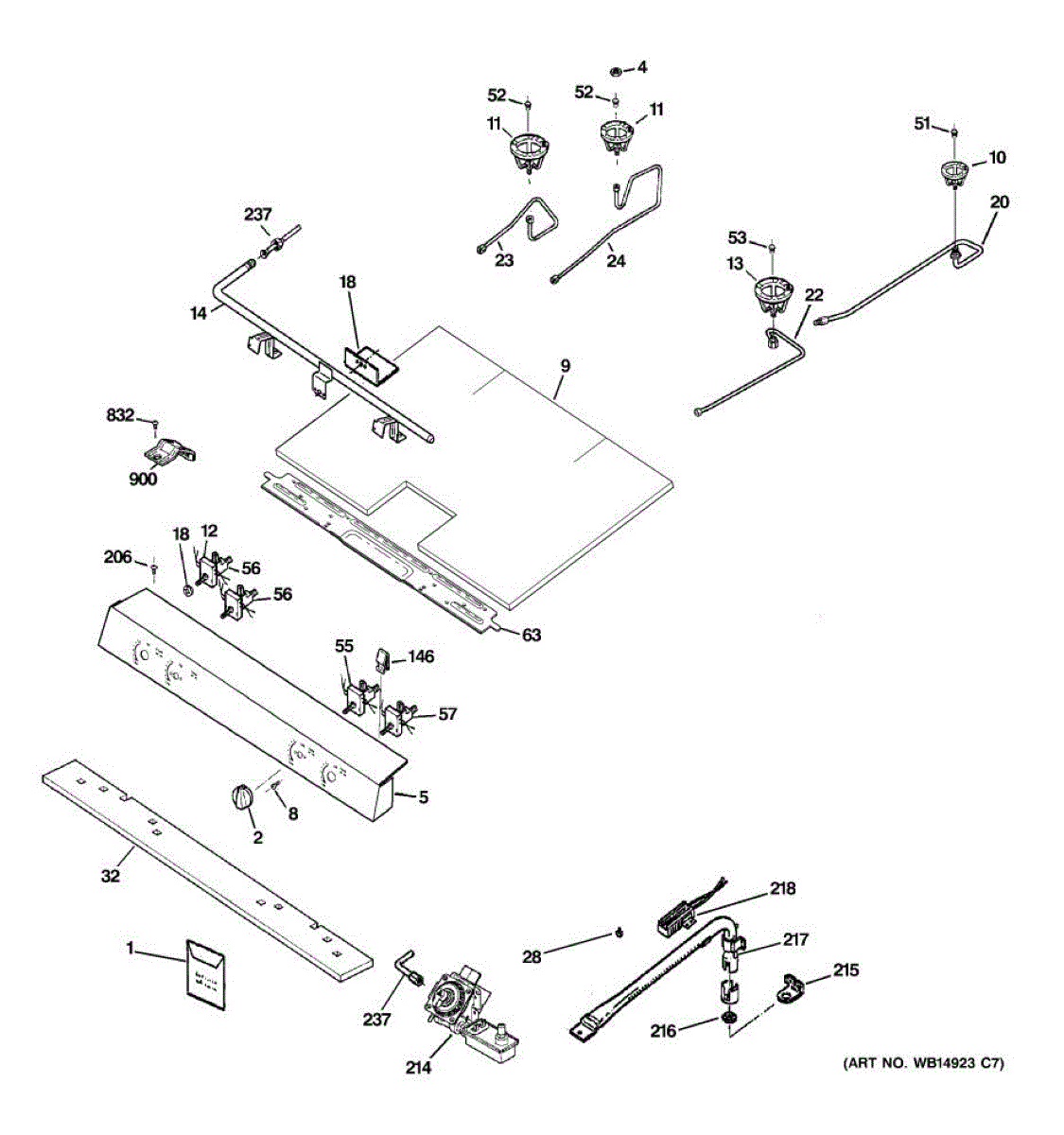

Parts for Ge JGBS23SET2SS: 01 - Gas & Burner Parts

The Mini Valve Knob is an OEM replacement part for GE ovens and ranges. This small but crucial component allows users to control the oven's gas flow or temperature settings with precision. The knob fits onto the valve stem and provides a user-friendly interface for adjusting cooking settings.

You should replace the mini valve knob if it becomes worn, cracked, or damaged. Causes of a bad valve knob can include regular use, physical damage from accidental impacts, or exposure to high temperatures that can cause the plastic to degrade.

Symptoms of a bad Mini Valve Knob include:

• The knob not turning smoothly or becoming stuck
• Cracks or breaks in the knob
• Difficulty in adjusting the gas flow or temperature settings
• The knob slipping or not fitting securely on the valve stem

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This rotary switch replaces a worn or failed control selector to restore reliable function selection. It provides a direct, mechanical interface for choosing settings so controls respond properly when the knob is turned. What it does:

• Routes user input from the control knob to the appliance's control circuits
• Restores reliable selection when a knob won't change settings or clicks without engaging
• Stops intermittent or no-response behavior caused by worn switch contacts
• Supports normal operation of the affected control bank or function

• Disconnect power (unplug or switch off breaker) before starting any work
• Label or photograph wiring before removal to ensure correct reconnection
• Access may require removing a control panel or trim; keep fasteners and small parts organized
• After installation, restore power and verify all functions operate as expected

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This rear orifice holder mounts beneath the cooktop to route gas from the valve to the rear surface burner. It positions the orifice correctly for reliable ignition and a stable, even flame at the rear burner.

• Channels gas from the valve through the orifice to the rear surface burner
• Aligns and supports the orifice spud for proper flame shape and height
• Helps address delayed ignition, weak/uneven or yellow flames at the rear burner
• A damaged or loose holder can contribute to clicking without lighting or a gas odor near the burner

• Shut off gas supply and power; allow the cooktop to cool before servicing
• Remove grates, burner caps/heads, and lift or release the cooktop to access the manifold area
• Detach the old holder from the valve and mounting points; note orientation and transfer the existing orifice spud to the new holder
• Reassemble, restore gas, and check all connections for leaks with a soapy-water solution; verify proper ignition and flame

This front orifice holder sits under the cooktop's front burner, channeling gas from the control valve through the orifice to the burner head. Replacing a damaged holder restores proper flame and dependable ignition on the front burner position.

• Channels gas from the valve to the burner head and secures the orifice spud in place
• Maintains correct alignment and seal for consistent flame size and distribution
• Helps resolve issues like front burner not lighting, repeated clicking without ignition, or weak/uneven flame
• Designed for the designated front burner position per the model's gas manifold layout

• Shut off gas supply and disconnect power; allow the appliance to cool before servicing
• Remove grates, caps, and burner head; lift or open the cooktop as required for access
• Transfer the existing orifice spud and mounting hardware to the new holder; tighten fittings and check with an approved leak-detection solution
• Test ignition and flame; adjust only per manufacturer instructions

The Front Orifice Holder is an OEM part for GE gas ranges and cooktops. This part holds the gas orifice in place at the front burner. This part is essential for the proper delivery and distribution of gas to the burner, facilitating precise flame control and consistent cooking performance.

Causes for issues with the orifice holder often involve normal wear and tear, exposure to high temperatures and cooking spills, or physical damage during cleaning or maintenance activities.

Symptoms of a malfunctioning Front Orifice Holder include:

• Inconsistent flame size or shape at the burner
• Difficulty igniting the burner or experiencing uneven heating
• Signs of damage or corrosion on the holder itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Orifice Holder is an OEM part for GE gas ranges. This part holds the orifice that regulates the flow of gas to the rear burner, ensuring proper gas distribution and efficient burner operation.

Causes of a bad orifice holder can include wear and tear from regular use, corrosion from exposure to cooking residues, or physical damage.

Symptoms of a bad rear orifice holder include:

• The rear burner not lighting or staying lit
• Uneven or weak flame on the rear burner
• Gas odors around the burner area
• Visible damage or corrosion on the holder

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP gas. SM .63mm

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP Gas. LG .99mm

This 270° burner valve controls gas flow to a single cooktop or range burner, restoring predictable flame adjustment and reliable ignition so you can cook safely and accurately. What it does:

• Regulates gas flow to the burner so flame height responds to the control knob
• Enables proper ignition and consistent flame during use
• Common symptoms indicating a faulty valve: burner won't light, flame stays too low or high, or burner only lights intermittently
• Stops gas flow when set to off to help prevent unintended flow

• One 270° burner valve

• Turn off gas supply and power to the appliance before replacing the valve
• Use appropriate wrenching tools and avoid torqueing valve fittings; follow OEM torque guidance if available
• After installation, check all connections for leaks (soap-and-water test) and verify correct burner operation

This surface burner valve (270-degree) controls gas flow to a single cooktop/range burner. Replacing a worn valve restores smooth flame control and reliable shutoff when you turn the burner knob.

• Regulates and shuts off gas to one surface burner
• Addresses a stiff or hard-to-turn valve shaft
• Can correct a condition where the burner continues to flame after the knob is turned off

• Disconnect power and shut off gas supply before servicing
• Note valve orientation; transfer the orifice spud and any mounting hardware from the old valve if applicable
• Use approved thread sealant on pipe threads as required; do not use sealant on flare connections
• After assembly, leak-check all connections with a non-corrosive leak-detection solution—never with an open flame

This surface burner valve controls gas flow to a range or cooktop's top burner. The 270-degree design restores precise flame control and reliable shutoff when the original valve becomes worn, leaks, or is difficult to turn.

• Regulates gas from the manifold to the surface burner
• Provides positive on/off shutoff for the burner
• Works with the control knob to set and maintain flame size
• Common signs of failure: stiff or loose knob action, inconsistent flame adjustment, gas odor near the valve area, or a burner that won't shut off fully

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove the knob and access panel to reach the manifold/valve
• Match the 270-degree orientation to the original valve; transfer existing mounting hardware as needed
• After installation, perform a leak check with an approved bubble solution; if gas odor is present at any time, stop.

The Control Valve Assembly is an OEM replacement part for GE ranges. It plays a key role in regulating gas flow within the oven burners to provide consistent, even heating across various temperature settings. The control valve monitors and controls gas pressure to the oven burners during baking and broiling functions.

Causes of a faulty control valve can include grime or debris deposit buildup on the valve or its components over time, wear and tear on seals from regular oven use, or damage to internal valve parts.

Symptoms of a bad control valve assembly include:

• Inaccurate or fluctuating oven temperatures
• Uneven or inconsistent baking and cooking results
• Failure or inability to ignite the oven burners
• Gas leaks near the control valve or burner areas

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube assembly is the pre-formed gas line that feeds the burner manifold in your gas range or cooktop. Replacing a damaged or leaking tube restores safe, consistent gas flow so burners can ignite and operate properly.

• Routes gas from the appliance inlet/regulator to the burner manifold
• Restores proper gas delivery if the original tube is cracked, kinked, or corroded
• Helps with symptoms such as multiple burners not lighting, weak/uneven flames, or a gas odor near the manifold area
• Pre-bent OEM geometry ensures correct routing and fit

• Shut off gas supply and disconnect power before servicing
• Work in a well-ventilated area; keep open flames and sparks away
• Do not bend or modify the pre-formed tube; ensure flare fittings seat squarely
• After installation, leak-test all connections with an approved leak-detection solution.
